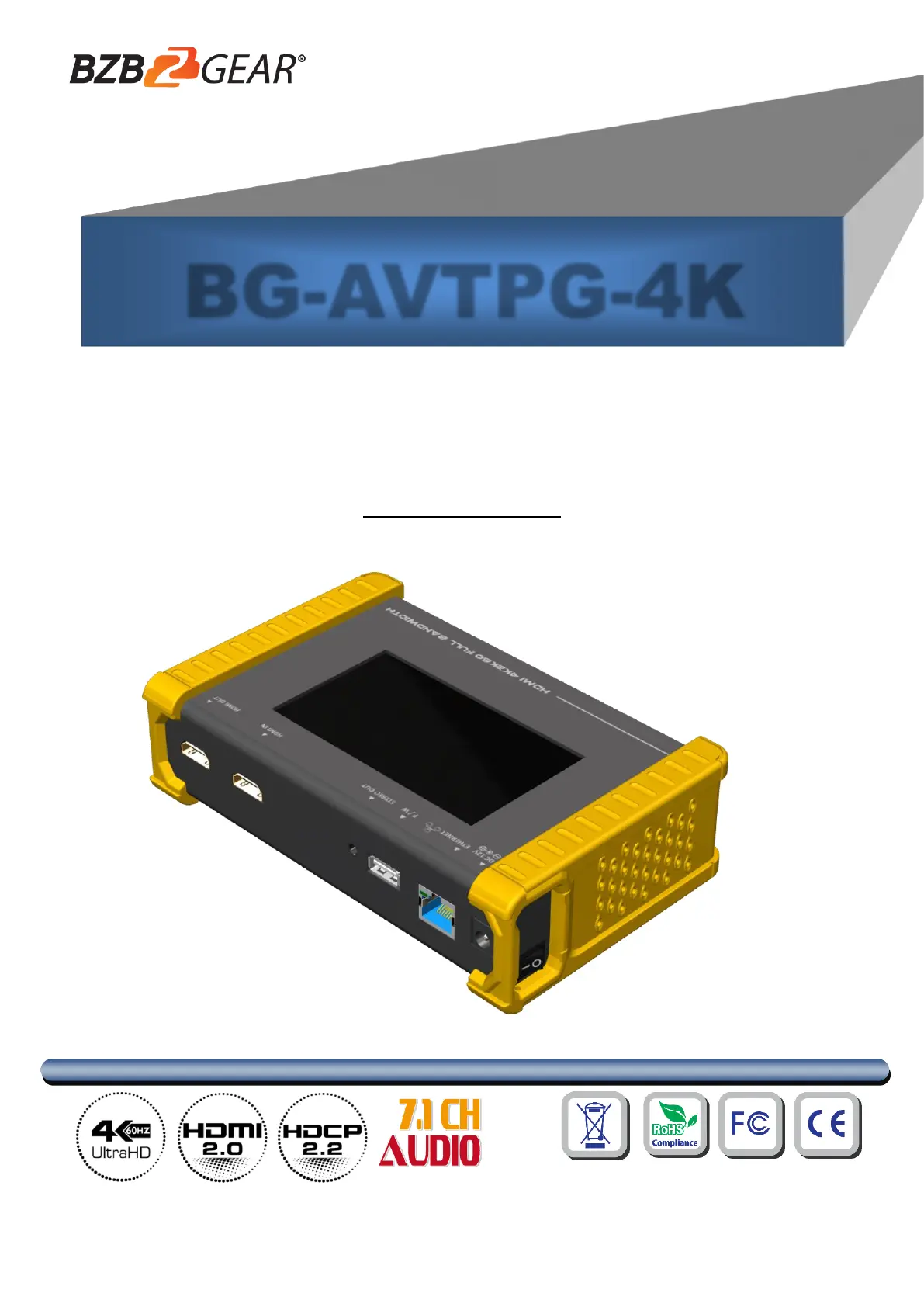

HDMI 2.0 Generator / Analyzer
User Manual
BG
BG
BG
BGBG-
-
-
--A
A
A
AAVTPG
VTPG
VTPG
VTPGVTPG-
-
-
--4K
4K
4K
4K4K
Safety and Notice
The BG-AVTPG- 4K HDMI 2.0 Generator / Analyzer has been tested for conformance to safety
regulations and requirements, and has been certified for international use. However, like all electronic
equipment, the BG-AVTPG -4K should be used with care. Please read and follow the safety instructions to
protect yourself from possible injury and to minimize the risk of damage to the unit.
Follow all instructions and warnings marked on this unit.
Do not attempt to service this unit yourself, except where explained in this manual.
Provide proper ventilation and air circulation and do not use near water.
Keep away the objects that might damage the device and assure that the placement of this unit is on
a stable surface.
Use only the power adapter, power cords and connection cables designed for this unit.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before
cleaning.
TABLE OF CONTENTS
INTRODUCTION .................................................................................................................................. 1
FEATURES ........................................................................................................................................... 1
PACKAGE CONTENTS ........................................................................................................................ 1
SPECIFICATIONS ................................................................................................................................ 2
PANEL DESCRIPTIONS ...................................................................................................................... 3
APPLICATION DIAGRAM .................................................................................................................... 4
MENU OPERATION ............................................................................................................................. 5
GENERATOR ....................................................................................................................................... 6
RECEIVER ............................................................................................................................................ 7
HDCP TEST .......................................................................................................................................... 8
EDID ANALYSIS ................................................................................................................................... 9
LOOP TEST ........................................................................................................................................ 10
ETHERNET CONTROL (TCP/IP) ....................................................................................................... 11
UPGRADE -AVTPG- BG 4K................................................................................................................. 15
EYE PATTERN ................................................................................................................................... 18
LIMITED WARRANTY ........................................................................................................................ 20
SECOND YEAR ASSURANCE…………...…………………………………………….…...……….....20
MISSION STATEMENT……………………………………………………………………………..……21
1
INTR UCTI OD ON
The BG-AVTPG- 4K HDMI 2.0 Generator / Analyzer is a versatile HDMI 2.0 toolbox with full
bandwidth and HDCP 2.2 support. For ease of HDMI 2.0 installations, -AVTPG-BG 4K is equipped with
both HDMI 2.0 pattern generator and analyzer. With this handy and portable gadget, users will appreciate
at the built-in long hour operation chargeable battery, video patterns, touch panel control, cloud based
rmware upgrade access and many other features such as HDCP analyzer or loop test in single piece of
device. In the meantime, -AVTPG- can support 8 channel LPCM audio with selectable sample rate. BG 4K
One more attractive feature of -AVTPG- comes from bypassing HDMI input to the connected BG 4K
display or built-in 4.3” touch panel to allow users to verify HDMI sources instantly.
BG-AVTPG-4K is the most cost-eective HDMI 2.0 tool in the market to make HDMI installation
much easier than ever.
FEATURES
4K2K60 4:4:4 8bit, 4K2K60 4:2:0 16bit HDR pattern generator
4.3” touch panel
Supports mouse control
Supports user control device through Ethernet
Firmware update through USB Flash Drive
Supports user defined pattern up to 2GB
Embedded LINUX KERNAL system with limitless extension
Scrambler supported for videos over 340MHz output wise
Loop test capability to provide statistics analysis for connection stability
Supports HDMI loop through function
HDCP test allow verify HDCP of HDMI source and transmit HDCP encrypted video
Qualified physical layer performance to ensure the best compatibility
Battery powered for portability, it can extend operation time with full load up to 4 hours
Rechargeable battery design with short charging time about 2 hours
Supports voltage measurement on +5V from HDMI source and hot plug from display*
PACKAGE CONTENTS
-1x BG AVTPG-4K
1x DC 12V 5A power supply
1x User Manual
*Due to the variance passive components, the measuremnt outcomes may have 1~3% varianceof
in value.
Before using -AVTPG-4 plug power adapter unit switch off shipping mode.the BG K, to the to the
