BG-EXH-50C

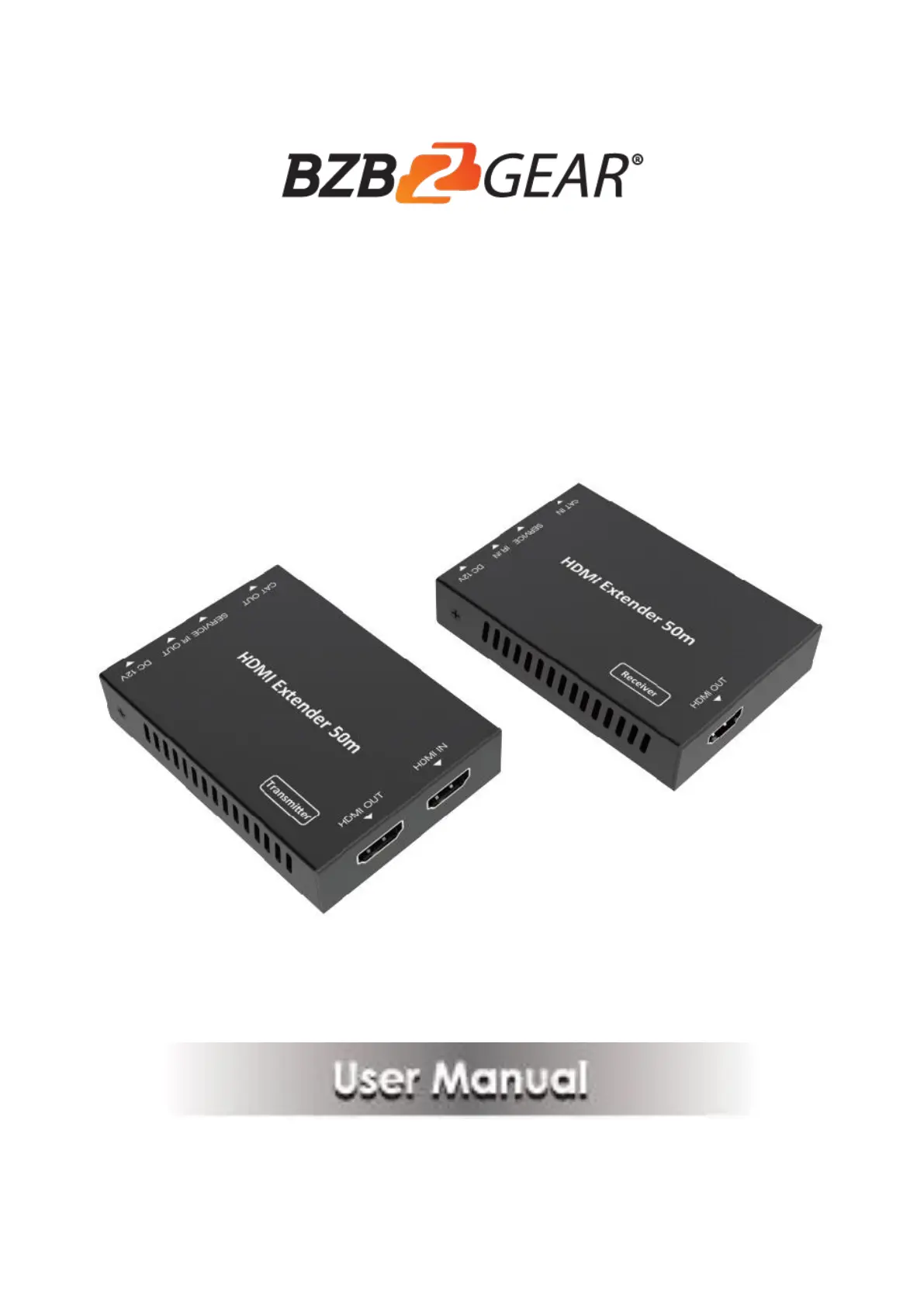

HDMI 18Gbps Extender with one-way IR (50M)
2
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introduction 3 ......................................................................................................
2. Features 4 ............................................................................................................
3. Package Contents 4 ..............................................................................................
4. Specifications 5 ....................................................................................................
5. Operation Controls and Functions ...................................................................... 6
5.1 Transmitter Panel ...................................................................................... 6
5.2 Receiver Panel ........................................................................................... 7
5.3 IR Pin Definition ........................................................................................ 8
6. Application Example .......................................................................................... 9
7. Mission Statement ..10 ………………………………………………………………
8. Warranty Information .11 ……………………………………………………………
3
1. Introduction
The BZB-EXH-50C can extend high definition video / audio signal
and one-way IR, and the distance is up to 164ft / 50 meters between
transmitter and receiver over a single Cat5e/6 cable. supports resolution up to /7 It
4K2K@60 4:4:4 18GbpHz , s e and HDCP 2.2 In addition th. , extender is equipped
with one-way IR pass-through which allows for source contro and one l
HD loop output. MI
Th extender includes two unit transmitter unit and receiver unit The e s: .
transmitter unit is responsible for capturing HD input signa and carrie th signal MI l s e
via on cost effective e Cat6 cable, and emitting IR control signals Th receiver . e
unit is responsible for receiving th HDe MI signa and transmitting IR control l
signal.
The extender offers the most convenient solution for HDMI extension over a single
Cat5e/6 with long distance capability/7 , and is the perfect solution for
any application.
