INSTALLATION INSTRUCTIONS
QuietDry™ Series, TrimDry™

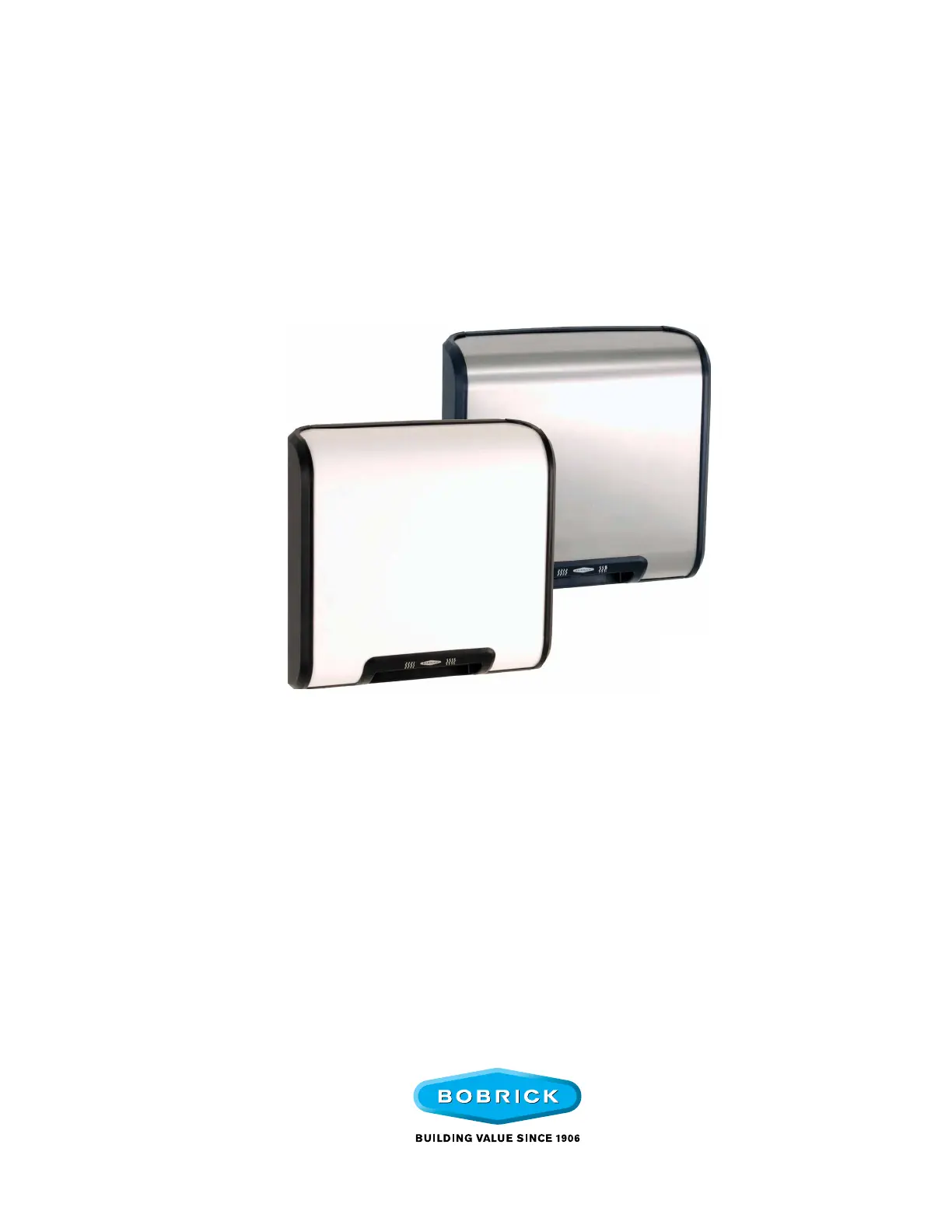

SURFACE-MOUNTED ADA DRYER
B-7120 White Painted Steel or B-7128 Stainless Steel
Installation Instructions Surface-Mounted Hand Dryer Pages 2 & 3 ...............................................
Instrucciones De Instalación Secadores De Manos Bobrick
Montados Sobre La Pared Tipo Pages 4 & 5 ......................................................................................
Einbauanleitung Bobrick -Hände
Für Aufputzmontage Pages 6 & 7 ......................................................................................................
Notice D’Installation Sèche-Mains Bobrick
Montés En Surface Pages 8 & 9 ..........................................................................................................
Istruzioni Per L’installazione Asciugamani Bobrick Pages 10 & 11 ................................................
表面安装式自动感应干手机/干发机安装说明书 ................................................Pages 12 & 13
Warranties Pages 14 & 15 ...................................................................................................................
1
WARNING: TURN ELECTRICAL POWER SUPPLY OFF BEFORE
MAKING ELECTRICAL CONNECTIONS.
DRYER MUST BE GROUNDED (EARTHED).
x 4
Ø 5/16" 8mm
1. 2. 3.
Ø7/8" 22mm
Hole for between wall wiring
Flange cutout for
surface mounting
9-1/4" 235mm
7-3/4" 197mm
13-25/32" 350mm
13-19/32" 345mm
Ø7/8" 22mm
Hole for between wall wiring
Form No. 712-69 Multi Language (Rev. 2/19/18) © 2018 Bobrick Washroom Equipment, Inc.
Electrical Characteristics
Recommended Mounting Heights
Removal of Cover
Installation of Mounting Base
IMPORTANT SAFETY INSTRUCTIONS
* READ AND FOLLOW ALL INSTRUCTIONS
** Electric warm air hand dryer ntended for use in a household environment i
by non-expert users. Not suitable for outdoor use.
*** This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
**** If a fault develops disconnect the electrical supply, a qualified
electrician should be called.
***** SAVE THESE INSTRUCTIONS
2
Distance from floor to bottom mounting screw holes of mounting base.
Children's Washrooms, ages 3-4 .............................................................................................................................................................. 36'' (915mm)
Children's Washrooms, ages 5-8 .............................................................................................................................................................. 40'' (1015mm)
Children's Washrooms, ages 9-12 ............................................................................................................................................................ 44'' (1120mm)
Universal Design ......................................................................................................................................................................................48'' (1219mm)
1. Start installation of dryer by
removing cover. Remove two
screws, from the bottom of the
dryer.
1. Hold the Installation Template against the wall in the desired location of
the installed dryer. See recommended mounting heights above.
2. Make sure line on template representing bottom of dryer mounting base
is horizontal and located at the desired height above floor.
3. Mark center of four mounting screw holes and hole for entry of electrical
wiring if electrical supply is concealed in wall and will enter dryer from
back through mounting base.
NOTE: Surface-mounted electrical supply entry is located in the lower right
corner of the mounting base. Surface-mounted supply cable should be fitted
in a conduit.
4. For brick, stone, and concrete walls drill four 0.315" (8mm) holes to suit
wall plugs 0.315" (8mm) x 1-1/4" (45mm) and screws#10 (4.8mm) x 2"
(50mm) long (provided). See template for wall plug and screw
installation details.
5. For plaster or dry wall construction, provide concealed backing to
comply with local building codes and secure with four #10 (M4.8) round-
head sheet-metal screws, or 3/16'' (5mm) toggle bolts (not furnished).
6. Fasten mounting base securely to wall.
* Bobrick automatic hand dryers should be installed at least 15" (380mm) above any projection or horizontal surface which may interfere with the
operation of the automatic sensor.
Model B-7120 White Painted Steel Cover B-7128 Stainless Steel Cover, and 115V AC, 15 Amp, 1725 Watts, 50/60 Hz, Single Phase, cULus listed.
Model B-7120 White Painted Steel Cover B-7128 Stainless Steel Cover, and 208–240V AC, 6.8-7.8 Amp, 1400-1900 Watts, 50/60 Hz, Single
Phase; cULus listed, VDE and CE marked.
Installation instructions and template provide information that will assist in the installation of the Bobrick B-7120 and B-7128 115V, B-7120 and B-7128
208-240V. Retain Installation Instruction Sheet for important maintenance instructions and warranty information.
2. Rotate bottom of cover away
from mounting base and then lift
up.
FOR PROPER ELECTRICAL CONNECTIONS, CHECK LOCAL
BUILDING CODE. UNIT MUST BE INSTALLED BY A QUALIFIED
LICENSED ELECTRICIAN
Form No. 712-69 Multi Language (Rev. 2/19/18) © 2018 Bobrick Washroom Equipment, Inc.
Electrical Connection
Check Dryer Operation
Maintenance
Replace Cover
3
1. Fit cover over mounting base.
NOTE: Four sides of cover overlap the
mounting base and should be flush with
the sides, top and bottom of the mount-
ing base.
2. Replace and tighten two screws,
on the bottom to secure cover to
mounting base.
1. Turn electrical power supply on.
2. Position hands under air-outlet, within 4'' (100mm) of the bottom of the dryer.
3. Dryer should turn on. Warm air should blow from air-outlet. Drying time less than 25 seconds.
4. Remove hands from under air-outlet and dryer should stop (within 2 seconds).
FOR PROPER ELECTRICAL CONNECTIONS, CHECK LOCAL BUILDING CODE. UNIT MUST BE INSTALLED BY A QUALIFIED
LICENSED ELECTRICIAN
1. Connect dryer to nearest distribution panel. Use wire as required by local electrical code. In the United States and Canada
use No. 12 wire or larger.
2. Wiring Instructions:
a. This appliance is intended for connection to fixed wiring.
b. A fused means for disconnection in all poles must be provided in the fixed wiring in accordance with the wiring rules.
c. Check that the electrical rating shown on the Hand Dryer (rating label) is compatible with the electrical supply.
d. WARNING: THIS PRODUCT MUST BE EARTHED.
e. Installation and wiring must conform to current IEE Regulations (UK), local or appropriate regulation (other countries).
f. For 115 Volt Dryers: Connect ground/earth supply the terminal marked , the Live supply to terminal marked L and
neutral supply to terminal marked . NA DEDICATED LINE IS REQUIRED FOR EACH 115 VOLT DRYER.
For 208–240 Volt Dryers: g. Connect ground/earth supply the terminal marked and the 208-240 Volt wires to terminals
marked .L (L1) N (L2) and
3. Secure electrical wire in strain relief clamp provided on mounting base.
WARNING: MOTOR LAMINATIONS ARE LIVE. TURN ELECTRICAL POWER SUPPLY OFF BEFORE DOING ANY
MAINTENANCE OR SERVICE TO DRYER. DRYER MUST NOT BE OPERATED UNLESS COVER IS IN PLACE.
FOR PROPER ELECTRICAL CONNECTIONS, CHECK LOCAL BUILDING CODE. UNIT MUST BE INSTALLED BY A QUALIFIED
LICENSED ELECTRICIAN
1. Exterior of cover should be cleaned with a damp cloth to remove dust and surface dirt. Do not use abrasive agents or solvents as
they may permanently damage surface of cover.
2. At least once every 6 months remove cover. Using a small brush or vacuum, clean out buildup of dust and lint from air-intake
grille and baffle.
NOTE: if dryer is installed where there is a lot of dust and dirt in the air, the interior of the dryer should be cleaned out more
frequently.
