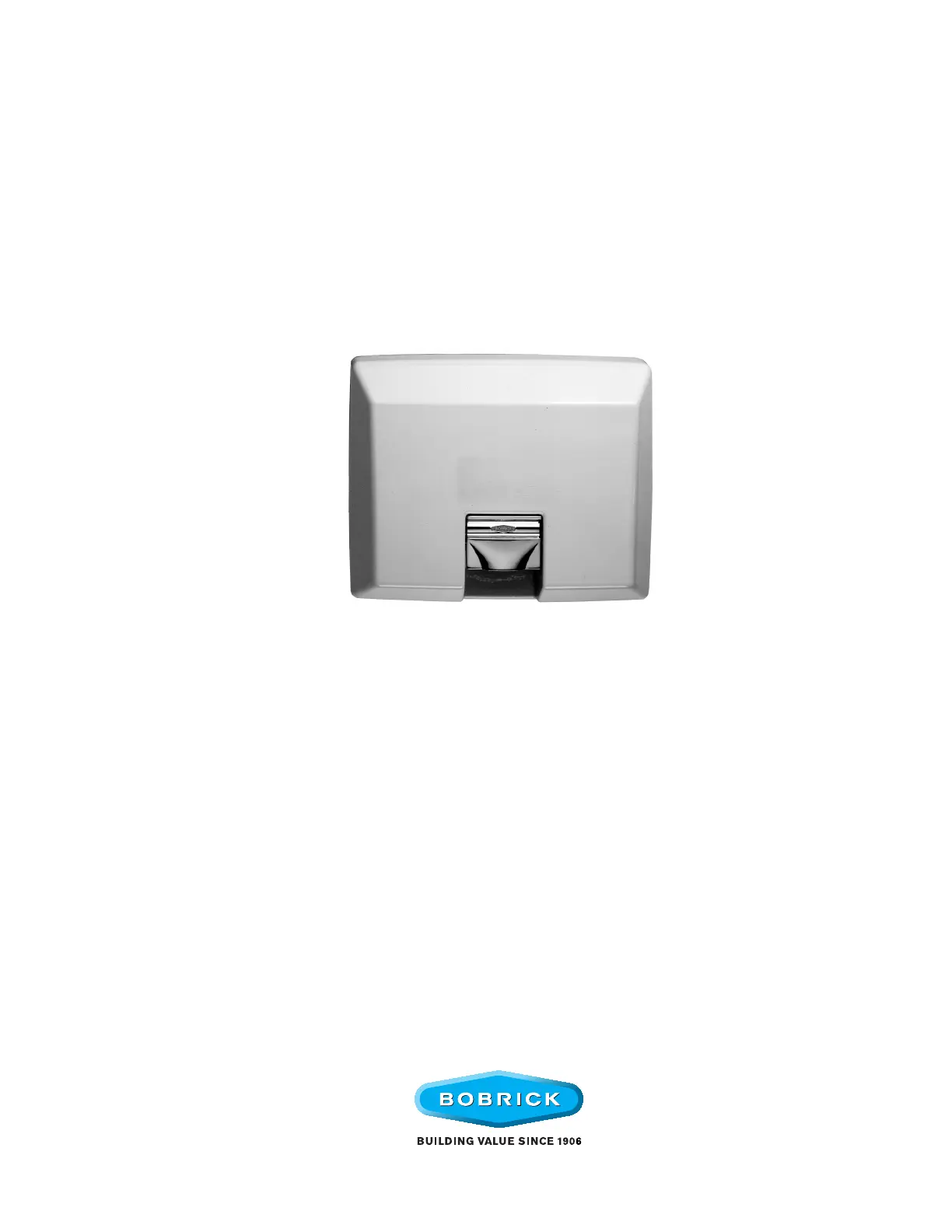

INSTALLATION INSTRUCTIONS
B-750 & B-7507
AirCraft®
RECESSED-MOUNTED
AUTOMATIC HAND DRYER
Installation Instructions AirCraft® Recessed-Mounted Hand Dryer Pages 2 & 3 ............................
Instrucciones De Instalación Secadores De Manos Bobrick
Para Empotrar Tipo AirCraft® Pages 4 & 5 .........................................................................................
Einbauanleitung Bobirck AirCraft®-Hände- Und Haartrockner
Für Wandeinbau ..............................................................................................................Pages 6 & 7
Notice D’Installation Sèche-Mains A Boîtier Encastré
Bobrick AirCraft® .............................................................................................................Pages 8 & 9
Istruzioni Per L’installazione Asciugamani Incassati
Bobrick AirCraft® Pages 10 & 11 ........................................................................................................
表面安自动感应干手机/干发机安装说明书 .........................................................Pages 12 & 13
Warranties Pages 14 & 15 ...................................................................................................................
WARNING: TURN ELECTRICAL POWER SUPPLY OFF
BEFORE MAKING ELECTRICAL CONNECTIONS.
DRYER MUST BE GROUNDED (EARTHED).
S
S
S
9-1/2''
240mm
High
Opening
13-3/4''
350mm
Wide Opening
S S
2-13/16''
70mm
Typ.
7/8'' 22mm & 1-1/8'' 30mm
(3) Knockouts for Conduit S
S
13/64''
5mm
(8) Holes
for Mounting
3/4''
19mm
Bore Wood
to Clear Fittings
1-1/4''
30mm
Typ.
2''
50mm
Typ.
Finish Face of Floor
2-1/2''
65mm
2''
50mm
3-1/2''
90mm
Dimension
A
1/2''
13mm
Form No. 750-69 Multi Language (Rev. 7-12-13) © 2013 Bobrick Washroom Equipment, Inc. Printed in U.S.A.
Electrical Characteristics
Recommended Mounting Heights
Removal of Cover
Installation of Aluminum Base Limit Into Recessed Mounting Box
Important
2
Hand dryer models B-750 and B-7507, 115V AC, 20 Amp, 50/60 Hz, Single Phase, cULus listed.
Hand dryer models B-750 and B-7507, 208–240V AC, 9–10 Amp, 50/60 Hz, Single Phase; cULus listed, VDE approved, CE marked.
Distance from floor to bottom of framed wall opening. (Dimension A)
1. Start installation of aluminum
base unit into recessed
mounting box by removing
cover. To loosen two cover
bolts insert Allen Wrench,
provided with dryer, into holes
located on bottom of cover on
each side of air intake grille.
Make sure wrench fits into
head of cover bolts and turn
CLOCKWISE until bolts stop
turning. When both cover bolts
are screwed in all the way,
cover can be removed.
2. To remove cover, place a hand
on each side of cover and
push up toward top of dryer
releasing cover from studs at
top of aluminum base unit. Lift
cover off mounting base by
pulling forward at the bottom
and upward at the same time.
3. Insert aluminum base unit into
recessed mounting box and
fasten to top and bottom
flanges of mounting box with
the four 1/4-20 UNC (MG-1)
screws provided.
Men's Dressing Rooms 73'' (186cm) ................................................................................................................................................................................
Women's Dressing Rooms 64'' (163cm) ...........................................................................................................................................................................
Children's Dressing Rooms, ages 3-9 46'' (117cm) .........................................................................................................................................................
Children's Dressing Rooms, ages 9-12 53'' (135cm) ........................................................................................................................................................
Children's Dressing Rooms, ages 12-15 59'' (150cm) ......................................................................................................................................................
Children's Dressing Rooms, ages 15-18 64'' (163cm) ......................................................................................................................................................
1. Provide framed opening in wall 13-3/4'' wide x 9-1/2'' high x 3-3/4''
deep (349 x 241 x 95mm) at the desired location of the installed
dryer. See recommended mounting heights above.
2. Frame the opening as shown in diagram to support recessed
mounting box.
3. Place the recessed mounting box in wall and cut an opening in the
framing to allow clearance for electrical conduit and fittings at one of
the three conduit knockout locations.
4. Fasten recessed mounting box to framing with minimum of four No.
10 (M4.8mm) sheet metal screws (not furnished by Bobrick). Make
sure flanges of mounting box are completely flat against finished
wall surface. If necessary, use shims or spacers between mounting
box and framed wall opening to prevent distortion to box as it is
fastened to framing.
5. Install electrical conduit from nearest distribution panel to recessed
mounting box. Attach conduit fittings to mounting box. Use wire as
required by local electrical code. In the United States and Canada,
use No. 12 wire or larger. Allow a minimum of 24'' (610mm) of wire to
remain in recessed mounting box for connection to dryer terminals.
* Bobrick automatic hand dryers should be installed 15" (380mm) above any projection or horizontal surface which may interfere with the
operation of the automatic sensor.
* Warm air hand dryer. Intended for use in a household environment by non-expert users. Not suitable for outdoor use.
** This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
*** If a fault develops disconnect the electrical supply, a qualified electrician should be called.
FOR PROPER ELECTRICAL CONNECTIONS, CHECK LOCAL BUILDING CODE. UNIT MUST BE INSTALLED BY
A QUALIFIED LICENSED ELECTRICIAN
Form No. 750-69 Multi Language (Rev. 7-12-13) © 2013 Bobrick Washroom Equipment, Inc. Printed in U.S.A.
Electrical Connection
Replace Cover
Check Dryer Operation
Maintenance
3
1. Replace cover by positioning
top of cover on studs on top
of aluminum base unit and
tipping bottom of cover
toward aluminum base.
Push bottom of cover firmly
against base.
NOTE: Space between cover
and base must be the same on
bottom and both sides.
2. To tighten two cover bolts,
insert Allen wrench into holes
on bottom edge of cover.
Make sure wrench fits into
head of cover bolts and turn
COUNTERCLOCKWISE until
bolts are tightened.
NOTE: Do not overtighten cover
bolts; overtightening cover bolts
may damage enamel finish.
1. For TouchButton Hand and Hair Dryers: Turn electrical power supply on. Touch the chrome-plated
touchbutton once and dryer should turn on. Touch the touchbutton again after a few seconds and dryer
should stop. If left on, Hand Dryers will shut off automatically after 30 seconds; Hair Dryers will shut off
after 80 seconds.
2. For AutoPilot Hand Dryers: Turn electrical power supply on. Position hands under nozzle and dryer
should turn on. Remove hands from under nozzle and dryer should stop.
3. For AutoPilot Hair Dryers: Turn electrical power supply on. Position head under nozzle and dryer
should turn on. Remove head from under nozzle and dryer should stop.
FOR PROPER ELECTRICAL CONNECTIONS, CHECK LOCAL BUILDING CODE. UNIT MUST BE INSTALLED BY A QUALIFIED
LICENSED ELECTRICIAN
1. Connect dryer to nearest distribution panel. Use wire as required by local electrical code. In the United States and Canada use
No. 12 wire or larger.
2. Wiring Instructions:
a. This appliance is intended for connection to fixed wiring.
b. A fused means for disconnection in all poles must be provided in the fixed wiring in accordance with the wiring rules.
c. Check that the electrical rating shown on the Hand Dryer (rating label) is compatible with the electrical supply.
d. WARNING: THIS PRODUCT MUST BE EARTHED.
e. Installation and wiring must conform to current IEE Regulations (UK), local or appropriate regulation (other countries).
f. For 115 Volt Dryers: Connect ground/earth supply the terminal marked , the Live supply to terminal marked L and neutral
supply to terminal marked N. A DEDICATED LINE IS REQUIRED FOR EACH 115 VOLT DRYER.
For 208–240 Volt Dryers: g. Connect ground/earth supply the terminal marked and the 208-240 Volt wires to terminals
marked .L (L1) N (L2) and
3. Secure electrical wire in strain relief clamp provided on mounting base.
WARNING: MOTOR LAMINATIONS ARE LIVE. TURN ELECTRICAL POWER SUPPLY OFF BEFORE DOING ANY
MAINTENANCE OR SERVICE TO DRYER. DRYER MUST NOT BE OPERATED UNLESS COVER IS IN PLACE.
FOR PROPER ELECTRICAL CONNECTIONS, CHECK LOCAL BUILDING CODE. UNIT MUST BE INSTALLED BY A QUALIFIED
LICENSED ELECTRICIAN
1. Exterior of cover should be cleaned with a damp cloth to remove dust and surface dirt. Do not use abrasive agents or solvents as
they may
permanently damage surface of cover.
2. At least once every 6 months remove cover. Using a small brush or vacuum, clean out buildup of dust and lint from air-intake grille
and baffle.
NOTE: if dryer is installed where there is a lot of dust and dirt in the air, the interior of the dryer should be cleaned out more
frequently.
