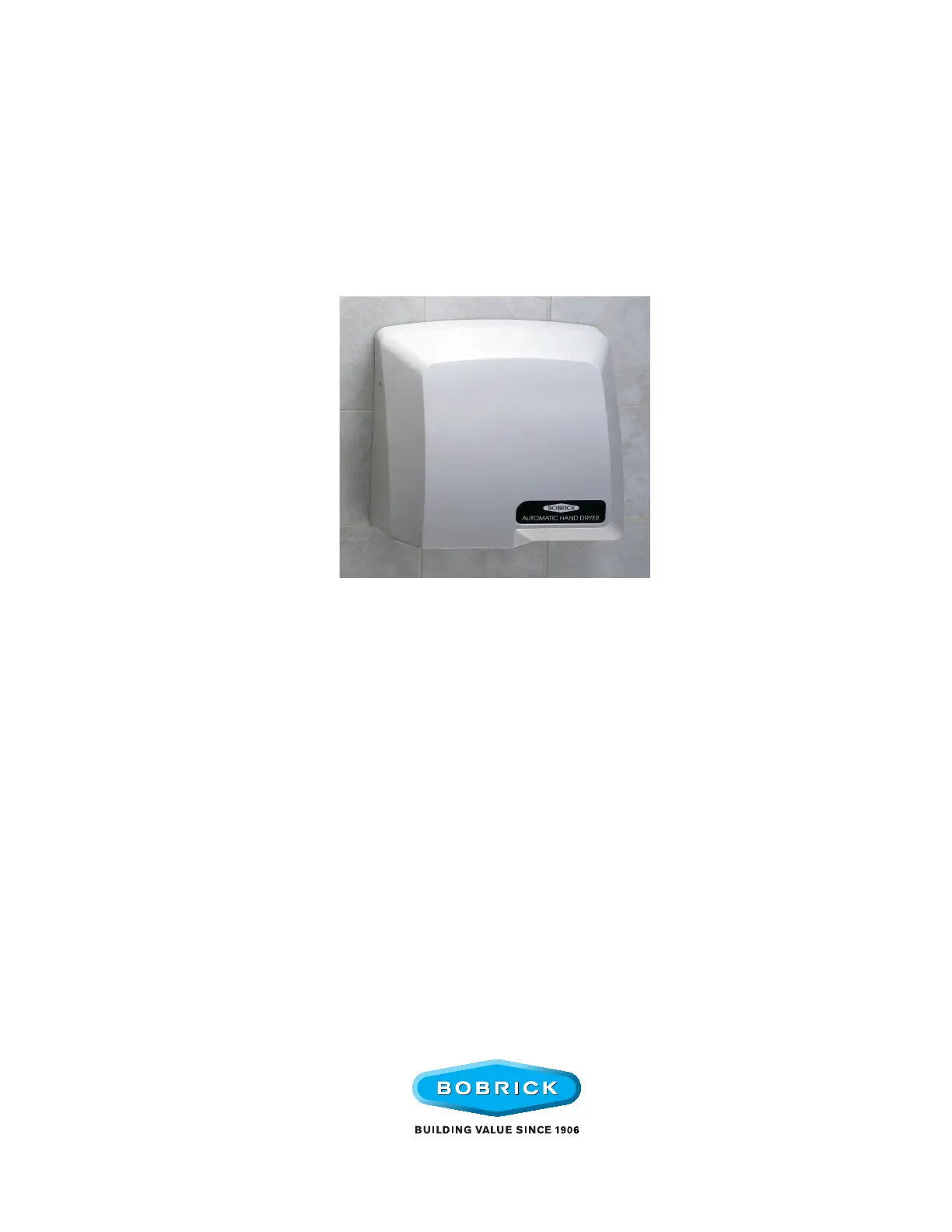

Form No. 710-69 Multi Language (Rev. 7-19-13) © 2013 Bobrick Washroom Equipment, Inc. Printed in U.S.A.
INSTALLATION INSTRUCTIONS
B-710 COMPACDRYER™
SURFACE-MOUNTED AUTOMATIC HAND DRYER
Installation Instructions CompacDryer™ Surface-Mounted Hand Dryer Pages 2 & 3 ...................
Instrucciones Para Instalación De Secadores De Manos Para Montar
Sobre Pared Bobrick CompacDryer™ Pages 4 & 5 ..........................................................................
Einbauanleitung Bobrick CompacDryer™ Aufputzmontierte Händetrockerner Pages 6 & 7 ......
Instructions Puor L’installation Bobrick CompacDryer™ Seches-Mains
En Applique Pages 8 & 9 ......................................................................................................................
Istruzioni Per L’installazione Asciugamani Automatici A Parete
Bobrick CompacDryer™ Pages 10 & 11 ............................................................................................
1
WARNING: TURN ELECTRICAL POWER SUPPLY OFF BEFORE
MAKING ELECTRICAL CONNECTIONS. DRYER MUST BE
GROUNDED (EARTHED).
7/8''
(22mm)
3-17/32''
(90mm)
3/4''
(18mm)
Entry Hole
for Between-Wall Wiring
5/8''
(16.5mm)
Entry Point
for Surface Mounted Wiring
8-3/32''
(205mm)
4-17/32''
(115mm)
Mounting Base
C
L
Horizontal
Reference
Horizontal
Reference
3-15/16''
(100mm)
7-7/8''
(200mm)
4-11/32''
(110mm)
Form No. 710-69 Multi Language (Rev. 7-19-13) © 2013 Bobrick Washroom Equipment, Inc. Printed in U.S.A.
Electrical Characteristics
Recommended Mounting Heights
Removal of Cover
Installation of Mounting Base
Important
5
Model B-710,115V AC, 15 Amp, 1725 Watts, 60 HZ, Single Phase, cULus listed.
Model B-710E, 220-240V, 7A, AC 1500-1700 Watts, 50/60 Hz, Single Phase; VDE approved, CE marked. B-710E is not available in the United
States and Canada.
Installation instructions and template provide information that will assist in the installation of the Bobrick B-710 115V, B-710E 220-240V. Retain
Installation Instruction Sheet for important maintenance instructions and warranty information.
Distance from floor to bottom mounting screw holes of mounting base.
Men's Washrooms ....................................................................................................................................................................46'' (1170mm)
Women's Washrooms ...............................................................................................................................................................44'' (1120mm)
Children's Washrooms, ages 3-9 32'' (815mm) .............................................................................................................................................
Children's Washrooms, ages 9-12 36'' (915mm) ............................................................................................................................................
Children's Washrooms, ages 12-15 40'' (1015mm) ..........................................................................................................................................
Children's Washrooms, ages 15-18 44'' (1120mm) ..........................................................................................................................................
Barrier-Free Design 38'' (965mm) ..................................................................................................................................................................
1. Start installation of dryer by
removing cover. Remove three
screws, one from each side and
one from the bottom of the
dryer. Lift the cover from the
mounting base.
1. Hold the Installation Template against the wall in the desired location of the
installed dryer, see recommended mounting heights above.
2. Make sure line on template representing bottom of dryer mounting base is
horizontal and located at the desired height above floor.
3. Mark center of four mounting screw holes and hole for entry of electrical
wiring if electrical supply is concealed in wall and will enter dryer from back
through mounting base.
NOTE: Surface-mounted electrical supply entry is located in the lower right corner
of the mounting base. Bottom of mounting base has 1/2'' square (13mm) opening in
lower right corner to accommodate connection of electrical conduit.
4. Drill four holes for #10 (M4.8) mounting bolts or screws (not furnished).
5. For masonry walls provide four #10 expansion shields or anchors and secure
with four #10 (M4.8) sheet-metal screws (not furnished). For plaster or dry
wall construction, provide concealed backing to comply with local building
codes and secure with four #10 (M4.8) round-head sheet-metal screws, or
3/16'' (5mm) toggle bolts (not furnished).
NOTE: Use 2'' (50mm) long screws in top two mounting holes. Use 3'' (75mm) long
screws in lower two mounting holes.
6. Fasten mounting base securely to wall.
* Bobrick automatic hand dryers should be installed 15" (380mm) above any projection or horizontal surface which may interfere with the
operation of the automatic sensor.
FOR PROPER ELECTRICAL CONNECTIONS, CHECK LOCAL BUILDING CODE. UNIT MUST BE INSTALLED BY A QUALIFIED LICENSED
ELECTRICIAN
* Warm air hand dryer. Intended for use in a household environment by non-expert users. Not suitable for outdoor use.
** This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
*** If a fault develops disconnect the electrical supply, a qualified electrician should be called.
Form No. 710-69 Multi Language (Rev. 7-19-13) © 2013 Bobrick Washroom Equipment, Inc. Printed in U.S.A.
Electrical Connection
Replace Cover
Check Dryer Operation
Maintenance
3
1. Fit cover over mounting base.
NOTE: Four sides of cover overlap the
mounting base and should be flush with
the sides, top and bottom of the
mount ing base.
2. Replace and tighten three
screws, one on each side and
one on the bottom to secure
cover to mounting base.
1. Turn electrical power supply on.
2. Position hands under air-outlet, within 4'' (100mm) of the bottom of the dryer.
3. Dryer should turn on. Warm air should blow from air-outlet.
4. Remove hands from under air-outlet and dryer should stop (within 2 seconds).
1. Exterior of cover should be cleaned with a damp cloth to remove dust and surface dirt. Do not use abrasive agents or solvents as they may
permanently damage surface of cover.
2. At least once every 6 months remove cover. Using a small brush or vacuum, clean out buildup of dust and lint from air-intake grille and baffle.
NOTE: if dryer is installed where there is a lot of dust and dirt in the air, the interior of the dryer should be cleaned out more frequently.
FOR PROPER ELECTRICAL CONNECTIONS, CHECK LOCAL BUILDING CODE. UNIT MUST BE INSTALLED BY A QUALIFIED LICENSED
ELECTRICIAN
1. Connect dryer to nearest distribution panel. Use wire as required by local electrical code. In the United States and Canada use No. 12 wire or
larger.
2. Wiring Instructions:
a. This appliance is intended for connection to fixed wiring.
b. A fused means for disconnection in all poles must be provided in the fixed wiring in accordance with the wiring rules.
c. Check that the electrical rating shown on the Hand Dryer (rating label) is compatible with the electrical supply.
d. WARNING: THE 115 VOLT DRYER MUST BE EARTHED.
e. Installation and wiring must conform to current IEE Regulations (UK), local or appropriate regulation (other countries).
f. For 115 Volt Dryers: Connect ground/earth supply the terminal marked , the to terminal marked and neutral supply to Live supply L
terminal marked N. A DEDICATED LINE IS REQUIRED FOR EACH 115 VOLT DRYER.
For 208–240 Volt Dryers: g. Connect the 208-240 Volt wires to terminals marked and .L (L1) N (L2)
3. Secure electrical wire in strain relief clamp provided on mounting base.
