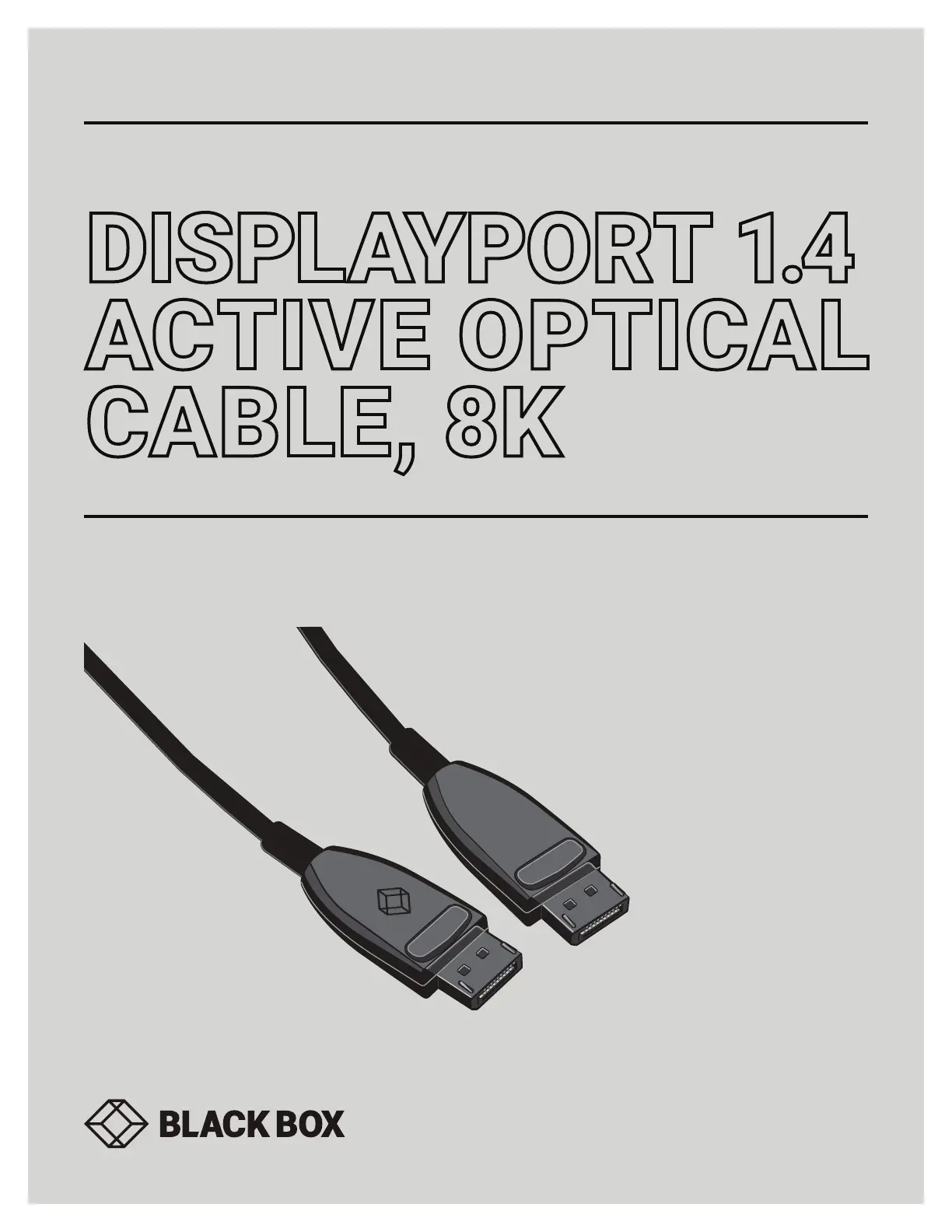

DISPLAYPORT 1.4
ACTIVE OPTICAL
CABLE, 8K
24/7 TECHNICAL SUPPORT AT 877.877.2269 OR VISIT BLACKBOX.COM
DATA SHEET
SOURCE
2
1.877.877.2269 BLACKBOX.COM
INTRODUCTION
Black Box DisplayPort Active Optical Cables awlessly
transmit uncompressed, full Ultra HD 8K video signals hundreds
of meters. This all-in-one cable design is plug-and-play, and
eliminates the need for a modular solution including a transmit-
ter, receiver, copper cabling, power and all
of the potential points of failure that come with it. Simply
connect the cable between your source and display like
a standard copper cable and leave it to awlessly transmit your
audio/video signal without worry of signal loss or degradation.
The cable is unidirectional—the source side connector connects
to the source and the display side connector connects to the
display.
Built-in technology inside the connectors actively converts
the electrical DisplayPort signal into an optical signal for
transmission, and then back to electrical for display. They also
use a hybrid design that includes both copper and ber, in which
the ber technology allows for signicantly increased
bandwidth that supports transmission of full Ultra HD video
resolutions at distances that the copper alternatives just can’t
come close to. It also provides higher immunity to EMI/RFI
interference and electromagnetic noise. And the inclusion
of copper wiring in the design allows for power to go over the
cable, meaning no external power is required. This design also
makes for a much thinner and more exible cable with a
tighter bend radius, making it easy to pull through tight spaces
and more freely navigate around corners and bends, not to
mention much lighter than its all-copper counterparts.
Black Box Active Optical Cables are the perfect A/V
distribution solution for control rooms, digital signage,
healthcare, conference rooms, mass transit and any other
application where uncompromised, Ultra High Denition video
is required at extended distances.
FEATURES
§§ UP TO FULL 7680 X 4320 (8K) VIDEO SIGNALS UP TO 100 M
§§ DATA TRANSFER RATES UP 32.4 GBPS
§§ HIGH DYNAMIC RANGE (HDR) VIDEO FOR EXPANSIVE CONTRAST
RATIO AND COLOR ACCURACY
§§ SUPPORTS DELIVERY OF DUAL VIDEO STREAMS TO A DISPLAY
(IF SUPPORTED BY DISPLAY)
§§ 21:9 CINEMA ASPECT RATIO
§§ SUPPORTS BT.2020 COLORIMETRY
§§ UP TO 32 AUDIO CHANNELS WITH 1536 KHZ SAMPLING RATE
§§ SUPPORT DPCP/EDID/CEC/DDC
§§ LATCHING CONNECTORS PREVENT ACCIDENTAL DISCONNECTION
§§ PLUG AND PLAY, NO SOFTWARE TO INSTALL. THE SOURCE SIDE
CONNECTOR CONNECTS TO THE SOURCE, AND THE DISPLAY SIDE
CONNECTOR CONNECTS TO THE DISPLAY
§§ HYBRID CONSTRUCTION USES BOTH COPPER AND FIBER.
NO EXTERNAL POWER IS REQUIRED
§§ ULTRA-THIN, FLEXIBLE CABLING MAKES IT EASY TO PULL THROUGH
TIGHT SPACES AND NAVIGATE CORNERS AND BENDS WITH LOW
RISK OF SIGNAL LOSS
§§ FIBER TECHNOLOGY GREATLY REDUCES EMI/RFI EMISSIONS
§§ TRIPLE-SHIELDING FURTHER PROTECTS AGAINST INTERFERE NCE
TO ENSURE OPTIMAL SIGNAL QUALITY
§§ FEATURES ZINC ALLOY CONNECTORS FOR ENHANCED DURABILITY
DISPLAYPORT 1.4 ACTIVE OPTICAL CABLE, 8K, 32.4 GBPS DATA SHEET
OVERVIEW
3
1.877.877.2269 BLACKBOX.COM
DIAGRAMS, SPECIFICATIONS, AND ORDERING INFORMATION
DISPLAYPORT 1.4 ACTIVE OPTICAL CABLE, 8K, 32.4 GBPS, LATCHING CONNECTORS
FILENAME: AOC-HL-DP4_DS_REV2.PDF
© COPYRIGHT 2020. BLACK BOX CORPORATION. ALL RIGHTS RESERVED.
DISPLAYPORT 1.4 ACTIVE OPTICAL CABLE, 8K,
32.4 GBPS, LATCHING CONNECTORS
CONNECTOR A DisplayPort male
CONNECTOR B DisplayPort male
CONNECTOR PLATING Nickel
CONNECTOR WIDTH 0.84" (21.28 mm)
LENGTH Up to 656 ft. (200 m)*
DISPLAYPORT SPECIFICATION 1.4
MAX. VIDEO RESOLUTION 7680 x 4320 (8K) @ 60 Hz (4:2:0)
MAX. COLOR DEPTH 30/36/48-bit Deep Color: 48-bit
BANDWIDTH 32.4 Gbps
JACKET TYPE LSZH
FIBER TYPE OM3 MMF
OUTER DIAMETER 0.189” (4.8 mm)
OPERATING TEMPERATURE RANGE 32 to 158° F (0 to 70 ° C)
STORAGE TEMPERATURE RANGE 14 to 158° F (-10 to 70° C)
OPERATING HUMIDITY RANGE 10 to 85% RH, condensing
STORAGE HUMIDITY RANGE 5 to 89% RH, noncondensing
POWER CONSUMPTION 250 mW
COMPLIANCE FCC, CE, RoHS
WARRANTY 3-year limited warranty
*NOTE: The longest length stock model is the 100 m AOC-HL-DP4-100M
LENGTH MODEL
10-m AOC-HL-DP4-10M
15-m AOC-HL-DP4-15M
30-m AOC-HL-DP4-30M
40-m AOC-HL-DP4-40M
50-m AOC-HL-DP4-50M
100-m AOC-HL-DP4-100M
DISCLAIMER
Black Box Corporation shall not be liable for damages of any
kind, including, but not limited to, punitive, consequential or
cost of cover damages, resulting from any errors in the product
information or specications set forth in this document and
Black Box Corporation may revise this document
at any time without notice.
APPLICATION DIAGRAM
DISPLAY SIDE
SOURCE SIDE
SPLITTERPC
SOURCE
DISPLAY
PC DISPLAY
10.88
mm
14.50
mm
39.0 mm
10.88
mm
14.50
mm 39.0 mm
