A S S E M B L Y I N S T R U C T I O N S
C - 8/32" x 12mm
Phillips Screw
x 24
E - Caster x 4
I - Legal File Bar x 2
J - Lateral File Bar x 1
M - Adjustable
Cabinet Shelf x 1
D - Brake Caster x 2
B - Cabinet x 1
F - M4 x 37mm
Phillips Screw
x 4
G - M4 x 25mm
Phillips Screw
x 4
H - Pull x 4
L - Adjustable
Printer Shelf x 1
K - Shelf Pin x 8
FORMAT
6320
Format is engineered for easy assembly. Carefully follow this
procedure to prevent any damage.
Do not use power tools for assembly of this product.
Placement and Maintenance
Formatâ„¢ Office furniture is designed for indoor use on level floors.
Clean steel parts and wood veneer with a moist cloth.
Step 1
Unpack and Identify
Unpack and identify the components at left. Note that some
components are shipped inside the cabinet. The assembly
workspace should be a non-marring surface such as carpet. For
missing hardware pieces, please contact BDI Customer Service
at customerservice@bdiusa.com. For all other concerns, please
contact your BDI Retailer.
Step 2
Install Casters

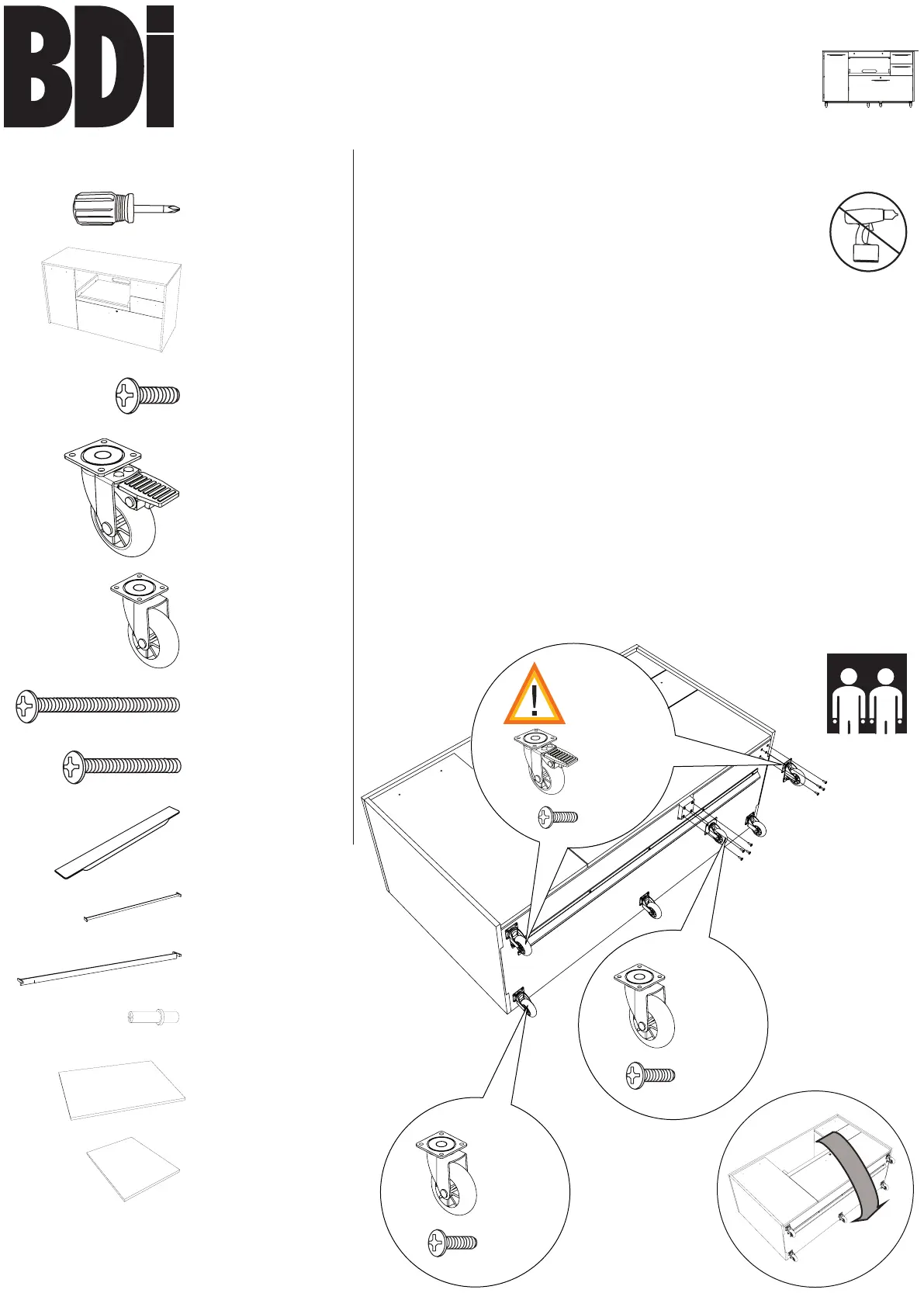

Carefully position on its back side so that bottom side Cabinet (B)
is accessible, then attach a at each of the six (6) exposed Caster
installation plates using and a 5/32" x 12mm Phillips Screw (C)
Phillips Screwdriver. Then carefully turn upright.Cabinet (B)
Component List
Designed by Matthew Weatherly.
These distinctive product congurations are protected by US and
international patents, trade dress, and/or copyright laws.
BDI and Format are trademarks of Becker Designed, Inc.
All Rights reserved. ©2012, BDI
Made in Taiwan. 6320REV062012v2
A - Phillips Screwdriver
x 1 (not provided)
2 Person skTa
BDIUSA.COM CUST OMERSERVICE@BDIU SA.COM
C x 12
E x 3
FRONT
CORNERS
ONLY
C x 8
D x 2
C x 4
E x 1
2
FORMAT
6320
ASSEMBLY INSTRUCTIONS
BDIUSA COM CUSTOMERSERVICE. @BDIUSA.COM
Step 3
Install Pulls.
Install Pull (H) to drawers using the and a M4 x 37mm Phillips Screw (F)
Phillips Screwdriver. Install to door and file drawer using the Pull (H) M4 x
25mm Phillips Screw (G) and a Phillips Screwdriver.
Step 4
Install Shelves.
Install andShelf Pins (K) at desired height to install Adjustable Shelves (L)
(M). *Note: To place the adjustable shelf inside the cabinet, the shelf may
be tilted sideways to clear the door opening.
F x 4
H x 2
H x 2
G x 4
H x 2
G x 4
3
FORMAT
6320
ASSEMBLY INSTRUCTIONS
BDIUSA COM CUSTOMERSERVICE. @BDIUSA.COM
Step 5
Optional - Install File Bars
Legal File Folders can be installed in the lateral drawers left-to-right without
installing File Bars.
Letter File Folders can be installed in the lateral drawer left-to-right by
lowering Lateral File Bar (J) onto drawer sides.
If users wish to install File Folders front-to-back, place Legal File Bars (I)
onto drawer rails front and back.
