Product Registration
Registering your new BDI product allows us to send you important
product updates, service information and helpful hints related to your
BDI products. Register today and you will be entered to win free a BINK
table from BDI. www.bdiusa.com/product-registration/
Placement and Maintenance
Corridor® Office furniture is designed for indoor use on level floors.
Clean glass with glass cleaner, and steel parts and wood veneer with a
moist cloth.
Your Corridor® Office furniture is engineered for easy assembly. Carefully
follow this procedure to prevent any damage.
Do not use power tools for assembly of this product.
Step 1
Unpack and identify the parts listed below. The assembly workspace
should be a non-marring surface such as carpet. For missing hardware
pieces, please contact BDI Customer Service at customerservice@
bdiusa.com. For all other concerns, please contact your BDI retailer.
bdiusa.com
customerservice@bdiusa.com

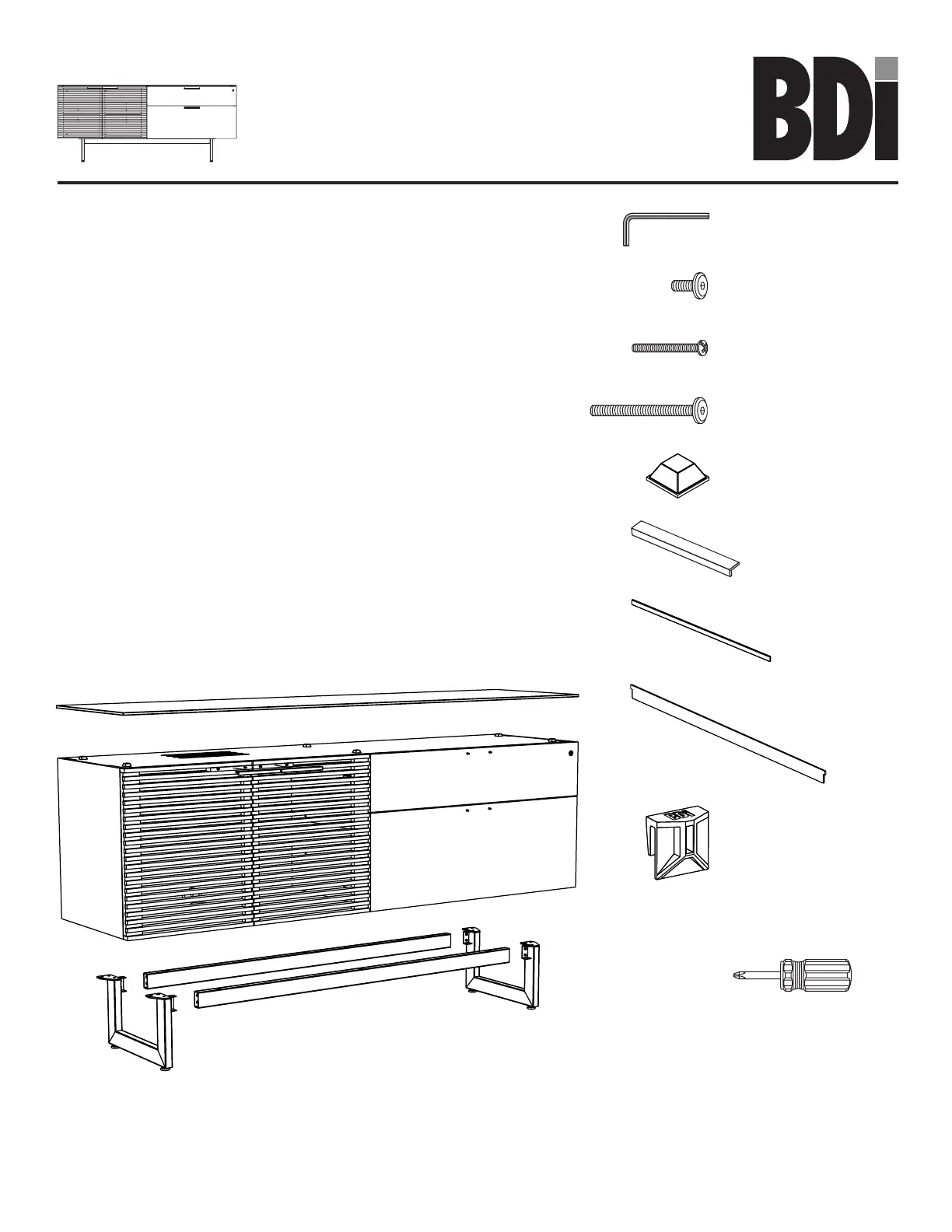

C1 Glass Panel x 1
A1 Cabinet x 1
C7 Base Stretcher x 2
T1 4mm Hex Wrench
C6 File Bar Clip x 4
C2 Pull x 4
C4 Small File Bar x 2
C5 Large File Bar x 1
H4 Bumper x 6
C3 Right Leg x 1
H3 1/4-20 x 63mm
Machine Screw x 6
H2 M4 x 37mm Machine
Screw x 8
H1 1/4-20 x 12mm
Machine Screw x 16
C8 Left Leg x 1
Designed by Matthew Weatherly.
These distinctive product configurations are protected by US and international patents, trade dress, and/or
copyright laws. Corridor & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2015, BDI
Made in China. 02.05.2016 V2
CORRIDORTM 6529
CREDENZA
Tool Required:
Phillips screwdriver
bdiusa.com
customerservice@bdiusa.com
CORRIDOR 6529
CREDENZA
2
Step 2 - Build Base Assembly
Slide intoLeft Leg C8 Right Leg C3 and Base Stretcher C7 Hex Wrench and attach by using and Screw
H1.
Step 3 - Attach Leg Assembly Screws H1 H3 Hex Wrench to Cabinet using and and tighten with .
C8 C3
C7
C7
Æ
Æ
Æ
Æ
H1 (x8)
H3 (x6)
H1
H3
H1 (x8)
bdiusa.com
customerservice@bdiusa.com
CORRIDOR 6529
CREDENZA
3
Step 4 - Install Bumpers H4 Glass Panel in locations shown below onto the top of cabinet. Carefully position
flush with the edges of cabinet.
Step 5 - Attach Pulls C2 Screws H2 to cabinet door and drawers using and tighten with a Phillips screwdriver.
H4 (x6)
C2
C1
H2 (x8)
