Seite 1/8

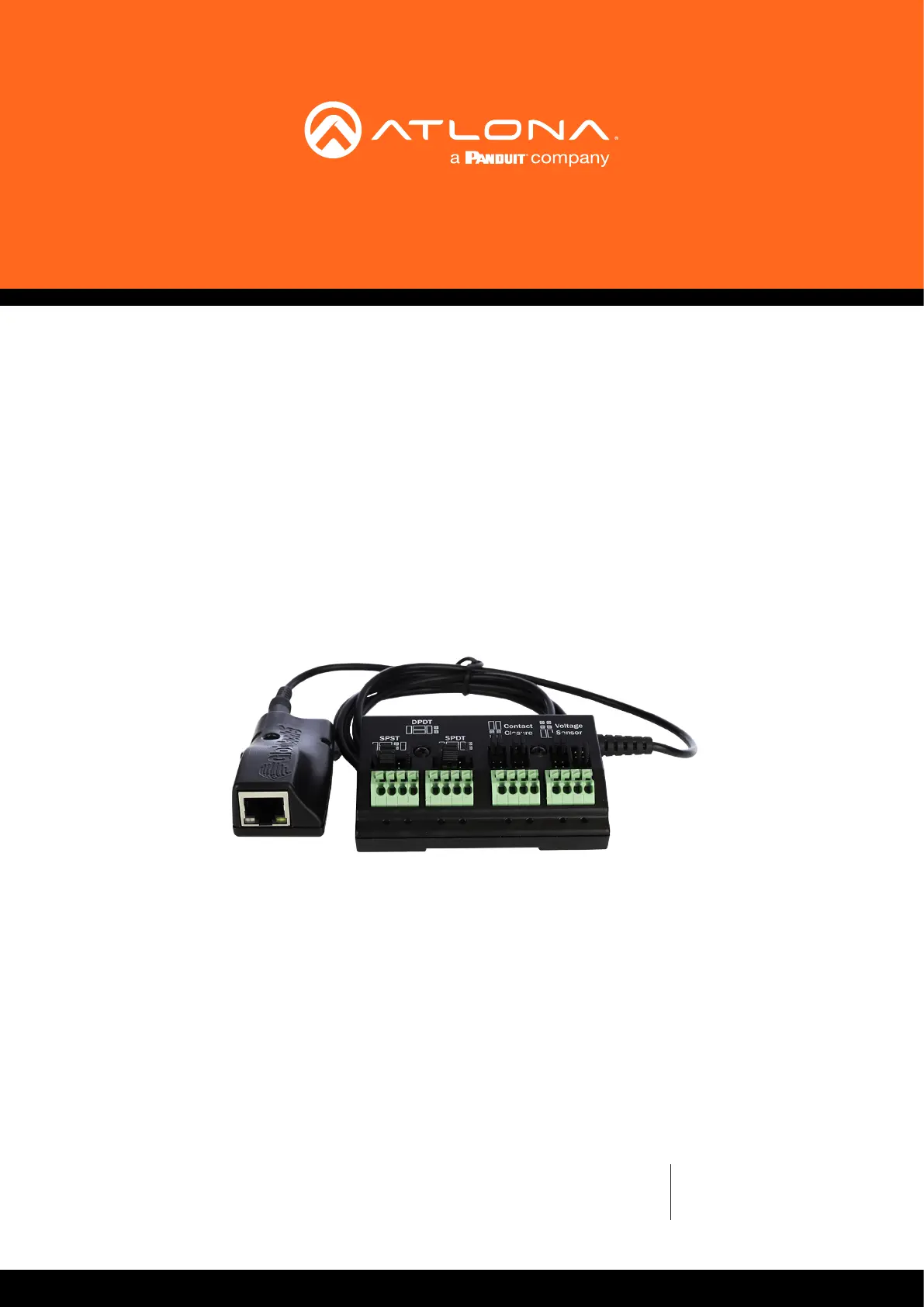

Installation Guide
AT-VCC-RELAY-KIT
1
IP to Relay Command Converter for Velocity Control System
AT-VCC-RELAY-KIT
The Atlona AT-VCC-RELAY-KIT is an accessory for the Atlona Velocity™ Control System that
provides conversion between IP control commands and relay / sensor signals. This Velocity
Control Converter is very compact and can be placed anywhere a device requires control and
is not IP-capable. The VCC-RELAY-KIT is remotely powered through Power over Ethernet (PoE),
or locally from a USB power source. The primary unit installs onto any surface via a convenient
mounting dock. A simple “click” locks it into place for a secure, reliable installation. The control
port module supports DIN rail installation, and features four relay outputs plus four sensor inputs.
The inputs and outputs are both congurable for various operating modes.
1 x AT-VCC
1 x AT-VCC-RELAY
Package Contents
Operating Notes
• The Velocity Command Converter must be on the same network as the Velocity Gateway
(AT-VGW-250) or it will be unable to sync for control.
• The AT-VCC-RELAY-KIT is PoE, to power the unit, simply plug it into a PoE compatible
network switch. If the network switch is not PoE capable, a PoE injector (purchased separately)
or USB can be used.
• All devices (AT-VCC, Velocity, AT-VTP, switchers, etc) should be set to static IPs or the
DHCP IP address reserved for each individual device.
IMPORTANT: Velocity Gateway (AT-VGW-250) must be set up before the AT-VCC-RELAY-
KIT is fully functional.
Installation Guide
AT-VCC-RELAY-KIT
2
Panel Description
SPST
DPDT
SPDT
Contact
Closure
Voltage
Sensor
1
1
1
2
SPST
SPST
22
3
3
4
4
5 6
1 Ethernet
Connect an Ethernet cable from this
port to the same network as the Velocity
Gateway.
2 USB
Optional - Connect a mini USB to USB
cable here for power.
3 3.5mm Port
Connect to a VCC relay connector.
4 Relay
Connect relay here, adjusting the jumpers
to set the unit to the correct mode.
5 Sensor
Connect sensor here, adjusting the
jumpers to the correct mode.
6 3.5mm Connector
Connect the 3.5mm connector to the
3.5mm port of the VCC.
Relay
The relay has 4 terminals which vary in function depending on how the jumpers above the ports
are set.
Place the jumpers as shown below, this can be done to a single connector or to both to create up
to 4 independent relays.
Single Pole, Single-Throw (SPST)
NOTE: Relays can only work up to a maximum of 24V and 500 mA current.
Installation Guide
AT-VCC-RELAY-KIT
3
Place the jumpers as shown below, this can be done to a single connector or to both to create up
to 3 independent relays.
When DPDT is selected within Velocity, it will create 2 relays that work simultaneously. If one
port is opened, the other will open at the same time. The DPDT is a variant of the SPDT and the
jumpers must be placed exactly as below to work.
Single Pole, Double-Throw (SPDT)
Double Pole, Double-Throw (DPDT)
1
Both ports are set to
Contact Closure
Both ports are set to
Voltage Sensor
The ports are set to Contact
Closure for the ports and rst two
Voltage Sensor for the .last two
1
1
22
3
Sensor
The ports can be set to sense either voltage or contact closure. Contact closure will react to the
change in current, while voltage will react to voltage as low as +/- 3V or as high as +/- 24V.
1 2
SPST
SPDT SPDT
DPDT
SPDT
