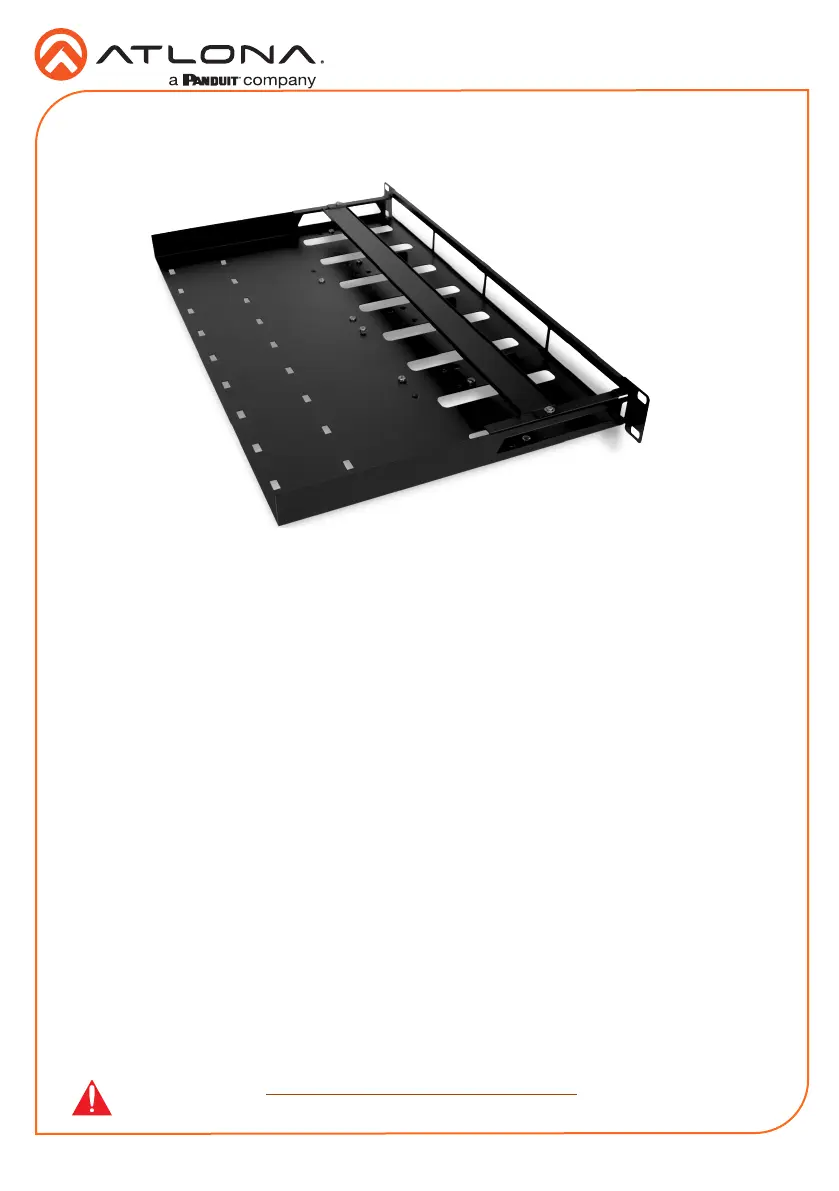

Installation Guide
AT-RACK-1RU-ME
One Rack Unit Multi-Extender Rack Shelf
AT-RACK-1RU-ME
1 x AT-RACK-1RU-ME
1 x Stabilizing bar (pre-installed)
w/2 screws and washers
8 x Screws
8 x Cable ties
8 x rubber feet
1 x Installation Guide
AT-AVA-EX70-2PS-KIT
AT-AVA-EX70-KIT
AT-AVA-EX70C-KIT
AT-AVA-EX70C-BP-KIT
AT-AVA-EX100CE-BP-KIT
AT-OME-EX-KIT (TX only)
AT-OME-EX-TX
AT-OME-EX-KIT-LT
AT-OME-RX11
AT-HDR-EX-70-2PS
AT-HDR-EX-70C-KIT
AT-HDR-M2C
AT-UHD-EX-100CE-KIT
AT-UHD-EX-100CE-TX
AT-UHD-EX-100CE-TX-PD
AT-UHD-EX-100CE-RX
AT-UHD-EX-100CE-RX-PSE
AT-UHD-EX-70-2PS
AT-UHD-EX-70-KIT
AT-UHD-EX-70C-KIT
AT-UHD-EX-70C-TX
AT-UHD-EX-70C-RX
Package Contents
Compatible Devices
The Atlona AT-RACK-1RU-ME is a heavy duty, 1U rack shelf designed for installation of up
to four quarter rack wide devices. The rack shelf is compatible with the 70 meter length HDR
extender series, UHD extenders, OME extenders, and Avance extenders.
IMPORTANT: Visit https://atlona.com/product/at-rack-1ru-me/ for the latest
compatibility list.
2
Installation Guide
AT-RACK-1RU-ME
Mounting Instructions
1. Place the rack on a at surface.
2. Slide the rst quarter rack width device into the rack.
3. Secure it by placing two of the included screws in the holes directly behind the device.
POWER
LINKFW
AT- UH D -E X- 70C-RX
POWER
LINKFW
AT-U HD- EX-70C-RX
FW
AT- HD R -E X- 70-2PS- R X
POWER
LIN K
NOTE: Do not over tighten the
screws. The screw will hold the unit
in place to avoid it moving back
and forth while connecting cables
or pressing front panel buttons.
3
Installation Guide
AT-RACK-1RU-ME
POWER
LINKFW
AT-U HD-E X-70C-TX
FW
AT- HD R -E X- 70-2PS- T X
POWER
LIN K
LAN FWHOST
OMEGA
TM
DEVI CE
PWR
LIN K
AT-AVA-EX70C-TX
POWER
LIN KFW
RS-232
RX TX SS
P
HDB as eT OUT HDM I I N
IR OUT
IR IN
TE ST
POWER
LINKFW
AT-U HD- EX-70C-RX
FW
AT- HD R -E X- 70-2PS- R X
POWER
LIN K
LAN FWHOST
OMEGA
TM
DEVI CE
PWR
LIN K
4. Repeat for up to 4 quarter rack width devices.
5. Once the devices are installed, the power supplies can be installed on the rack. Place the
power supplies on the back of the rack and use the cable ties to keep them in place. There
is space for up to four power supplies, some devices are PoE powered and will not require
power supplies.
POWER
LINKFW
AT-U HD-E X-70C-TX
FW
AT- HD R -E X- 70-2PS- T X
POWER
LIN K
LAN FWHOST
OMEGA
TM
DEVI CE
PWR
LIN K
AT-AVA-EX70C-TX
POWER
LIN KFW
RS-232
RX TX SS
P
HDB as eT OUT HDM I I N
IR OUT
IR IN
TE ST
NOTE: If there is any vertical movement from the devices, the included rubber feet can
be axed to the bottom of the rack bar. Some slight bowing may occur, it will not eect
the rest of the devices. See instructions on next page for feet installation.
