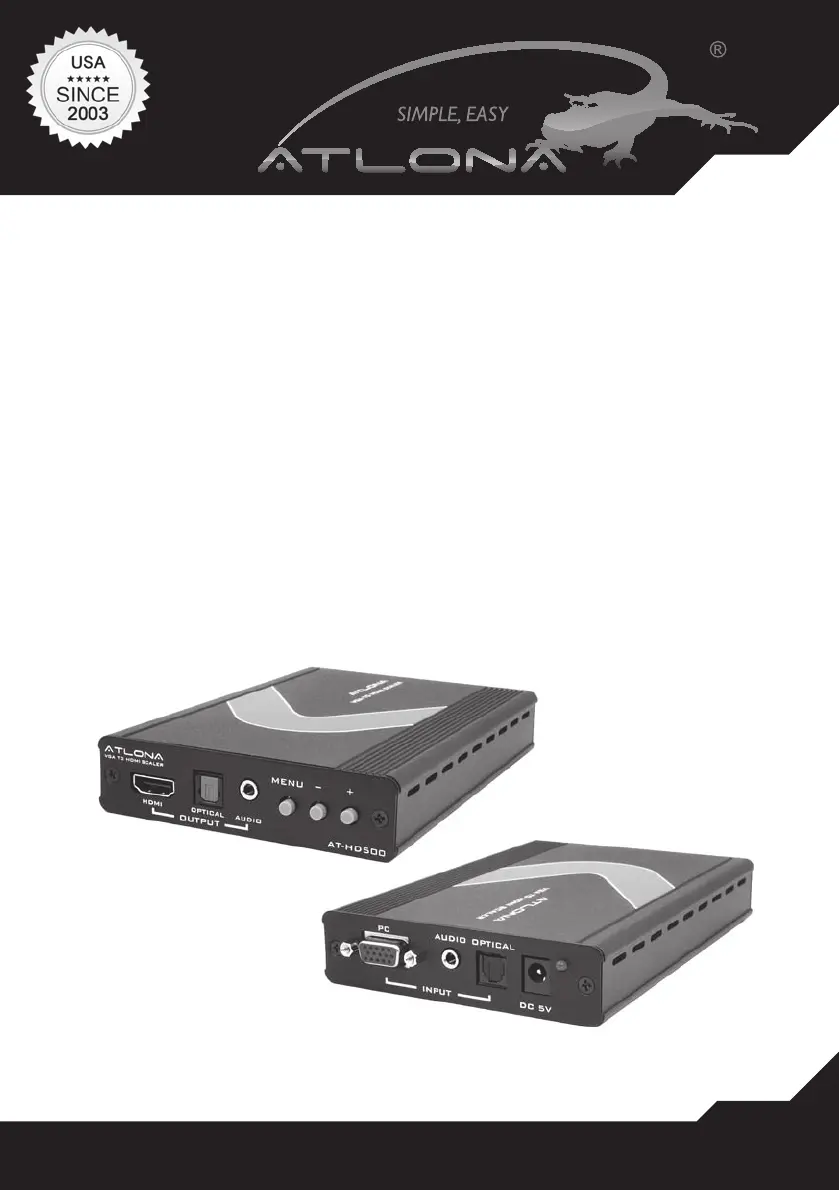

Seite 1/12
www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515
User Manual
AtlonA
www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 2
TABLE OF CONTENTS
1. Introduction .................................................. 3
2. Package Contents .................................................. 3
3. Features .................................................. 3
.................................................. 3
5. Panel Descriptions .................................................. 4
5.1 Front Panel .................................................. 4
5.2 Rear Panel .................................................. 4
6. OSD Operation .................................................. 5
7. Activating a VGA output on a Laptop .................................................. 5
8. Connection Diagram .................................................. 8
9. Support Resolution .................................................. 8
10. Resetting the Unit .................................................. 8
11. Safety Information .................................................. 9
12. Warranty .................................................. 10
13. Atlona Product Registration .................................................. 11
www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 3
INTRODUCTION
SPECIFICATIONS:
This Scaler Box is designed to upscale analog video signal from PC input source to digital HDMI output of
wide-range HDTV and PC resolutions, up to 1080p/WUXGA. Besides video upscaling, the scaler box also
converts digital/analog audio signal to digital/analog format, then output to HDMI combining with the video,
that allows user to select a variety of output resolutions and adjust for best picture quality.
PACKAGE CONTENTS:
• AT-HD500 (PC to HDTV Scaler)
• 5v power supply
• User manual
Input ports
Output ports
Power Supply
Dimensions (mm) 154(D) x 100(W) x 25(H)
Weight(g) 340
Chassis Material Aluminum
Silk Skin Color Black
Operating Temperature Operating from 0°C ~ 48°C
FEATURES:
• HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant.
• Scales any PC resolutions to PC (VGA ~ WUXGA)/ HD (480i ~ 1080p) resolutions.
• Automatically detect the factory setting of the connected display and output the corresponding
resolution and refresh rate, when the NATIVE output is selected.
• Provides output picture adjustment on contrast, brightness, hue, saturation, sharpness, RGB (color
tone) level and aspect ratio size.
• Supports high resolution output (See section “9. Support Resolution” for reference.):
PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA.
SD/HD: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p
• Supports stereo LPCM analog/digital audio input and stereo LPCM analog/digital output. Simply select
among the audio input sources in the OSD menu, then output the audio to HDMI, TOSLink and phone
jack simultaneously.
• Image of the color bar:
“If user is seeing a color bar, it means that there is no input signal present. The color bar will be active for 15min
and after the Atlona device will go to the stand-by mode and disconnect from the display. As soon as incoming
video signal will resume, the Atlona device will establish a new connection with the display”
