Seite 1/3

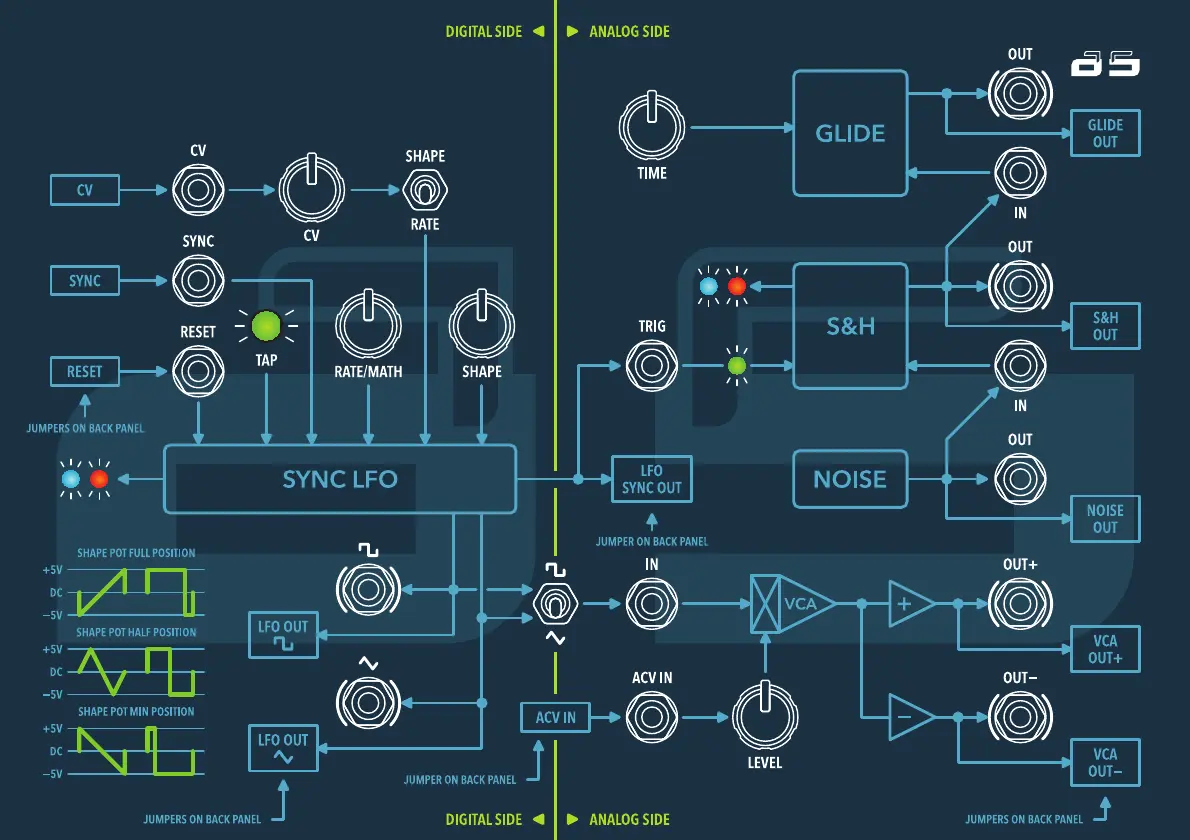

BLOCK DIAGRAM OF
MODULATION TOOLS
AS401
MIXED SIGNAL MODULE
109876
1514131211
54321
16
20
1917
23
25
22
21
2418
Switching Sync LFO mode, press and hold
TAP button for 2 sec(20)
When TAP button ïŹ‚ ashes green, Sync LFO is in
“NORMAL” mode. RATE potentiometer (21) and
RATE CV control from 0.05Hz up to 50Hz
When TAP button ïŹ‚ ashes yellow, Sync LFO is in
“MATH” mode. RATE potentiometer and RATE
CV work as beat divider and multiplier.
Using LFO CV destination selector choose (24)
between controlling RATE or SHAPE.
CV knob adjusts CV depth(23)
If Sync LFO in “MATH” mode and CV
destination selector in RATE position, then (24)
CV knob won’t adjust CV depth, also CV (23)
input switches into note CV mode.
LFO Divider note control:
1. WHITE NOISE OUT, level: 10Vpp
2. VCA CV IN, range: 0V to +10V
3. VCA IN, range -10V to +10V
4. VCA POS OUT, range -10V to +10V
5. VCA NEG OUT, range -10V to +10V
6. S&H TRIG IN, range +5V, min 1ms
7. S&H IN, range -10V to +10V
8. S&H OUT, range -10V to +10V
19. GLIDE IN, range -10V to +10V
10. GLIDE OUT, range -10V to +10V
11. LFO RESET IN, range +5V, min 1ms
12. LFO SYNC IN, range +5V, min 1ms
13. LFO CV IN, range -5V to +5V
14. LFO TRIANGLE OUT, range -5V to +5V
15. LFO SUARE OUT, range -5V to +5V
16. S&H TRIG & OUT indicators
17. VCA LEVEL / VCA CV depth
18. LFO waveform to VCA IN
19. GLIDE TIME
20. TAP tempo & MODE SELECTOR button
21. RATE/MATH potentiometer
22. SHAPE potentiometer
23. LFO CV DEPTH potentiometer
24. LFO CV DESTINATION selector
25. LFO OUT indicators
FRONT PANEL OF
MODULATION TOOLS
AS401
MIXED SIGNAL MODULE
1
3
2
1. Power bus connector IDC10
2. Factory programmer port
3. USB for ïŹ rmware upgrade
4. VCA CV & Sync LFO control inputs
from internal rails
When no use of input pins, connect
jumper between input and GND also
between VCA CV and VCA REF pins
5. Signal outputs to internal rails
Do not use jumpers on output
pins, also do not connect to ground or
power rails!
BACK PANEL OF
MODULATION TOOLS
AS401
MIXED SIGNAL MODULE FIRMWARE UPGRADE:
1. Download MODULATION TOOLS
ïŹ rmware from our website
2. Turn off your modular system
3. Connect Micro USB cable to Firmware
upgrade port
4. Turn on your modular system
5. Module’s library appears in pop-up
window
6. Drag and drop downloaded ïŹ le into
pop-up window
7. When upload is done turn off your
modular system and disconnect USB
cable.
8. Restart your modular system and enjoy
9. If upload process was unsuccessful,
repeat the whole procedure.
TECHNICAL SPECIFICATION:
Module depth: 33mm
Module width: 16HP (80.4mm)
Module weight: 200g
Connector type: 10P IDC Eurorack
Power consumption:
+12V / 110mA & 12V / 20mA
Analog outputs: True Rail-to-Rail
Analog outputs range:
0V to +10V or -5V to +5V
Digital inputs range: 0V /+5V
Digital inputs pulse time: min 1ms
