Seite 1/10
TruePower Quattro
User’s Manual
Manuel de l’utilisateur
Anwenderhandbuch
Manuale per l’operatore
Manual del usuario
পᡅ䂀ᯢ᳌
1
User’s Manual

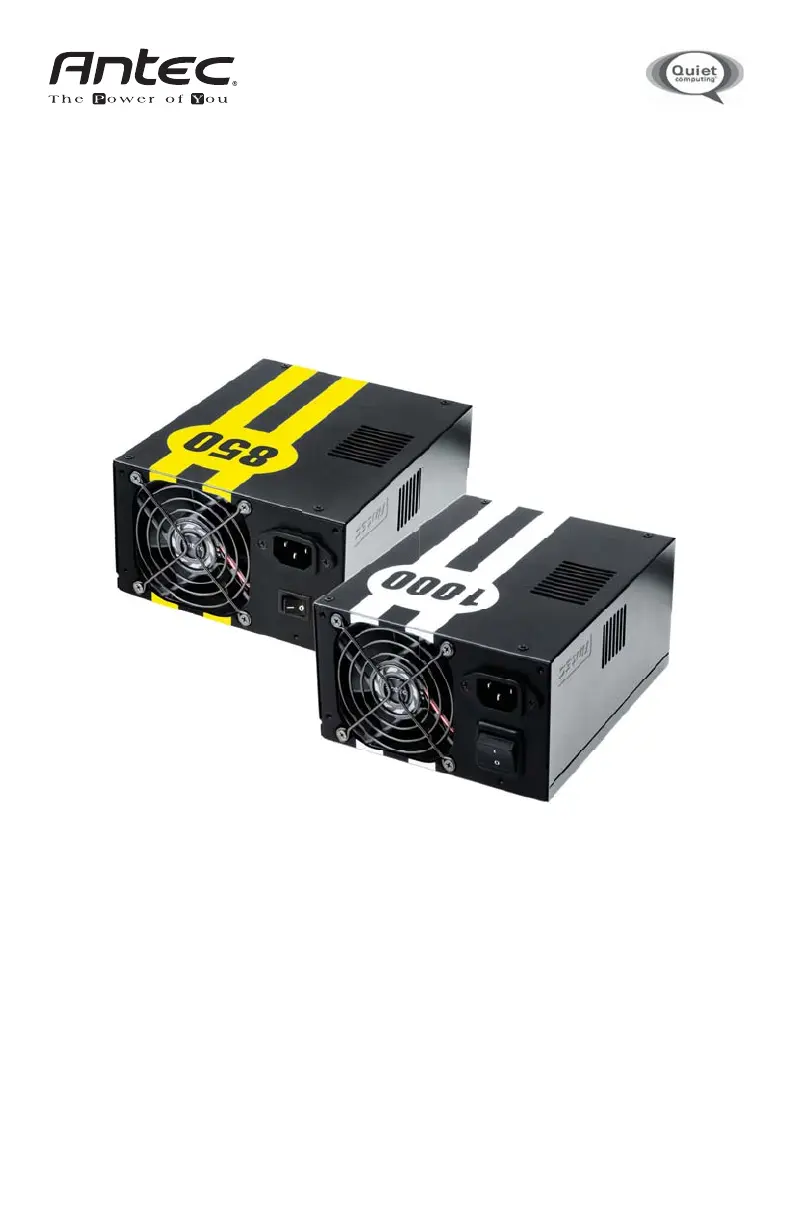

TruePower Quattro
High efficiency modular power supply
Models: TPQ-850, TPQ-1000
The TruePower Quattro Power Supply Unit (PSU) series is compatible with EPS12V v2.91
and ATX12V specifications. TruePower Quattro has increased output power
distribution to match the newest Intel® and AMD™ server level processor requirements.
It includes four +12V outputs that deliver safer and more reliable power to your
system’s components. It also includes a variety of industrial-grade protective cir-
cuitry: OCP (Over Current Protection), OVP (Over Voltage Protection), SCP (Short
Circuit Protection), and UVP (Under Voltage Protection).
TruePower Quattro power supplies generate less heat because they are designed
for high efficiency. This keeps the power supply itself cooler and prolongs its
working life. TruePower Quattro power supplies have achieved 80 PLUS® Certification,
the latest independent standard in power supply efficiency.
Special Quiet Computingâ„¢ fan operation
TruePower Quattro PSU features an innovative design to help decrease noise during
normal use, but still allow for superior cooling capabilities as loads increase. With its
high efficiency and low heat generation, the power supply utilizes a smaller fan.
The exhaust fan rotates slowly and quietly to blow hot air out of the power supply,
speeding up as heat increases. The TruePower Quattro PSU features Universal
Input, which allows you to connect the power supply to any AC power source
between 100~240V without having to worry about setting a voltage switch. This
power supply also features Active PFC, which improves the power factor value of
the power supply by altering the input current wave shape and thus helps transmission
across the power grid.
Advanced cable management system
TruePower Quattro power supplies feature Antec’s advanced cable management
system, which allows you to use only the power cables that you need, thereby
reducing clutter and improving airflow inside your case. Inside the package, apart
from a power cord, you will find the following (See Table 1 )
1. The 24-pin main power connector with detachable 4-pin section for
20-pin applications.
2. The 8-pin +12V and 4-pin +12V connector.
3. Two 8-pin with detachable 2-pin PCI-E connectors.
4. Five 6-pin output sockets, for use with the cable sets to power your drives
and other peripherals.
2
Quantity Picture Part Name Description
1Power supply Includes 24-pin
main connector,
8-pin +12V
connector, 4-pin
+12V connector,
and two 8-pin
(with 2 detachable
pins) PCI-E
connectors
2Molex and Floppy
connector w/ cable
Includes three
Molex connectors
and one floppy
connector
1Molex connector
w/ cable
Includes three
Molex connectors
1Serial ATA
connector w/ cable
Includes two Serial
ATA connectors
2Serial ATA
connector w/ cable
Includes three
Serial ATA
connectors
2PCI-Express
connector w/ cable
Includes one
PCI Express
connector
Table 1
x1
x3
x2
x3
x3
x1
