Seite 1/8

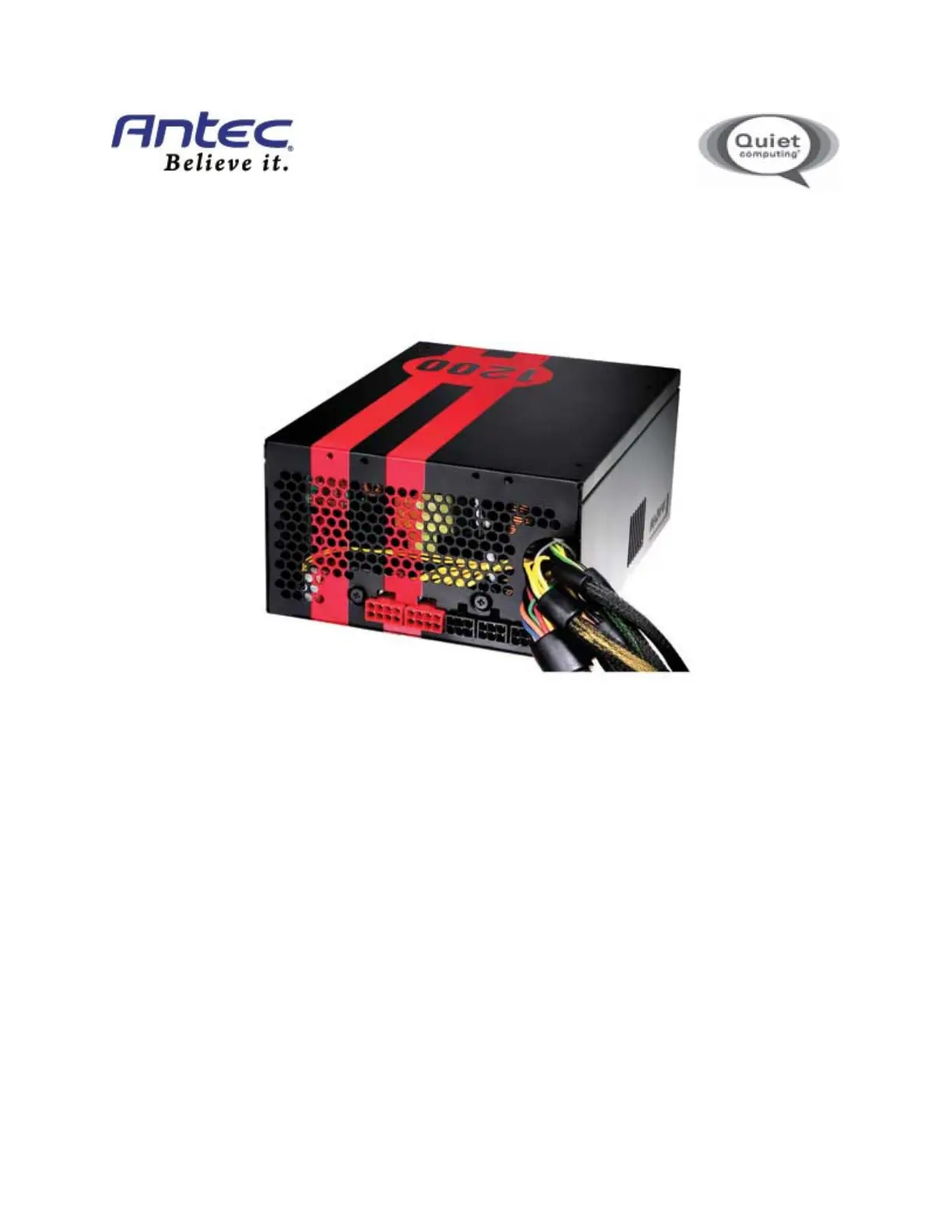

T
RUE
P
OWER
Q
UATTRO
1200-W
ATT
P
OWER
S
UPPLY
U
SER
’
S
M
ANUAL
U
SER
’
S
M
ANUAL
T
RUE
P
OWER
Q
UATTRO
S
ERIES
TPQ-1200
P
OWER
S
UPPLY
H
IGH
-P
ERFORMANCE
P
OWER
S
UPPLY
The TPQ-1200 goes beyond the kilowatt range of standard power supply units (PSUs) to power the largest servers
and video workstations. It includes six rails of +12V output to deliver safe and reliable power to your system, and
enough power and cables available to run three or more separate high-end graphics cards simultaneously.
S
TANDARDS AND
F
EATURES
The TruePower Quattro series is compatible with ATX12V v2.3 and EPS12V v2.91 specifications. The TPQ-1200 PSU
features Universal Input, which automatically senses when you connect the power supply to any AC power source
between 100 240V without having to worry about setting a voltage switch, and Active Power Factor Correction ~
(Active PFC), which improves the power factor value of the power supply by altering the input current wave shape,
thus helping transmission across the power grid.
C
ONTINUOUS
P
OWER
O
UTPUT
R
ATING
Unlike other power supplies that are rated by their peak wattage, Antec power supplies are rated based on their
continuous power output. This means that your TPQ-1200 delivers 1200-watt power during normal, continuous
operation; not simply at its peak
S
YSTEM
P
ROTECTION
The TPQ-1200 also includes a variety of industrial-grade protective circuitry: OCP (Over Current Protection), OVP
(Over Voltage Protection), UVP (Under Voltage Protection), and SCP (Short Circuit Protection). Sometimes the PSU
will “latch” into a protected state. This means that you will need to clear the fault and turn the power off to the
PSU before it will function again. There are no user-replaceable fuses in your TPQ-1200.
80
PLUS®
S
ILVER
C
ERTIFICATION
80 PLUS® certification is the most widely recognized independent standard in power supply efficiency. An 80
PLUS® certified power supply uses less energy and generates less heat to stay cooler, run quieter and last longer.
The TPQ-1200 earns the rare 80 PLUS® Silver level of efficiency, meaning that it has been certified to be at least
85% efficient at a wide range of operating loads; this will lower your operating costs and help protect the
environment.
Source: 80 PLUS Verification and Testing Report
NVIDIA™
SLI™-R
EADY
C
ERTIFICATION
Antec’s TruePower Quattro power supplies are NVIDIA™ SLI™-Ready certified for use with multiple high-end
graphics cards for superior parallel graphics processing.
A
DVANCED
H
YBRID
C
ABLE
M
ANAGEMENT
S
YSTEM
The TPQ-1200 uses Advanced Hybrid Cable Management. Cables that are important or mandatory are connected
directly to the PSU. There are also modular connectors on the back of the PSU to add additional cables as needed.
Using only the power cables you need will reduce clutter and improve airflow inside your case. For the list of
connected and optional cables, see Table 3.
DC
TO
DC
C
ONVERSION
The TPQ-1200 uses DC to DC conversion for the +5V and +3.3V rails. This module operates at 85% efficiency, as
opposed to traditional magnetic amplifiers that operate at only 75% efficiency. Transient response time is almost
100 times faster, providing remarkably stable power output in response to changing loads.
P
ULSE
W
IDTH
M
ODULATION
(PWM)
F
AN
Pulse Width Modulation technology allows the TPQ-1200 to finely control the speed of the PSU’s fan. By using this
method instead of the traditional voltage-controlled fans, this PSU’s fan can run up to 50% quieter than standard
fans. A PWM fan can run as slow as 10-15% of the fan’s rated top speed, whereas a voltage regulated fan can only
go as low as 40%.
+12
V
OLT
R
AIL
D
ISTRIBUTION
The TPQ-1200 uses six separate +12 volt power rails. The engineers have allocated the rails to different connectors
to prevent voltage sags in one device due to sudden demands for power by another device.
