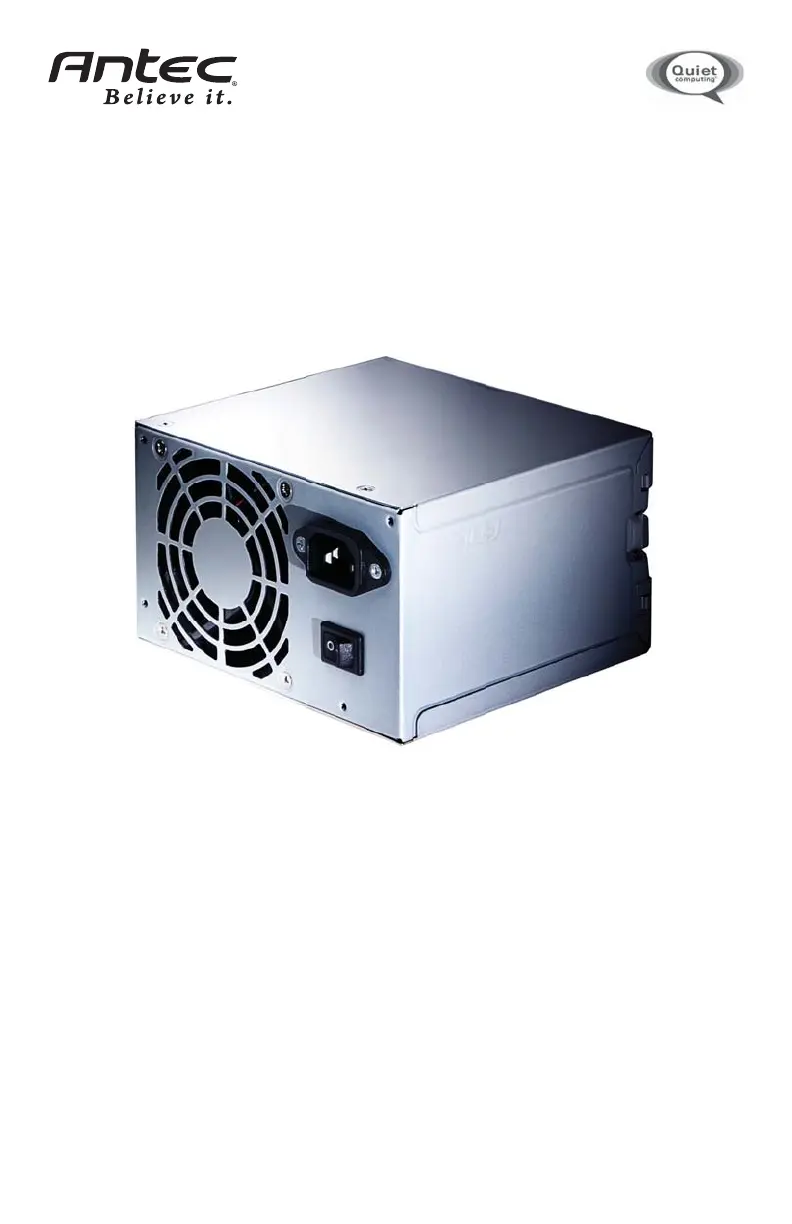

Seite 1/4
Basiq
BP430
User’s Manual
Manuel de l’utilisateur
Anwenderhandbuch
Manuale per l’operatore
Manual del usuario
Ё᭛Փ⫼ݞ
পᡅ䂀ᯢ
1
Antec Basiq User’s Manual
ATX12V version 2.2 power supply
Model BP430
Antec Basiq series power supplies are built to be compatible with the ATX12V
version 2.2 specification. They include two 12V output circuits that deliver safer
and more reliable output to your system’s components. In addition we’ve
included a variety of protective circuitry: OCP (Over Current Protection),
OVP (Over Voltage Protection), and SCP (Short Circuit Protection).
BP430 includes Universal Input with Active Power Factor Correction (PFC).
Universal Input allows you to connect your Antec Basic power supply to any AC
power outlet between 100~240V without having to worry about setting a voltage
switch. Active PFC improves the power factor value to the power supply by altering
the input current wave shape, helping the power plant provide power to users
more efficiently.
Power Switch:
This power supply comes with a main power switch. Make sure you turn the
switch to the ON ( I ) position before you boot up your computer for the first time.
In normal operation there is no need to turn the switch to the OFF (O) position
since the power supply is equipped with a soft on/off feature which turns your
computer on and off through the soft switch on your computer case. You may
need to turn the switch to the OFF position occasionally should your computer
crash and you cannot shut it down through use of the soft switch.
Installation:
1. Turn off the hard power switch on your old power supply if any.
2. Open your computer case. Follow the directions provided in your case manual.
3. Disconnect all power connectors from the motherboard and from the peripheral
devices such as case fans, hard drives, optical drives, floppy drives, etc.
4. Disconnect the power cord from your old power supply.
5. Remove the existing power supply from your computer case and replace it
with your new Antec power supply. (Illustration 1)
6. Turn the hard switch on the Antec power supply to the OFF (O) position and
connect the AC power cord to the power supply.
1
2
7. Connect the 24-pin Main Power Connector (Illustration 2). If the mother-
board uses a 20-pin connector, detach the 4-pin attachment on the 24-pin
power connector (see pictures 1 and 2).
Note: the detachable 4-pin section cannot be used
in place of a 4-pin +12V connector.
8. Connect the 4-pin (Illustration 3) 12V connector to the motherboard as
needed.
9. If your video card requires a PCI-E Connector, then connect the cable from
the main wire bundle to your video card.
10. Connect the Drives and Accessories Cable to devices such as hard drives,
optical drives, fans, etc.
11. Connect the SATA cable if you are using a Serial ATA hard drives.
12. Close your computer case.
Picture 1 Picture 2
For 24-pin
motherboards
For 20-pin
motherboards
d
3
