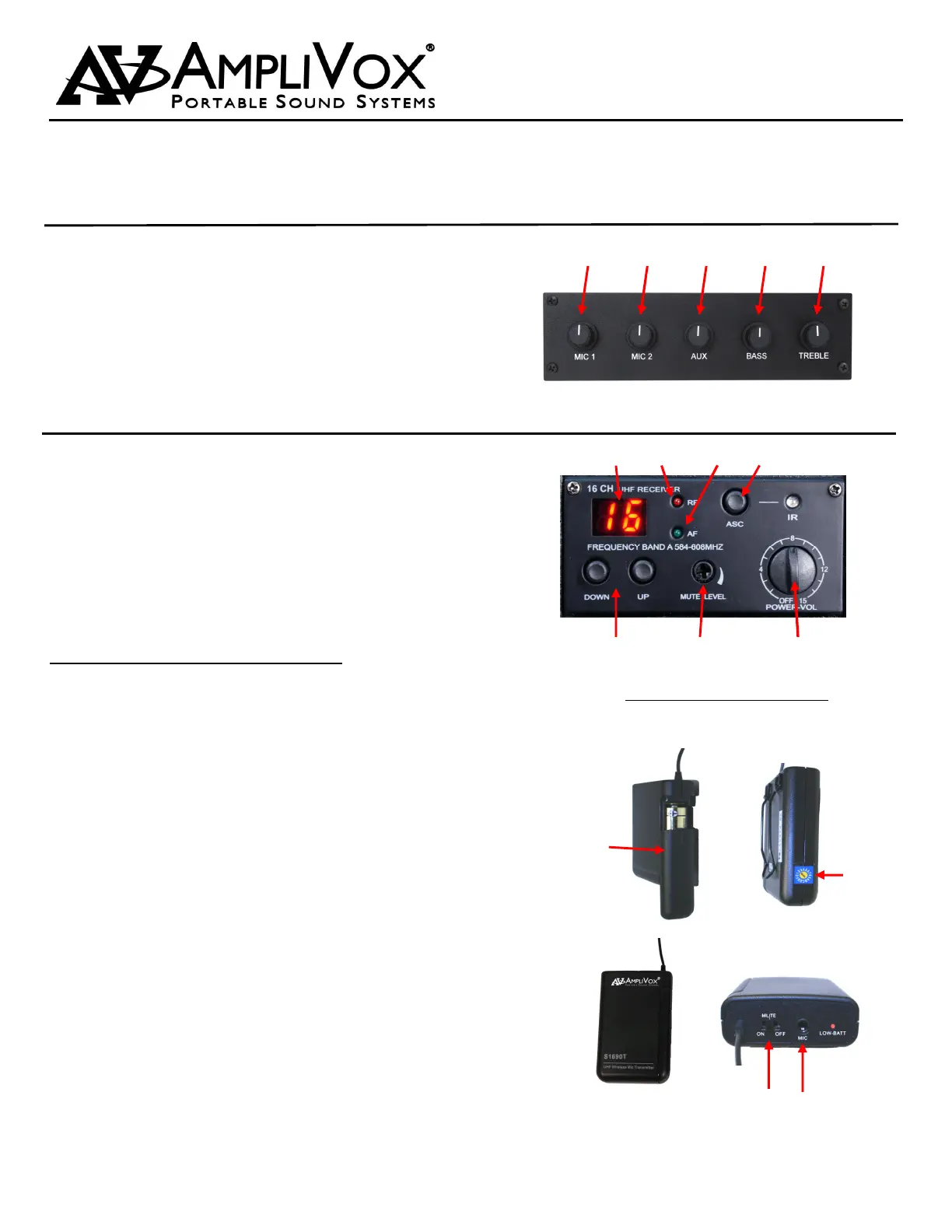

CONTROL PANEL
Electronic Instructions
Lectern
Your lectern may not contain all of the electronic modules as shown and explained here. Speakers and lectern
microphone are pre-wired. To install gooseneck microphone, pull out connector from microphone holder and
snap microphone into connector. Install back into microphone holder.
NEED HELP? Call 800-267-5486
16 CHANNEL WIRELESS RECEIVER
1. MIC 1: Adjusts volume level of gooseneck microphone
on reading table.
2. MIC 2: Adjusts volume level of microphone plugged
into the MIC 2 input jack on amplier.
3. AUX: Controls output level of device that is plugged
into the L/R RCA jacks.
4. This control cuts or boosts the bass level. BASS:
5. This control cuts or boosts the treble level. TREBLE:
RECEIVER / TRANSMITTER SETUP:
· The receiver has its own POWER / VOLUME Control (G).
Turn Power On. A Frequency Channel will appear in the Chan-
nel Display (A). Press Select Buttons ( ) to select a channel. E
Channel number must match channel number on wireless
transmitter.
· The transmitter bodypack is operated by 1 - "AA" 1.5 Volt alka-
line battery. Slide o battery cover and install battery as (H)
shown. Make certain the battery is fully seated in its compart-
ment so the cover slides in place easily. Battery life with alka-
line batteries is approximately 8 hours of operating time.
· Select a channel (1-16) on side panel using the supplied (I)
screw driver to select channel number. Channel selected
should match channel on receiver. When transmitter and
receiver are set to correct channel the RF indicator (B) will
glow red when transmitter is turned on.
· Plug the Lapel microphone into the Mic Input Jack (K). The
microphone can be clipped to a necktie or other clothing,
using the supplied clip. The lapel mic should be placed under
the chin, as close to the center of the body as possible.
· Slide the power switch to the position (the ON/OFF (J) ON
LED indicator light will illuminate green). Replace batteries
when this LED turns red.
MUTE LEVEL (F) is set at half way mark when it leaves the
factory. If speaker sound is breaking up, turn level clockwise
with small screwdriver until condition improves.
· Channel Display (A)
· RF - Radio Frequency Indicator (B)
· AF - Audio Frequency Indicator (C)
· ASC / IR Auto Channel Select (Handheld Only) (D)
· Select Buttons - Manual Channel Selection (E)
· Mute Level Adjustment (F)
· Volume Control (G)
A B C D
E F G
1 2 3 4 5
Wireless Transmitter - Bodypack
Battery Cover
H
Channel Selector
I
Top Panel
J K
If you are using the AmpliVox S1695 Wireless Handheld Microphone Transmitter, screw o the lower bottom section of mi-
crophone and insert 2 - "AA" 1.5 Volt alkaline batteries.
IMPORTANT: Because the microphone has an AUTO SYNC function, you rst select channel you wish to use on the re-
ceiver. Then press the ASC button ( ), the IR light will start to ash. Turn on microphone and point end ( ) of microphone D 6
at the ashing IR light on receiver and the microphone will auto sync to the same channel as selected on the receiver.
WIRELESS HANDHELD MICROPHONE MODEL S1695
BATTERIES
1. Hold the body of microphone in hand and twist o
bottom section of microphone.
2. Insert two AA batteries.“ ”
3. Twist bottom section back on to microphone.
BATTERY STATUS
The life expectancy of the two batteries is about 10
hours. When the BATTERY symbol on the display
screen keeps ashing the batteries should be replaced
immediately.
· TURN ON MICROPHONE: Push and hold the
POWER/MUTE (3) button until LCD screen
lights up.
· TO MUTE: POWER/MUTE Press button twice
to MUTE. Channel number will ash when muted.
Press button again twice to remove MUTE .
· TURN OFF MICROPHONE: Push and hold the
POWER/MUTE (3) button for 2 seconds to turn
microphone OFF.
· SELECT CHANNEL (Manual): Press and hold
the (4) button for 2 seconds until you SELECT
only see the word Channel and channel number.
To change channel, when ashing, press the
SELECT (4) button until you reach the desired
channel. Flashing will stop after 10 seconds and
channel is now set.
· LOCK / UNLOCK CHANNEL: Push the
(3) button and POWER/MUTE SELECT
button at the same time to lock or unlock channel.
When locked, channel cannot be changed.
LOCKED symbol appears in upper left-hand
corner.
Functions
1) Interchangeable Microphone Head
2) LCD Screen
3) Power / Mute Control Switch
4) Select Button
5) Microphone Input Sensitivity Ad-
justmentis used to set the gain of
microphone. If you are a soft talking
speaker you will need to turn the control
counter clockwise. Turn clockwise if you
are a loud talker. Use plastic screwdriver
that is supplied.
6
· With main power switch (L) on, press button (M)
to turn Bluetooth pairing on and hold for 4 seconds to
enter into the pairing mode.
· The RED LED (N) will start to ash, searching for a
Bluetooth signal. Search function will stay active for
10 minutes. If no signal is found ,this function will
shut o. During the search function turn on your
Bluetooth device for pairing. On your Bluetooth menu
of your device, choose pin code 0000. Once paired,
red LED will stay on.
· Use this button (0) to move to the next song or
(P) to play previous song. Use (M) to pause.
When paused you will need to press again to
start playing.
· VOLUME CONTROL (L) Use to adjust the volume of
the Bluetooth material.
BLUETOOTH MODULE MODEL S1500
L
N
O
M
P
AMPLIFIER
· MIC 2: XLR connector for external wired microphone
· LINE IN: 1/4" connector
· LINE OUT: 1/4" connector
· EXTERNAL SPEAKER A: 1/4" connector
· EXTERNAL SPEAKER B: 1/4" connector
· BATTERY STATUS: NOT USED WITH THIS LECTERN
· POWER : ON / OFF SWITCH
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use of
such marks by Amplivox Portable Sound Systems is
under license. Other trademarks and trade names are
those of their respective owners.
