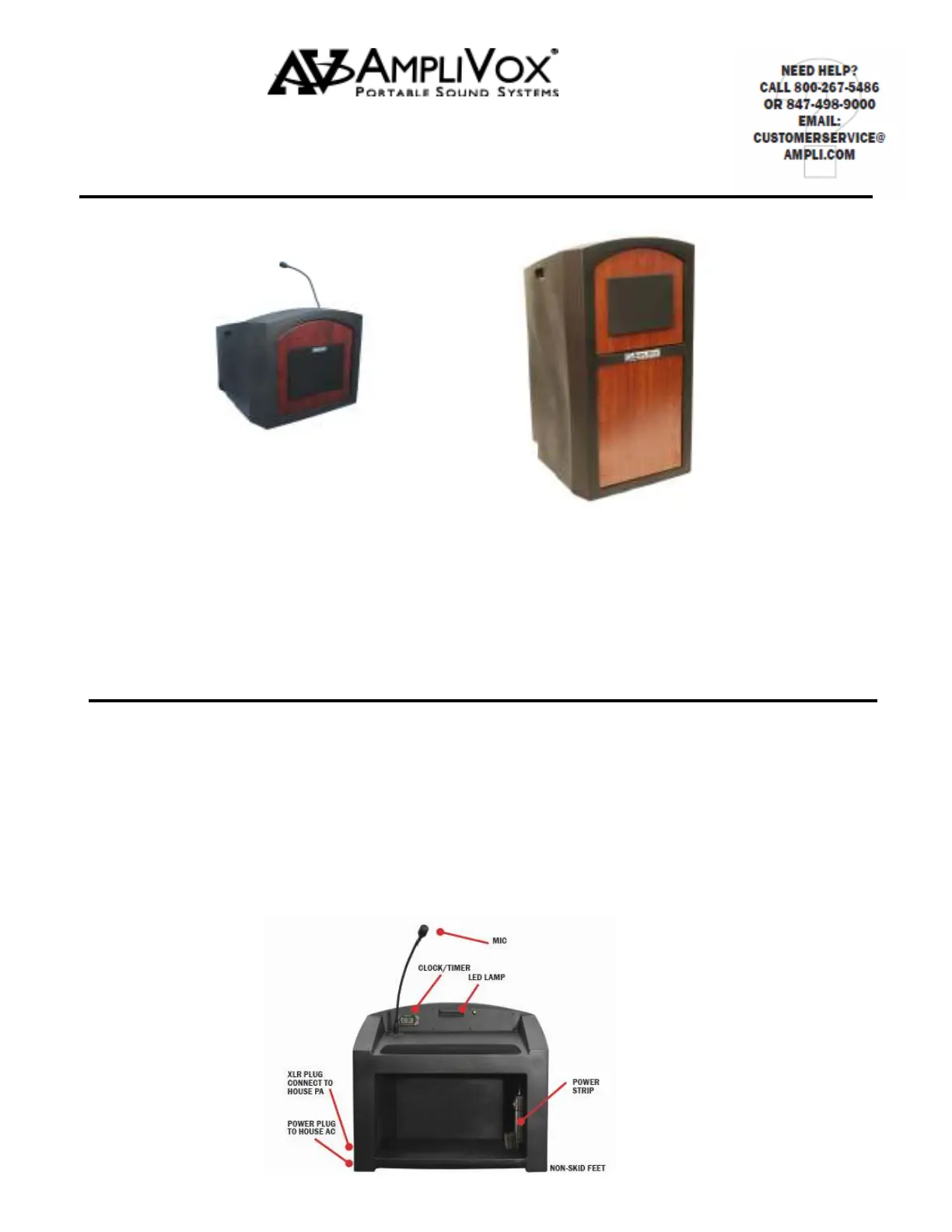

MODEL SW3240 / SW3250 USER GUIDE
Pinnacle Full Height and Tabletop Lectern with
Internal 16 Channel UHF Wireless Receiver and Amplifier
INCLUDES:
• Built-in Flush Mount Amplifier w/Internal 16 Channel
UHF Wireless Receiver
• Electret Gooseneck Microphone
• Wireless headset and lapel mic with transmitter
• 25 Foot XLR Cable
• 16 Foot Power Cord
Thank you for choosing the
SW3240 / SW3250
Pinnacle
Lectern from AmpliVox Portable Sound Systems.
We are excited in introducing this truly unique system. Our
system combines flexibility with functionality. Please refer to
this user guide as you enjoy the unique capabilities of another
quality product from AmpliVox Portable Sound Systems.
We encourage you to visit our website to www.ampli.com
register your product for its warranty coverage, sign up to
receive our newsletter, download our catalog, and learn more
about the complete line of AmpliVox audio visual products,
including portable PA systems, and lecterns.
SW3250
SW3240
The
SW3240 / SW3250
Pinnacle Lecterns come with a Gooseneck Mic. that installs in the cable mounted in the
shock mount on the reading table. That cable is prewired to the XLR connector at the lower side of the unit where
you plug in an XLR cable to the house PA system.
The LED Lamp is powered by an AC power adapter that is plugged into an outlet strip mounted inside the unit which
has its plug mounted to the bottom side of the unit. You plug in the supplied power cord from the base of the unit to
the house AC.
The clock/timer is battery operated (LR44 Watch Batteries, not included). The batteries can be replaced by pulling the
clock out of the panel. The batteries are in the back of the timer.
BATTERY INSTALLATION / SET-UP
INSTALL POWER SUPPLY IN ALL COMPONENTS
:
IMPORTANT! Do not mix battery types or attempt to recharge alkaline batteries.
Equipment damage, safety hazard or fire could result. Remove batteries if the unit
is not going to be used for long periods of time to prevent leakage.
SW3240 / SW3250: Both lecterns run on AC power or battery power. The battery
carriage holds 10 D-cell alkaline batteries or Amplivox optional S1465 NiCad
Battery Pack (Fig.1) which also requires a S1460 AC adapter for recharging. (Fig.
2). Or runs on a 12 Volt DC adapter (automotive cigarette lighter plug-in, not
included).
Locate amplifier (A). Loosen four thumbscrews (B) and remove battery door.
Remove battery carriage (C). Insert 10 D-cell alkaline batteries, observing polarity,
or replace with fully charged S1465 NiCad battery pack. Carefully replace the
battery carriage. Reposition battery door and fasten the thumbscrews.
Transmitter Bodypack: The transmitter bodypack (S1690T) is operated by
1 - "AA" alkaline battery. Before use, install battery as shown (Fig. 3). Make
certain the battery is fully seated in its compartment so the cover slides in place
easily. Battery life with alkaline batteries is approximately 8 hours of operating
time.
INTERNAL
WIRELESS
MICROPHONE
RECEIVER:
Select channel (1-16) on front panel ) Channel number should match channel (A .
number on wireless transmitter. Use supplied screwdriver to select channel number.
Frequency Range: 584-608 MHz
MICROPHONE TRANSMITTER (S1690T)
1) Rotate the Channel Selector Switch (
B
) to the desired channel with a small screwdriver. Channel must match channel selected
on receiver.
2) Belt clip on the back of the unit clips the transmitter onto a belt or the transmitter simply can be put into a pocket.
3) Plug the microphone into the Mic Input Jack ( ). C
4) The microphone can be clipped to a necktie or other clothing, using the supplied clip. The lapel mic should be placed under the
chin, as close to the center of the body as possible
5) Slide the power ON/OFF switch ( ) to the ON position (the LED indicator light will illuminate). Please note that this is a 3 D
position switch. The center position is "MUTE".
Channel Selector Top Panel
NiCad Battery Pack (S1465) AC Adapter (S1460)
Fig. 1 Fig. 2 Fig. 3
B
C
A
A
B
D
C
(A)
ON
-
OFF:
POWER SWITCH is located on left of front panel.
When turned on, the red LED will light.
(B) INTERNAL WIRELESS ON-OFF SWITCH
(C) DC IN: Connection for optional power adapter:
• S1460 International AC Adapter/Recharger (110/220V, 50/60Hz)
• S1462 12 Volt DC (automotive cigarette lighter) Adapter
(D) AUX POWER OUT: Connection for 12 to 15V DC accessory
(E) MICROPHONE INPUTS:
There are three microphone inputs, which can be used simultaneously
DYNAMIC - for standard dynamic cartridge microphones. 1/4″ jack
CONDENSER - for electret or condenser microphones, which require phantom power (supplied from the amplifier). 3.5mm jack
WIRELESS - accepts line-level output from wireless microphone receiver. 3.5mm jack
(F) AUX - AUXILIARY: To play pre-recorded music, connect the of your CD player, tape player, MP3 or Smartphone LINE OUT
(cable with 3.5mm plug will be needed) into the jack. Separate and control knobs let you balance LINE IN VOLUME TONE
the program source with the live microphones. Can also be use for an external wireless microphone receiver.
(G) OUTPUT - LINE OUT : To record your speech or program, connect the on the amplifier (cable with 3.5mm plug LINE OUT
will be needed) to the input of a recorder.
(H) VOLUME CONTROL - MAIN: Rotate clockwise to increase amplification of Microphone inputs and internal wireless.
(I) SPEAKERS: Two separately amplified speaker jacks allow you to use one or two speakers (S1201, S1290) for additional sound
power or true stereo output. Note: when using a stereo source with a single speaker, only one of the stereo channels will AUX
be heard. However, all inputs are heard equally on both channels. MIC
TO OPERATE: Insure the speaker is plugged into Left SPEAKER jack. Turn amplifier on. Turn on wireless receiver (if using
wireless microphone). LED on front of cabinet will light. Insure both transmitter and receiver are on same frequency. Turn on
power switch located on wireless transmitter (body pack or handheld microphone). Rotate main control knob to VOLUME
obtain desired loudness level throughout the coverage area.
CONTROL PANEL
A
B
C
D
G
H
I
FEATURES
READING LAMP
The lectern is equipped with a bright, adjustable 6-LED reading lamp that aluminates the entire reading surface. To use the reading
lamp located on the panel in front of the reading surface, the main power on the electronics panel must be turned on. The knob
located to the right pf the reading lamp turns it on and controls the brightness. Turn it clock-wise to make it brighter and counter-
clockwise to dim or turn off completely.
CLOCK / TIMER
The jumbo LCD display has backlighting for easy reading for the presenter to be able to track time and length of presentation.
XLR OUTPUT
At the base of the lectern there is an XLR output jack that may be used to connect the lectern to the house PA system, recording
device, or any other audio device with a MIC LEVEL input. With this connection the person speaking into the electret microphone or
any other microphone plugged into the control panel, including the wireless microphone, can also be heard through the house
system. Also, audio signals from any device connected to the "AUXILIARY" input will be heard through the house system, such as
the audio portion of a computer presentation, CD player or MP3 device for example.
The XLR output may also be modified to deliver a line-level output if needed. Contact Amplivox Customer Service for further details.
GOOSENECK CONDENSER MICROPHONE
The electret condenser microphone is designed for extra sensitivity to easily pick up the presenter's voice. Plug the microphone into
the XLR cable that is in the "Shock Mount" base on the reading surface. You can pull out the connector cable for easier attachment
of the microphone. Insert the microphone back into the base until it is firmly supported.
Adjust positioning as needed. The XLR cable for the microphone is internally connected on the same circuit as the "CONDENSER"
jack located on the control panel in the recess. Adjust microphone level using the main volume control (H).
POWER STRIP
There is a 6-outlet power strip located inside the recess that is connected to the power input jack at the base of the lectern. Connect
lectern to power outlet using the 16' IEC power cord. The power strip can be used to power additional electronics.
PORTABILITY
Two locking tilt-n-turn heavy duty industrial wheels (SW3250) and built-in handles for easy portability.
