Seite 1/4

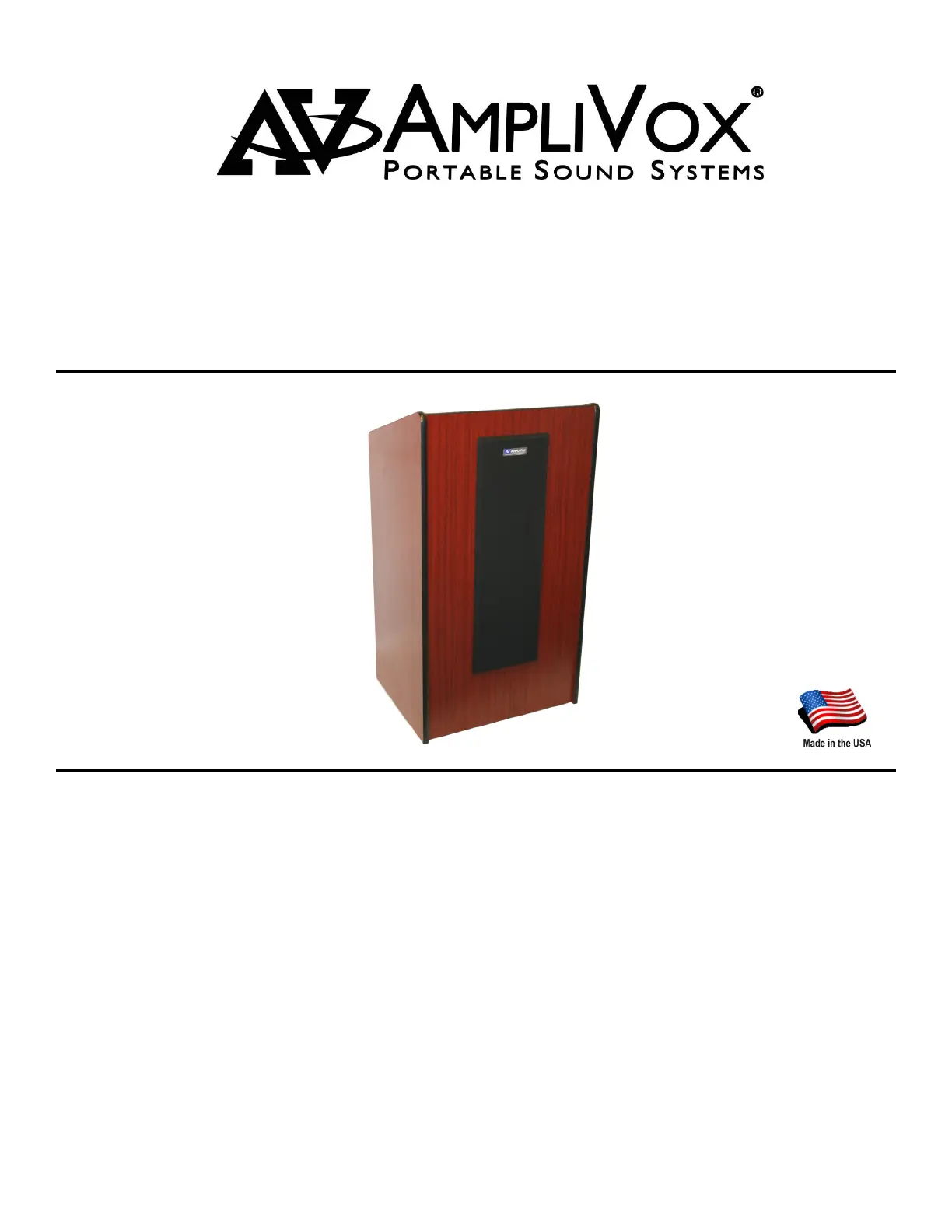

Assembly Instructions
S450,SW450
Ready to Assemble Lectern
Thank you for choosing the S450, SW450 Presidental Plus Lectern from AmpliVox Portable Sound Systems.
We are excited in introducing this truly unique lectern. Our lectern combines flexibility with functionality.
Please refer to this user guide as you enjoy the unique capabilities of another quality product from AmpliVox
Portable Sound Systems.
We encourage you to visit our website www.ampli.com to register your product for its warranty coverage, sign
up to receive our newsletter, download our catalog, and learn more about the complete line of AmpliVox audio
visual products, including portable PA systems, and lecterns.
Amplivox â—Ź 650 Anthony Trail, Suite D, Northbrook, IL 60062 â—Ź Phone: (800)267 5486 â—Ź Fax: (800)267 5489 www.ampli.com - -
2
PANEL DESCRIPTIONS
Panel 1 - Speakers Panel 2 - Right Side Panel Panel 3 - Left Side Panel
Panel 4 - Lectern Bottom / Cast- Panel 5 - Middle Shelf Panel 6 - Top Reading Surface
Panel 7 - Speaker Grille Gooseneck Microphone Amplifier S450…S805A
SW450...SW805A
ITEM DESCRIPTION QTY
A 4 Casters
B 16 Cam Lock
C 12 Dowel Pins
D 16 Screws
HARDWARE LIST
A
B
C
D
3
ď‚· Locate Panel (4) and item (A) the four casters. Place Panel (4) down on
a flat smooth surface with the caster mounting holes facing up. Notice
that two casters are locking. These will be installed on the side with the
curved edge. The other two non locking casters are installed on the
straight side. Use four of the (D) screws for each caster.
ď‚· Set panel aside.
GETTING STARTED
CAM LOCK AND DOWEL PIN INSTALLATION
ď‚· Locate Panels (1) (4) (5) and (6), items (B) and (C). Lay all the
panels on a flat surface with the side that has all the cutouts
facing up.
ď‚· Take one item (B) Cam Lock, and press into each cutout with
your fingers or softly tap in with rubber mallet.
ď‚· Repeat on all panels.
TOOLS NEEDED: Philips Screw Driver, Rubber Mallet
ď‚· Unpack all panels from shipping box. Locate accessories and open.
CASTER PANEL
ď‚· On the edges of all four panels you will see holes for the dowel
pins, item (C). Insert a dowel pin into each hole.
ď‚· Set all panels aside.
ď‚· Place Panel (1) Speaker Panel, on flat surface.
ď‚· Take Panel (2) and align the holes with the dowel pins
and cam locks sticking out from Panel (1). Tap in place.
ď‚· Lock panel in place by rotating cam lock with screwdriver
turning lock clockwise until you can not turn anymore.
ď‚· Starting with Panel (4) Caster Panel, align the dowel pins
and cam locks sticking out from panel with the holes in Pan-
el (2). Tap in place. Lock cam locks.
ď‚· Repeat with Panels (5) and (6). Lock cam locks.
ď‚· Complete assembly by aligning Panel (4) (5) and (6)
with holes in Panel (3). Tap in place. Lock cam locks.
ď‚· Stand lectern up.
2
1
6 4
5
