The ‘Quaid Megaslope’ is a five stage function generator or modulator which operates in one of 3 modes; a multistage ‘CZ’ or ‘Juno’ style complex envelope, a super
flexible LFO and a step sequencer with per step programmable slew or slides. Each mode produces a varying output voltage moving from point to point across
a set number of chained together stages. Each stage features a destination level, an overall rate or time to reach its destination level and a variable slope for
the output path to take. As well as direct control, every stage features voltage control of both level and rate. There are both unipolar and bipolar voltage outputs
together with triggers emitted for the end of each stage and the end of a full cycle.
The Quaid Megaslope is designed to be fun, flexible and intuative to use.
TIME CONTROLS
Sets the time that the stage will take to
reach the set destination level. Control
goes clockwise from approx 1-2ms to
100ms at 12 o’clock, to 3sec at 9 o’clock to
approx 3 minutes at 5 o’clock.
SLOPE CONTROLS
Varys the slope type from log to lin to exp.
LEVEL CONTROLS
Level control sets the nal output voltage
for a stage.
‘SET’ SUSTAIN/LOOP BUTTON
Sets the stage for sustain in envelope
mode or the loop point in step and loop
mode. The selected stage is indicated by
the row of green LEDs above.
In Env mode, holding this button for 1
second will add prior stages to a ‘looping’
sustain mode.
MODE BUTTON
Switches the current operating mode of the
Megaslope from Envelope to Looping (LFO)
to Step sequencer mode.
CONTROL VOLTAGE INPUTS
Per stage voltage control of level and time.
Expects 0-5V. Values set by controls are
added to this input value.
TRIGGER INPUTS
Dependent on mode these two inputs
perform the following:
Env : ‘Trig’ triggers a single cycle of all 5
stages. Gate will also trigger but will sus-
tain (i.e hold) the envelope at the selected
stage level whilst the gate is high before
completing full 5 stages. If the gate goes
low before the sustain stage the envelope
will end immediately. A retriggered envelope
(that hasn’t finished a full cycle) will start
from its current level as to avoid clicks.
Loop : Both trig and gate inputs reset the
cycle to the beginning of the rst stage. This
mode automatically cycles.
Step : ‘Trig’ input steps the sequencer to the
next stage. Gate becomes a reset restarting
the sequence from the rst stage.
OPERATION MODE OVERVIEW
There are 3 functioning modes;
‘Env’elope : In response to a trigger or gate
the megaslope will output a classic 5 stage
envelope with the set rate, slope and end
level for each stage,
Loop : The Megaslope will automatically
cycle across the number of set stages
moving between levels at the requested
rate. The nal stage will move to the set
level of the initial one.
Step : In response to a trigger signal the
Megaslope will step to the next stage level
(cycling back to the intial stage when the
set number of stages is reached). With time
set greater than zero (ie not full CCW) the
level will not change instantly allowing for
variable slew like or ‘slide’ effects.
OUTPUTS
+/-Out outputs an approx -5v to 5v bipolar
signal. When not active this will sit at
approx -5v
+Out Main unipolar output between approx
0-8v
EOS - ‘End of stage’ outputs a trigger when
a stage is completed.
EOC - ‘End of cycle’ outs a trigger when a full
cycle is completed
http://busycircuits.com/alm020
TECHNICAL SPECIFICATIONS
Power: +12V 70ma / -12V 35ma
Size: 19HP
Depth: 38mm
ALM020 /
QUAID MEGASLOPE
Limited Warranty
From the date of manufacture this device is
guaranteed for a period of 2 years against
any manufacturing or material defects. Any
such defects will be repaired or replaced
at the discretion of ALM. This does not
apply to;
•Physical damage arising for mis treating
(i,e dropping, submerging etc).
•Damage caused by incorrect power
connections.
•Overexposure to heat or direct sunlight.
•Damage caused by inappropriate or
misuse.
•Use of incorrect or non official firmware
No responsibility is implied or accepted
for harm to person or apparatus caused
through operation of this product. By using
this product you agree to these terms.
Support
Need help? Email your questions to
help@busycircuits.com
For the latest news, additional info, down-
loads and rmware updates please visit the
ALM website at http://busycircuits.com
and follow @busycircuits on Twitter and
Instagram.
Module Installation
With your modular synth powered off
connect the 10 pin end of the supplied
standard eurorack power connector cable
to the 10 pin power connector on the rear
of the module.
The red stripe on the cable should be
orientated to match the text ‘RED’ marked
on the rear of the module near the power
connector (this is -12V). Connect the other
16 pin end of the cable to your eurorack bus
board (Refer to your bus board documenta-
tion for the correct orientation).
You are now safe to power up your modular
synth. If the module fails to power up check
you have the power cable correctly orien-
tated and have carefully read this manual.
All ALM modules feature reverse power
protection.
Firmware Upgrades
The Quaid Megaslope rmware is user
updateable via the usb connector on the
side of the module.
Please visit busycircuits.com/alm020 for
the latest rmware and details on how to
perform the upgrade .
TIPS AND TRICKS
Watch out for clicky envelopes. Stages can
be very quick, alway make sure the nal
stage has a bit of a slope as to avoid clicks.
Use with Pamelas New Workout flexible
triggering patterns to cleverly use the 5
stages across 16 steps in sequencer mode.
For example a 16 step euclidean pattern
with 5 triggers or patch a /4 output into the
gate reset. Use a different pattern for the
step vs the vca envelope trigger.
Use an initial stage with level of 0 and set
time for delayed envelopes.
ALM020 manual version: 0.1

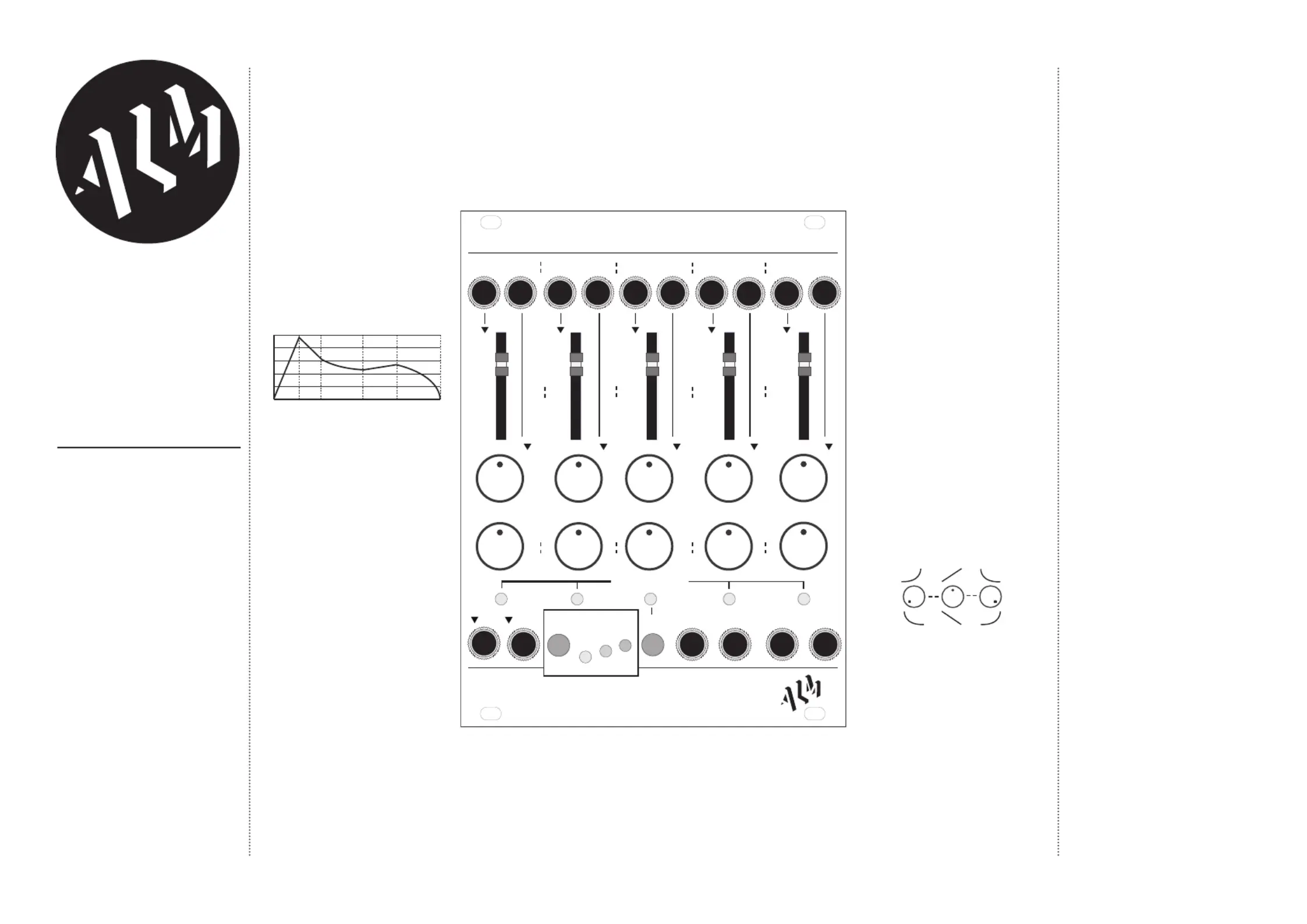

Time
Voltage
Stage 1
Stage 2
Stage 3
Stage 4
Stage 5
Trig Gateďż˝
Stage 1
Mode Set
Slope Slope Slope SlopeSlope
+OutÂąOut
Stage 2 Stage 3 Stage 4 Stage 5
Sustain / Loop
QUAID MEGASLOPE
Level
Time
Level
Time
Level
Time
Level
Time
Level
Time
Env
Loop
Step
EO EOS C
