The BXx2 is a dual channel preamp, EQ and mixer based on the classic Boss BX series mixers. With the inclusion of both input gain and level
controls, each channel can be overdriven, producing the signature saturated and lively sound the BX mixers are known for. The EQ controls
provide the channels with simple but great sounding high and low shelf EQs for emphasising and shaping sounds and an additional ‘Aux’
input allows another mixer or extra sound source to be chained in.
http://busycircuits.com/alm043
TECHNICAL SPECIFICATIONS
Power: +12V 10mA / -12V 10mA
Size: 8HP
Depth: 32mm
ALM043 / BXx2
Limited Warranty
From the date of manufacture this
device is guaranteed for a period of 2
years against any manufacturing or
material defects. Any such defects
will be repaired or replaced at the
discretion of ALM. This does not
apply to;
•Physical damage arising from mis
treating (i.e dropping, submerging,
‘modding’ etc).
•Damage caused by incorrect power
connections.
•Overexposure to heat or direct
sunlight.
•Damage caused by inappropriate or
misuse.
•Use of incorrect or non official
rmware
No responsibility is implied or
accepted for harm to person or
apparatus caused through operation
of this product. By using this product
you agree to these terms.
Support
Need help? Email your questions to
help@busycircuits.com
For the latest news, additional info,
downloads and rmware updates
please visit the ALM website at
busycircuits.com
Follow @busycircuits on Twitter and
Instagram for news, tips and ideas.
Visit ‘ALM TV’ on Youtube for module
video tutorials and demos.
Module Installation
With your modular synth
powered , connect the 10 pin off
end of the supplied standard
eurorack power connector cable
to the 10 pin power connector on
the rear of the module.
The red stripe on the cable
should be orientated to match
the text ‘RED’ marked on the
rear of the module near the
power connector (this is -12V).
Connect the other 16 pin end of
the cable to your eurorack bus
board (Refer to your bus board
documentation for the correct
orientation).
You are now safe to power
up your modular synth. If the
module fails to power up, check
that you have the power cable
correctly orientated and have
carefully read the manual.
ALM043 manual version: 0.1
The BXx2 was designed in collabo-
ration with Feedback Modules and
is based on their single channel ‘PRE
BX’ module.

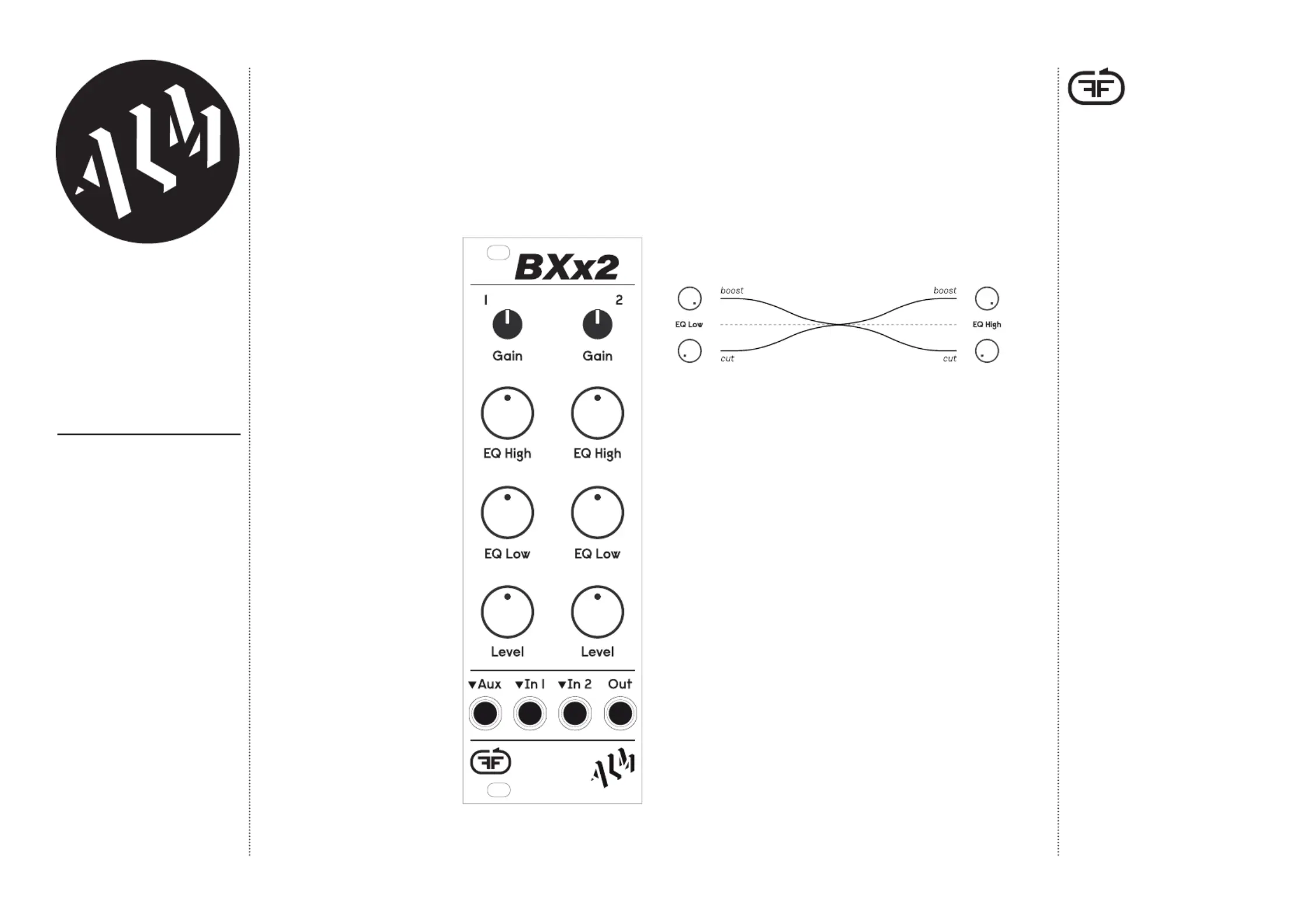

BXx2
INPUT GAIN CONTROLS
Sets the input gain of the
channel preamp.
Higher settings will cause
source to overdrive the
channel. EQ HIGH
Sets the gain of the xed high shelf EQ. Boosts high
frequencies when set above 12 o’clock and cuts when
set below.
EQ LOW
Sets the gain of the xed low shelf EQ. Boosts low
frequencies when set above 12 o’clock and cuts when
set below.
LEVEL
Sets the channel level in the mix. Use level controls to
trim back volume when overdriving the preamp.
OUTPUT
Audio output producing the mix of the 3 inputs.
INPUTS
In 1 - Input to channel 1 of
the mixer.
In 2 - Input to channel 2 of
the mixer.
Aux - Auxillary mix input
for chaining with another
mixer or extra source.
Fixed gain (-6dB).
