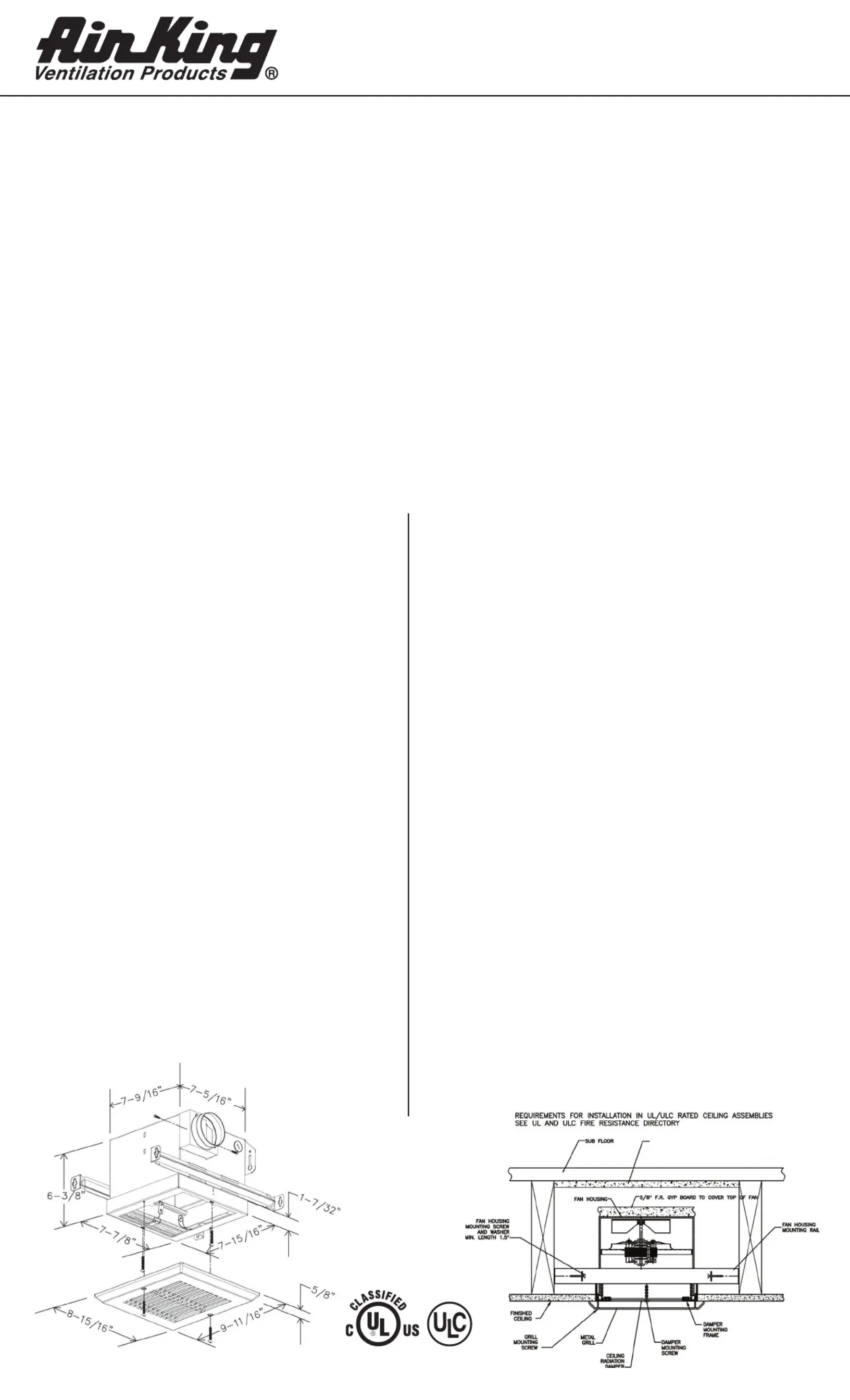

INSTALLATION INSTRUCTIONS MODELS FRAS50/60/70

READ AND SAVE THESE INSTRUCTIONS.

IMPORTANT SAFEGUARDS.

CAUTION: To reduce the risk of fire and to properly exhaust air, be sure to duct air outside. Do Not vent exhaust air into spaces

within walls or ceilings or into attics, crawl spaces, or garages.

WARNING: To reduce the risk of fire or electric shock, Do Not use this fan with any solid-state speed control device.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK OR INJURY TO PERSONS OBSERVE THE FOLLOWING.

a) Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.

b) Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent

power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a

prominent warning device, such as a tag, to the service panel.

CAUTION: For general ventilating use ONLY. DO NOT use to exhaust hazardous or explosive materials and vapors.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING.

a) Installation work and electrical wiring must be done by a qualified person (s) in accordance with all applicable codes and

standards, including fire-related construction.

b) Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment

to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published

by the National Fire Protection Association (NFPA) and the American Society of Heating, Refrigeration, and Air-Conditioning

Engineers (ASHRAE), and the local code authorities.

c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

d) Ducted fans must always be vented to the outdoors.

e) If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a

GFCI (Ground Fault Circuit Interrupter) - protected branch circuit.

f) NEVER place a switch where it can be reached from a tub or shower.

IF YOU DISCOVER ANY MISSING COMPONENTS OR DAMAGE CALL 1-800-465-7300 BETWEEN 8:00 AM &

3:30 PM EASTERN TIME MONDAY TO FRIDAY.

________________________________________________________________________

FIGURE 2.

210572083

This fan must be installed as per UL and CUL rated ceiling

assembly (refer to fig. 2). This will require the installation

of a minimum 3/8" fire rated gypsum board under the

subfloor and a minimum 5/8" gypsum board to cover the top

of the fan housing.

To install this fan you will need to remove the fan's blower

assembly. It is secured in place with one screw through the

venturi, once removed you can release the blower from the

lances in the housing and lift the blower out. Place it

somewhere so it does not get damaged.

MOUNTING THE HOUSING. REFER TO FIG. 2.

AS SHOWN BELOW THE CEILING DAMPER FRAME WILL

REQUIRE A CUTOUT OF 7-7/8" x 8". AFTER THE

INSTALLATION IS COMPLETE, SEAL ANY GAPS BETWEEN

THE DAMPER FRAME AND CEILING DRYWALL WITH CAULK

CARRYING THE APPROPRIATE UL RATING.

1. Select the best location to mount the housing in the ceiling. As

per UL and CUL fire resistance construction, install a minimum 3/8"

Fire Rated gypsum board 18" long so that it is centered above the

fan. The gypsum board must span the distance between the joists,

typically 14.5" for joists on 16" centers.

2. Select the most convenient electrical knockout and remove it.

3. Insert the 4 slide rails into the channels on the housing side.

4. Adjust the housing height so the housing will be flush with the

finished ceiling.

5. Secure the 4 slide rails to the joist using wood screws. Make sure

you install a washer at the head of each screw as shown below. This

will ensure the screw head does not slip out of the mounting rail.

DUCTING.

Note: All ducting must comply with local and national building codes.

1. Ensure any tape holding the damper in place is removed and that

the damper is operating freely.

2. Connect the ducting to the fan's duct collar. Secure in place using

duct tape or a screw clamp. Always duct the fan to the outside

through a wall or roof cap.

ELECTRICAL WIRING.

CAUTION: MAKE SURE THE POWER IS TURNED OFF BEFORE

BEGINNING THIS INSTALLATION.

Note: All wiring must comply with local and national codes. You

MUST ground this fan.

1. Run wiring from an approved wall switch carrying the appropriate

rating. One neutral (white), one ground (green or bare copper), and

one hot (black lead connected to the switch). Secure the electrical

FIGURE 1.

wires to the housing using an approved electrical connector. Make sure

you leave enough wiring in the box to make connection to fan's wiring.

2. Connect the white wire to the white wire on the fan's receptacle.

Connect the black wire to the black wire on the fan's receptacle.

Connect the ground from the house to the fan's ground.

3. Retrieve the fan's motor plate removed earlier, reinstall the motor

plate at a 45 degree angle, inserting the side with the two tabs first. The

two tabs will fit into the slots in the fan housing.

4. Secure the fan’s motor plate in place with the screw removed earlier.

5. Spin the fan blade to ensure it moves freely and does not hit anything.

6. Plug the motor into the fan’s receptacle.

COMPLETING THE INSTALLATION.

Once the fan housing has been installed and the ceiling drywall is in place

you can complete the fan’s installation

CEILING DAMPER & GRILL INSTALLATION.

CAUTION: The ceiling damper supplied is spring loaded and has the

potential to release suddenly when handled improperly. A damaged

spring or defective fusible link can allow the damper to close violently

into the handler's hand or arm, causing serious injury. Care should be

exercised when handling and installing spring loaded dampers. It is

recommended that gloves be worn by handlers and installers.

The ceiling damper supplied with the unit is designed to install only in Air-

King Model AKFH1 housings.

1. Install the ceiling damper & ceiling damper frame into the opening of

the fan housing. The ceiling damper frame is designed to fit on the

outside of the housing and the ceiling damper will sit on the inside of

the fan housing.

2. Once positioned in place secure the ceiling damper frame to the fan

housing using two of the supplied #8 x 1" screws. Carefully drive the

screws through the two oblong slots on the ceiling damper frame into the

screw retaining lances on each side of the fan housing. Complete this

step slowly as you do not want to damage the lances on the housing.

3. Once the ceiling damper is installed and secure, position the metal fan

grill in place aligning the two holes in the grill with the two extruded holes

on the ceiling damper frame. Use the remaining two #8 x 1" screws to

secure the grill onto the fan.

CARE AND MAINTENANCE

CAUTION - BEFORE CLEANING OR SERVICING TURN OFF THE POWER

TO THE FAN.

1. Clean the grill using a mild soap or detergent only, no abrasives.

2. The fan motor is permanently lubricated, DO NOT oil the motor.

3. Once a year it is a good idea to inspect and clean the internal parts of

the fan, over time debris will build up on the fan blade causing the motor

to work harder than it should. When cleaning the internal parts be

extremely careful working around the spring loaded ceiling damper. Wear

gloves and use a vacuum with an extension hose to clean inside the fan.

RECTANGULAR SECTION OF 3/8" FIRE RATED GYP

BOARD MINIMUM 18" LONG BY WIDTH OF JOIST

SPACE (SEE #1: INSTALLATION LOCATION).

SEE DETAILS ON UL CLASSIFICATION

MARKING ON ENCLOSED PRODUCT

LIMITED WARRANTY

WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials.

HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for five (5) years from the date of original purchase or until the

original purchaser of the product sells or transfers the product, whichever first occurs.

WHAT AIR KING WILL DO: During the warranty period, Air King will, at its sole option, repair or replace any part or parts that prove to be defective or replace the whole product with the

same or comparable model.

WHAT THIS WARRANTY DOES NOT COVER: This warranty does not apply if the product was damaged or failed because of accident, improper handling or operation, shipping damage,

abuse, misuse, unauthorized repairs made or attempted. This warranty does not cover shipping costs for the return of products to Air King for repair or replacement. Air King will pay

return shipping charges from Air King following warranty repairs or replacement

ANY AND ALL WARRANTIES, EXPRESSED OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY), LAST ONE YEAR FROM THE DATE

OF ORIGINAL PURCHASE OR UNTIL THE ORIGINAL PURCHASER OF THE PRODUCT SELLS OR TRANSFERS THE PRODUCT, WHICHEVER FIRST OCCURS AND IN NO EVENT SHALL

AIR KING’S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY INCLUDE (I) INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM ANY CAUSE WHATSOEVER, OR (II)

REPLACEMENT OR REPAIR OF ANY HOUSE FUSES, CIRCUIT BREAKERS OR RECEPTACLES. NOTWITHSTANDING ANYTHING TO THE CONTRARY, IN NO EVENT SHALL AIR KING’S

LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY EXCEED THE PURCHASE PRICE OF THE PRODUCT AND ANY SUCH LIABILITY SHALL TERMINATE UPON THE EXPIRATION

OF THE WARRANTY PERIOD.

Some states and provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so these exclusions or

limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state and province to province. Proof of purchase is

required before a warranty claim will be accepted.

CUSTOMER SERVICE:

Toll-Free (800) 465-7300

Our Customer Service team is available to assist you with product questions, service center locations, and replacement parts. They can be reached Monday through Friday, 8am-4pm

Eastern. Please have your model number available, as well as the type and style (located on the label inside of your product).Please do not return product to place of purchase.
