INSTALLATION INSTRUCTIONS MODELS FRAS90/120
FRAK50S/80/90/100/110/130
READ AND SAVE THESE INSTRUCTIONS.
IMPORTANT SAFEGUARDS.
CAUTION: To reduce the risk of fire and to properly exhaust air, be sure to duct air outside. Do Not vent exhaust air into spaces
within walls or ceilings or into attics, crawl spaces, or garages.
WARNING: To reduce the risk of fire or electric shock, Do Not use this fan with any solid-state speed control device.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK OR INJURY TO PERSONS OBSERVE THE FOLLOWING.
a) Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.
b) Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
CAUTION: For general ventilating use ONLY. DO NOT use to exhaust hazardous or explosive materials and vapors.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING.
a) Installation work and electrical wiring must be done by a qualified person (s) in accordance with all applicable codes and
standards, including fire-related construction.
b) Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment
to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published
by the National Fire Protection Association (NFPA) and the American Society of Heating, Refrigeration, and Air-Conditioning
Engineers (ASHRAE), and the local code authorities.
c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
d) Ducted fans must always be vented to the outdoors.
e) If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a
GFCI (Ground Fault Circuit Interrupter) - protected branch circuit.
f) NEVER place a switch where it can be reached from a tub or shower.
IF YOU DISCOVER ANY MISSING COMPONENTS OR DAMAGE CALL 1-800-465-7300 BETWEEN 8:00 AM &
3:30 PM EASTERN TIME MONDAY TO FRIDAY.
________________________________________________________________________
________________________________________________________________________

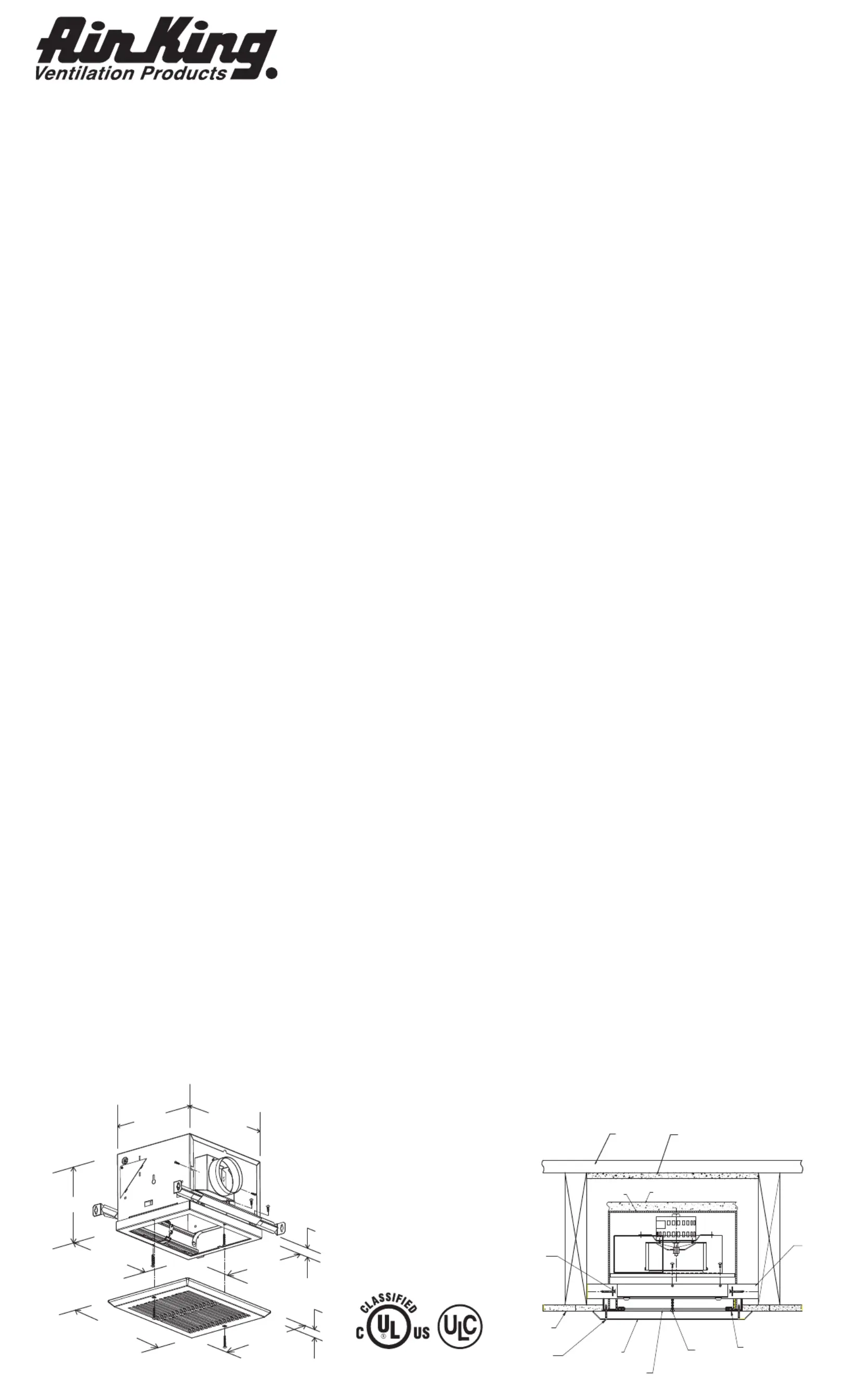

FIGURE 2.
210572084
9-3/8"
10-7/16"
8-1/8"
11-5/16"
9-1/2"
1"
12-15/16"
10-5/16"
11/16"
SUB FLOOR RECTANGULAR SECTION OF 3/8" FIRE RATED GYP
BOARD MINIMUM 18" LONG BY WIDTH OF JOIST
SPACE (SEE #1: INSTALLATION LOCATION).
REQUIREMENTS FOR INSTALLATION IN UL/ULC RATED CEILING ASSEMBLIES
SEE UL AND ULC FIRE RESISTANCE DIRECTORY
FINISHED
CEILING
GRILL
MOUNTING
SCREW
METAL
GRILL
CEILING
RADIATION
DAMPER
DAMPER
MOUNTING
SCREW
DAMPER
MOUNTING
FRAME
FAN HOUSING 5/8" F.R. GYP BOARD TO COVER TOP OF FAN
FAN HOUSING
MOUNTING RAIL
FAN HOUSING
MOUNTING SCREW
AND WASHER
MIN. LENGTH 1.5"
This fan must be installed as per UL and CUL rated ceiling assembly
(refer to fig. 2). This will require the installation of a minimum 3/8" fire
rated gypsum board under the subfloor and a minimum 5/8" gypsum
board to cover the top of the fan housing.
To install this fan you should not have to remove the fan's blower
assembly. You gain access to the wiring compartment via the
triangular wire cover on the outside of the fan housing. If for some
reason you wish to remove the fan's blower it is secured in place with
one screw through the venturi, once removed you can release the
blower from the lances in the housing and lift the blower out. Place it
somewhere so it does not get damaged.
MOUNTING THE HOUSING. REFER TO FIG. 2.
AS SHOWN BELOW THE CEILING DAMPER FRAME WILL REQUIRE A
CUTOUT OF 11-5/16" x 9-1/2". AFTER THE INSTALLATION IS COMPLETE,
SEAL ANY GAPS BETWEEN THE DAMPER FRAME AND CEILING
DRYWALL WITH CAULK CARRYING THE APPROPRIATE UL RATING.
1. Select the best location to mount the housing in the ceiling. As per
UL and CUL fire resistance construction, install a minimum 3/8" Fire
Rated gypsum board 18" long so that it is centered above the fan. The
gypsum board must span the distance between the joists, typically
14.5" for joists on 16" centers.
2. Select the most convenient electrical knockout and remove it,
remove the triangular wire cover.
3. Insert the 4 slide rails into the channels on the housing side.
4. Adjust the housing height so the housing will be flush with the
finished ceiling.
5. Secure the 4 slide rails to the joist using wood screws. Make sure
you install a washer at the head of each screw as shown below. This
will ensure the screw head does not slip out of the mounting rail.
6. Once the 4 slide rails have been secured in place you will have to
install the 2 rail supports on both sides of the housing. They hook
onto the bottom of the rail channels and are secured at the top via two
screws.
DUCTING.
Note: All ducting must comply with local and national building codes.
1. Ensure any tape holding the damper in place is removed and that
the damper is operating freely.
2. Connect the ducting to the fan's duct collar. Secure in place using
duct tape or a screw clamp. Always duct the fan to the outside
through a wall or roof cap.
ELECTRICAL WIRING.
CAUTION: MAKE SURE THE POWER IS TURNED OFF BEFORE
BEGINNING THIS INSTALLATION.
FIG. 1.
Note: All wiring must comply with local and national codes. You
MUST ground this fan.
1. Run wiring from an approved wall switch carrying the appropriate
rating. One neutral (White), one ground (Green or Bare Copper), and
one hot (Black lead connected to the switch). Secure the electrical
wires to the housing using an approved electrical connector. Make sure
you leave enough wiring in the box to make connection to fan's wiring.
2. Connect the white wire to the white wire on the fan's receptacle.
Connect the black wire to the black wire on the fan's receptacle.
Connect the ground from the house to the fan's ground.
3. Retrieve the fan's triangular wire cover and secure in place with the
#6 screw removed earlier.
4. From below spin the fan's blower wheel to ensure it moves freely.
COMPLETING THE INSTALLATION.
Once the fan housing has been installed and the ceiling drywall is in
place you can complete the fan’s installation
CEILING DAMPER & GRILL INSTALLATION.
CAUTION: The ceiling damper supplied is spring loaded and has the
potential to release suddenly when handled improperly. A damaged
spring or defective fusible link can allow the damper to close violently
into the handler's hand or arm, causing serious injury. Care should be
exercised when handling and installing spring loaded dampers. It is
recommended that gloves be worn by handlers and installers.
The ceiling damper supplied with the unit is designed to install only in
Air-King Model AKFH2 housings.
1. Install the ceiling damper & ceiling damper frame into the opening
of the fan housing. The ceiling damper frame is designed to fit on the
outside of the housing and the ceiling damper will sit on the inside of
the fan housing.
2. Once positioned in place secure the ceiling damper frame to the fan
housing using two of the supplied #8 x 1" screws. Carefully drive the
screws through the two oblong slots on the ceiling damper frame into
the screw retaining lances on each side of the fan housing. Complete
this step slowly as you do not want to damage the lances on the housing.
3. Once the ceiling damper is installed and secure, position the metal
fan grill in place aligning the two holes in the fan grill with the two
extruded holes on the ceiling damper frame. Use the remaining two
#8 x 1" screws to secure the grill onto the fan.
CARE AND MAINTENANCE
CAUTION - BEFORE CLEANING OR SERVICING TURN OFF THE POWER
TO THE FAN.
1. Clean the grill using a mild soap or detergent only, no abrasives.
2. The fan motor is permanently lubricated, DO NOT oil the motor.
3. Once a year it is a good idea to inspect and clean the internal parts of
the fan, over time debris will build up on the fan blade causing the motor
to work harder than it should. When cleaning the internal parts be
extremely careful working around the spring loaded ceiling damper. Wear
gloves and use a vacuum with an extension hose to clean inside the fan.
SEE DETAILS ON UL CLASSIFICATION
MARKING ON ENCLOSED PRODUCT
INSTRUCTION SUPPLEMENTAL
Air King FRAK100D Model
NOTE: Make sure to read all instructions included with this unit before starting installation.
Wiring
CAUTION: MAKE SURE POWER IS SWITCHED OFF AT SERVICE PANEL BEFORE
STARTING INSTALLATION.
CAUTION: ALL ELECTRICAL CONNECTIONS MUST BE MADE IN ACCORDANCE
WITH LOCAL CODES, ORDINANCES, OR NATIONAL ELECTRICAL CODE. IF YOU ARE
UNFAMILIAR WITH METHODS OF INSTALLING ELECTRICAL WIRING, SECURE THE SERVICES
OF A QUALIFIED ELECTRICIAN.
NOTE: This unit includes a side access panel for wiring that does not require the removal of the
fan’s blower assembly. If you choose to wire the unit from the inside, you will need to remove
the blower assembly and internal wiring compartment. Both methods are equally effective.
1a. External Wire Compartment: Remove the wire compartment cover screw and place
cover in a secure place (Figure 1).
1b. Remove the screw holding the venturi in place. Lift the Internal Wire Compartment:
venturi up and at an angle to slide it out of the housing . Remove the wire (Figure 2)
compartment cover screw and place the cover in a secure place .(Figure 3)
NOTE: If the fan motor plug is
connected to the fan housing
receptacle, unplug so the blower
assembly can be completely removed.
2. Continuous Ventilation: For two speed fans wired for continuous ventilation, connect the
White wire of the fan to the White (Neutral) wire from the power source. Connect the ground
wire from the house to the green wire from the fan housing. Run 2 wires from a properly
grounded wall switch (not included) to the fan. Connect the Black wire of the fan and one
wire from the wall switch to the Black wire (Hot) from the power source. Connect the other
wire from the wall switch to the Blue wire of the fan. Closing the switch will change from
normal to high speed (Figure 4).
3. Intermittent Ventilation: For two speed fans wired for intermittent ventilation with the
recommended AKS2 Switch (not included). Connect the White wire of the fan to the
White (Neutral) wire from the power source. Connect the ground wire from the fan to the
ground wire from the power source. Properly ground the switches. Run a wire from the
Black wire in the fan to the Common terminal (Black Screw) of the AKS2 Switch. Connect
the Black wire from the power source to the silver terminal on the bottom of the AKS2
Switch. Connect the Blue wire from the fan to the silver terminal on the top of the AKS2
Switch. The Bottom switch will turn the fan on & off, the top switch will change between
high and low (Figure 5).
NOTE: Unit must be grounded according to all local and national codes.
4. Reinstall both the wire compartment cover and the fan’s venturi by reversing the
instructions in Step 1b. Make sure all wires are contained within the wire compartment.
5. Plug the fan’s quick connect motor cord into the receptacle located on the wire
compartment cover. The cord will only fit one way into the receptacle (Figure 6).
Wire
Compartment
Cover
Figure 2
Screws
Venturi
Figure 1
Screw
Wire
Compartment
Cover
Figure 6
Screw
Wire
Compartment
Cover
Figure 5

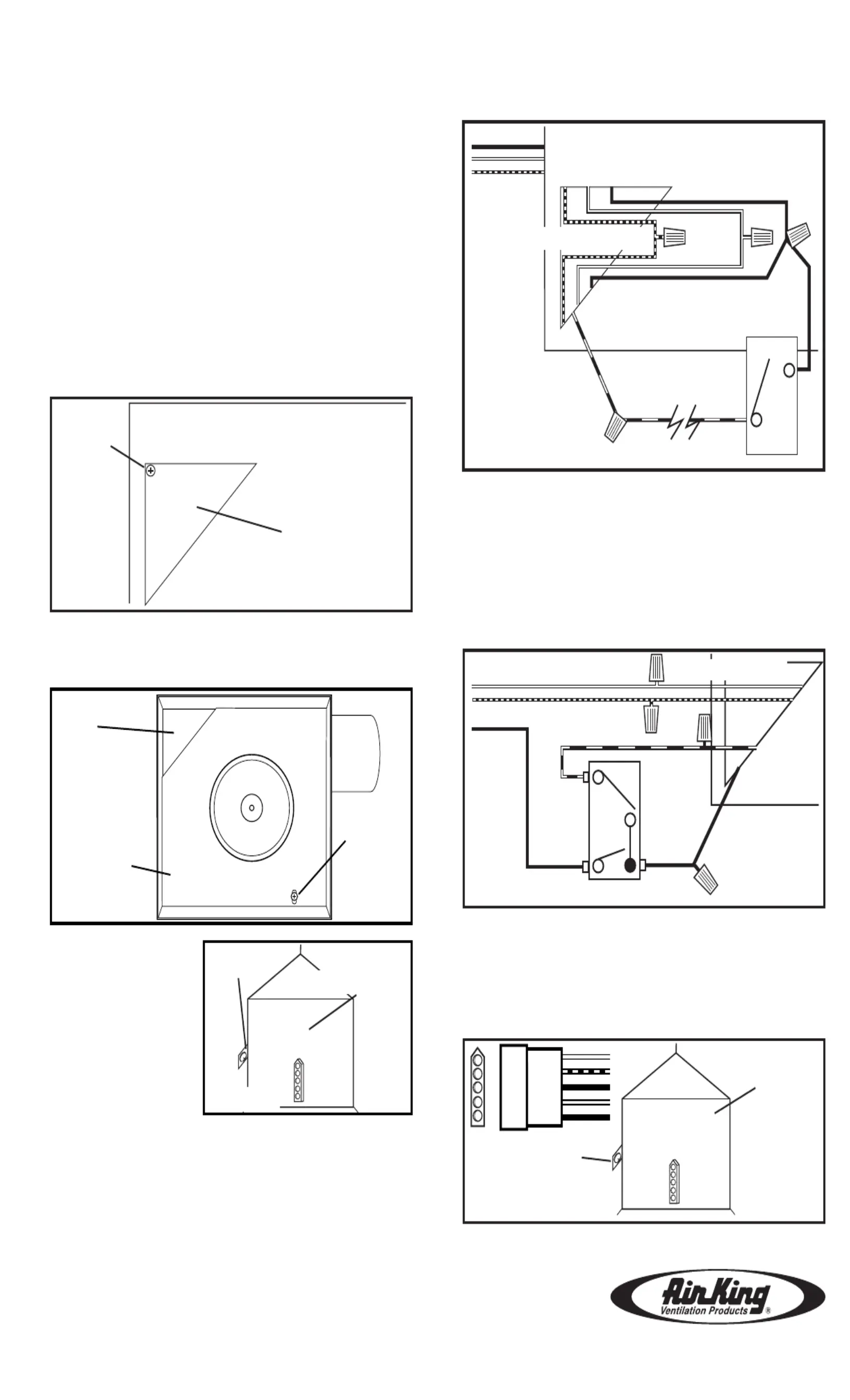

Supply from house
Hot
(Black)
Black
Blue
Switch Fan
Ground (Green or Bare)
Neutral (White)
Figure 4
Supply from
house Hot (Black)
Black
Blue
Black
Neutral
(White)
Ground (Green or Bare)
Switch
West Chester, PA / Brampton ON
www.airkinglimited.com
Screw
Figure 3
Wire
Compartment
Cover
6728032 Rev. B 5-14
Modèle Air King FRAK100D
NOTE: Assurez-vous de lire toutes les instructions fournies avec cet appareil avant de
commencer l’installation.
Câblage
ATTENTION : VOUS ASSURER QUE L’ALIMENTATION EST COUPÉE AU
PANNEAU DE SERVICE AVANT DE COMMENCER L’INSTALLATION.
ATTENTION : TOUTES LES CONNEXIONS DOIVENT ÊTRE FAITES EN
CONFORMITÉ AVEC LES CODES ÉLECTRIQUES LOCAUX OU NATIONAUX. SI VOUS N’ÊTES
PAS FAMILIER AVEC LES MÉTHODES D’INSTALLATION DE CÂBLAGE ÉLECTRIQUE,
RECOURREZ AUX SERVICES D’UN ÉLECTRICIEN QUALIFIÉ.
REMARQUE : cette unité possède un panneau d’accès latéral pour le câblage qui ne requiert
pas l’enlèvement de l’assemblage de la soufflante du ventilateur. Si vous choisissez de
raccorder l’unité par l’intérieur, vous aurez besoin d’enlever l’assemblage de la soufflante et
le compartiment de câblage intérieur. Les deux méthodes sont également efficaces.
1a. enlever la vis du couvercle du compartiment à Compartiment de Câblage Extérieur :
câblage et mettre ce couvercle dans un endroit fiable .(Figure 1)
1b. Compartiment de Câblage Intérieur : Enlever le vis retenant en place l’ensemble venturi
du ventilateur et soulever pour sortir l’assemblage hors du châssis . Enlever la (Figure 2)
vis du couvercle du compartiment à câblage et mettre ce couvercle dans un endroit fiable
(Figure 3).
REMARQUE : Si le raccord du moteur de
ventilateur est raccordé au réceptacle
du châssis, le débrancher afin que
l’ensemble venturi du ventilateur soit
complètement enlevé.
2. Ventilation continue : Pour les ventilateurs à deux vitesses, câblés pour la ventilation
continue, reliez le fil blanc du ventilateur au fil (neutre) blanc de la source d’énergie. Reliez
le fil de terre de la maison au fil vert du logement du ventilateur. Faites courir 2 fils d’un
commutateur mural correctement mis à terre (non inclus) au ventilateur. Reliez le fil noir du
ventilateur et un fil du commutateur mural au fil noir (chaud) du bloc d’alimentation. Reliez
l’autre fil du commutateur mural au fil bleu du ventilateur. La fermeture du commutateur
changera la vitesse de normale à élevée (Figure 4).
3. Ventilation intermittente : Pour les ventilateurs à deux vitesses câblés pour la
ventilation intermittente avec le commutateur AKS2 recommandé (non inclus). Reliez le
fil blanc du ventilateur au fil (neutre) blanc du bloc d’alimentation. Reliez le fil de terre
du ventilateur au fil de terre du bloc d’alimentation. Mettez à terre correctement les
commutateurs. Faites courir un fil du fil noir dans le ventilateur à la borne commune (vis
noire) du commutateur AKS2. Reliez le fil noir du bloc d’alimentation à la borne argentée
sur le fond du commutateur AKS2. Reliez le fil bleu du ventilateur à la borne argentée
sur le dessus du commutateur AKS2. Le commutateur inférieur allumera et éteindra le
ventilateur; le commutateur de dessus changera entre haut et bas (Figure 5).
REMARQUE : L’unité doit être mise à terre selon tous les codes locaux et nationaux.
4. Réinstallez la couverture du compartiment du fil et le venturi du ventilateur en suivant
les instructions à la réverse à l’étape 1b. Assurez-vous que tous les fils sont contenus à
l’intérieur du compartiment du fil.
5. Branchez le cordon de raccord rapide du moteur du ventilateur dans le réceptacle situé sur
la couverture du compartiment du fil. La corde s’insérera seulement d’une seule manière
dans le réceptacle (Figure 6).
West Chester, PA / Brampton ON
www.airkinglimited.com
INSTRUCTIONS SUPPLÉMENTAIRES
Figure 1
Vis
Couvercle du
Compartiment
de Câblage
Couvercle du
Compartiment
de Câblage
Figure 2
Vis
Venturi Figure 5
Alimentation provenant
de la résidence
Fil
Chaud
(Noir)
Noir
Bleu
Ventilateur
Mise à la terre (vert ou nu)
Neutre (Blanc)
Commutateur
Figure 4
Alimentation provenant
de la résidence
Fil Chaud (Noir)
Bleu
Jaune
Noir
Commutateur
Neutre
(Blanc)
Mise à la terre (vert ou nu)
Vis
Figure 3
Couvercle du
Compartiment
de Câblage
Figure 6
Vis
Couvercle du
Compartiment
de Câblage
6728032 Rev. B 5-14
Produktspezifikationen
| Marke: | Air King |
| Kategorie: | Afzuigkap |
| Modell: | FRAK80H |
Brauchst du Hilfe?
Wenn Sie Hilfe mit Air King FRAK80H benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Afzuigkap Air King
6 September 2024
6 September 2024
6 September 2024
6 September 2024
6 September 2024
6 September 2024
6 September 2024
6 September 2024
6 September 2024
6 September 2024
Bedienungsanleitung Afzuigkap
- Afzuigkap Samsung
- Afzuigkap Infiniton
- Afzuigkap Adelberg
- Afzuigkap Hanseatic
- Afzuigkap Panasonic
- Afzuigkap LG
- Afzuigkap Bestron
- Afzuigkap Guzzanti
- Afzuigkap MX Onda
- Afzuigkap Bosch
- Afzuigkap AEG
- Afzuigkap Asko
- Afzuigkap Siemens
- Afzuigkap ATAG
- Afzuigkap Bauknecht
- Afzuigkap Concept
- Afzuigkap Electrolux
- Afzuigkap Fagor
- Afzuigkap Gaggenau
- Afzuigkap Gorenje
- Afzuigkap Klarstein
- Afzuigkap Küppersbusch
- Afzuigkap Miele
- Afzuigkap Teka
- Afzuigkap Whirlpool
- Afzuigkap Bomann
- Afzuigkap Russell Hobbs
- Afzuigkap Vox
- Afzuigkap IKEA
- Afzuigkap ECG
- Afzuigkap Amica
- Afzuigkap BEKO
- Afzuigkap Blaupunkt
- Afzuigkap Boretti
- Afzuigkap Grundig
- Afzuigkap Heinner
- Afzuigkap Hotpoint
- Afzuigkap Inventum
- Afzuigkap KitchenAid
- Afzuigkap Schneider
- Afzuigkap Sharp
- Afzuigkap Smeg
- Afzuigkap AEG-Electrolux
- Afzuigkap Ardo
- Afzuigkap Ariston
- Afzuigkap Aspes
- Afzuigkap Balay
- Afzuigkap Blomberg
- Afzuigkap Scandomestic
- Afzuigkap Brandt
- Afzuigkap Candy
- Afzuigkap Constructa
- Afzuigkap Corberó
- Afzuigkap Edesa
- Afzuigkap Elektra Bregenz
- Afzuigkap ELIN
- Afzuigkap Eudora
- Afzuigkap Eurotech
- Afzuigkap Exquisit
- Afzuigkap GE
- Afzuigkap Haier
- Afzuigkap High One
- Afzuigkap Hisense
- Afzuigkap Hoover
- Afzuigkap Hotpoint-Ariston
- Afzuigkap Ignis
- Afzuigkap Bartscher
- Afzuigkap Indesit
- Afzuigkap Juno
- Afzuigkap Baumatic
- Afzuigkap Kelvinator
- Afzuigkap Bertazzoni
- Afzuigkap Maytag
- Afzuigkap Midea
- Afzuigkap Caple
- Afzuigkap Neff
- Afzuigkap Nordmende
- Afzuigkap PKM
- Afzuigkap Privileg
- Afzuigkap Progress
- Afzuigkap Rex
- Afzuigkap Rommer
- Afzuigkap ETNA
- Afzuigkap Scholtès
- Afzuigkap Frigidaire
- Afzuigkap SIBIR
- Afzuigkap Svan
- Afzuigkap Thor
- Afzuigkap V-ZUG
- Afzuigkap Junker
- Afzuigkap Zanker
- Afzuigkap Zanussi
- Afzuigkap KKT Kolbe
- Afzuigkap M-System
- Afzuigkap Monogram
- Afzuigkap Oranier
- Afzuigkap Pelgrim
- Afzuigkap Philco
- Afzuigkap Respekta
- Afzuigkap Rosières
- Afzuigkap Thermador
- Afzuigkap Viva
- Afzuigkap Arçelik
- Afzuigkap Continental Edison
- Afzuigkap Kernau
- Afzuigkap Tesla
- Afzuigkap Imperial
- Afzuigkap Elica
- Afzuigkap DeLonghi
- Afzuigkap Eico
- Afzuigkap Franke
- Afzuigkap Wolkenstein
- Afzuigkap Frilec
- Afzuigkap Honeywell
- Afzuigkap Foster
- Afzuigkap Weller
- Afzuigkap Silverline
- Afzuigkap Novy
- Afzuigkap Airforce
- Afzuigkap Airlux
- Afzuigkap Broan
- Afzuigkap Cata
- Afzuigkap Cylinda
- Afzuigkap De Dietrich
- Afzuigkap Dominox
- Afzuigkap Elba
- Afzuigkap Falcon
- Afzuigkap Falmec
- Afzuigkap Faure
- Afzuigkap Hansa
- Afzuigkap Leisure
- Afzuigkap MPM
- Afzuigkap Nodor
- Afzuigkap Roblin
- Afzuigkap Sauter
- Afzuigkap Stoves
- Afzuigkap Thermex
- Afzuigkap UPO
- Afzuigkap Bielmeier
- Afzuigkap Logik
- Afzuigkap Dacor
- Afzuigkap Orima
- Afzuigkap Proline
- Afzuigkap Dimplex
- Afzuigkap Faber
- Afzuigkap Mora
- Afzuigkap Toolcraft
- Afzuigkap Westinghouse
- Afzuigkap Wolf
- Afzuigkap Amana
- Afzuigkap Arthur Martin-Electrolux
- Afzuigkap Euromaid
- Afzuigkap Gram
- Afzuigkap Tesy
- Afzuigkap Vivax
- Afzuigkap Omega
- Afzuigkap Profilo
- Afzuigkap Sauber
- Afzuigkap Zelmer
- Afzuigkap Kleenmaid
- Afzuigkap Lamona
- Afzuigkap Limit
- Afzuigkap Meireles
- Afzuigkap Viking
- Afzuigkap Acec
- Afzuigkap Ariston Thermo
- Afzuigkap Gutmann
- Afzuigkap Signature
- Afzuigkap Bellini
- Afzuigkap Best
- Afzuigkap Soler & Palau
- Afzuigkap AYA
- Afzuigkap Fisher & Paykel
- Afzuigkap Esatto
- Afzuigkap Orbegozo
- Afzuigkap Napoleon
- Afzuigkap Ilve
- Afzuigkap Furrion
- Afzuigkap Unox
- Afzuigkap CDA
- Afzuigkap Saturn
- Afzuigkap Berg
- Afzuigkap Defy
- Afzuigkap Itho
- Afzuigkap Jocel
- Afzuigkap Kenmore
- Afzuigkap La Germania
- Afzuigkap Marynen
- Afzuigkap Mepamsa
- Afzuigkap Piccante
- Afzuigkap Rangemaster
- Afzuigkap Scancool
- Afzuigkap Sirius
- Afzuigkap Steelmatic
- Afzuigkap Technika
- Afzuigkap Tecnolux
- Afzuigkap BLANCO
- Afzuigkap Turbo Air
- Afzuigkap Zephyr
- Afzuigkap Whispair
- Afzuigkap Kunft
- Afzuigkap Kucht
- Afzuigkap Schweigen
- Afzuigkap Becken
- Afzuigkap Wells
- Afzuigkap JennAir
- Afzuigkap BlueStar
- Afzuigkap Fulgor Milano
- Afzuigkap Flama
- Afzuigkap Halifax
- Afzuigkap ZLine
- Afzuigkap K&H
- Afzuigkap Arctic Cooling
- Afzuigkap Barazza
- Afzuigkap Qasair
- Afzuigkap Artusi
- Afzuigkap Glem Gas
- Afzuigkap Sôlt
- Afzuigkap Chef
- Afzuigkap Sam Cook
- Afzuigkap LERAN
- Afzuigkap Belling
- Afzuigkap Cookology
- Afzuigkap Summit
- Afzuigkap ARC
- Afzuigkap Linarie
- Afzuigkap Everdure
- Afzuigkap Euro Appliances
- Afzuigkap NuTone
- Afzuigkap Robinhood
- Afzuigkap XO
- Afzuigkap Venmar
- Afzuigkap Café
- Afzuigkap Porter & Charles
- Afzuigkap Jenn-Air
- Afzuigkap New World
- Afzuigkap Belion
- Afzuigkap Tisira
- Afzuigkap Ciarra
- Afzuigkap CENDO
- Afzuigkap Twin Eagles
- Afzuigkap Airone
- Afzuigkap Kluge
- Afzuigkap Trade-Wind
- Afzuigkap Mayer
- Afzuigkap Vent-A-Hood
- Afzuigkap HomeCraft
- Afzuigkap CEEM
Neueste Bedienungsanleitung für -Kategorien-
18 September 2024
18 September 2024
18 September 2024
18 September 2024
18 September 2024
18 September 2024
18 September 2024
18 September 2024
18 September 2024
18 September 2024
