USER’S GUIDE . REV01

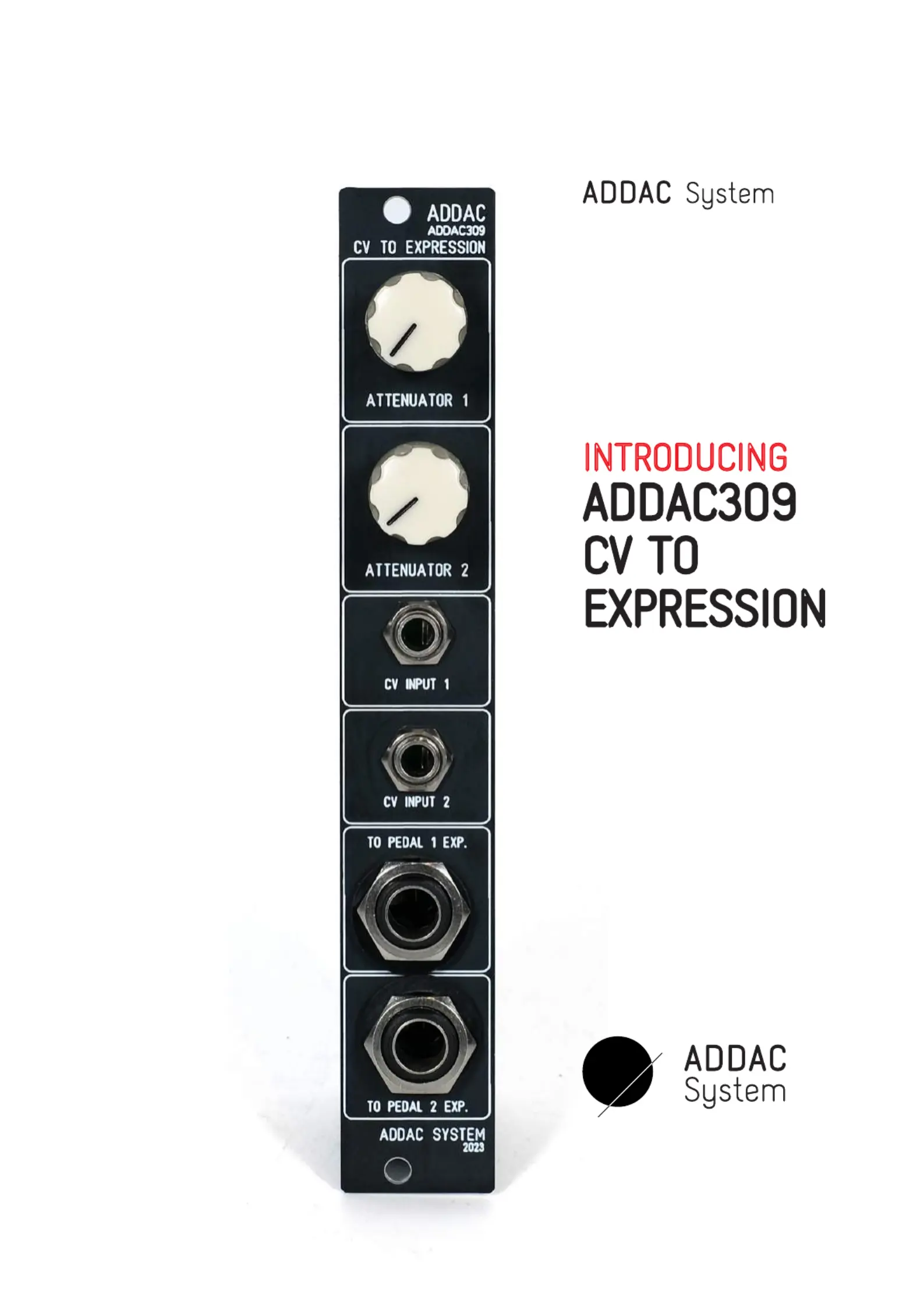

ADDAC309
CV TO
EXPRESSION
INTRODUCING
From Portugal with Love!
ADDAC309 CV TO EXPRESSION USER’S GUIDE
November.2023
Revision.01
Welcome to:
page 2ADDAC SYSTEM
DESCRIPTION
SIGNAL FLOW DIAGRAM
ADDAC309 CV to Expression allows a simple and
straight forward connection between modular and
effect pedals that features expression pedal TRS
inputs.
Instead of using an expression pedal into the effects
pedal the user can use this module in between a CV
source and the Effects pedal to be controlled.
This is a great way to control the available parame-
ters on the effects pedals straight from a CV source.
ADDAC309 features 2 channels each with a CV Input
with attenuator and a 1/4’ jack output.
This is a passive module, the power needed for
operation is taken from the pedal power instead of
the modular frame, this allows for perfect matching
of the pedal’s operating voltage which can range
from 3.3v to 9v.
Tech Specs:
4HP
3,5 cm deep
0mA +12V
0mA -12V
TO PEDAL 2
EXPRESSION
INPUT
EFFECT
PEDAL 2
EXPRESSION
INPUT (TRS)
CV INPUT 2 CV 2
ATTENUATOR
TO PEDAL 1
EXPRESSION
INPUT
EFFECT
PEDAL 1
EXPRESSION
INPUT (TRS)
CV INPUT 1 CV 1
ATTENUATOR
Channel 1 Attenuator
Channel 1 Output
Channel 1 Input
Channel 2 Attenuator
Channel 2 Output
Channel 2 Input
For feedback, comments or problems please contact us at:
