Seite 1/4

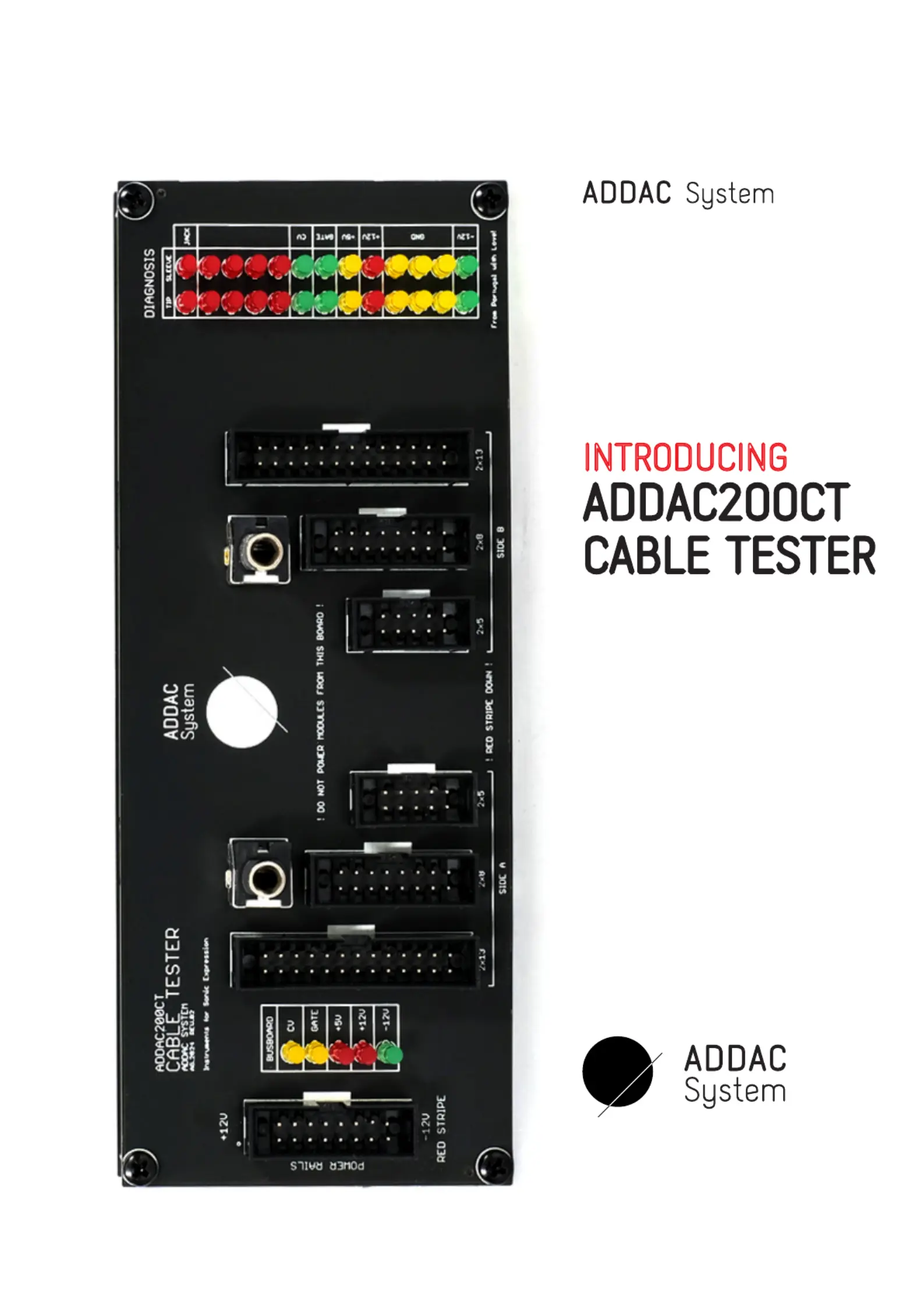

Instruments for Sonic Expression
Est.2009
March.2024
USER’S GUIDE . REV01
ADDAC200CT
CABLE TESTER
INTRODUCING
From Portugal with Love!
ADDAC200CT CABLE TESTER USER’S GUIDE
March.2024
Revision.01
Welcome to:
page 2ADDAC SYSTEM
DESCRIPTION
RIBBON CABLE COMPATIBILITY
Introducing ADDAC’s Cable Tester, a desktop utility that provides a reliable means to test the integrity of
both mono jacks and ribbon cables, ensuring that every connection is secure and electrically sound.
Individual Wire Testing - Featuring the ability to test each wire within the ribbon cables independently
with dedicated LEDs for every wire, providing a clear visual indication of the status of each connection,
wires are also tested against their neighbouring wires to detect shorts.
This is a desktop device, we provide a long power cable so that it can still be plugged into your rack.
As a safety precaution only power this board when you need to test a cable.
Leaving it ON at all times can lead to unintended problematic misuses which, in a worst case scenario,
can shorten your Eurorack PSU,
! WARNING !
DO NOT POWER MODULES FROM THE TEST SOCKETS!!
BUSBOARD MONITOR
The busboard monitor leds allows the user to check the state of the busboard power lines
as well as the special CV/Gate functions.
If the busboard has no +5v supply the led will be off likewise for the CV/Gate functions
if not in use.
Tech Specs:
Desktop
30mA +12V
30mA -12V
Compatible with all ADDAC System ribbon cables (power, expansions and interconnectivity: 112, 213, 807).
Also compatible with any standard Eurorack power ribbon cable (2x5 to 2x8 or 2x8 to 2x8).
! WARNING !
NOT ALL MANUFACTURERS FOLLOW THESE STANDARDS!
ALLWAYS NOTICE THE ORIENTATION OF THE HEADERS
IF YOUR CABLE DO NOT FOLLOW THE STANDARD THEN MOST PROBABLY IS NOT COMPATIBLE.
2x8 to 2x5
2x8 to 2x8
TOP VIEWBOTTOM VIEW WITH INDENTS
BUSBOARD
CV
GATE
+5v
+12V
-12V
page 3ADDAC SYSTEM
ADDAC200CT User’s Guide
TEST PROCEDURE
A SIDE B SIDECABLE BEING TESTED
LED ON = TEST PASSED
RESULT
Once power is supplied the ±12V Monitor LEDs will turn ON.
After checking if the cable to be tested is compatible, make sure to keep the Red Stripe Down and Insert one end
of the ribbon cable into the , then insert the other end into the side.
[A SIDE] [B SIDE]
Next check the leds, if all leds are ON then the cable is OK.
TO ENSURE A PROPER TEST IS MADE:
ALLWAYS NOTICE THE ORIENTATION OF THE HEADERS
DO NOT TWIST CABLES
ALWAYS USE RED STRIPE DOWN
DURING TESTING IT IS POSSIBLE THAT A CABLE IS DAMAGED IN SUCH A WAY THAT ONE OR MORE WIRES ARE
SHORTED, IN THIS CASE, DEPENDING ON THE WIRES IN QUESTION, SEVERAL OR ALL LEDS WILL BE OFF, IF THIS
HAPPENS MAKE SURE NOT TO EVER USE THAT CABLE WITH YOUR MODULES.
THE MODULE IS PROTECTED AGAINST SHORTINGS CAUSED BY ANY FAULTY CABLES!
Remember that every pin is tested against every pin, if the cable is a power cable than even if [A SIDE] [B SIDE]
not all leds are ON it can happen that the cable still works due to the redundancy used, as there are 2 wires for
+12V, 2 wires for -12V and 6 wires for GND, if one +12V wire (ex. led 10 is off) the cable will still work as wire 9
will still provide the +12V to the module.
This principle does not apply when testing an interconnection cable, like used on our ADDAC112, ADDAC213 or
ADDAC807, in this case if one wire is interrupted there’s one input/output that will not work.
CABLE TESTER
ADDAC200CT
ADDAC SYSTEM
AG.2024
DIAGNOSIS
TIP SLEEVE
JACK
BUSBOARD
CV
GATE
+5v
+12V
-12V
2x13 2x8 2x5 2x132x82x5
RED STRIPE DOWN RED STRIPE DOWN
A SIDE
-12V
RED STRIPE
+12V
POWER RAILS
B SIDE
PIN1 PIN1 PIN1 PIN1 PIN1 PIN1 1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
-12V GND +12V +5V GATE CV
TOP VIEW
BUSBOARD
MONITOR
