Seite 1/16
WINEGARDÂŽ
Congratulations!

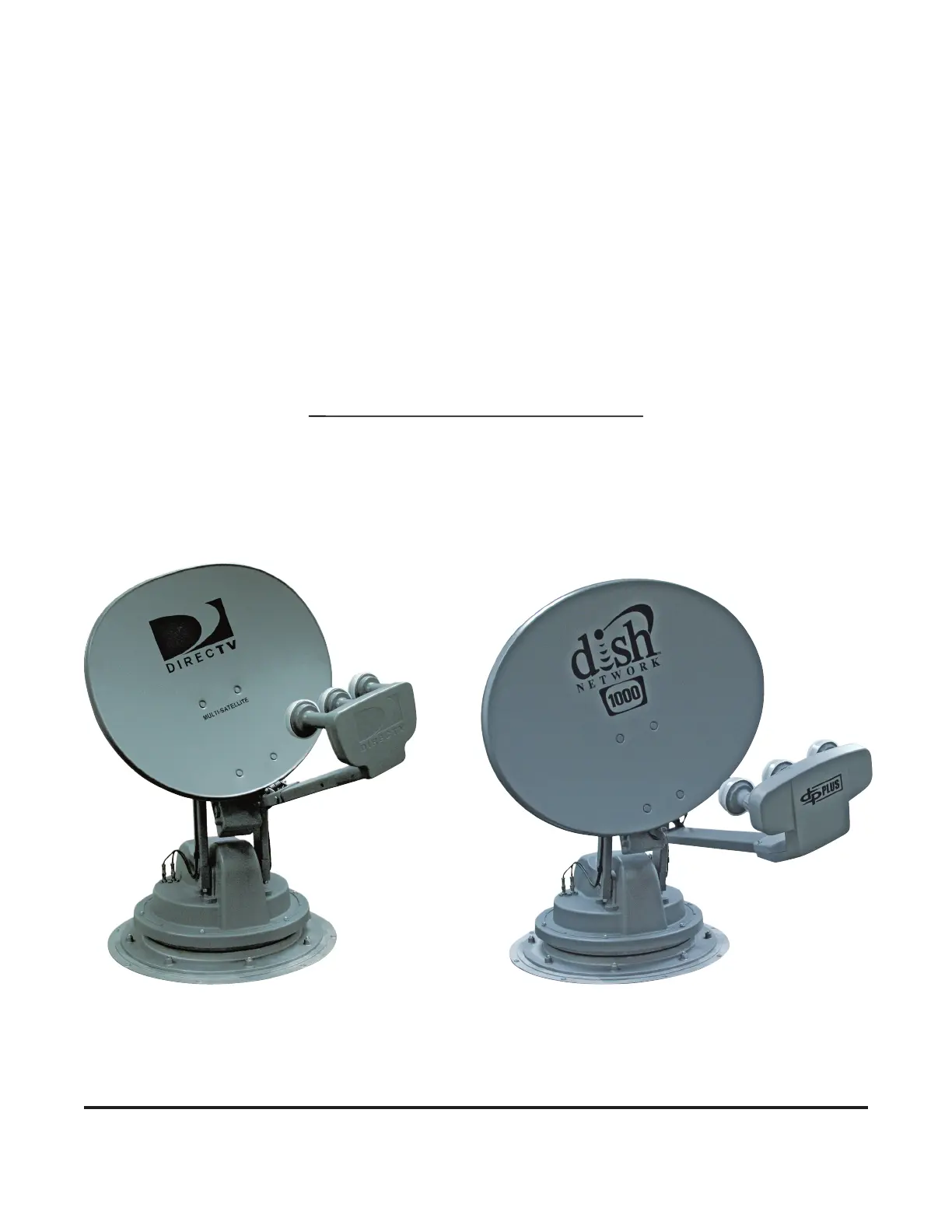

You have selected the WinegardÂŽ TRAVâLER Automatic Multi-Satellite TV Antenna. The TRAVâLER
antenna will deliver the ability to view up to îżve satellites at the same time with unmatched signal
strength, the lowest travel height on the market, maximum HD capabilities and easy to use functionality
â just like you get at home. This manual provides important information on the installation and operation
of your TRAVâLER Interface Box. Please take time to read the manual in itâs entirety before installing or
operating your antenna.
Recommended Receivers:
The WinegardÂŽ TRAVâLER Automatic Multi-Satellite TV Antenna will work with any DISH Net-
work⢠or DIRECTVŽ receiver currently in production. However, we recommend:
- DISH Network : models 311 and 211
- DIRECTV : models D11 and H20
Each receiver will require at least one coax cable. Refer to receiver manual for wiring details.
NOTE: DISH Networkâs primary HD satellite, the 129°, may not be available in all areas.
Check with your programming provider for coverage in certain areas.
The SK-1000 is compatible with all DISH Network Dish Pro Plus Receivers and the SK-3003 is compat-
ible with all DIRECTV Triple Feed Receivers. Consult your receiver manual or www.winegard.com if
you have any questions about whether your receiver is compatible.
Before you begin please make sure you have received all necessary parts to properly install and oper-
ate your TRAVâLER antenna.
- Installation/Operation Manual
- Mount Base with 30â Cable - Power/Control Cable
- TRAVâLER Interface Box
- Reîector, LNBF & Feed Arm
- 24â AC power cord
- TRAVâLER Power supply
- Gray Coax Cable 30â
- Black Coax Cable 30â
- Mounting Hardware bag
- Cable Entry Hardware bag
Selecting a Location for the TRAVâLER Antenna
Before removing the TRAVâLER antenna from its box, check with your RV Dealer or manufacturer. Your
RV may be pre-wired or have a reinforced area for this system. DO NOT install in a location where a
gap of 3/16â or more exists, as it may damage the roof. See diagram at top of page 3.
2
Icons appearing in the manual are used for important information and helpful tips.
indicates important information regardingAlert
product use, product speciîżcations or procedures.
offers helpful suggestions orImportant tip
refers you to a related topic in the manual.
Once you have checked for this:
1. Choose a location on the roof of the RV that will allow the dish to raise and rotate without interfer-
ence from other roof mounted equipment. The TRAVâLER antenna may only be mounted parallel to
the centerline of the coach.
2. The minimum roof space required for the TRAVâLER antenna is 43â L x 24â W.
a. The operational space requires that no obstructions taller than 8 inches be mounted within
a 62â diameter circle from the center of the unit.
FIGURE 2
3
Mount Parallel to
Center Line of Coach
FRONT OF RV
You must îżnd a location on the roof that provides adequate space to allow the TRAVâLER antenna to
operate. The TRAVâLER antenna has a Front and Back and must be mounted correctly to avoid dam-
age to the TRAVâLER antenna or the coach. The antenna must be mounted +/-3 degrees of level
or the system may not function correctly. The Transition plate for the TRAVâLER unit is marked
âFRONTâ and âBACKâ. See Figure 1
FIGURE 1
FRONT OF RV
TRANSITION
PLATE
Mount
Parallel to
Center Line
of Coach
Winegard is NOT liable for dam-
age, expenses, or injury caused
by improper installation.
3/16â
Plan your entire installation before
you start. Determine the location of
all of your equipment and make sure
cable and wires are long enough to
reach their destination points.
