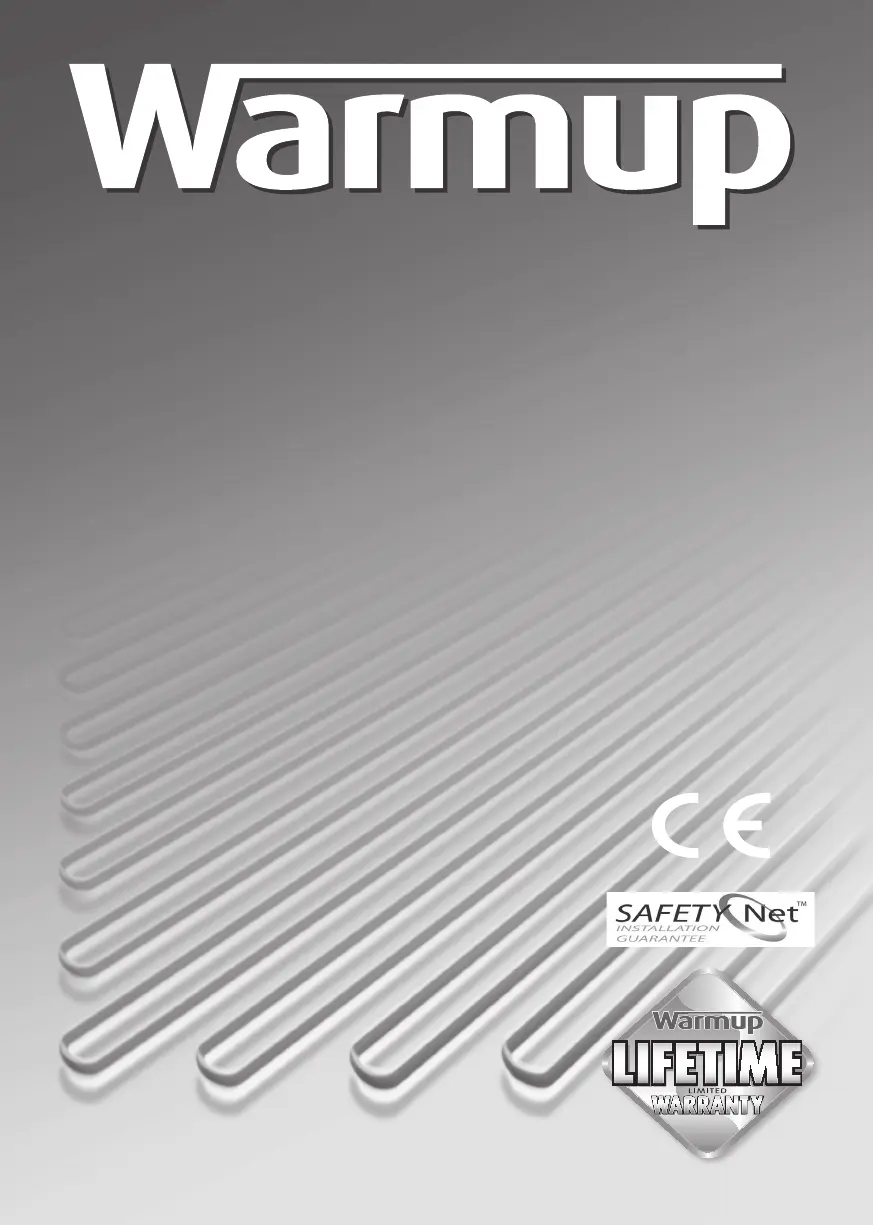

Installation Manual
®
®
IMPORTANT!
Read this manual before attempting to install
your Warmup heater. Incorrect installation could
damage the heater and will invalidate your
warranty. Complete and submit your warranty
from online at www.warmup.co.uk
The world’s best-selling floor heating brand™
TECHNICAL HELPLINE
0845 345 2288
Technical Information
m | <---> | m W (-5 %) Ω (+5%) A
SPM 1m² 0.5 x 2 150 335.1 352.7 370.3 0.65
SPM 1.5m² 0.5 x 3 225 223.3 235.1 246.9 0.98
SPM 2m² 0.5 x 4 300 167.5 176.3 185.1 1.30
SPM 2.5m² 0.5 x 5 375 134.01 141.06 148.11 1.63
SPM 3m² 0.5 x 6 450 111.72 117.6 123.5 1.96
SPM 3.5m² 0.5 x 7 525 95.72 100.76 105.80 2.28
SPM 4m² 0.5 x 8 600 83.76 88.17 92.6 2.61
SPM 4.5m² 0.5 x 9 675 74.45 78.37 82.29 2.93
SPM 5m² 0.5 x 10 750 67 70.53 74.1 3.26
SPM 6m² 0.5 x 12 900 55.84 58.78 61.7 3.91
SPM 7m² 0.5 x 14 1050 47.86 50.38 52.9 4.57
SPM 8m² 0.5 x 16 1200 41.9 44.08 46.3 5.22
SPM 9m² 0.5 x 18 1350 37.23 39.19 41.1 5.87
SPM 10m² 0.5 x 20 1500 33.51 35.27 37.0 6.52
SPM 11m² 0.5 x 22 1650 30.45 32.06 33.7 7.17
SPM 12m² 0.5 x 24 1800 27.92 29.39 30.86 7.83
SPM 15m² 0.5 x 30 2250 22.33 23.51 24.7 9.78
m | <---> | m W (-5%) Ω (+5%) A
2SPM 0.5m² 0.5 x 1 100 502.55 529.0 555.45 0.44
2SPM 1m² 0.5 x 2 200 251.28 264.5 277.73 0.87
2SPM 1.5m² 0.5 x 3 300 167.52 176.3 185.15 1.30
2SPM 2 m² 0.5 x 4 400 125.64 132.3 138.86 1.74
2SPM 2.5m² 0.5 x 5 500 100.51 105.80 111.09 2.17
2SPM 3m² 0.5 x 6 600 83.76 88.2 92.58 2.61
2SPM 3.5m² 0.5 x 7 700 71.79 75.57 79.35 3.04
2SPM 4m² 0.5 x 8 800 62.82 66.1 69.43 3.48
2SPM 4.5m² 0.5 x 9 900 55.84 58.78 61.72 3.91
2SPM 5m² 0.5 x 10 1000 50.26 52.9 55.55 4.35
2SPM 6m² 0.5 x 12 1200 41.88 44.1 46.29 5.22
2SPM 7m² 0.5 x 14 1400 35.90 37.8 39.68 6.09
2SPM 8m² 0.5 x 16 1600 31.41 33.1 34.72 6.96
2SPM 9m² 0.5 x 18 1800 27.92 29.4 30.86 7.83
2SPM 10m² 0.5 x 20 2000 25.13 26.5 27.77 8.70
2SPM 15m² 0.5 x 30 3000 16.74 17.63 18.51 13.04
SPM 150W/m²
SPM 200W/m²
Voltage
230VAC ~ 50Hz
Minimum bending radius
25mm
IP rating
IPX7
Minimum Wire Spacing
50mm
Minimum Installation
Temperature
5°C
2
Contents
Technical Specifications
Introduction
Do’s and Don’ts
Floor Coverings
What you Need for Installation
Subfloor Preparation
Testing the Heater
Electrical Safety Considerations
How to Modify the Mat
Installing the Mat
Installing the Mat Continued
Warranty
Control Card
Documentation of Ownership,
Installation and Part P Electrical Connection
3
5
6
7
8
2
3
9
10
11
WARNING
Your Warmup® Underfloor heating mat has been designed so that installation is quick and straight forward, but as with all
electrical systems, certain procedures must be strictly followed. Please ensure that you have the correct heater(s) for the area
you wish to heat. Warmup plc, the manufacturer of the Warmup
® Sticky Mat, accepts no liability, expressed or implied, for any
loss or consequential damage suffered as a result of installations which in any way contravene the instructions that follow.
It is important that before, during and after installation that all requirements are met and understood. If the instructions are
followed, you should have no problems. If you do require help at any stage, please contact our helpline:
0845 345 2288
You may also find a copy of this manual, wiring instructions and other helpful information on our website:
www.warmup.co.uk
