INSTALLATION INSTRUCTION

LED Monopoint

MO-4023

SAFETY INSTRUCTION

IMPORTANT: NEVER attempt any work without shutting o the electricity.

- Read all instructions before installing.

- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.

- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch “OFF” the

circuit breaker switch(es) that control the power to the xture or room that you are working on.

- Place the wall switch in the “OFF” position.

CAUTION

- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out or

broken. Failure to follow this instruction could invalidate the safety listing of this xture.

AVERTISSEMENT

IMPORTANT : Coupez l’électricité avant TOUTE manipulation.

- Lisez toutes les instructions avant d’installer.

- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les règlements locaux.

- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt («OFF »).

- Placez l’interrupteur mural en position d’arrêt (« OFF »).

MISE EN GARDE

- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en laissez pas de côté et ne

les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler l’homologation safety du luminaire.

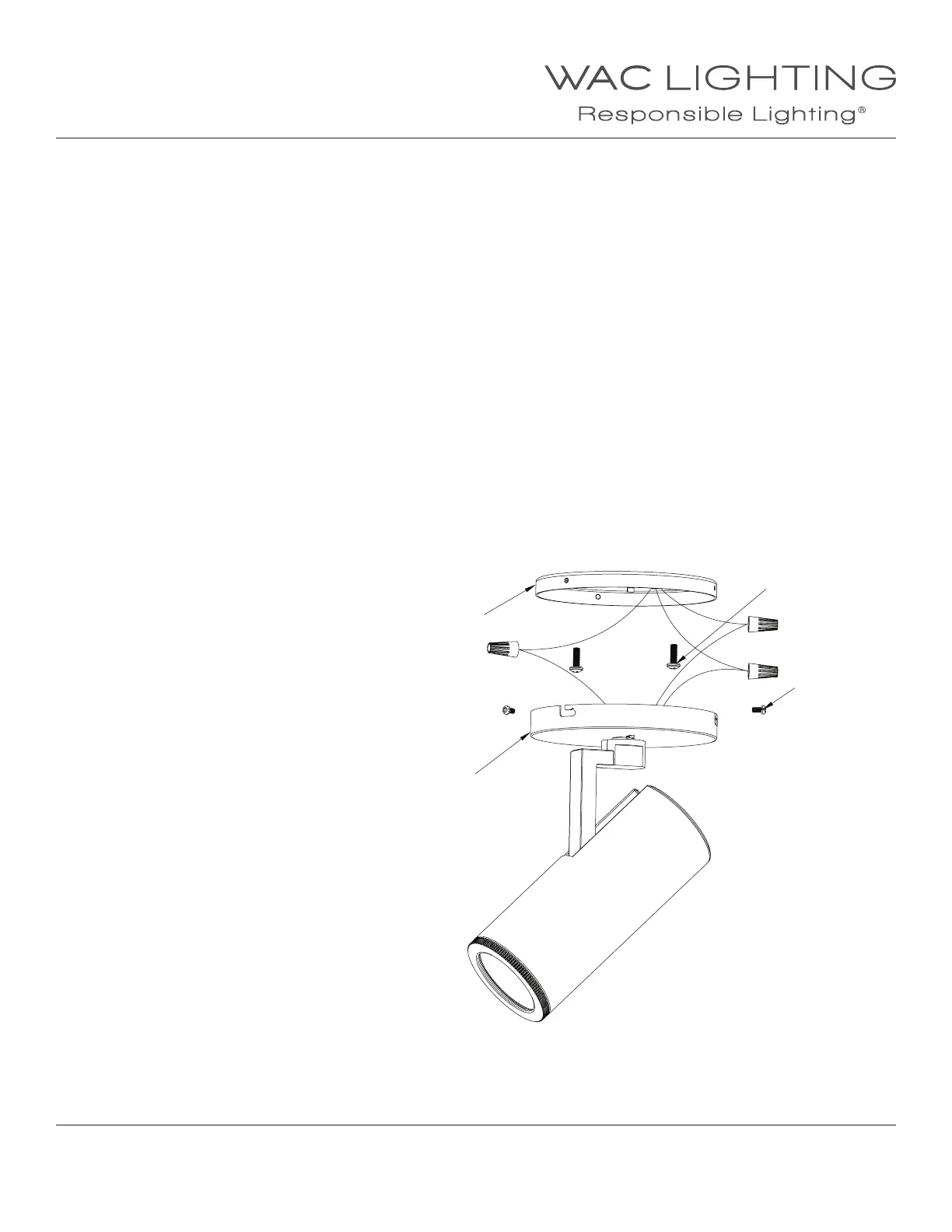

INSTALLING FIXTURE: (Fig.1)

1. Loosen the three canopy screws, twist and separate

the canopy cover from the base plate.

(keep screws on base plate)

2. Remove a knock out from the base plate.

Install appropriate wire connector

3. Attach the base plate to the surface using slotted holes

for mounting screws (supplied).

4. Connect xture wires to 120V AC power wire,

with wire nuts (supplied). Dimmable with compatiable

electronic low voltage (ELV) dimmer.

5. Connect ground wire to the green wire from xture.

6. Mount the canopy to the base plate by twisting

key holes over three screws in base plate.

7. Tighten screws to secure canopy.

8. After the light is on, rotate the luminaire body

horizontally or vertically to aim properly.

Note: All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out

or broken. Failure to follow this instruction could invalidate the safety listing of this xture.

FIG.1

Base plate

mounting screw

Canopy

mounting screw

Base plate

Canopy

WAC Lighting

www.waclighting.com

Phone (800) 526.2588 • Fax (800) 526.2585

Headquarters/Eastern Distribution Center

44 Harbor Park Drive • Port Washington, NY 11050

Phone (516) 515.5000 • Fax (516) 515.5050

Western Distribution Center

1750 Archibald Ave • Ontario, CA 91761

Phone (800) 526.2588 • Fax (800) 526.2585

Front cap assembly

Counter Clockwise

Increase beam angle

Clockwise

Decrease beam angle

Front Cap

Fixture Body

Beam Angle

Adjustment

2WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JANUARY, 2017

BEAM ANGLE ADJUSTMENT : (Fig.3)

1. Hold xture body with one hand and front cap with another.

2. Grip the front cap with two ngers and rotate it gently clockwise or counter clockwise until desired beam angle is achieved.

3. Cease rotation when you feel resistance as beam angle is reaching its minimum or maximum

ACCESSORIES:

1. With xture powered o and front cap facing toward you, rotate the front cap clockwise just passed the position you feel a “click” (Fig. 4)

2. Gently, while holding xture body secure, rock front cap assembly back and forth while pulling it away from xture body to remove

front cap assembly (Fig. 5)

Fig.4

Fig.3

Fig.5

INSTALLATION INSTRUCTION

LED Monopoint

MO-4023

Rotate clockwise

WAC Lighting

www.waclighting.com

Phone (800) 526.2588 • Fax (800) 526.2585

Headquarters/Eastern Distribution Center

44 Harbor Park Drive • Port Washington, NY 11050

Phone (516) 515.5000 • Fax (516) 515.5050

Western Distribution Center

1750 Archibald Ave • Ontario, CA 91761

Phone (800) 526.2588 • Fax (800) 526.2585

3WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JANUARY, 2017

ACCESSORIES:

3. Use a at-tip-screwdriver to remove the accessory holder by rotating it counter clockwise. ( )Fig. 6

Fig.6

Fig.7

Accessories Holder Slot

Accessory Holder

LENS-16

LENS-16-CRL LENS-16-SNOOT

Front Cap

4. Fixture accommodates one lens and one glare control accessory. Refer to spec sheet for list of compatible accessories.
