Seite 1/16

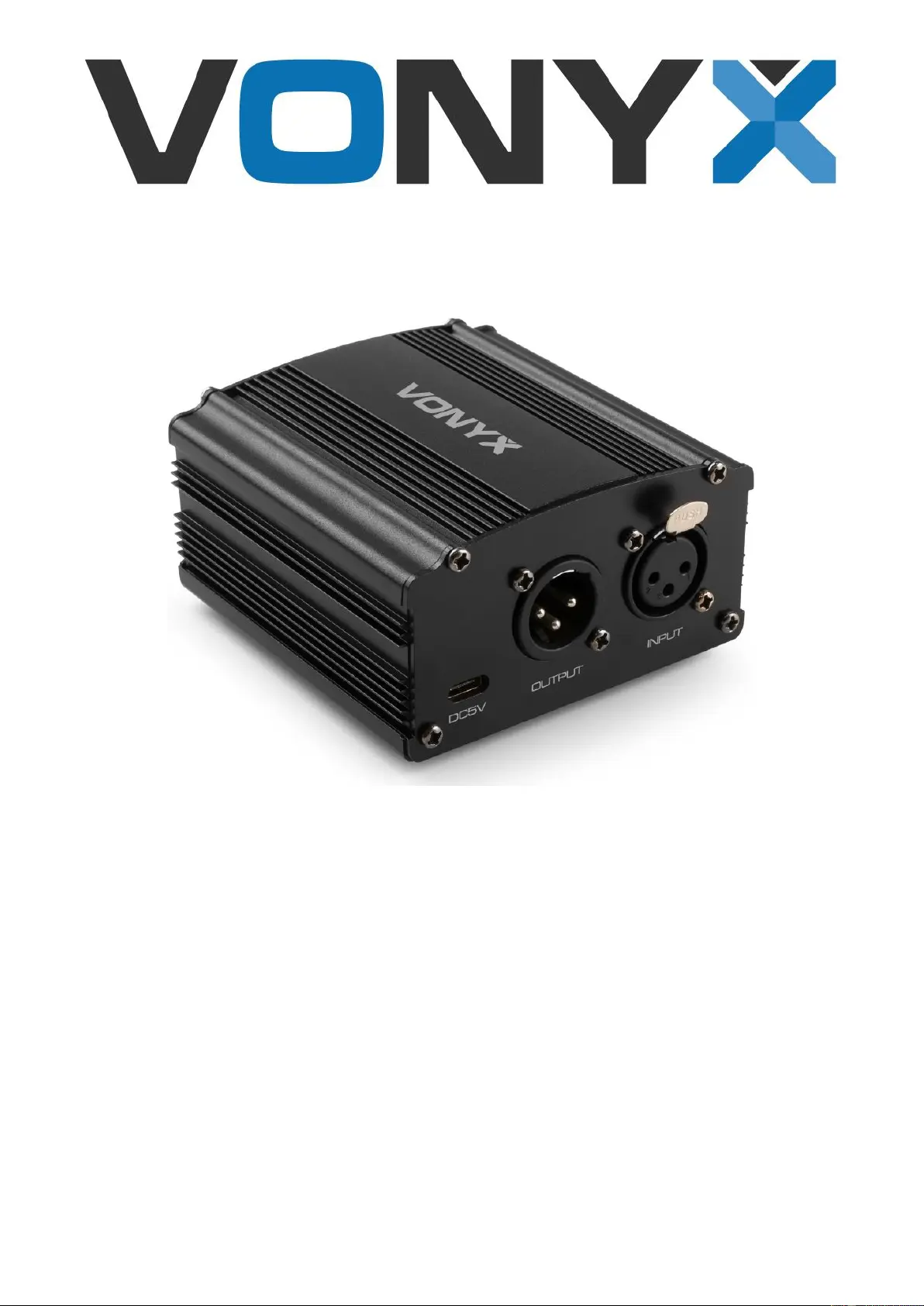

VDX10 Phantom Power Supply
Ref. nr.: 172.796
INSTRUCTION MANUAL
GEBRUIKSAANWIJZING
GEBRAUCHSANLEITUNG
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
INSTRUKCJA OBSŁUGI
NÁVOD K POUŽITÍ
V1.0
2
ENGLISH
Congratulations to the purchase of this nyx product. Please read this manual thoroughly prior to using the product in order to Vo
benet fully from all features.
Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions
to oid re and/or electrical shock. Repairs must only be carried out by a qualied technician in order to avoid electrical shock. av
Keep the manual for future reference.
- Prior to using the product, please ask advice from a
specialist. When the product is switched on for the rst
time, some smell may occur. This is normal and will
disappear after a while.
- The product contains voltage carrying parts. Therefore,
do NOT open the housing.
- Do not place metal objects or pour liquids into the
product. This may c se electrical shock and au
malfunction.
- Do not place the product near heat sources such as
radiators, etc. Do not place the product on a vibrating
surface. Do not cover the ventilation holes.
- The product is not suitable for continuous use.
- Be careful with t mains lead do not damage it. A he and
faulty or damaged mains lead can cause electrical shock
and malfunction.
- When unplugging the product from a mains outlet,
always pull the plug, never the lead.
- Do not plug or unplug the product with wet hands.
- If the ug and/or the mains lead are damaged, they pl
need to be replaced by a qualied technician.
- If the product is damaged to such an extent that internal
parts are visible, do NOT plug the product into a mains
outlet and DO NOT switch the unit on. Contact your
dealer. Do NOT connect the product to a rheostat or
dimmer.
- To avoid re and shock hazard, do not expose the
product to rain and moisture.
- All repairs should be carried out by a qualied technician
only.
- Connect the product to an earthed mains outlet (2 -20
240Vac/50Hz) protected by a 10- fuse. 16A
- During a thunderstorm or if the product will not be used
for a longer period of time, unplug it from the mains. The
rule is: Unplug it from the mains when not in use.
- If the product has not been used for a longer period of
time, condensation may occur. Let the unit reach room
temperature before you switch it on. Never use the
product in humid rooms or outdoors.
- To prevent accidents in companies, you must follow the
applicable guidelines and follow the instructions.
- Do not repeatedly switch the produ on and o. This ct
shortens the lifetime.
- Keep the product out of the reach of children. Do not
leave the produ unattended. ct
- Do not use cleaning sprays to clean switches. The
residues of these sprays cause deposits o st and f du
grease. In case of malfunction, always seek advice from
a specialist.
- Do not force the controls.
- his product is with speaker inside which can cause If t
magnetic eld. Keep the product at least 60cm away
from computer or TV.
- If this product has ilt-in le -acid rechargeable a bu ad
battery. Please recharge the battery every 3 months if
you are not going to use the product for a long period of
time. Otherwise the battery may be permanently
damaged.
- If the battery is damaged, please replace with same
s cations battery. And dispose the damaged battery peci
environment friendly.
- If the product has fallen, always have it checked by a
qualied technician before you switch the product on
again.
- Do not use chemicals to clean the unit. They damage the
varnish ly clean t product with a dry cloth. . On he
- Keep away from electronic equipment that may cause
interference.
- Only use original spares for repairs, otherwise serious
damage and/or dangerous radiation may occur.
- Switch the product o prior to unplugging it the from
mains and/or other equipment. Unplug all leads and
cables prior to moving the product.
- Make sure that the mains lead cannot be damaged when
people walk on it. Check the mains lead before every use
for damages and faults!
- The mains voltage is 220-2 c/50Hz. Check if power 40Va
outlet match. If you travel, make sure that the mains
voltage of the country is suitable for this product.
- Keep the original packing material so that you can
transport the product in safe conditions.
This mark attracts the atte n of the user to high voltages that are present inside the housing and that are of sucient ntio
magnitude to cause a shock hazard.
This mark attracts the attention of the user to important instructions that are contained in the manual and that p2-he should
read and adhere to.
The product s been certied CE. It is prohibited to make any changes to the product. They would invalidate the CE certicatha e
and their guarantee!
NOTE: To make sure that the product will function normally, it must be used in roo with a temperature between 5°C/ °ms 41 F and
35 95°C/ °F .
Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your
dealer about the way to proceed. The specications are typical. Th tual values can slightly change from one unit to the other. e ac
Specications can be changed without prior notice.
Do not attempt to make a repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also ny
invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the
warnings c ined in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety onta
recommendations and warnings. This is also applicable to all damages in whatever form.
3
UNPACKING INSTRUCTION
CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have be en
received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from
shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be
ret ned, it is important that the product is returned in the original factory box and packaging. ur
If the device has been exposed to drastic temperature uctuation (e.g. after transportation), do not switch it on immediately. The
arising condensation water m ht damage your device. Leave the device switched o until it has reached room temperature. ig
CONTROLS AND CONNECTIONS
1. POWER INPUT
5V npDC type-C USB power i ut.
2. SIGNAL OUTPUT
XLR signal output socket.
3. MICROPHONE INPUT
XLR microphone input socket.
4. POWER LED INDICATOR
LED indicator showing power statu s.
5. ON/OFF
Press to turn the device on/o.
SETUP EXAMPLE & INSTRUCTIONS
• Plug the female end of the supplied XLR cable into the XLR socket of a condenser microphone.
• Plug the male end of the supplied XLR cable into the microphone XLR socket of the device.
• Use another XLR type cable to plug into the signal output socket and connect with a mixer, sound card, or other device with a
balanced input.
• Turn on the device, the power LED indicator will light up. V phantom power will be provided to the condenser type 48
microphone to make it work.
WARNING: turn phantom power o wh plugging and unplugging microphones to prevent any potential power surge, pops en
and other loud noises, which could damage your speakers.
