46910.H22B

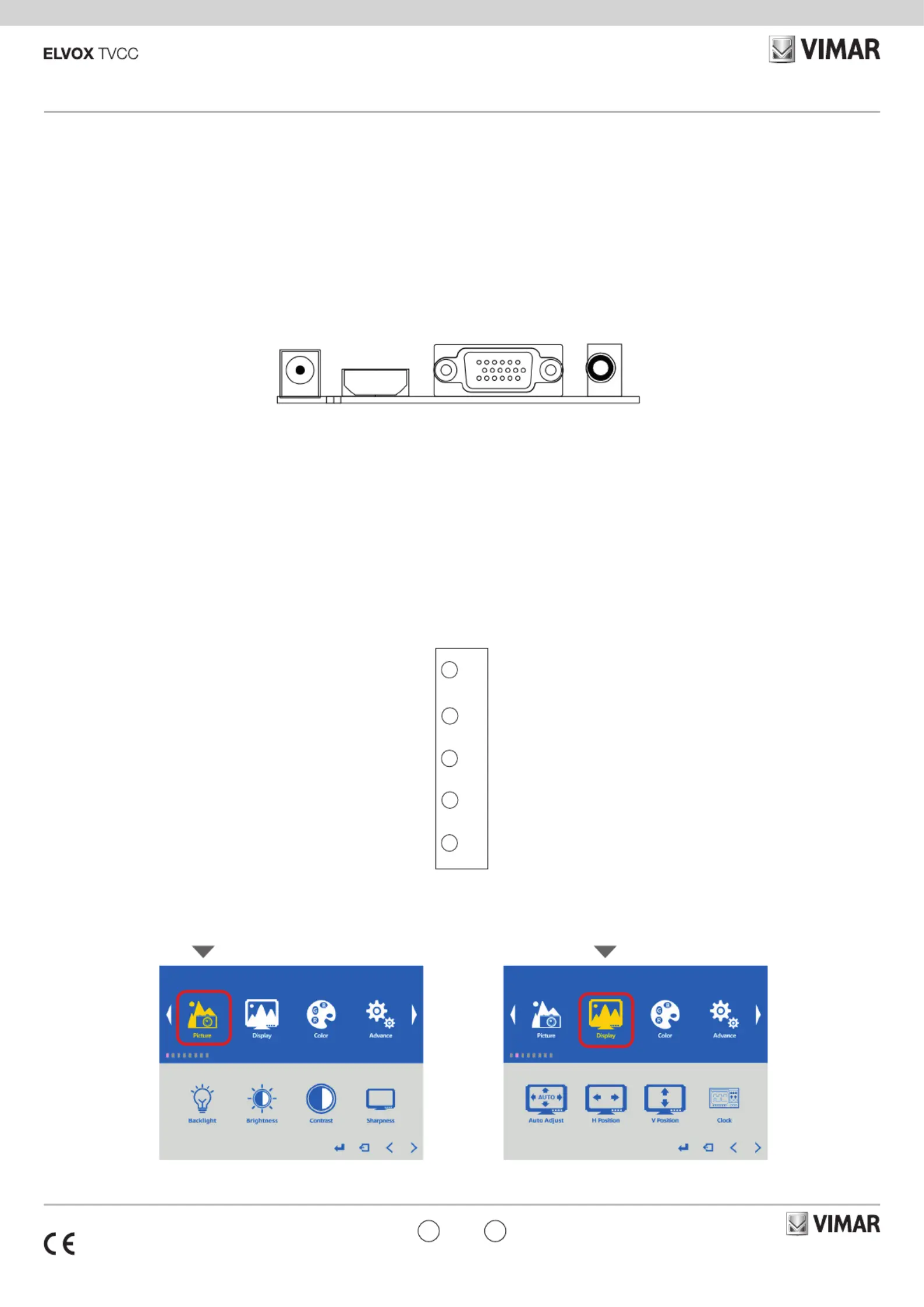

1. Collegamenti
Interfaccia posteriore
DC: usare esclusivamente l'alimentatore a 12V DC incluso con il monitor.
HDMI: (High-Deîżnition Multimedia Interface, interfaccia multimediale ad alta deîżnizione)
supporta video digitali e collegamenti audio.
VGA: cavo D-sub a 15 pin per connessione VGA standard.
Audio IN: collegamento con jack stereo da 3,5 mm per l'ingresso audio quando si usa il
connettore VGA/AV.
1. Connections
Rear Interface
DC: Only use the 12V DC power supply included with the monitor.
HDMI: (High-Deîżnition Multimedia Interface) Supports digital video and audio connections.
VGA: 15 pin D-sub cable for standard VGA connection.
Audio IN: 3.5 mm stereo jack connection for audio input when using VGA /AV connector.
46910.H22B
Monitor LCD 22â backlight LED, formato video 16:9 risoluzione Full HD 1920x1080 pixel,
ingressi video VGA e HDMI, ingresso audio con due altoparlanti da 3 W, 16,7 M colori,
luminosità 250 cd/m², contrasto 1000:1, tempo di risposta 5 ms, attacco vesa, alimentazione
12 Vdc 15 W (alimentatore incluso).
Dimensioni: 490x370x137 mm
46910.H22B
22â backlight LED LCD monitor, 16:9 video size, Full HD 1920x1080 pixel resolution, VGA
and HDMI video inputs, audio input with two 3 W loudspeakers, 16,7 M colours, 250 cd/m²
brightness, 1000:1 contrast, 5 ms lead time, VESA standard support, supply voltage 12 Vdc
15 W (supply unit included).
Dimensions: 490x370x137 mm
DC HDMI VGA AUDIO IN
OSD âPicture Settingâ Menu OSD âDisplayâ Menu
Menu OSD "Impostazione immagine". Menu OSD âDisplayâ.
3. Conîżgurazione di base con OSD
1- Per accedere al menu OSD premere "MENU".
2- Usare i tasti "+" o "-" per selezionare la voce di menu desiderata, quindi premere
il tasto "MENU" per selezionare il sottomenu.
3- Continuare a usare il tasto "MENU" per evidenziare il campo desiderato, quindi
regolare l'impostazione con i tasti "+" o "-".
4- Premere il tasto "AUTO" per tornare al menu precedente.
5- Premere di nuovo il tasto "AUTO" per uscire deîżnitivamente dal menu OSD.
3. Basic on-screen display setup
1- To access the OSD Menu press âMENUâ.
2- Use the â+â or â-â buttons to select the required menu item, then press the
âMENUâ button to select the Sub menu.
3- Continue to use the âMENUâ button to highlight the required îżeld, then press â+â
or â-ââ to adjust the setting.
4- Press the âAUTOâ button to return to previous menu.
5- Press the âAUTOâ button again to exit the OSD Menu completely.
AUTO: consente di selezionare il tipo di segnale di ingresso: HDMI, VGA.
MENU: consente di accedere al menu visualizzato sullo schermo (OSD, On
Screen Display).
+ -: e comandi per alzare/abbassare il volume e navigare nell'OSD.
POWER: consente di accendere o spegnere il monitor.
AUTO: Selects input mode â HDMI , VGA.
MENU: Access to the On Screen Display (OSD) menu.
+ -: and Volume controls up/down and navigation in the OSD.
POWER: Turns the monitor on or oó°¨.
2. Control layout2. Disposizione comandi
AUTO
MENU
+
-
POWER
IT EN
Viale Vicenza, 14
36063 Marostica VI - Italy
www.vimar.com
49401908A0 00 2307
46910.H22B
OSD âOtherâ Menu OSD âInfoâ Menu
OSD âAudioâ MenuOSD âInputâ Menu
OSD âAdvanceâ MenuOSD âColorâ Menu
Menu OSD âAltroâ. Menu OSD âInfoâ.
Menu OSD âAudioâ.Menu OSD âIngressoâ.
Menu OSD âAvanzateâ.MenĂš OSD âColoreâ.
IT EN
Viale Vicenza, 14
36063 Marostica VI - Italy
www.vimar.com
49401908A0 00 2307
46910.H22B
6. Speciîżca del display / Display speciîżcation
6.1 Specifiche alimentatore
⢠Costruttore: Shenzhen Fujia Appliance Co., Ltd.
⢠Indirizzo: 5F of Building F, Hengchangrong (xinghui) Sci-Tech. Park, Huaning Road,
Longhua District, Shenzhen, Guangdong, P.R. China
⢠Modello: FJ-SW20261203000
⢠Tensione di ingresso: 100-240 V
⢠Frequenza di ingresso: 50/60 Hz
⢠Tensione di uscita: 12,0 Vd.c.
⢠Corrente di uscita: 3,0 A
⢠Potenza di uscita: 36,0 W
⢠Rendimento medio in modo attivo: 88,4%
⢠Rendimento a basso carico (10%): 85,3%
⢠Potenza a vuoto: 0,08 W
Direttiva ErP
Regolamento alimentatori esterni (UE) n. 2019/1782
6.1 Power supply specifications
⢠Costruttore: Shenzhen Fujia Appliance Co., Ltd.
⢠Indirizzo: 5F of Building F, Hengchangrong (xinghui) Sci-Tech. Park, Huaning Road,
Longhua District, Shenzhen, Guangdong, P.R. China
⢠Model: FJ-SW20261203000
⢠Input voltage: 100-240 V
⢠Input AC frequency: 50/60 Hz
⢠Output voltage: 12,0 Vd.c.
⢠Output current: 3,0 A
⢠Output power: 36,0 W
⢠Average active efficiency: 88,4%
⢠Efficiency at low load (10%): 85,3%
⢠No-load power consumption: 0,08 W
ErP Directive
Regulation for external power supplies (EU) n. 2019/1782
Speciîżca del display / Display Speciîżcation
Modello/Model 46910.H22B
Tipo di pannello/Panel Type Monitor 22" (16:9) con retroilluminazione a LED
22â (16:9) LED Backlight Monitor
Tipo di case/Case Type Plastica/ Plastic
Risoluzione max HDMI / VGA - Max resolution HDMI / VGA 1920 (H) x 1080 (V)
Colori/Colors 16,7 milioni/16,7M
Passo pixel/Pixel Pitch 0,248 (H) x 0,248(V) mm
Rapporto contrasto/Contrast Ratio 1000:1
LuminositĂ /Brightness 250 Cd/m
2
Tempo di risposta/Response Time 5 ms
Angolo di visione/Viewing Angle 170/170
CompatibilitĂ video/Video Compatiblity Multi-Standard per NTSC/PAL-Multi-Standard for NTSC/PAL
Rapporto d'aspetto/Aspect Ratio 16:9
Dió°¨usori/Speakers 2 x 3 W
Temperatura di esercizio/Work Temperature - 30 a/to +85 °C
Interfaccia IN-OUT / IN-OUT Interface
Interfaccia video/Video Interface HDMI x 1, VGA x 1
Interfaccia audio/Audio Interface Audio in x 1
Interfaccia alimentazione/Power Interface dc In x 1
Certiîżcazione/Certiîżcation Energy Star/CE/FCC/ROHS - Energy Star/CE/FCC/ROHS
Tipo supporto/Stand Type Tavolo/Desktop
Colore/Colour Nero/Black
Posizione tasti/Button Position Lato posteriore / Rear
Dimensioni (mm) LxAxP/Dimensions (mm) LxAxP 490x298x42
Dim. (mm) LxAxP + Staó°¨a/Bracket 490x370x137
Peso netto/lordo - Net/Gross Weight 2,6 Kg / 3.6 Kg
ALIMENTAZIONE / POWER
Tensione/Voltage 12 Vcc
Assorbimento/Power Consumption < 15W
