Seite 1/4
IT EN
Viale Vicenza, 14
36063 Marostica VI - Italy
www.vimar.com
49401907A0 00 2307
46910.H10B
46910.H10B
Monitor LCD 10,1” backlight LED, formato video 16:10 risoluzione Full HD 1920x1080
pixel, ingressi video VGA, BNC (CVBS e AHD fino a 5Mpx) e HDMI, ingresso audio con
due altoparlanti da 3 W, 16,7 M colori, luminosità 350 cd/m², contrasto 1000:1, tempo di
risposta 5 ms, attacco vesa, alimentazione 12 Vdc 10 W (alimentatore incluso). Dimensioni:
260x230x130mm

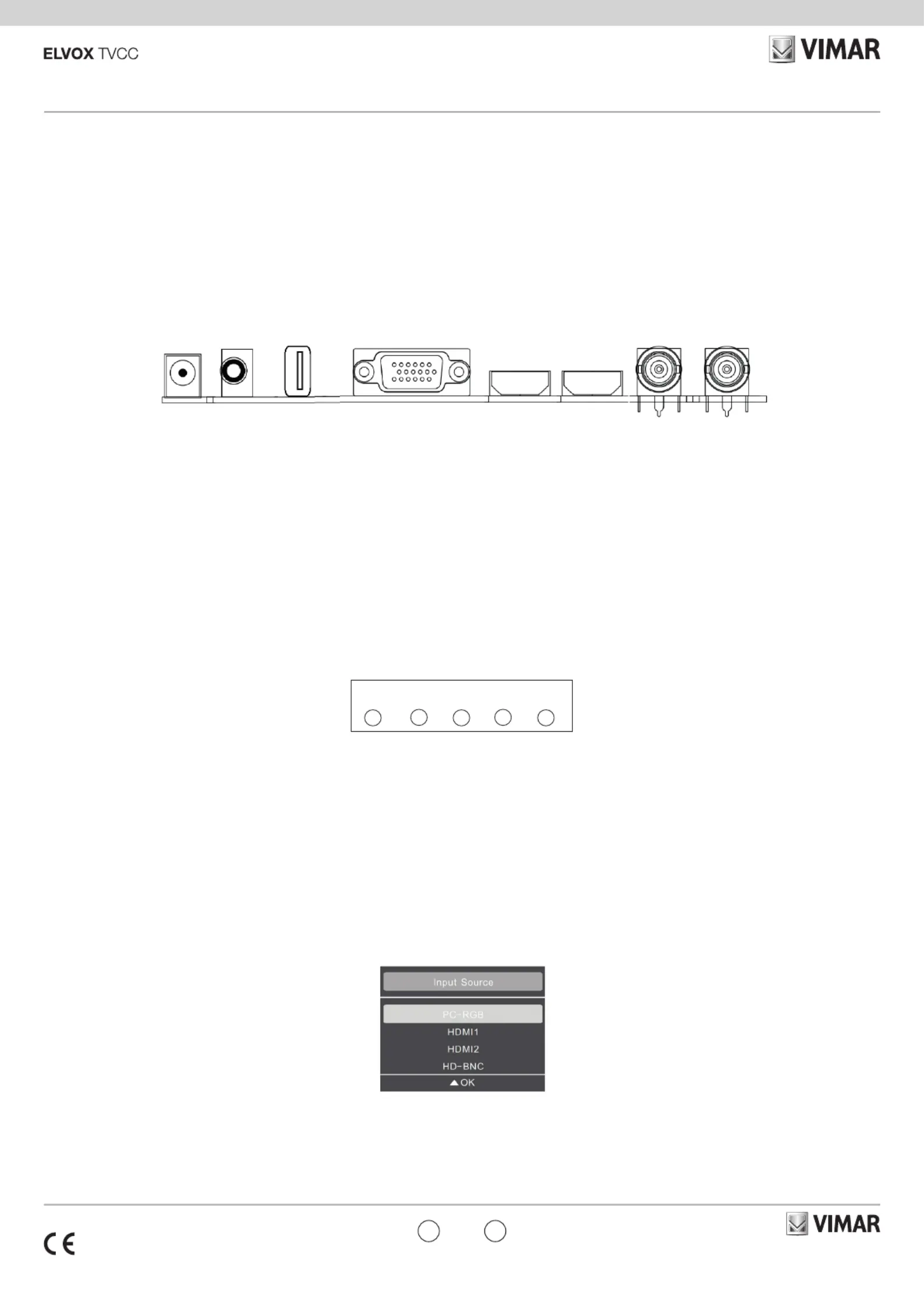

1. Collegamenti
Interfaccia posteriore
DC: usare esclusivamente l'alimentatore a 12V DC incluso con il monitor.
HDMI: (High-Denition Multimedia Interface, interfaccia multimediale ad alta denizione)
supporta video digitali e collegamenti audio.
VGA: cavo D-sub a 15 pin per connessione VGA standard.
Audio IN: collegamento con jack stereo da 3,5 mm per l'ingresso audio quando si usa il
connettore VGA/AV.
VIDEO/AV IN: collegamenti BNC compatibili con ingressi video compositi da apparecchi
quali telecamere o DVR.
VIDEO/AV OUT: uscita loop per segnali video compositi, collegamento a un secondo monitor.
USB: presa USB per aggiornamenti Firmware.
1. Connections
Rear Interface
DC: Only use the 12V DC power supply included with the monitor.
HDMI: (High-Denition Multimedia Interface) Supports digital video and audio connections.
VGA: 15 pin D-sub cable for standard VGA connection.
Audio IN: 3.5 mm stereo jack connection for audio input when using VGA /AV connector.
VIDEO/AV IN: BNC connections supporting composite video inputs from equipment such
as Cameras or DVR’s.
VIDEO/AV OUT: Composite video loop though output – connect a second monitor.
USB: USB socket to Firmware update.
46910.H10B
10,1” backlight LED LCD monitor, 16:10 video size, Full HD 1920x1080 pixel resolution,
VGA, BNC (CVBS and AHD up to 5Mpx) and HDMI video inputs, audio input with two 3
W loudpseakers, 16,7 M colours, 350 cd/m² brightness, 1000:1 contrast, 5 ms lead time,
VESA standard support, supply voltage 12 Vdc 10 W (supply unit included). Dimensions:
260x230x130mm
DC HDMI 1VGAAUDIO IN VIDEO IN VIDEO OUTHDMI 2USB
MODE: consente di selezionare il tipo di segnale di ingresso: AV, HDMI, VGA.
MENU: consente di accedere al menu visualizzato sullo schermo (OSD, On Screen Display).
LEFT/RIGHT: comandi per alzare/abbassare il volume e navigare nell'OSD.
POWER: consente di accendere o spegnere il monitor.
MODE: Selects input mode – AV,HDMI , VGA.
MENU: Access to the On Screen Display (OSD) menu.
LEFT/RIGHT: Volume controls up/down and navigation in the OSD.
POWER: Turns the monitor on or o.
2. Control layout
2. Disposizione comandi
LEFT RIGHT MODE MENU POWER
3. Selecting input source
You can select input source by pressing " " button on the front panel.MODE
- Press the " " and " " button to select the source you want.LEFT RIGHT
- Press the "MENU" button to conrm.
3. Selezione della sorgente di ingresso
È possibile selezionare la sorgente di ingresso premendo il pulsante " " sul pannello MODE
anteriore.
- Premere il pulsante " " e " " per selezionare la sorgente desiderata.LEFT RIGHT
- Premere il pulsante " " per confermare.MENU
IT EN
Viale Vicenza, 14
36063 Marostica VI - Italy
www.vimar.com
49401907A0 00 2307
46910.H10B
"Option" menu “Picture” Menu Picture Mode Standard
Color Mod Medium Aspect Ration Noise Reduction
SOUND Options TIME Options
Menu "Opzioni" Menù “Immagine”. Modalità immagine Standard
Color Mod Medium Aspect Ration Riduzione del rumore
Opzioni SUONO Opzioni ORARIO
4. Congurazione di base con OSD
1 MENU- Per accedere al menu OSD premere " ".
2 LEFT RIGHT- Usare i tasti " " e " " per selezionare la voce di menu desiderata.
3 MENU- Premere il tasto " " per confermare o selezionare il sottomenu o tornare al menu
precedente.
4 MODE- Premere il tasto " " per uscire denitivamente dal menu OSD.
4. Basic on-screen display setup
1 - To access the OSD Menu press ‘ ’.MENU
2 LEFT- Use the ‘ ’ and ‘ ’ buttons to select the required menu item.RIGHT
3 MENU- Press the ‘ ’ button to conrm or select the Sub menu or return to previous menu.
4 MODE- Press the ‘ ’ button to exit the OSD Menu completely.
IT EN
Viale Vicenza, 14
36063 Marostica VI - Italy
www.vimar.com
49401907A0 00 2307
46910.H10B
5. Specica del display / Display specication
5.1 Specifiche alimentatore
• Costruttore: Shenzhen Fujia Appliance Co., Ltd.
• Indirizzo: 5F of Building F, Hengchangrong (xinghui) Sci-Tech. Park, Huaning Road,
Longhua District, Shenzhen, Guangdong, P.R. China
• Modello: FJ-SW20181202000
• Tensione di ingresso: 100-240 V
• Frequenza di ingresso: 50/60 Hz
• Tensione di uscita: 12,0 Vd.c.
• Corrente di uscita: 2 A
• Potenza di uscita: 24 W
• Rendimento medio in modo attivo: 87%
• Rendimento a basso carico (10%): 81%
• Potenza a vuoto: 0,09 W
Direttiva ErP
Regolamento alimentatori esterni (UE) n. 2019/1782
5 s.1 Power supply specification
• Costruttore: Shenzhen Fujia Appliance Co., Ltd.
• Indirizzo: 5F of Building F, Hengchangrong (xinghui) Sci-Tech. Park, Huaning Road,
Longhua District, Shenzhen, Guangdong, P.R. China
• Model: FJ-SW20181202000
• Input voltage: 100-240 V
• Input AC frequency: 50/60 Hz
• Output voltage: 12,0 Vd.c.
• Output current: 2 A
• Output power: 24 W
• Average active efficiency: 87%
• Efficiency at low load (10%): 81%
• No-load power consumption: 0,09 W
ErP Directive
Regulation for external power supplies (EU) n. 2019/1782
Specica del display / Display Specication
Modello/Model 46910.H10B
Tipo di pannello/Panel Type Monitor 10,1'' (16:10) con retroilluminazione a LED
0.1'' (16:10) LED Backlight Monitor
Tipo di case/Case Type Metallo/Metal
Risoluzione max HDMI / VGA - Max resolution HDMI / VGA 1920 (H) x 1080 (V)
Risoluzione max BNC - Max resolution BNC
CVBS
AHD-TVI 720p / 2MP / 3MP / 4MP / 5MP
CVI 720p / 2MP / 4MP
Colori/Colors 16,7 milioni/16,7M
Passo pixel/Pixel Pitch 0,630 (H) x 0,630 (V) mm
Rapporto contrasto/Contrast Ratio 1000:1
Luminosità/Brightness 350 Cd/m
2
Tempo di risposta/Response Time 5 ms
Angolo di visione/Viewing Angle 178/178
Compatibilità video/Video Compatiblity Multi-Standard per NTSC/PAL-Multi-Standard for NTSC/PAL
Rapporto d'aspetto/Aspect Ratio 16:10
Diusori/Speakers 2 x 3 W
Temperatura di esercizio/Work Temperature Da - 30 to +85 °C
Interfaccia IN-OUT / IN-OUT Interface
Interfaccia video/Video Interface HDMI x2, VGA x 1 BNC In x1, BNC Out x1
Interfaccia audio/Audio Interface Audio in x 1
Interfaccia alimentazione/Power Interface dc In x 1
Certicazione/Certication Energy Star/CE/FCC/ROHS - Energy Star/CE/FCC/ROHS
Tipo supporto/Stand Type Tavolo/Desktop
Colore/Colour Nero/Black
Posizione tasti/Button Position Lato anteriore / Front
Dimensioni (mm) LxAxP/Dimensions (mm) LxAxP
260x185x43
Dim. (mm) LxAxP + Staa/Bracket 260x230x130
Peso netto/lordo - Net/Gross Weight 2 Kg / 2,9 Kg
ALIMENTAZIONE / POWER
Tensione/Voltage 12 Vcc
Assorbimento/Power Consumption <10W
