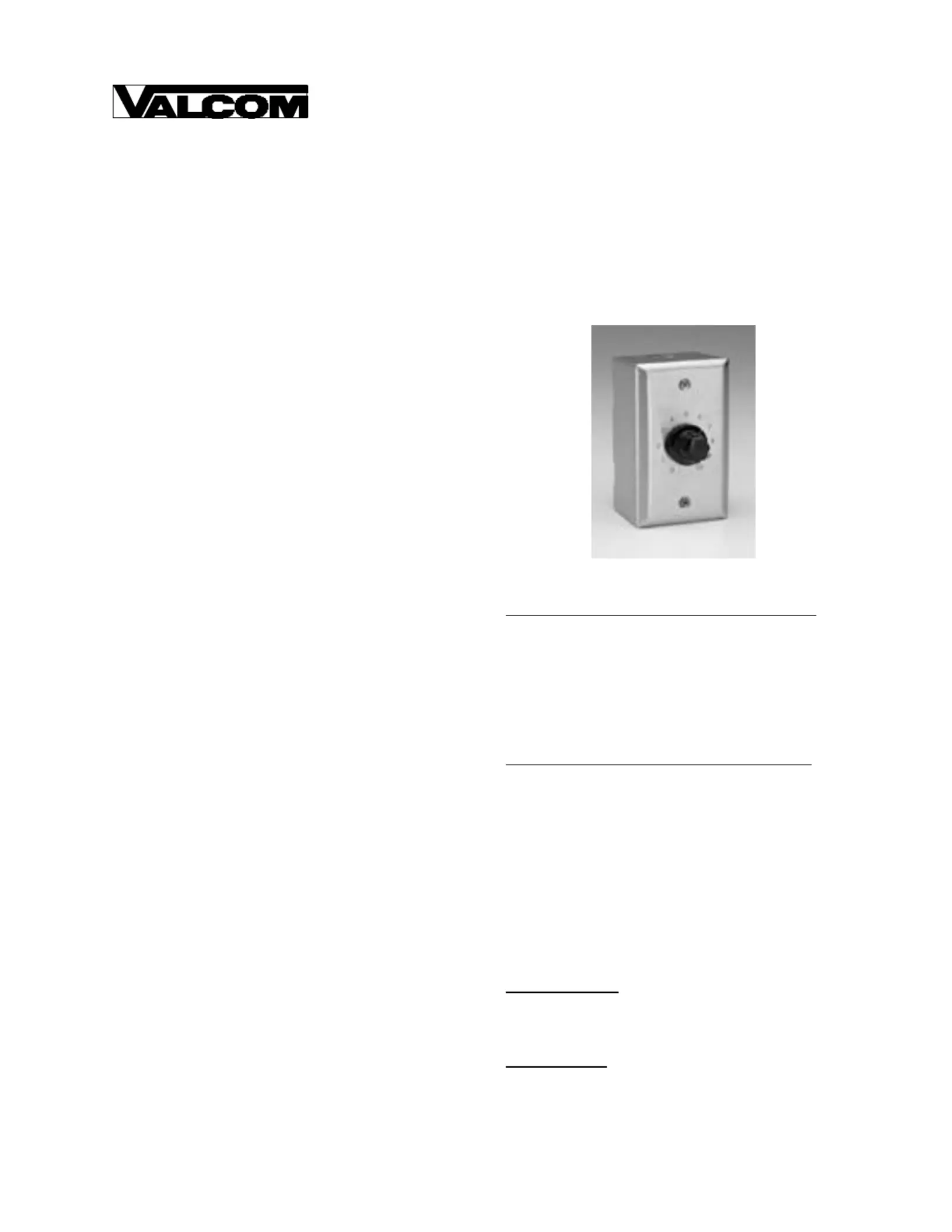

VSP- -V 1092
Issue 9
1 947092
V-1092
WALL MOUNT VOLUME CONTROL
INTRODUCTION
These instructions contain the specifications and
information necessary to install, operate and maintain
the V-1092, Wall Mount Volume Control.
SPECIFICATIONS
Purpose
The V-1092, Wall Mount Volume Control, is a volume
control unit which can be mounted into a single-gang
electrical box. The V-1092 comes with its own surface
mount box which provides 1/2" conduit access. This
unit is compatible with all Valcom one-way and
two-way speakers.
NOTE: The V-1092 is not designed to connect
directly to the output of high powered amplifiers.
Applications
• To control volume of one-way amplified
speaker assemblies in inaccessible areas
• To control large groups of one-way amplified
speaker assemblies
• To control volume of Valcom talkback speakers
• Volume control for Valcom V-1039A, Explosion
Proof Horn
Dimensions/Weight
• 4.50"H x 2.75"W x 2.80"D
(11.43cm H x 6.99cm W x 7.11cm D)
• Weight: .8 lbs. (.36 kg)
INSTALLATION
These instructions cover only the installation
procedures for the Valcom V-1092. Consult the
installation instructions of other equipment for
information relative to each piece of equipment.
Audio Connections
"D" type station wire or other suitable pairs may be
used for audio connections.
Connections when using a One-Way Control Unit
(Refer to Figure 1)
a. Connect wall mount volume control input tip
and ring to desired zone output leads from
page control.
b. Connect wall mount volume control output
tip and ring to speakers.
Connections when using a Talkback Control Unit
(Refer to Figure 2)
a. Connect wall mount volume control tip input
terminal to tip output lead of talkback page
control unit.
b. Connect wall mount volume control tip
output terminal to tip lead of talkback
speaker.
c. Connect ring output of talkback page control
to ring of talkback speaker.
Mounting
Surface Mounting - Mount the V-1092 on any suitable
surface. Two screws are used to fasten the box to the
surface.
Flush Mounting - Remove faceplate assembly and
install in standard single-gang electrical box.
2
TECHNICAL ASSISTANCE
When trouble is reported, verify the unit is properly
connected and there are no broken connections
leading to this unit.
If trouble still exists, using two clip leads, short tip in
to tip out and ring in to ring out and test page. If the
page works, replace the V-1092. If the system still
does not work continue troubleshooting. If a spare
unit is available, substitute the spare unit for the
suspected unit.
If the trouble has not been located, refer to Table 1.
Identify the symptoms and perform the actions
indicated.
Assistance in troubleshooting is available from the
factory. When calling, you should have a VOM
available and be calling from the job site. Call (540)
563-2000 and ask for Technical Support, or call (540)
767- -1555 for Valcom 24 hour Faxback System or visit
our website at http://www.valcom.com.
VALCOM equipment is not field repairable. Valcom,
Inc. maintains service facilities in Roanoke, VA.
Should repairs be necessary, attach a tag to the unit
clearly stating your company name, address, phone
number, contact person and the nature of the problem.
Send the unit to:
Valcom, Inc.
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
TABLE 1 - TROUBLESHOOTING CHART
Problems Possible Causes Verifications Possible Solutions
No audio output to
speaker.
Open input path.
Open output path.
Place handset across V-1092 input
terminals; No audio present.
Place handset across speaker
terminal; No audio present.
Check cabling and cross-
connections to V-1092.
Check cabling and cross-
connections from V-1092 to
speaker.
VALCOM LIMITED WARRANTY
Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and service
for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or
refund of any such defective device within the warranty period, provided that:
1. inspection by Valcom, Inc. indicates the validity of the claim;
2. the defect is not the result of damage, misuse or negligence after the original shipment;
3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (A service
charge plus parts and labor will be applied to units defaced or physically damaged);
4. freight charges for the return of products to Valcom are prepaid;
5. all units ‘out of warranty’ are subject to a service charge. The service charge will cover minor repairs (Major repairs will be
subject to additional charges for parts and labor).
This warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be liable
for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the
purchase, operation or use of the product.
This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the
carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the
F.O.B. point.
Headquarters: In Canada
Valcom, Inc. CMX Corporation
5614 Hollins Road 35 Van Kirk Drive #11 and 12
Roanoke, VA 24019-5056 Brampton, Ontario L7A 1A5
Phone: (540) 563-2000 Phone: (905) 456-1072
FAX: (540) 362-9800 FAX: (905) 456-2269
3
T TR R
In
Out
T
R
One-Way
Amplified
Speaker
One-Way
Page
Control
Unit
T
R
V-1092

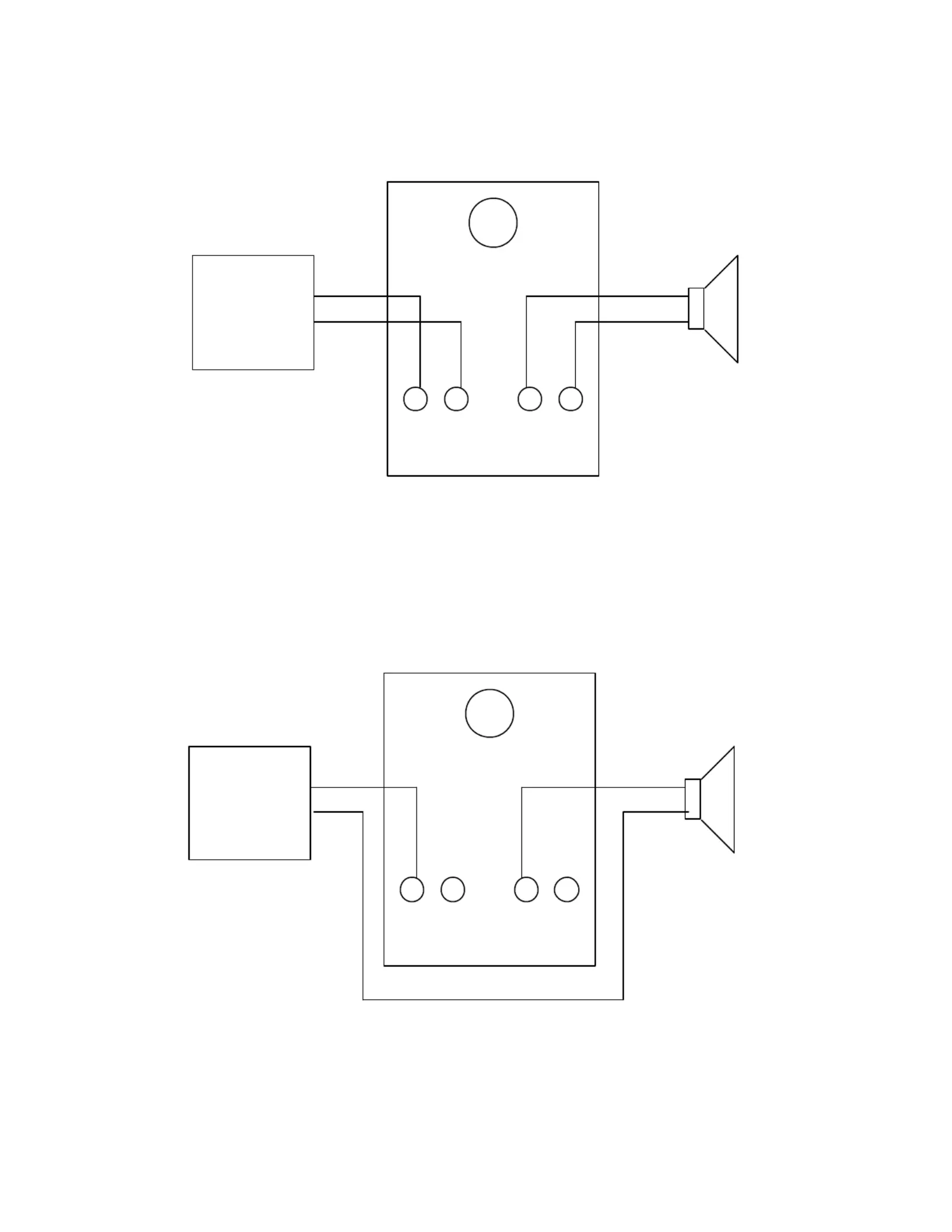

FIGURE 1
V-1092 CONNECTIONS USING A ONE-WAY PAGE CONTROL
T TR R
In Out
T
R
Talkback
Speaker
Talkback
Page
Control
Unit
T
R
V-1092
FIGURE 2
V-1092 CONNECTIONS USING A TALKBACK PAGE CONTROL
