Network Video Recorders
User Manual
Manual Version: V1. 00

Preface
Thank you for choosing our product. Contact your local dealer if you
have any quesons or feedback.
Important Notice
CAUTION!
The default password is intended only for your rst login and should be
changed to a strong one with at least eight characters including upper
and lower case leers, digits and symbols for security.
Installaon and maintenance must be performed by qualied
personnel.
This device is a class A product and may cause radio interference.
Take measures if necessary.
Disconnect power before installaon and cable connecon. Wear
anstac gloves during installaon. Use the manufacturer
recommended battery. Improper use or replacement of the baery
may cause risk of explosion. Dispose of the used baery according
to local regulaons or the baery manufacturer's instrucons.
Never dispose of the baery in re.
The device is intended for indoor use only. Ensure a proper
operang environment, including temperature, humidity,
venlaon, power supply, lightning protecon. Ground the device
properly. Keep the device from dust, excessive vibraon, liquid of
any kind, strong electromagnec radiaon. Do not stack devices. A
sudden power failure may cause device damage or loss of data.
Take necessary measures to ensure data security and protect from
network aack and hacking (when connected to Internet).

Use an Uninterrupble Power Supply (UPS) if necessary. Frequent
power failures may harm hard disks or cause malfuncon. Follow
instrucons to power down the device.
Disclaimer
No part of this manual may be copied, reproduced, translated, or
distributed in any form or by any means without prior consent in
wring from our company.
To the maximum extent permied by applicable law, the product
described, with its hardware, soware, rmware and documents, is
provided on an "as is" basis.
Best eort has been made to verify the integrity and correctness of
the contents in this manual, but no statement, informaon, or
recommendaon in this manual shall constute formal guarantee
of any kind, expressed or implied. We shall not be held responsible
for any technical or typographical errors in this manual. The
contents of this manual are subject to change without prior noce.
Update will be added to the new version of this manual.
Use of this manual and the product and the subsequent result shall
be enrely on the user's own responsibility. In no event shall we be
liable for any special, consequenal, incidental, or indirect
damages, including, among others, damages for loss of business
prots, business interrupon, or loss of data or documentaon, or
product malfuncon or informaon leakage caused by cyber aack,
hacking or virus in connecon with the use of this product.
Video and audio surveillance can be regulated by laws that vary
from country to country. Check the law in your local region before
using this product for surveillance purposes. We shall not be held
responsible for any consequences resulng from illegal operaons
of the device.
The illustraons in this manual are for reference only and may vary
depending on the version or model. The screenshots in this manual

i
Contents
Preface 1...................................................................................................
Part I Local Operaons 1............................................................................
1 Before You Begin .................................................................................. 1
Login .............................................................................................................. 2
Local Operaons ........................................................................................... 2
2 Inial Conguraon .............................................................................. 3
Preparaon ................................................................................................... 3
Login .............................................................................................................. 3
Wizard ........................................................................................................... 5
3 Live View .............................................................................................. 7
Live View Status ............................................................................................ 7
Window Toolbar 8...........................................................................................
Screen Toolbar .............................................................................................. 9
Shortcut Menu ............................................................................................ 10
Sequence Operaon ...................................................................................11
Zoom ........................................................................................................... 12
Image Conguraon ...................................................................................13
Preview Conguraon ................................................................................14
4 Channel Conguration ........................................................................ 16
Channel Management ................................................................................. 16
OSD Conguraon ......................................................................................23
Image Conguraon ...................................................................................24
Privacy Mask Conguraon ........................................................................28
5 PTZ Control .........................................................................................29
PTZ Control Window and PTZ Management Window ................................29

2
Login
Use the default username and password for your first admin 123456
login.
CAUTION!
The default password is intended only for the first login and should be
changed to a strong one containing at least eight characters including
uppercase and lowercase letters, digits and symbols after your first login
to ensure security.
1. Right-click anywhere i the window and then choose . The n Menu
login dialog box is displayed.
2. Select the username from the drop-down list enter your password, ,
and then click . Login
Local Operations
You can refer to and complete a quick configuration. Initial Configuration
NOTE!
Unless otherwise specified, all operations described in this manual are
performed with a mouse by the right hand. See forMouse Operations
details.
Mouse Operations
Table 1-1 Mouse Operations
Name
Action
Description
Left
button
Click
Select confirm an item. or
Select to edit digits, symbols, upper-case or
lower-case letters in a field.
Double-click
Enter or exit full screen mode in live view.

6

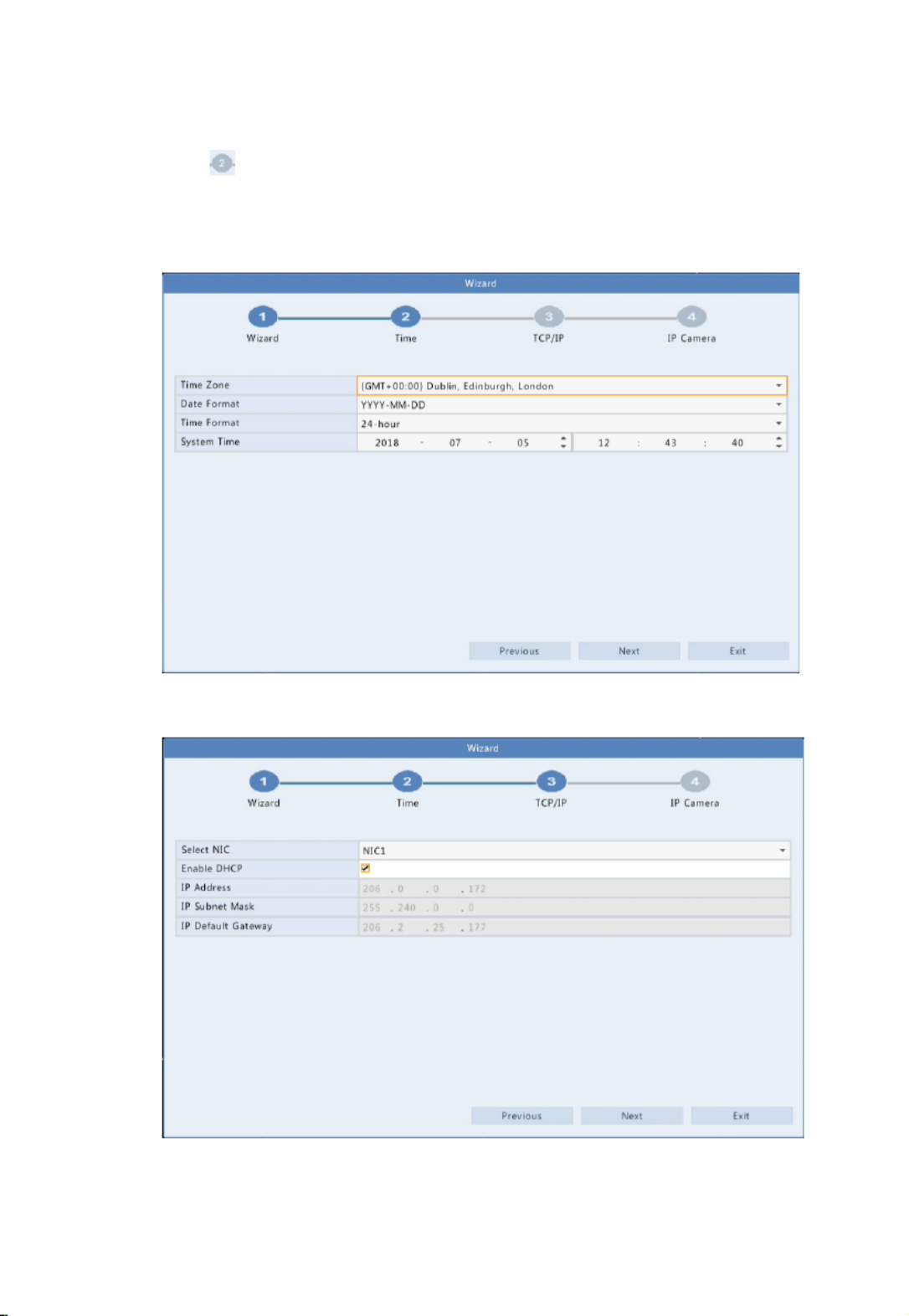

1. Enable or disable the wizard as needed and then click (or click Next
).
2. Select your time zone, set date and time formats, set the system
time, and then click . Next
3. Complete network configuration, and then click . Next

8
No.
Description
1
The IP device is online, and live video is playing.
2
The IP device is online, but the NVR has insufficient capacity to
decode streams from the IP device.
3
No permission to view live video from the IP device.
4
The IP device is offline.
5
No IP device is linked to the window.
Window Toolbar
Icon
Description
Available for PTZ cameras only. Click to display the PTZ
control window.
Record live video in the window to the hard disk.
Clicking stops recording.
Click to play video recorded during the past 5 minutes and 30
seconds.
Zoom in on an area of interest.
Click to edit image settings.
Click to set OSD.
12
4
3
5
Produktspezifikationen
Marke: | UniView |
Kategorie: | Videoaufzeichnungen |
Modell: | NVR302-16E2-P16 |
Unterstützte Audioformate: | G.711, G.711 A-law |
WLAN: | Nein |
Breite: | 380 mm |
Tiefe: | 315 mm |
Gewicht: | 2600 g |
Produktfarbe: | Schwarz |
Höhe: | 53 mm |
AC Eingangsspannung: | 100 - 240 V |
Anzahl USB 2.0 Anschlüsse: | 1 |
Betriebstemperatur: | -10 - 55 °C |
Relative Luftfeuchtigkeit in Betrieb: | 0 - 90 % |
Netzstandard: | IEEE 802.3af, IEEE 802.3at |
Unterstützte Netzwerkprotokolle: | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS |
Stromverbrauch (Standardbetrieb): | 15 W |
Power over Ethernet (PoE): | Ja |
Anzahl Ethernet-LAN-Anschlüsse (RJ-45): | 17 |
Ethernet LAN Datentransferraten: | 10,100,1000 Mbit/s |
Zahl der Benutzer: | 128 Benutzer |
LED-Anzeigen: | Ja |
Unterstützte Videoformate: | H.264, H.265 |
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: | 1 |
Maximale Auflösung: | 3840 x 2160 Pixel |
Nachhaltigkeitskonformität: | Ja |
Nachhaltigkeitszertifikate: | CE, RoHS, WEEE |
HDD Kapazität: | 0 GB |
Gesamtleistung Power over Ethernet (PoE): | 240 W |
Audio-RCA-Eingänge: | 1 |
Unterstützter Browser: | IE10/11, Firefox, Chrome, Edge |
HDD Schnittstelle: | SATA |
Video-Bewegungsmelder: | Ja |
Videoverlust-Erkennung: | Ja |
RS-485-Anschlüsse: | 1 |
Maximale unterstützte Anzahl der HDD: | 2 |
Max. Speicherkapazität: | 20 TB |
Aufnahmebetrieb: | Event, Schedule |
Schnappschuss: | Ja |
Video-Eingangskanäle: | 16 Kanäle |
Eingangsbandbreite: | 320 Mbit/s |
Anzahl der gleichzeitig abgespielten Kanäle: | 16 Kanäle |
Ausgangsbandbreite: | 320 Mbit/s |
Unterstütze Auflösung: | VGA:\n1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz\nHDMI:\n4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
Audio-RCA-Ausgänge: | 1 |
Power over Ethernet (PoE) Leistung pro Anschluss: | 30 W |
Alarm-Eingangskanäle: | 8 |
Alarm-Ausgangskanäle: | 2 |
Anzeigemodi: | Liveübertragung |
Personenzählung: | Ja |
