WARNING
Please carefully inspect the product before assembling. If you notice any apparent damage, call your
carrier claims agent and do not continue the installation until it has been reviewed. Please watch for
pinch points. Do not put your fingers between moveable parts. Do not tamper with or disassemble any
spring loaded parts. Before installing, make sure that the supporting surface will support five times the
combined load of the solution and the hardware. Never exceed the maximum load capacity. Please also
layout all components to ensure that you have all of the required parts before proceeding (see BOM list
on following page). Use of this product for anything other than its specified use may result in failure or
personal injury. This product is intended for indoor use only. We recommend using a qualified trades
person for installation. Use an assistant or lifting equipment to lift and position products.
For support, please call: +44 (0)1865 767676 or email: sales@unicol.com
Revised 15/12/20
01865 767676
sales@unicol.com
www.unicol.com
*Please check model specific details before installing*

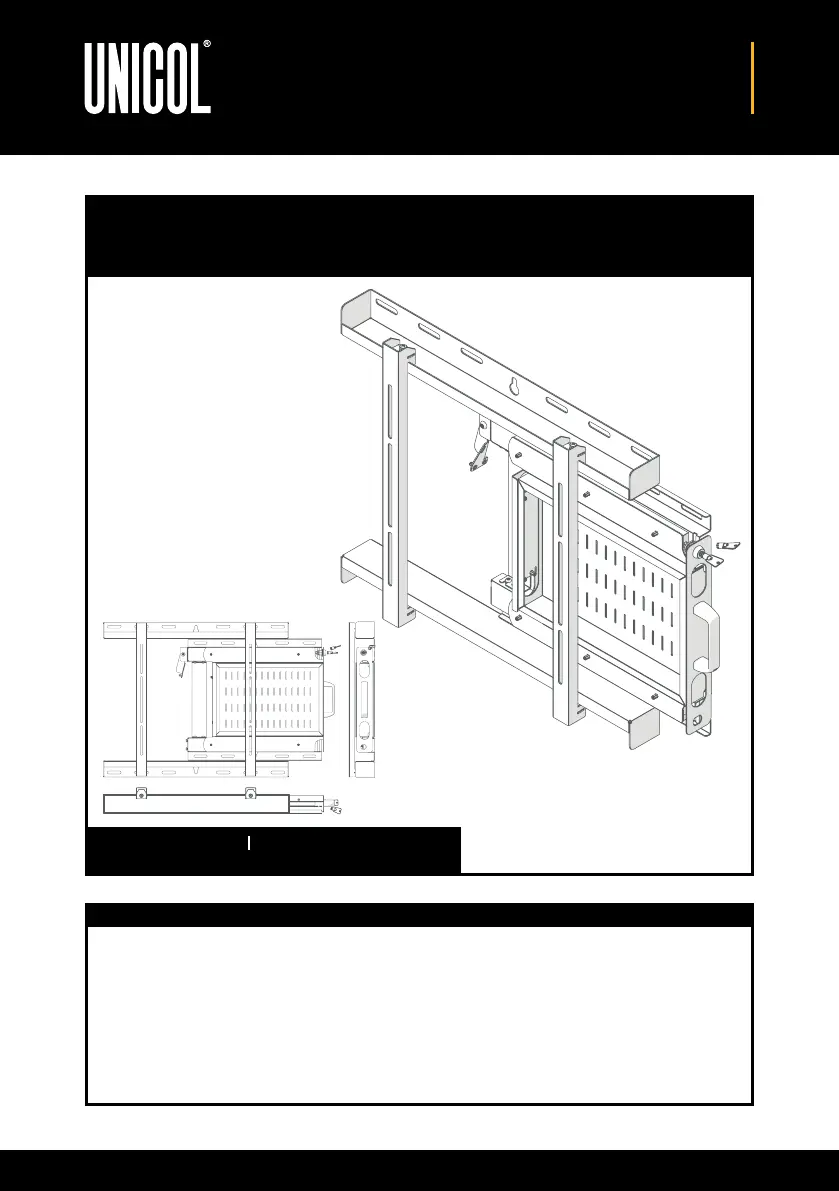

HTS1 / HTS2
Screen Size: Guide Max. Weight: 46-110” 60-110kg
01865 767676
sales@unicol.com
www.unicol.com
2Revised 15/12/20
COMPONENTS
INSTALLERS REQUIRED
1-2
# DESCRIPTION QTY
1Screen Rails 2
2Screen Arms 2
3Main Slider Body (inc. Cable Management) 1
4Removeable Equipment Tray 1
5Locking Keys 2
6Universal Fixing Kit 1
#TOOLS REQUIRED
1 Pozi Head Screwdriver
2 2.5mm Allen Key
3 4mm Allen Key
1 2
3
4
5
01865 767676
sales@unicol.com
www.unicol.com
3
Revised 15/12/20
centre of screen
check distance
a = ( HTS1: 339mm // HTS2: 224mm )
a
POSITIONING OF SERVICES STEP 1
Remove screws from handle in transport position.
Re-attach handle (as shown above) using the same
screws.
STEP 2
Gently pull on the lip of the cassette to release it.
Remove it from the slider body. Populate with your
media equipment.
STEP 3
Mark where you’d like the centre of the screen to
sit on the wall. Using the dimensions above, mark
and then fix top rail to wall.
Please note - the dimensions above are based on
VESA fixings being central to the screen. You may
need to adjust if your VESA fixing points are offset.
Recommended position - opposite side to the
cassette/above and below HTS body. Screen
size dependant.
Do position services within body of HTS or NOT
within cassette path. Dependant on installation
positioning, see Step 4 - check before installing.
Additional space for max depth 90mm -
dependany on installation positioning, see Step
4. Check before installing.
