- - Gigabit Power over Ethernet Extender
Gigabit PoE Extender
User's manual
2
Gigabit Power over Ethernet Extender- -
Gigabit Power over Ethernet Extender- -
Product

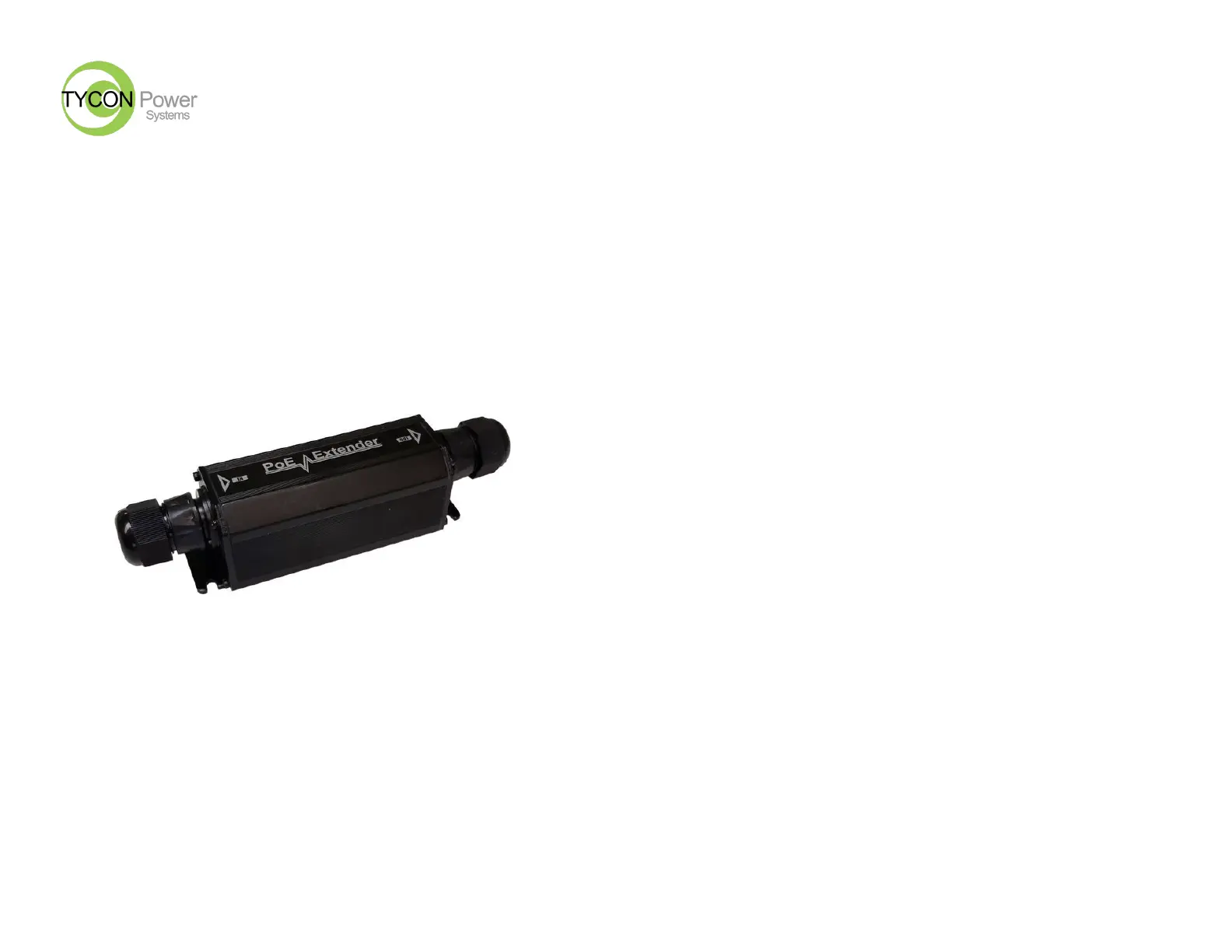

Outdoor waterproof Gigabit PoE Extender 1(PoE IN) into 1(PoE OUT) 25W
Description
Ethernet and PoE connections both restrict cable distances to 100 meters be-
tween network ports. To overcome this distance limit, network installers can
simply connect a PoE Extender in line with the Cat 5e or Cat 6 cable (Outdoor - - -
type).
With a Gigabit PoE Extender, PDs (such as IP Security Cameras, wireless ac-
cess points) can be installed at greater distances than 100 meters from one
another. By connecting the PoE Extender for every extra 100 meters of cable,
both Ethernet and PoE can be extended up to 300 meters, depending on PDs
power required and power source.
The Gigabit PoE Extender does not require any additional power supply and
the connected PDs are fed by a single PoE switch or mid span, which simplifies -
installation. The PoE Extender offers two Gigabit Ethernet ports, which are both
configured automatically for link speed, duplex and crossover and the full rate -
network throughput is maintained.
The PoE IN connection accepts power on pins 1,2.3,6 and 4,5.7,8 and con-
forms to IEEE802.3af/at PoE specification, Mode A and Mode B. PoE OUT
connection provides up to 25W with an IEEE802.3AT 30W input. PoE Out pro-
vides power on pins 1,2(V+) and 3,6(V-).
Features:
• Compatible with IEEE802.3af and IEEE802.3at.
• Extends the range of PoE and Gigabit Ethernet an additional
100 meters.
• No additional power supply is required.
• Automatically detects and protects equipment from being
damaged by incorrect installation.
• Gigabit Full rate network throughout the whole extended -
distance.
• Wall-Mountable design.
• Easy plug play installation.-and-
• IP66 Rated (Fully Weatherproof and Outdoor Rated).
3
- - Gigabit Power over Ethernet Extender
Item Descripon
No. of channels 1(PoE IN) into 1(PoE OUT)
Pass Through Data Rates 10/100/1000 Mbps half/full duplex
Power over Ethernet Input Pin Assignment and Polarity:
Both 1,2( ). 3,6 (+) and 7,8 ( ). 4,5 (+)- -
Power over Ethernet Output Pin Assignment and Polarity:
1,2 (+). 3,6 ( )-
Output Power: up to 25W
Connectors Shielded RJ 45, EIA 568A and 568B -
Network cables Outdoor type shielded category 5 (or higher)
Dimensions 185mm x 45mm x 45mm
Mounting Wall or shelf
Environment Indoor or Outdoor
Environmental Conditions Operating Ambient Temperature: 25 to 55-℃
Operating Humidity: Maximum 100%Storage
Temperature: 30 to 70 Storage Humidity:-℃
Maximum 95%, Non condensing-
Regulatory Compliance IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Specifications
Typical Application
4
Gigabit Power over Ethernet Extender- -
Typical Maximum Distances
Multiple PoE Extenders can be connected every 100 meters to obtain
greater distances. The actual figures depend on specific operating
conditions. The ranges shown below are based on 24 AWG or heavi-
er Cat 5e or Cat 6 cable.- -
Examples for Low Power PoE Devices (PoE Class 2 under 6 watts)
PoE Source
PoE switch
(802.3af, Output
voltage 50V)
15W mid span -
(802.3af, Output
voltage 50V)
PoE+ switch
(802.3at, Output
voltage 50V)
30W mid span -
(802.3at, Output
voltage 50V)
Maximum Distances
200m 200m 300m 300m
Examples for PoE+ Devices (PoE Class 4 under 22 watts and
802.3at compliant)
PoE Source
PoE switch
(802.3af, Output
voltage 50V)
15W mid span -
(802.3af, Output
voltage 50V)
PoE+ switch
(802.3at, Output
voltage 50V)
30W mid span -
(802.3at, Output
voltage 50V)
Maximum Distances
Not applicable Not applicable 200m 200m
