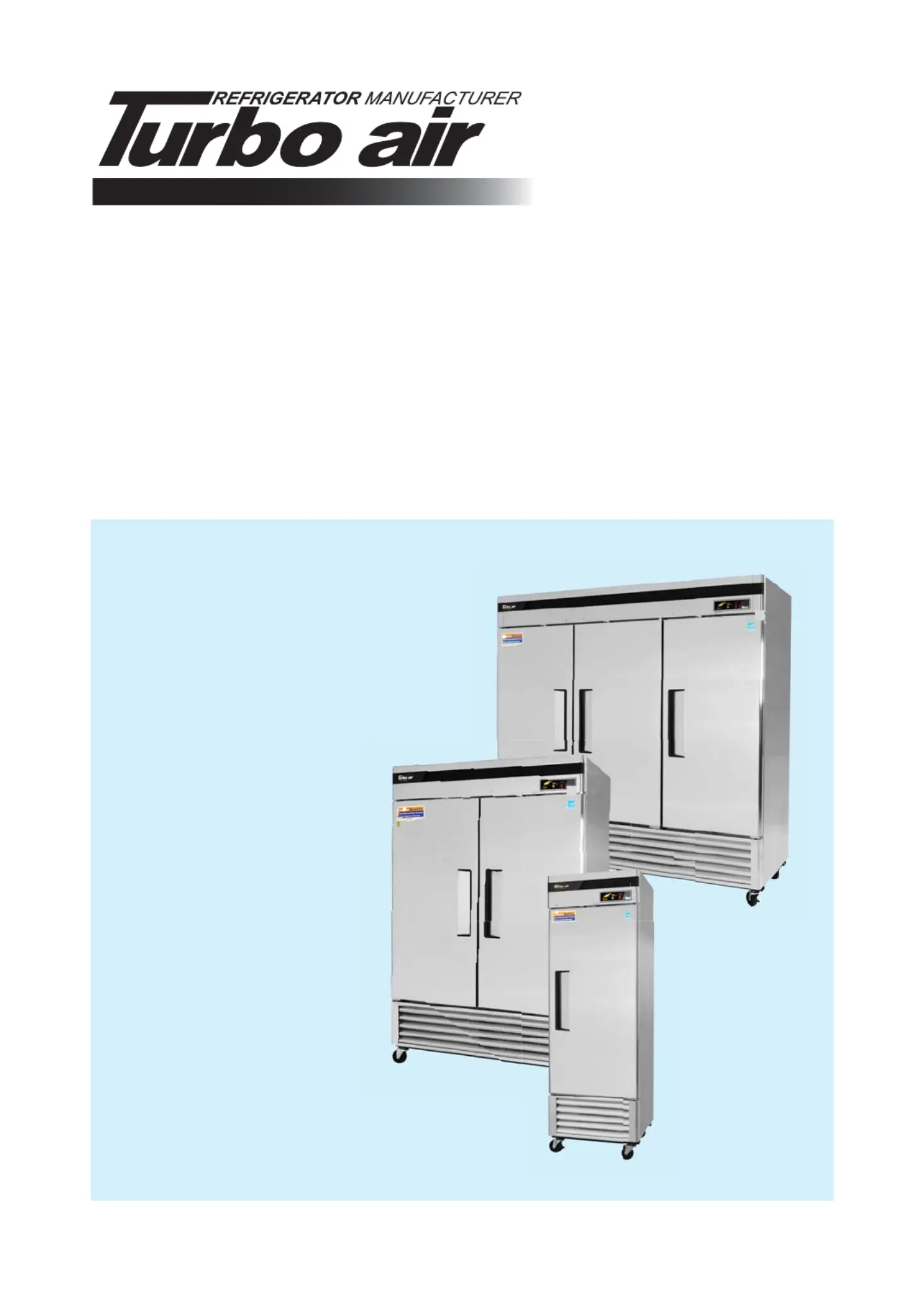

Turbo Air Speeds up the Pace of Innovation
Full Stainless Steel Interior and Exterior
www.turboairinc.com
SOLID DOOR
REFRIGERATORS
TSR-23SD*
TSR-35SD
TSR-49SD
TSR-72SD
SOLID DOOR
FREEZERS
TSF-23SD
TSF-35SD
TSF-49SD
TSF-72SD
Super Deluxe Series
Refrigerators & Freezers
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment
1. SPECIFICATIONS
..........................................................................................
2
2. SERIAL NUMBER ........................................................................................
...............................................................................
...............................................................................
2
3. INSTALLATION............................................................................................ 3
4. CLEANING & CAUTION 4
5. BASIC OPERATION
5-1. REFRIGERATORS........................................................................... 5~8
5-2. FREEZERS..................................................................................... 9~12
6. TROUBLESHOOTING 13
7. WARRANTY.........................................................................................14~16
PAGE
Refrigerators
MODEL COMP H.P. V/Hz
REFRIGERANT
AMPS WEIGHT
TSR-23SD*
1/4 115V/60Hz R-134A 5.5A 274lbs
TSR-35SD
1/3 115V/60Hz R-134A 9.0A 357lbs
TSR-49SD
1/3 115V/60Hz R-134A 9.2A 427lbs
TSR-72SD
1/2 115V/60Hz R-134A 11.3A 602lbs
MODEL COMP H.P. V/Hz
REFRIGERANT
AMPS WEIGHT
TSF-23SD
1/2 115V/60Hz R-404A 7.8A 293lbs
TSF-35SD
3/4 115V/60Hz R-404A 10.0A 390lbs
TSF-49SD
3/4 115V/60Hz R-404A 10.5A 457lbs
TSF-72SD
11/4 115V/60Hz R-404A 12.7A 639lbs
The serial number is located on the data label inside.
Please retain the unitʼs serial number for service purpose.
Freezers
2
CONTENTS
SPECIFICATIONS
SERIAL NUMBER
3
INSTALLATION
1. GOOD AIR CIRCULATION
- Be sure to avoid any partition and object which may stop the air flow
- Be sure that air space is allowed to flow the rear of the unit
(Turbo Air recommends that the rear of the unit would be no less than
5 inches from the wall)
2. PLACE ON STRONG GROUND
- Be sure that the location be chosen has a storng enough floor to support
the total weight of the cabinet and any other contents
3. DO NOT PLAVE NEAR HEAT
- Be sure to avoid hot corners and locations near stoves.
- High ambient temperature will make much lower cooling efficiency
4. INDOOR USAGE ONLY
- Be sure to install this unit indoor.
- So, it should prohibit getting wet from the rain
5. STABILIZING
- Make sure the unit is installed in a stable condition with the front wheels
locked while in use.
6. LELVELING
- Be sure that unit levels from the front to the back and side to side.
7. UNIT SHOULD BE ON DEDICATED OUTLET
8. PLACE BLACK PLASTIC CONDENSATE PAN THROUGH BACK
OR FRONT. MAKE SURE PADS ARE INSTALLED UPWARDS,
A DRAIN HOSE IS IN PAN.
