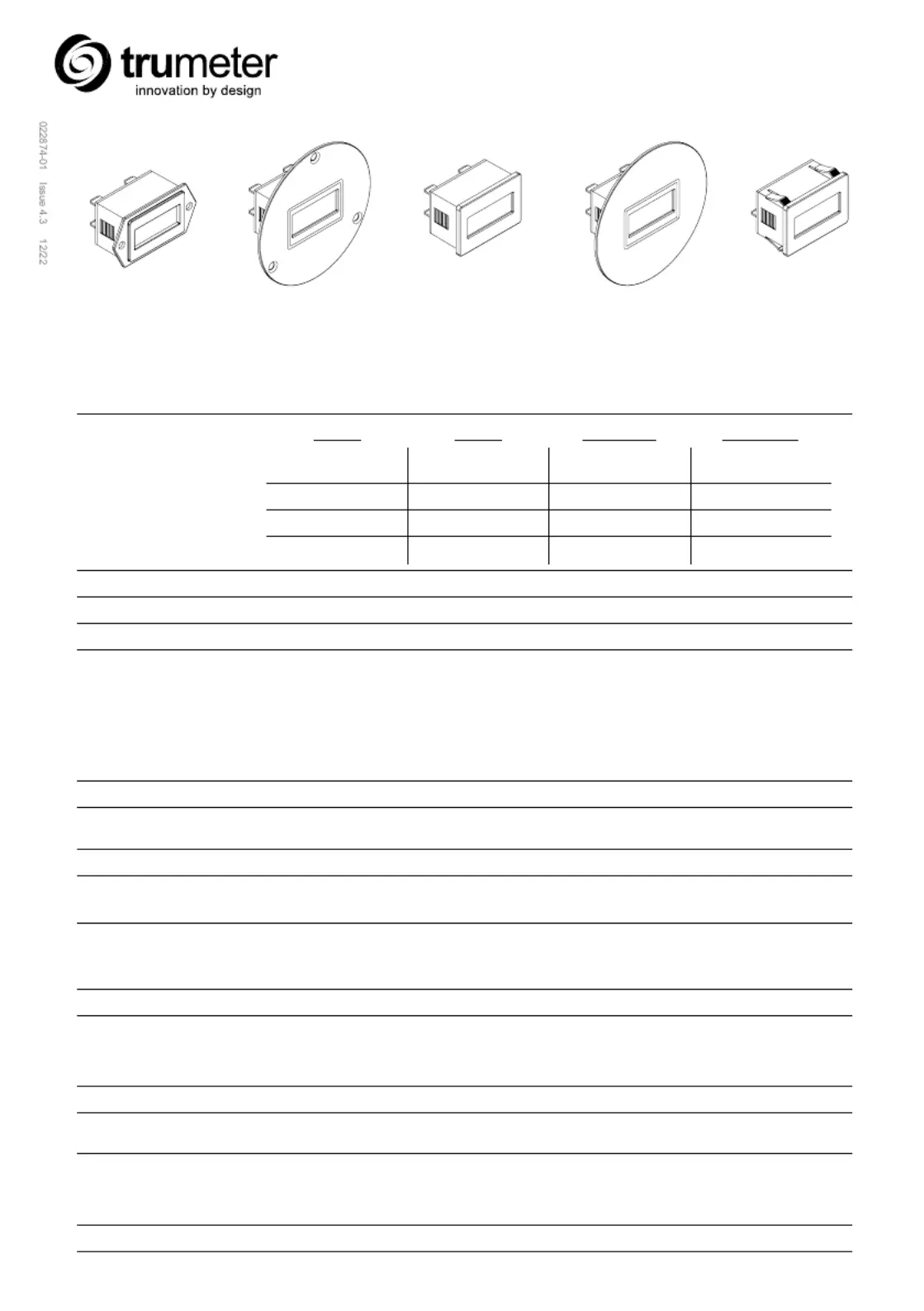

Model 34
Electronic totalizers and hour meters
Common Specication
Display LCD 0.28” [7mm] highgures black on light background
Input Options MODEL RANGE INPUT LOW INPUT HIGH
34x0 10-300VDC
20-300VAC
<3VDC
<3VAC
>10VDC
>20VAC
34x1 Dry Contact n/a n/a
34x3 4.5-30VDC <2VDC >=4.5VDC
34xx-GATE 4-30VDC <1VDC >=4VDC
Power Self-powered battery life 10+ years
Terminations Standard 0.250” [6.4mm] spades
Approvals UL & cUL recognized (le # ELIY2.E36690), CE, UKCA, SAE, NEMA 4/4X /IP66 compliant
Environmental Operating Temp.: -10˚C to +60˚C [14˚F to +140˚F]
Storage Temp.: -20˚C to +70˚C [-4˚F to +158˚F]
Humidity: 95% RH per SAE J1378
Shock: 44 to 55g’s per SAE J1378
Dielectric: 1000VAC 50/60 Hz for 1 minute (34x0 only)
Compliance: Compliant to the European WEEE and RoHS Directives
Protection Against: Alternator load dump 150V EMI (Electromagnetic Interface) +400V
@ 500Hz inductive switching and reverse polarity (34x0 only)
EMC Compliance EN61326
Enclosure NEMA 4/4X, 12 & IP66 compliant from the front when properly mounted using the optional
gasket. (Not applicable in the Snap-In Model)
Weight 1 oz. [28g]
Reset Options 34xx-xx0x - Non Reset
34xx-xx1x - Remote Reset / Dry Contact (switch)
34xx-GATE - Non Reset / Optional Remote Reset
3400 (Totalizer) Specication
Display 8 digits (99999999)
Max pulse rate 40 pulses per second (Hz)
3410 (Hour Meter) Specication
Display 9999999.9 (hours & 1/10’s)
Run Indicator Blinking decimal point
Accuracy ± 0.1% @ room temperature
± 0.2% over the specified temperature range
3400-GATE (Delayed Totalizer) Specication
Display 8 digits (99999999)
Input Time >5 seconds to register count
34xx-0xxx, 3400-GATE
Two Hole Mount
34xx-1xxx
Three Hole Mount
34xx-2xxx
Rectangular Flush Mount
34xx-3xxx
Round Flush Mount
34xx-5xxx
Rectangular Snap-in Mount
1.750
44.45
27.90
0.157
4
C
L
1.09
27.6
0.94
23.9
0.78
19.70
1.44
36.6
1.60
40.60
1.10
27.90
1.09
27.6
0.94
23.9
0.25
6.35
0.88
22.40
0.78
19.70
0.152
3.85
2.87
72.90
1.26
32.13
0.63
16.07
2.19
55.65
1.09
27.6
1.98
50.30
0.03
0.70
0.78
19.70
2.21
56.1
1.98
50.3
0.776
19.70
0.03
0.70
0.78
19.70
0.965
0.949
24.50
24.10
1.476
1.461
37.50
37.10
Trumeter (Europe)
Pilot Mill, Alfred Street, Bury, Lancashire
BL9 9JR, United Kingdom
Tel: +44 161 674 0960
Email: sales.uk@trumeter.com
Trumeter (Americas)
6601 Lyons Rd, SUITE H-7, Coconut Creek,
Florida, 33073, USA
Tel: +1 954 725 6699
Email: sales.usa@trumeter.com
www.trumeter.com
Asia Pacic Distributor
Innovative Design Technologies Sdn. Bhd, Lot 5881,
Lorong Iks Bukit Minyak 1
Taman Perindustrian Iks, 14000 Bukit Tengah
Penang, Malaysia
Web: www.idtworld.com
Tel: + 604 5015700
Email: info@idtworld.com
Panel Cut-out
Wiring Diagrams
Dimensions
(All dimensions are nominal)
Max panel thickness, snap-in housing: .125” [3.18]
Max panel thickness, without gasket: .375” [9.5]
Min panel thickness, with or without gasket: .04” [1.0]
Gaskets (Optional)
1 2
10-300VDC / 20-300VAC Input Note: Do not connect AC or DC voltages
to terminals 3 or 4. Reset wiring must be
specified for unit input voltage.
Inputs do not have a polarity and can be wired either way round.
1 2 1 2
3 4
1 2
Dry Contact Input
4.5-30VDC Input
Reset
34x3-xxxx 34x0-xxxx 34x1-xxxx 34xx-xx1x
WITH RESET (4 TERMINAL)
1 2
40-30VDC nput
34xx-GATE
Gasket 5003-009
Max panel thickness: .275” [7.9]
Gasket thickness: .118” [3.00]
Gasket 5003-010
Max panel thickness: .275” [7.9]
Gasket thickness: .118” [3.00]
Gasket 5003-017
Max panel thickness: .313” [6.5]
Gasket thickness: .062” [1.57]
CAUTION: RISK OF ELECTRIC SHOCK. INSTALLATION
MUST BE CARRIED OUT BY SUITABLY QUALIFIED AND
COMPETENT PERSONEL ONLY. HAZARDOUS VOLTAGES
MAY BE PRESENT ON THE CONNECTION. THIS PRODUCT
CONTAINS AN INTERNAL LITIUM BATTERY. DISPOSE OF IN
ACCORDANCE WITH LOCAL REQUIREMENTS
!
Mounting Clip
Clip included with ush mounting models.
Through hole mounting models supplied
with #4 machine screws, nuts and
washers.
TWO HOLE MOUNT
(34xx-0xx, 3400-GATE)
THREE HOLE MOUNT
(34xx-1xx)
RECTANGULAR
FLUSH (34xx-2xx)
AND SNAP-IN
(34xx-5xx)
ROUND FLUSH MOUNT
(34xx-3xx)
COMPLI ANT
