L E G E N D A R Y E Q U A L I Z A T I O N

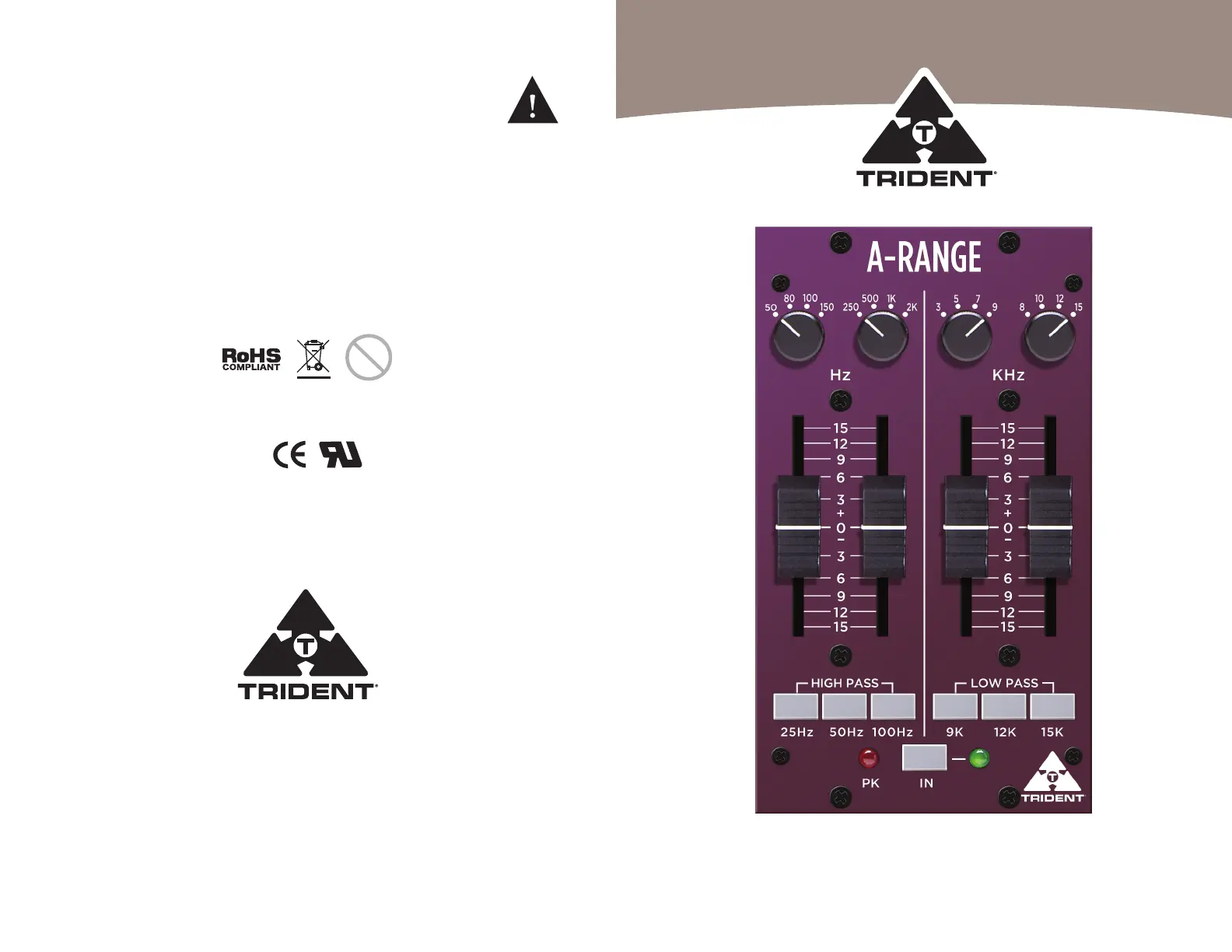

A-RangeÂź 500 User Manual
Safety - This product is intended for professional use only and it is assumed
that the user is familiar with the 500 Series Modular Rack system. Always
switch o the rack power before inserting or removing this (or any other)
module or damage may occur. Do not expose this product to direct heat,
moisture or mechanical shock.
Warranty - This product is warranted free from defects in material or workmanship,
for a period of one year from date of purchase. During this period, Trident Au-
dio Developments will repair or replace this product by prior arrangement free
of charge, providing the product is determined to be defective and has been re-
turned, freight prepaid, in its original or similarly protective packaging, to a Trident
Audio Developments Service Center. Trident Audio Developments is not obligated
to provide the Purchaser with a substitute unit while repairs are carried out.
Environmental - This product complies with the RoHS directive and contains no
lead or other banned hazardous materials. In accordance with the WEEE directive,
this product must be disposed of responsibly at its end of life, by means of local
authority approved recycling systems.
For further information, or to register your purchase,
visit: www.tridentaudiodevelopments.com
Trident Audio Developments
1845 W 169th Street, Gardena, CA 90247 | tridentaudiodevelopments.com
US Sales & Service
+1 (310) 323-9050 sales@tridentaudiodevelopments.com
UK Service Only
+44 (0) 1392 826 005 ukservice@tridentaudiodevelopments.com
A-RangeÂź is a Registered Trademark of Trident Audio Developments
Pb
Introduction
The legendary A-RangeÂź equaliser holds a unique place in audio history, with a
stunningly musical sound that resulted from its all-discrete transistor circuitry and
the use of inductors in the upper and lower mid bands. The A-RangeÂź s a faithful
re-creation of the original four band Trident A-RangeÂź equaliser in a 500 module
format, that will add the unique Trident signature to any programme material.
The mid frequency EQ sections are “peaking”, while the high and low frequency
sections are “shelving”. A distinguishing feature of both the original A-Range¼ console
and this module, is the use of faders for level adjustment, rather than rotary potentiometers.
These faders feature a useful centre detent at mid travel to denote zero boost or
cut of the selected frequency. The use of faders makes it very easy to see not only
how much equalisation is being applied. Each band is rotary-switch-selectable to
one of four frequencies, while individual push buttons engage the three high pass
and three low pass ïŹlters. An LED peak level indicator is included to warn when
levels get too high. The Line level input and output are balanced for maximum
signal integrity & high output levels with minimum distortion.
The dierence between shelving and peaking equalisers are as follows. A shelving
equaliser boosts or cuts all frequencies equally, above or below a certain frequency,
usually the point where it eectively reaches its “shelf” state. A “high shelf” EQ
boosts or cuts high frequencies and a “low shelf” type boosts or cuts low fre-
quencies. This type of circuit is very popular in hi-ïŹ systems but is also actually
highly musical when applied in a recording environment. In contrast, a peaking
equaliser is one that, as its name implies, has a centre frequency that is boosted
or attenuated more than others. The frequency range over which it reaches its
peak and then falls down is known as the bandwidth (or “Q”). Because this type
of design reaches a peak and then falls away, it is possible with this type of circuit
to “home in” on particular frequencies and make adjustments without aecting
those around them. This can be particularly useful when working with instruments
such as bass guitars and snare drums. By incorporating both shelving and peaking
equalisers into the design of the versatile A-RangeÂź, it is possible to get the best
of both types of design.
Operating the Equaliser
Begin with all boost/cut faders set to their mid way (‘0’) positions. Adjust the low
and high mid frequency controls to their minimum positions (fully anticlockwise).
The high and low pass ïŹlter switches should be in their out positions. Set the fre-
quency select switchescontrolling the high and low shelving sections, to 150Hz and
12kHz respectively. Lastly,press the ‘IN’ switch (the associated green LED will light).
Pushing up any of the four faders beneath its associated frequency select switch,
will result in the chosen frequency being boosted. Moving the faders below cen-
tre will result in the chosen frequency being cut. Operating the frequency select
switch in the high section (8kHz to 15kHz shelving) will introduce a subtle change
of emphasis. Operating the frequency select switch in the upper mid section (3kHz
to 9kHz peaking) will introduce a distinct dierence according to the frequency
selected, since it is now peaking rather than shelving and also due to the charac-
teristics of the inductor-based circuitry. Operating the frequency select switch in
the ‘lower mid’ section, 250Hz to 2kHz peaking, will also introduce a distinct dier-
ence according to the frequency selected, again because of its peaking nature and
the use of inductors in this part of the circuit.
Operating the frequency select switch in the low section, 80Hz to 150Hz shelving,
will introduce an eective change of emphasis to the low frequencies.
Finally, the three shelving ‘low-pass’ and ‘high-pass’ ïŹlter sections are employed to
introduce a roll-o of either high frequencies or low frequencies respectively, ac-
cording to which of the three push buttons are selected in each section. The high-
pass ïŹlters are useful for the minimization of extraneous low frequency ‘rumble’
caused, for example, by someone’s feet moving about near a microphone stand,
nearby trac noise, AC systems, etc. Additionally, a high-pass ïŹlter can be used
eectively during recording to reduce the accumulation of low frequency sounds
that can adversely aect a mix. The three high-pass corner frequencies are 25Hz,
50Hz and 100Hz. The low-pass ïŹlters are used to minimize high frequency noise
that may cause ‘harshness’ in a vocal, or to tame the output of a violin or guitar
ampliïŹer, etc. Low-pass ïŹltering is often employed on kick and snare drums and
bass guitars, as well as a means of reducing ‘hiss’. The three lowpass ïŹlter frequen-
cies on the A-RangeÂź are 9k, 12k and 15k. Filters can also be used in combination
for greater eect.
The amount of boost or cut required for any particular programme material is a
very subjective matter and is usually found by experiment. Use the ‘IN’ switch to
make comparisons between EQ’d and non-EQ’d signals. Keep an eye on the red
“PK” LED: occasional ïŹ‚ashes are OK but if it is on all the time, turn down the input level
to the A-RangeÂź module. using whatever modules precede it in the signal chain.
Extended Function
If you have a Radial Workhorseℱ or compatible rack, you can send the output of
the A-Range¼ to the rack’s internal mix buss. To do this, locate jumper J1 on the
main circuit board near the edge connector. Move the jumper onto the two pins
nearest R53.
Technical SpeciïŹcation*
Input impedance 10kohm balanced
Common mode rejection 70dB
Equivalent input noise -85dBu (unweighted,
no boost or cut)
Distortion 0.05% (+4dBu output, 1kHz)
Frequency response 20Hz to 20kHz (-1dB)
Boost / Cut range +/-15dB (variable)
Filter Q value 1.3 (1 octave)
Maximum input level +22dBu
Max output before clip +28dBu (10k load)
Nominal output level +4dBu (electronically balanced)
Output impedance 100 ohm
Output noise ïŹ‚oor -85dBu (typical, unweighted)
Peak LED threshold +16dBu
I/O connections XLR: pin 2 +, pin 3 -, pin 1 ground
Current requirement 130mA (maximum) per rail
*In the interests of product development, Trident Audio Developments
may change technical speciïŹcations without notice.
2Trident Audio Developments | A-RangeÂź 500 User Manual 3Trident Audio Developments | A-RangeÂź 500 User Manual
