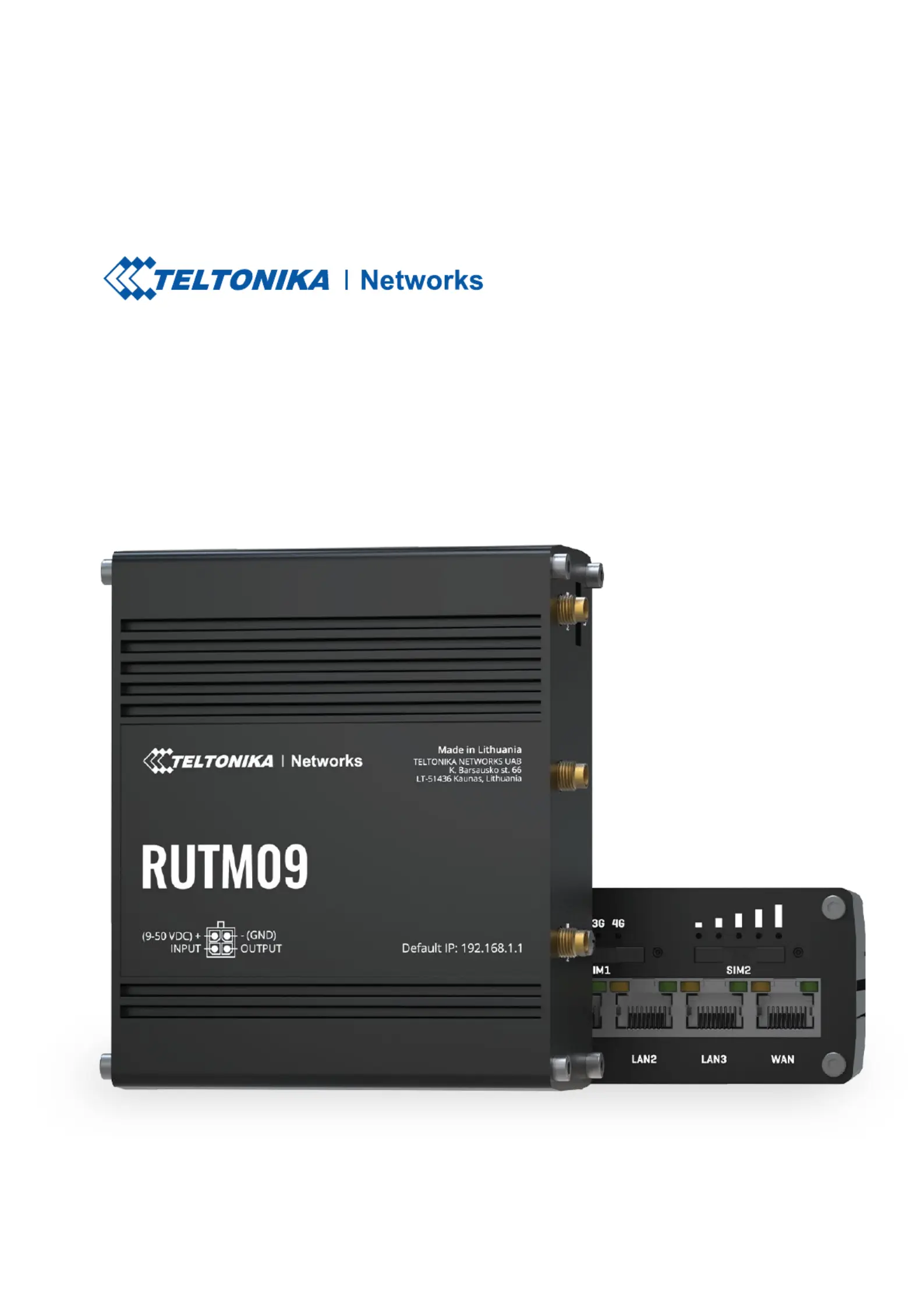

Seite 1/11
RUTM09
Copyright © 2024, UAB TELTONIKA NETWORKS. Specifications and information given in this document are subject to change by UAB TELTONIKA NETWORKS without prior notice.
DATASHEET // RUTM09
HARDWARE
POWER SOCKET PINOUT
FRONT VIEW
BACK VIEW
2
Copyright © 2024, UAB TELTONIKA NETWORKS. Specifications and information given in this document are subject to change by UAB TELTONIKA NETWORKS without prior notice.
SIM holders
Mobile signal strength
indication LEDs
WAN Ethernet
port
LAN Ethernet
ports
Reset
button
Mobile MAIN
antenna connector
(SMA female)
Grounding
screw
Power / Red wire
Input / Green wire
Ground / Black wire
Output / White wire
USB port
GNSS antenna
connector
(SMA female)
Mobile AUX
antenna connector
(SMA female)
Power
LED
Power socket
SIM needle
WAN type LEDs
Mobile network type
LEDs
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet,
SMPP, SNMP, MQTT, Wake On Lan (WOL)
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Port forward, traffic rules, custom rulesFirewall
VoIP passthrough support
Connection monitoring
Routing
Network protocols
View all your Firewall statistics, rules, and rule counters
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Visual representation of your network, showing which devices are connected to which other devices
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
QoS / Smart Queue
Management (SQM)
Network topology
DHCP
Firewall status page
Ports management
3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
WAN
LAN
ETHERNET
NETWORK
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking,
built-in random password generator
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN,
SYN-RST, X-mas, NULL flags, FIN scan attacks)
Port and tag-based VLAN separation
Mobile data limit, customizable period, start time, warning limit, phone numberMobile quota control
Attack prevention
VLAN
Authentication
Firewall
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites onlyWEB filter
SECURITY
Flexible access control of SSH, Web interface, CLI and TelnetAccess control
Supported >25 service providers, others can be configured manuallyDDNS
Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Balance Internet traffic over multiple WAN connections
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, internal/external
landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user manage-
ment, 9 default customisable themes and optionality to upload and download customised hotspot themes
Hotspot
Network backup
Load balancing
4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail,
SIM idle protection
IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal
strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS,
scheduled SMS, SMS autoreply, SMPP
Supports sending and reading Unstructured Supplementary Service Data messagesUSSD
Status
SMS
Mobile module
SIM switch
Operator black/white list (by country or separate operators)
Possibility to use different PDNs for multiple network access and services
Band lock, Used band status display
When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it,
meaning that no data is used on the card until then
Auto APNAPN
Band management
SIM idle protection service
Black/White list
Multiple PDN
MOBILE
Direct connection (bridge) between mobile ISP and device on LANBridge
Router assigns its mobile WAN IP address to another device on LANPassthrough
Possibility to mount remote file system via SSH protocolSSHFS
Initial virtual routing and forwarding (VRF) supportVRF support
FEATURES
3
Copyright © 2024, UAB TELTONIKA NETWORKS. Specifications and information given in this document are subject to change by UAB TELTONIKA NETWORKS without prior notice.
DATASHEET // RUTM09
