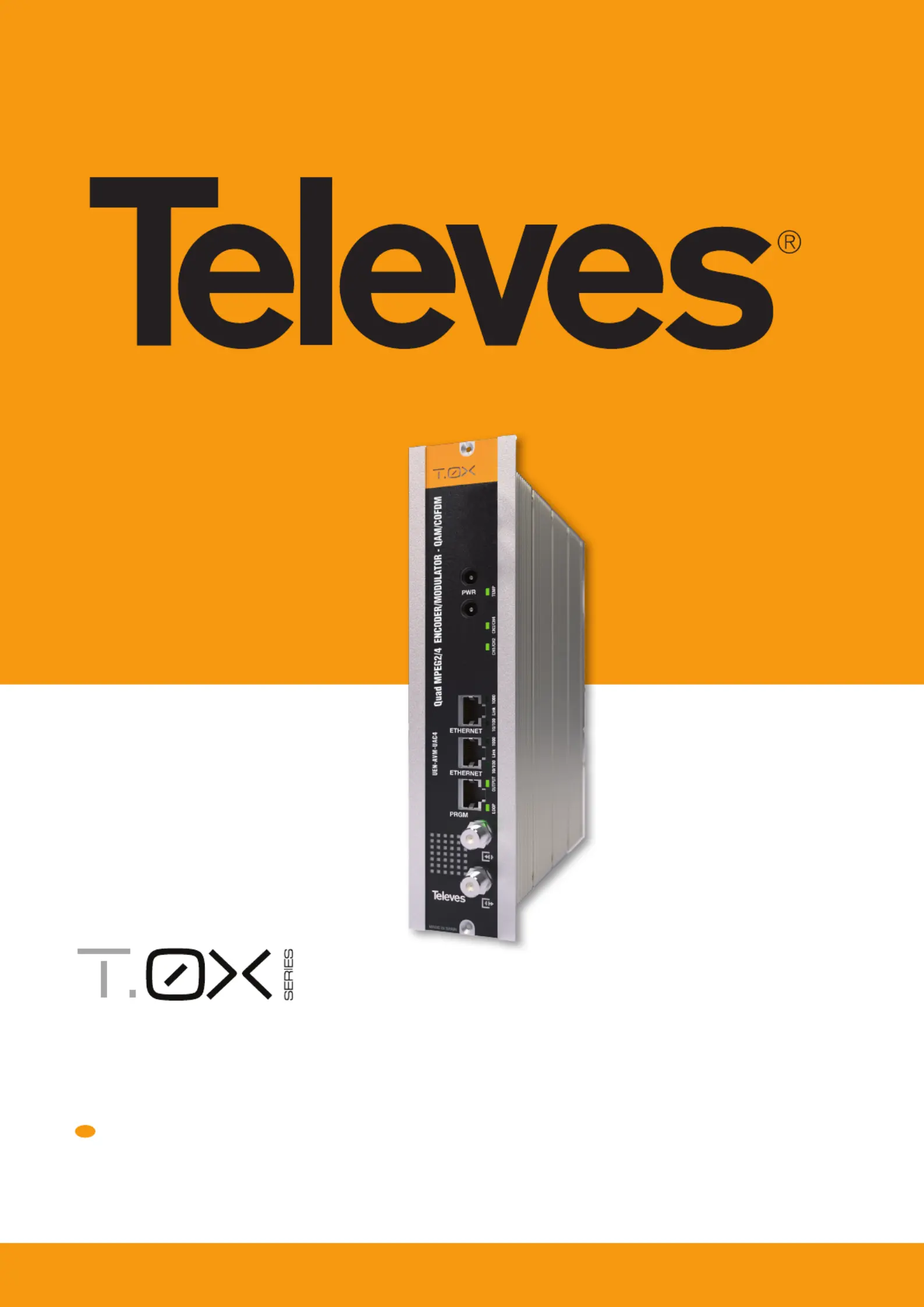

HDTV ENCODER/MODULATOR - Quad Composite to COFDM/QAM
EN
Ref. 563822
QUICK
INSTALLATION GUIDE
w w w . t e l e v e s . c o m
Important Safety Instructions
1. Read and Follow All Instructions - All the
safety and operating instructions should be
read prior to and followed while operating
this product.
2. Retain Instructions - The safety and
operating instructions should be retained
for future reference.
3. Heed Warnings - All warnings on the
product and in the operating instructions
should be adhered to.
4. Cleaning - Disconnect this product from
any electrical source before cleaning. Use
a damp cloth; do not use liquid or aerosol
cleaners.
5. Attachments - Do not use attachments
that are not recommended by the product
manufacturer as they may cause hazards.
6. Water and Moisture - Do not use this
product near any source of water.
7. Mounting Do not place this product on
an unstable cart, stand, tripod, bracket,
or table. The product may fall, causing
serious injury to persons or nearby objects,
and serious damage to this product. Use
only with a cart, stand, tripod, bracket, or
table recommended by the manufacturer,
or sold with the product. Any mounting
of the product should follow the
manufacturers instructions, and should use
a mounting accessory recommended by the
manufacturer.
8. Ventilation Slots and openings in
the chassis or cabinet are provided for
ventilation and to ensure reliable operation
of the product. These openings should
never be blocked or covered in any way. This
product should not be placed in any case,
cabinet, or rack unless proper ventilation
is provided and the manufacturers
instructions have been adhered to.
9. Power Sources - This product should be
operated only from the type of power
source indicated on the label.
10. Grounding or Polarization - Do not
bypass or defeat electrical plug polarization
or grounding. Doing so will violate the
warranty and may pose a risk of re or
electrocution.
11. Wire Protection Ensure all connected
wiring is routed correctly to avoid damage
including pinching, excessive bends, or
compression.
12. Electrical Supply, Grounding, and Surge
Protection – Ensure that all local or national
electrical codes are followed. Seek the
advice of a licensed electrician, professional
engineer, or other licensed expert.
13. Power Lines - Always use caution and avoid
operating this or any connected equipment
near uninsulated power line or any other
hazards.
14. Object and Liquid Entry - Never allow
objects or liquid of any kind into this
product through openings. Doing so could
result in re or electric shock.
15. Servicing - There are no user serviceable
parts. Do not attempt to service this product
or remove covers. Doing so may expose you
to dangerous voltage or other hazards. Refer
all servicing to qualied service personnel.
Examples of damage requiring service
include but are not limited to:
yDamage to power-supply wiring.
yIf liquid has been spilled, or objects have
fallen into the product.
yIf the product has been exposed to rain
or water.
yIf the product does not operate normally
by following the operating instructions.
Adjust only those controls that are
covered by the operating instructions as
an improper adjustment of other controls
may result in damage and will often
require extensive work by a qualied
technician to restore the product to its
normal operation.
yIf the product has been dropped or
physically damaged.
yWhen the product exhibits a distinct
change in performance.
16. Replacement Parts - Ensure that repairs are
performed by qualied technicians and that
only manufacturer supplied or authorized
parts are used.
17. Safety Check - Upon completion of any
service or repairs to this product, ensure
safety checks to determine that the
product is functioning per manufacturer
specications are performed.
18. Heat - The product should be situated
away from heat sources such as radiators,
heat registers, stoves, or other products
(including ampliers) that produce heat.
Ensure that ambient temperature is
maintained in the manufacturer specied
operating range.
Safety instructions
Caution statements
Product inspection - Inspect the equipment
for shipping damage. Should any damage be
discovered, immediately le a claim with the
carrier.
Important Safety Instructions - To ensure
proper installation and operation, take a
moment to read this guide before proceeding
with the installation. If you have any questions
or comments about the T.0X Series - Encoders,
please contact your dealer.
WARNING:
TO PREVENT FIRE OR ELECTRICAL SHOCK
DO NOT EXPOSE TO RAIN OR MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
PERSONNEL.
A product and cart combination should
be moved with care. Quick stops,
excessive force and uneven surfaces
may cause the product and cart
combination to overturn.
The lightning ash with arrow head
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s enclosure
that may be of sucient magnitude
to constitute a risk of electric shock to
persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the product.
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
DO NOT OPEN THE CABINET,
REFER SERVICING TO QUALIFIED
PERSONAL ONLY.
CAUTION:
TO PREVENT ELECTRIC SHOCK, DO NOT
USE THIS (POLARIZED) PLUG WITH AN
EXTENSION CORD RECEPTACLE OR OTHER
OUTLET UNLESS THE BLADES CAN BE
FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
DECLARACIÓN DE CONFORMIDAD DECLARATION OF CONFORMITY DECLARAÇÃO DE CONFORMIDADE DECLARATION DE CONFORMITE DICHIARAZIONE DI CONFORMITÀ DEKLARACJA
ZGODNOŚCI KONFORMITÄTSERKLÄRUNG ΠΙΣΤΟΠΟΙΗΤΙΚΟ ΣΥΜΜΟΡΦΩΣΗΣ FÖRSÄKRAN OM ÖVERENSSTÄMMELSE ДЕКЛАРАЦИЯ СООТВЕТСТВИЯ www.televes.com
Description of connectors
Front view Rear view
1.- Power connectors
2.- Ethernet connector
3.- Ethernet connector
4.- Programmer connector
5.- RF loop through input
6.- RF output
1.- CVBS input. Channel 1
2.- Analog (L/R) audio input. Channel 1
3.- CVBS input. Channel 2
4.- Analog (L/R) audio input. Channel 2
5.- CVBS input. Channel 3
6.- Analog (L/R) audio input. Channel 3
7.- CVBS input. Channel 4
8.- Analog (L/R) audio input. Channel 4
LED indicators
Front
LED alarms
TEMP
Color Internal temp Comment
Solid green Normal Safe
Slow blink orange High Warning
Fast blink red Very High Danger
CH1/CH2 – CH3/CH4
Color Channel status Comment
O Disabled Channels disabled.
Solid green Lock Inputs locked and unit encoding audio/video.
Solid red Unlock Inputs unlocked and unit not encoding audio/video.
Blinking red Boot Unit starting up.
Solid yellow Partial lock Only one of the two inputs is locked and encoding audio/video.
OUTPUT
Color Output mode Comment
Solid green Normal Output RF channel is ON, broadcasting audio/video (normal mode).
Slow blinking green Carrier wave, null or muted Output RF channel is OFF or in an alternate signal mode.
Solid orange/red Normal Cong bitrate doesn´t t in output
LOOP
Color Output loop status Comment
Solid green ON Output loop-through enabled. Units may be daisy-chained using the internal combiner.
O OFF Output loop-through disabled. Units must be combined using an external combiner.
