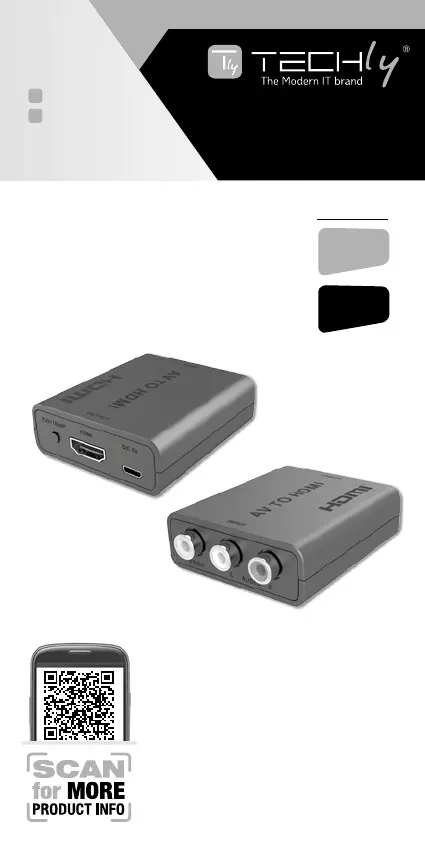

Seite 1/12
P/N: IDATA SPDIF-7
8051128108491
EN User's Manual
IT Manuale d’istruzione AV TO HDMI
CONVERTER
Technical features
MINI
SIZE
OUTPUT
1080p/720p
AV to HDMI conVerter
Dear Customer
Thank you for purchasing this product. For optimum performance
and safety, please read these instructions carefully before connecting,
operating or adjusting this product. Please keep this manual for future
reference.
IMPort Ant SAFetY InStrUctIon
IntenDeD USe
We do not permit using the device in other ways like
described in this user’s manual.
Use the product only in dry interior rooms. Not
attending to these regulations and safety instruction
might cause fatal accidents, injuries, and damages to persons
and property. The manufacturer/supplier assumes no liability for
damages caused by failure to comply with the intended use.
To reduce risk of electric
shock, this product should
ONLY be opened by an
authorized technician when
service is required. Disconnect the product from mains and other
equipment if a problem should occur. Do not expose the product
to water or moisture.
C A U T I O N
RISK OF ELECT RIC SHOCK
DO NOT OPEN
• Yourproductisnotatoyandisnotmeantforchildren,becauseit
contains small parts which can be swallowed and can injure when
used inappropriately!
•Pleaseinstall thesystem anddevicesattached toitinawaythat
persons cannot be injured, or objects not be damaged for example
by dropping or stumbling.
• Please remove the packing materials, because children may cut
themselves on them while playing. Furthermore, there is a risk of
swallowing and inhalation of incidentals and insulating material.
•Avoidplaceswithhightemperatures,orhumidity,orplaceswhich
might come into contact with water. Do not install the product close
to openings of air conditioners, or at places with an excessive
amount of dust or smoke.
•Donotinstalltheproductatplacessubjecttovibration,oroscillation
•Donotmodifyandaltertheproductandany accessories!Donot
use any damaged parts.
•Keepenoughspacearoundalldevicesforagoodventilationand
free motion and to avoid damages.
•Donot unplugthedevice whenit isinusing, keepdistance from
flammable and explosive devices.
•Powersupply:DC5V,usageonlythesuppliedpowerunit,donot
use the power supply if it is damaged.
2
WWW.TECHLY.COM
AV TO HDMI
CONVERTER
ABOUT THIS PRODUCT
ThisAVtoHDMIconverterisdesignedtoconvertaudioandvideo
signalsfromvideosourcedevicessuchasDVD,UHSTapeDeckandSet
Top Box into HDMI signals that you can view on a HDTV. Making video
comealive,deliveringthesharpest,mostrealisticHDvisualsavailable.
FEATURES
• AVsignalsconverttoHDMIsignals
• SupportsNTSCandPALstandardTVformatsinput
• SupportsHDMI1080por720poutput
• Minisize,portableandflexible
• Plugandplay,easyinstallation
PACKAGE CONTENTS
• AVtoHDMIconverter
•User’smanual
•PowersupplyDC5V/0.5A
PANEL DESCRIPTION
INSTALLATION REQUIREMENTS
Source devices
•SourcedevicewithRCAjacks,suchasVCD/DVDplayer,STBetc.
Display devices
•DisplaydevicewithHDMIinput,suchasSDTV,HDTV,projectoretc.
①② ③ ④
3
WWW.TECHLY.COM
AV TO HDMI
CONVERTER
1VIDEOL/R
The yellow jack input the video signal, the red
and the white jack input the audio signal - right
and left channel
2720/1080P Switchtheresolutionto720por1080p
3HDMI OutputHDMIsignal
4DC5V InputDC5Vpower
