User Manual
[Revision 3.0 February 2022 ]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND
MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in
appearance, assembly, inclusions, specifications, description, and packaging.

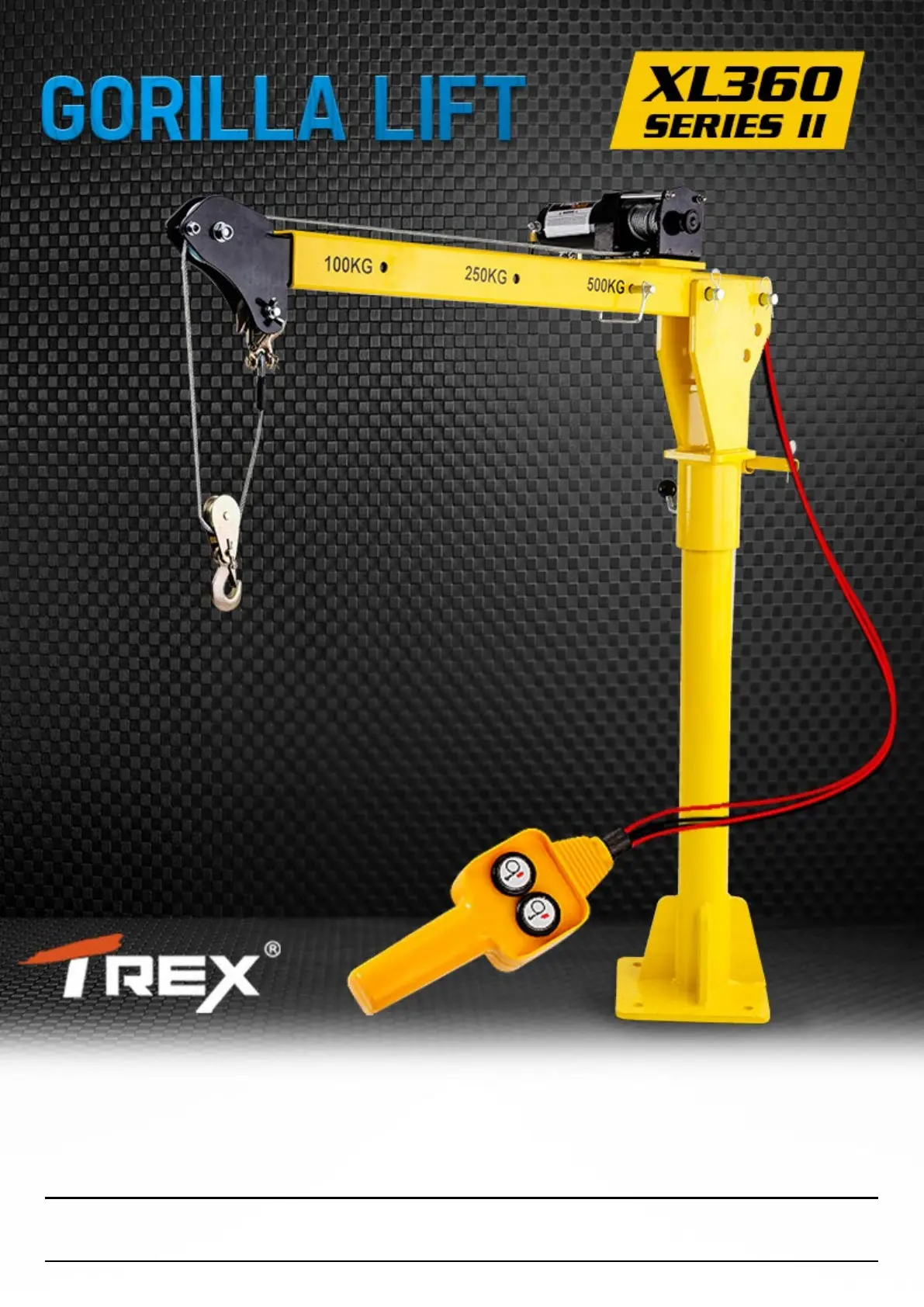

Gorilla Lift XL360 Series II
2
Safety
If used correctly, the XL360 machine is a powerful, high performance . If used improperly
or without due precaution, it may represent a hazard. For safe operation, always comply
strictly with the safety rules that follow, as well as those found throughout this manual.
•
•
•
•• Study, understand, and follow all instructions before installing or operating this equipment.
•
•
•
•• Attach the machine to a stable surface able to withstand the stresses that can be generated,
according to manual instructions only. Verify that installation surface has no hidden components or
brake lines before drilling or driving screws.
•
•
•
•• For vehicle mounted cranes, engage the parking brake and/or use wheel chocks before use. Do not
move vehicle with load attached to crane.
•
•
•
•• Never exceed the equipment maximum load capacity of 800kg.
•
•
•
•• Do not allow load to swing or drop violently while lowering or moving.
•
•
•
•• Keep clear from underneath suspended load. Do not lift people or lift load over people.
•
•
•
•• Capacity decreases as boom lengthens. Follow capacities marked on the boom.
•
•
•
•• Wear safety goggles, work gloves and work boots during installation and use.
•
•
•
•• Do not use for aviation purposes.
•
•
•
•• Inspect the machine before every use Do not use damaged equipment. If abnorm. al noise or
vibration occurs, have the problem corrected before further use.
•
•
•
•• For vehicle mounted cranes, before driving, retract winch cable completely, lower and secure the
boom using the large locking pin to prevent it from swivelling.
•
•
•
•• Stay alert. Watch what you are doing, and use common sense when operating the crane.
•
•
•
•• Do not use the crane while tired or under the influence of drugs, alcohol, or medication.
•
•
•
•• Keep bystanders clear while operating the crane and minimize distractions.
•
•
•
•• Have the crane serviced by a qualified repair person using only identical replacement parts. This
will ensure that the safety of the crane is maintained.
•
•
•
•• Maintain labels and nameplates. These carry important information.
•
•
•
•• The warnings, precautions, and instructions described in this manual cannot cover all possible
conditions and situations that may occur. The operator must understand that common sense and
caution are factors which cannot be built into this product, but must be applied by the operator.
•
•
•
•• Extend or retract the winch cable while unloaded only.
•
•
•
•• Keep clear of the boom and winch mechanism when operating.
•
•
•
•• Keep at least 4 full turns of cable on the winch reel.
•
•
•
•• Attach loads securely with chains, shackles, hooks, lifting slings etc with a rated capacity greater
than the load being lifted.
Gorilla Lift XL360 Series II
3
•
•
•
•• Properly seat sling, chain, shackle etc in hook and fully close the hook safety clasp. Do not allow
the hook hitch to support any part of the load. Do not apply loads over the point of the hook.
•
•
•
•• Do not operate the crane with twisted, kinked or damaged winch cable. Inspect the winch cable
carefully before every use.
