Congratulations on your purchase of this product. Please read this user manual carefully.
Features
New generation chip-array LED technology, outputs bright but soft & glareless light;
60 wide beam angle, equally spread light, no visible lighting edge and single shadow;
13W lower power consumption, 800Lux @ 1meter, equivalent to 70W halogen bulb, 10%-100% dimmer
5000K output, 5600K/3200K filter;
6V-17V wide voltage input , support D-tap power, standard DV battery and special slim battery;
High intensity and toughness glass fiber housing, cool-touch, and both screw and cold shoe install.

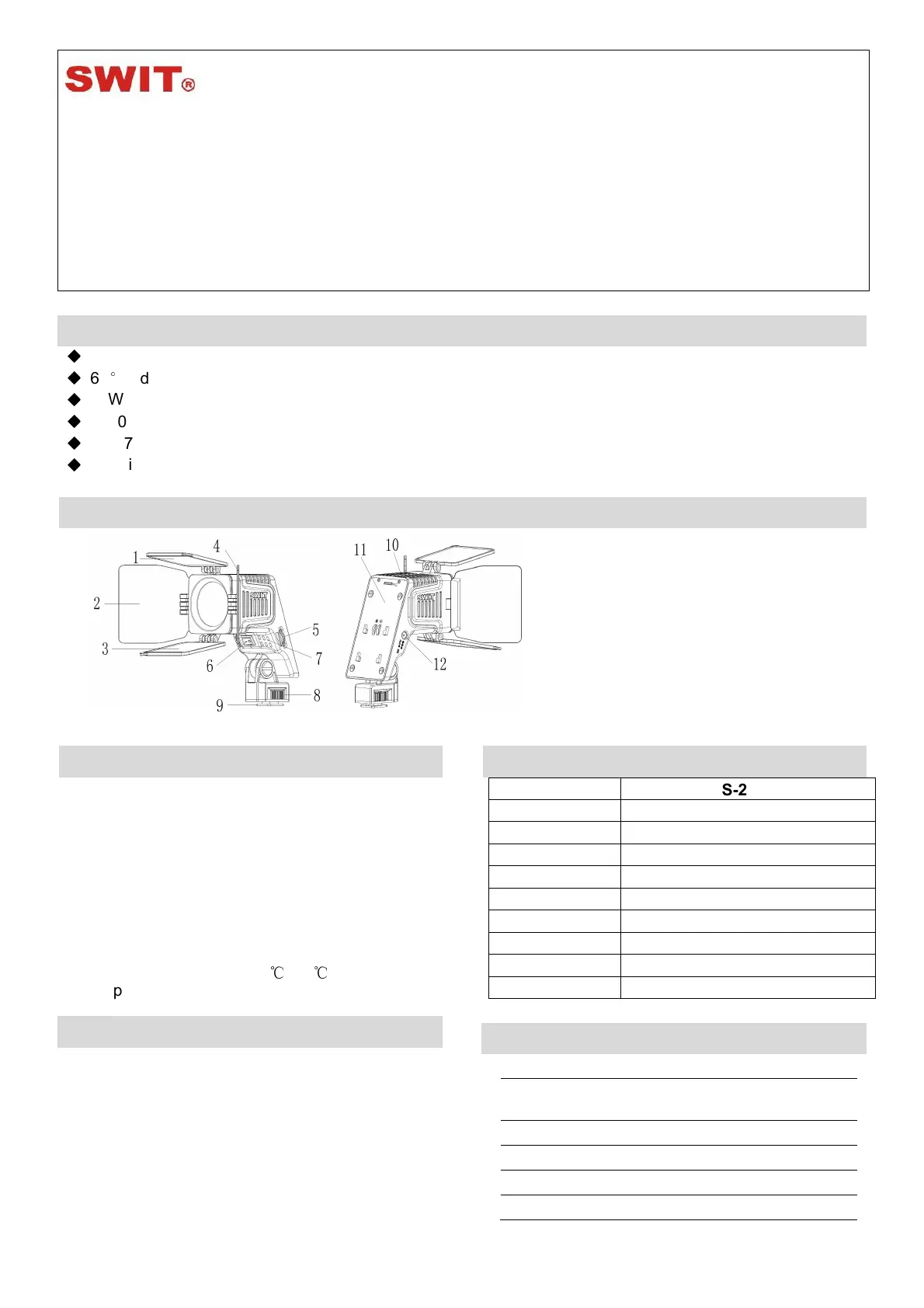

Product view
Fig1 Fig2
Caution
1. Never attempt to open the device. Refer all
servicing to qualified personnel.
2. Never insert anything into the cooling vent to
avoid damage or short circuit.
3. Keep the light away from rain or moisture.
4. Please do not stare at the turned on LED light.
5. Keep the filters clean.
6. When powering through DC-IN socket by D-tap
cable, please make sure the power supply's
voltage and power meet the light input
requirements.
7. Working temperature: -10 ~40
8. Keep the cooling vent clear to avoid damage.
Clean
Use a soft, dry cloth to clean the LED light. If you
clean the light with soft cloth slightly moistened with
neutral detergent, please dry the surface of the
light with a soft, dry cloth. Do not use a damp cloth
or alcohol, gasoline and other solvents of any kind.
Specification
Model
S
-
20
70
Input DC 6V-17V
Power Approx. 13W
Beam angle Approx. 60°
Illuminance 800 lux @ 1 meter
Color temperature
5000K itself, with 5600K&3200K filter
Working temp. -10°C~+40°C
Storage temp. -20°C ~+55°C
Dimension 108Ă—80Ă—133mm
Mass Approx. 274g
Package
S-2070 light x1
S-7004 snap-on DV battery plate
(Optional types for different batteries) x1
DC cable (D-tap or Pole-tap optional) x1
User manual x1
Warranty card x1
Portable bag x1
Chip-Array LED Camera Light S-2070
USER MANUAL
SWIT Electronics Co., Ltd.
Tel:+86-25-85805753
Fax:+86-25-85805296
http://www.swit.cc
E
-
mail: contact@swit.cc
1 5600K filter
7 Cooling vent
2 Barn door 8 Fasten knob
3 3200K filter 9 Cold shoe
4 Barn door 10 Cooling vent
5 Dimmer knob 11 DV plate install
6 Switch on/off 12 DC-IN socket
Ver:V1.0.0V01
2
Usage
Power the light
S-2070 is 6-17V voltage input and offers various power supply methods.
By special slim battery S-8040 (Optional purchase)
Make sure there’s no power lead connected into DC-IN socket and the
light is switched off (turn the switch to “ ”).
Align a fully charged S-8040 battery to the DV mount slot to same side,
and press tightly in. Slide the battery downward to snap together. See
Fig 3
By various standard DV camera batteries
Align the S-7004 series battery plate to the DV mount slot to same side,
and press tightly in. Then slide the S-7004 downward to snap together.
See Fig 4
Fix the DV mount with two screws.
Make sure the light is switched off (turn the switch to “ ”). Mount a
fully charged battery to the S-7004 mount. Fig 4
Remark: Select a compatible S-7004 battery plate to match your DV battery:
Model Compatible battery Recommended SWIT
S
-
7004F
SONY NP
-
F770/970
S
-
8972, S
-
8970, S
-
8770
S
-
7004
D
Panasonic
D54
/VW
-
VBD58
S
-
8D62, S
-
8
D58
S
-
7004J
JVC BN
-
V428U
S
-
8428
S
-
7004C
Canon BP
-
930/945
S
-
8945, S
-
8845
S
-
7004U
SONY BP
-
U60/30
S
-
8U62
S
-
7004E
Canon DSLR LP
-
E6
S
-
8PE6
S
-
7004B
Panasonic VW
-
VBG6
S
-
8BG6
S
-
7004V
JVC BN
-
VF823
S
-
8823
S
-
7004I
JVC SSL
-
JVC50
S
-
8I50
By DC cable
Make sure the light is switched off (turn the switch to “ ”). Plug the pole
end of package supplied DC cable into the DC-IN socket.
Plug the other end* of DC cable to camera auxiliary power tap or the
battery DC output socket.
*Remark: S-2070 supplied 2 kinds of DC cables, optional for different power
sources:
For third-party DC cables, please make sure the DC connector is
5.5/2.1mm pole and input voltage should be 6-17V; and inner: positive,
Outer: negative. See Fig 5.
Fix the LED light to the camera
â—Ź By Cold shoe
Anticlockwise revolve the fasten knob, till the screw bolt is back into the cold shoe slice.
Align the cold shoe slice with the cold shoe mount on the camera handle.
Clockwise revolve the fasten knob to install the light onto the camera.
● By 1/4” screw mount
Clockwise revolve the fasten knob, till the screw bolt is out of the cold shoe slice.
Align the screw bolt with the 1/4” screw thread on the camera handle.
Continuously clockwise revolve the fasten knob to install the light onto the camera.
Adjust the angle of the light:
Hold the light, and adjust the light upward or downward. See Fig 7.
4. Open barn doors and filters:
Open the barn doors and filters to about 45°. See Fig 1
5. Switch on: Turn the switch to “ I ”.
6. Adjust the illuminance:
Adjust the illuminance from 10% to 100% by the dimmer.
7. Adjust color temperature:
Output 5600K light by using 5600K filter(See Fig1 - );
Output 3200K light by using 3200K filter(See Fig1 – )
Cable Model
Connector description
Length
S-7104 Battery D-tap output→Pole-tap input to S-2070 0.6m
S-7108 Battery Pole-tap output→Pole-tap input to S-2070
1m
