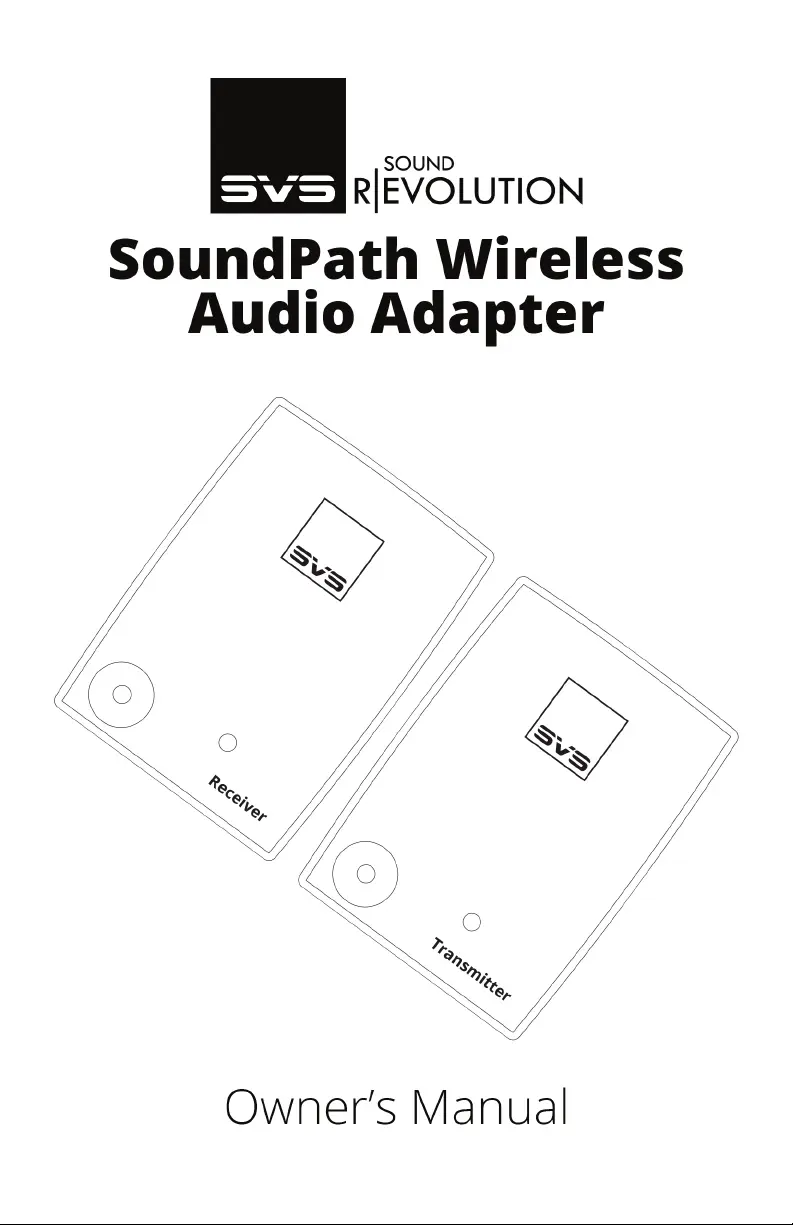

SVS SoundPath Wireless Audio
Adapter Owner’s Manual
SVS SoundPath Wireless Audio Adapter
Thank you for choosing SVS! The SoundPath Wireless Audio Adapter reduces subwoofer
cable clutter without sacricing performance and unlocks wireless connectivity for powered
speakers, ampliers and more. Transmit a pristine, full-range audio signal up to 65-feet at
CD-quality and start enjoying the benets of wireless audio now.
Installation requires only a few simple steps. If you have questions about subwoofer or
speaker placement, system optimization or installing the SVS SoundPath Wireless Audio
Adapter, please contact the SVS Sound Experts tech support 7-days-a-week.
custservice@svsound.com | 877.626.5623 | www.svsound.com
Specications & Features
Adapter Includes
»1 x Wireless Audio Adaptor Kit Transmitter
»1 x Wireless Audio Adaptor Kit Receiver
»2 x 3.5 mm to single RCA Interconnect cable (22”)
»2 x 3.5 mm to dual RCA Interconnect cable (22)
»2 x USB A to Micro B Power Cables (32)
»2 x 5 VDC Power Supplies with USB A Connectors
What You Will Need
»Subwoofer, powered speakers, or amplier
»AV receiver, surround processor, or 2-channel pre-amp with a subwoofer pre-out, or
L/R line level pre-out
Specications Receiver Transmitter
Operating Voltage 5 VDC, 1A 5 VDC, 1A
RF Frequency Band 2.404 - 2.476 GHz 2.404 - 2.476 GHz
Modulation GFSK GFSK
Working Distance up to 65 feet; line of sight up to 65 feet; line of sight
Transmitter Power ≤ 10 dBm ≤ 10 dBm
Receiver Sensitivity - 85 dBmN/A
Frequency Response 5Hz – 24 kHz +/- 1.5 dB 5Hz – 24 kHz +/- 1.5 dB
Delay Time < 14 milliseconds < 14 milliseconds
THD+N (dB) - 70 dB @ 1 kHz - 70 dB @ 1 kHz
SNR (db) + 85 dB @ 1 kHz + 85 dB @ 1 kHz
General Placement and Set-up Tips
»Place the subwoofer, powered speakers or amplier at its intended location.
»Try to maintain line-of-sight (no walls or solid barriers) between the transmitter and
receiver for best results.
»Receiver should be within 65 feet of transmitter for best results.
»Avoid placing the transmitter next to devices that could create signal interference,
such as mobile phones, baby monitors, 2.4 GHz wireless phones and 2.4 GHz Wi-Fi
routers.
Connecting the Wireless Transmitter to an AV processor
1. Connect the 3.5 mm to single RCA adapter cable to the subwoofer pre-out or LFE
channel of the AV processor and to the input on the wireless transmitter.
2. Connect the USB A to Micro B cable to the wireless transmitter and the 5 VDC power
supply.
3. Connect the 5 VDC power supply to a 120V AC outlet.
Connecting the Wireless Transmitter to a 2-channel stereo
pre-amp
1. Connect the 3.5 mm to dual RCA adapter cable to the L/R line level pre-outs of the
2-channel stereo pre-amp and to the input on the wireless transmitter.
2. Connect the USB A to Micro B cable to the wireless transmitter and the 5 VDC power
supply.
3. Connect the 5 VDC power supply to a 120V AC outlet.
