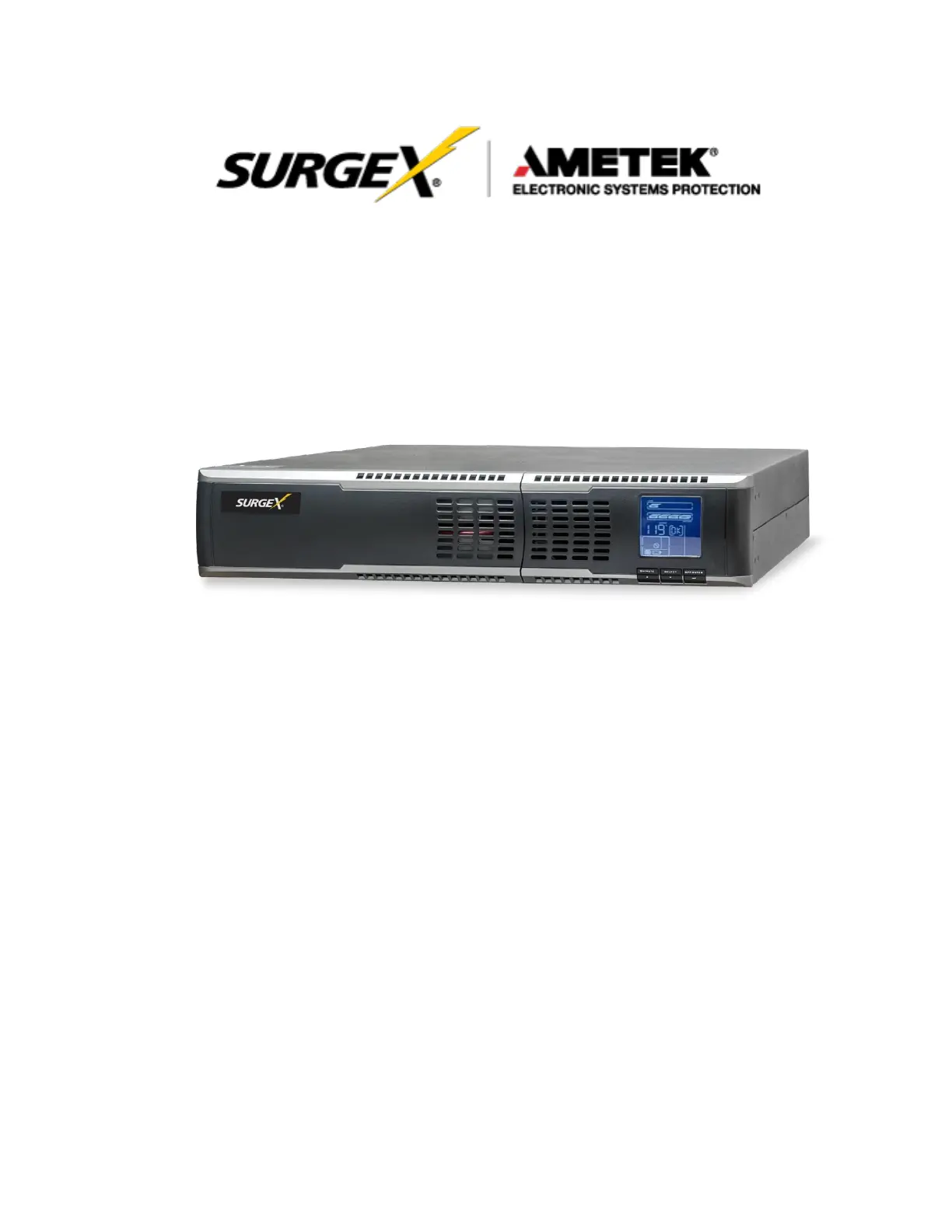

Online Battery Backup
User Manual
© 2017 AMETEK Electronic Systems Protection / Technical Support: 1- - -9721 / espsurgex.com / UM-UPS-Standalone-Rev-C 800 645
UPS-1000-OL -
1000 VA UPS
UPS-2000- -OL
2000 VA UPS
UPS-3000-OL -
3000 VA UPS
Table of Contents
1. Introduction 1
1.1 Technical Support 1
1.2 FCC Compliance 1
1.3 Safety Compliance 1
1.4 About This Manual 1
1.5 Safety 2
1.5.1 Safety Intended Use
2
1.5.2 General Warnings 2
1.5.3 Safety Notices
2
1.5.4 Battery Safety
4
1.5.5 Repacking of Unit
4
2. Overview 5
2.1 UPS Devices and Batteries 5
2.2 Packing List 5
2.3 Storage 5
2.4 Recharging the UPS During Storage 6
2.5 Environmental Conditions 6
2.6 Floor Loading 6
2.7 Ventilation 6
2.8 Rear Panel View 7
2.8.1 Model UPS-1000- 7 : OL
2.8.2 Model: UPS-2000- 7 OL
2.8.3 Model: UPS-3000-OL 7
2.9 LCD Display ................................................................................................................................................. 8
2.9.1 Rack Display 8 ..............................................................................................................................................
2.9.2 Tower Display 8
2.10 LCD: Display and Functional Description . 9 ................................................................................................
3. Installation 10
3.1 Tower Installation 10
3.2 Rack Installation 11
3.2.1 Assembly Steps 11
3.3 Electrical Preparations 13
3.3.1 Battery Connections 13
4. Setting Up UPS Parameters 15
4.1 Factory Default Settings 15
4.2 Changing Default Settings 15
4.2.1 Output Voltage Setting (item 01) 16
4.2.2 Frequency Converter Enable/Disable (item 16 02)
4.2.3 Output Frequency Setting (item 03) 17
4.2.4 Bypass Mode Enable/Disable when the UPS is o (item 06) 17
4.2.5 Programmable Outlets Enable/Disable (item 07) 17
4.2.6 Programmable Outlets Setting (item 08) 18
4.2.7 LCD Display Direction Setting (item 09) 18
4.2.8 Acceptable Input Voltage Range Setting (item 10) 18
4.2.9 Number of External Battery Packs (item 11) 18
5. UPS Operation 19
5.1 UPS input connection 19
5.1.1 LCD Display in Bypass Mode 19
5.1.2 LCD Display in Standby Mode
19
5.2 Turn on the UPS (Put the UPS in OnLine Mode)
20
5.2.1 LCD Display in OnLine Mode
20
5.3 Connect Devices to the UPS
20
5.4 The UPS in Battery Mode 21
5.4.1 LCD Display in Battery Mode
21
5.5 Turn o the UPS 21
6. Interfaces 22
6.1 Serial Interface COM 3 22
6.2 Interface Slot COM 22
7. Emergency Power O (EPO) 23
8. Maintenance 23
8.1 Cleaning 23
8.2 UPS Storage 23
8.3 Battery Testing 23
8.4 Replacing Batteries 24
9. Troubleshooting 27
9.1 Troubleshooting Table 27
9.2 Audible Alarm 29
9.3 LCD Display Abbreviation Index 29
9.4 Warning Indicators 30
9.5 UPS Fault 31
9.5.1 LCD Display in Fault Mode 31
9.5.2 Fault Reference Code 31
10. Appendix Specications 32 A:
10.1 SURGEX UPS (100 - 120 Volt UPS) Specications 32
10.2 Extension battery packs for use with SurgeX UPS’s 38
