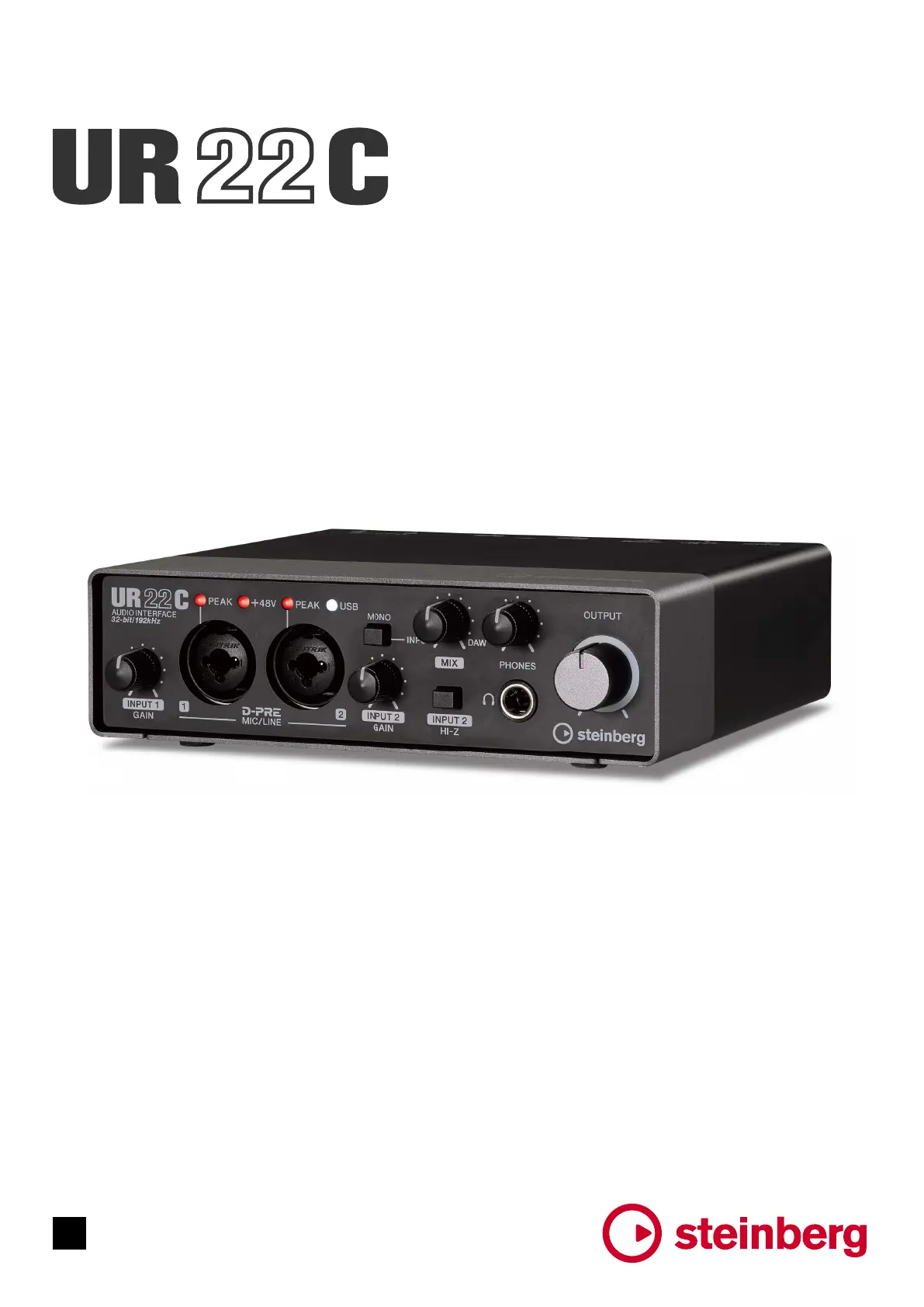

Operation Manual
EN
USB AUDIO INTERFACE
Main Features
UR22C Operation Manual 2
Contents
Main Features ...........................................2
Panel Controls and Terminals ................3
Front Panel ..........................................................3
Rear Panel ...........................................................5
Software ....................................................6
Yamaha Steinberg USB Driver ............................6
dspMixFx UR-C....................................................8
Dedicated Windows for Cubase Series .............13
Sweet Spot Morphing Channel Strip..................16
REV-X ................................................................18
Guitar Amp Classics ..........................................20
Using with a Computer ..........................23
Connection Example..........................................23
Configuring Audio Driver Settings on the DAW
Software .............................................................24
Recording/Playback ...........................................25
Using with an iOS Device ......................27
Connection Example..........................................27
Recording/Playback ...........................................28
Troubleshooting.....................................30
Appendix............. ........33............................
Limitations on the use of effects ........................33
Computer connector types.................................33
Signal Flows.......................................................34
Block Diagrams ..................................................35
Technical Specifications ....................................37
General Specifications .......................................38
Uninstalling TOOLS for UR-C ............................39
Main Features
2 x 2 USB 3.0 Audio Interface with 2 x
D-PRE and 32-bit/192 kHz support
The UR22C is a 2-in and 2-out USB 3.0 audio
interface, featuring two world-renowned D-PRE
microphone preamps and supporting 192 kHz and
32-bit audio quality to capture all the subtleties and
expressiveness of any audio source.
True 32-bit resolution
The UR22C and the Yamaha Steinberg USB Driver
support the 32-bit Integer format, which can
represent audio data in higher resolution compared
to Float format. Together with a DAW (such as
Cubase) which can fully utilize the 32-bit Integer
data, they enable unprecedented audio resolution in
your music production.
USB 3.0 & USB Type-C
The UR22C is equipped with a USB Type-C port and
features USB 3.0 (USB 3.1 Gen 1) SuperSpeed
mode. It also provides full compatibility with the
USB 2.0 High-Speed mode and includes a Type-C
to Type-A cable.
dspMixFx
The dspMixFx technology is powered by the latest
SSP3 DSP chip and offers latency-free monitoring
with highly acclaimed DSP effects, including REV-X
reverb, for users of any DAW software.
Panel Controls and Terminals
UR22C Operation Manual 3
Panel Controls and Terminals
Front Panel
1[MIC/LINE 1] jack
For connection to a microphone or digital instrument. This
jack can be connected to both XLR-type and phone-type
(balanced/unbalanced) plugs.
NOTE
The phantom power will be supplied to the XLR jack connected
to the [MIC/LINE 1] jack.
2[INPUT 1 GAIN] knob
Adjusts the input signal level of the [MIC/LINE 1] jack.
3[MIC/LINE 2] jack
For connection to a microphone, digital instrument,
electric guitar, or electric bass. This jack can be
connected to both XLR-type and phone-type (balanced/
unbalanced) plugs.
NOTE
The phantom power will be supplied to the XLR jack connected
to the [MIC/LINE 2] jack.
4[INPUT 2 GAIN] knob
Adjusts the input signal level of the [MIC/LINE 2] jack.
5[PEAK] indicator
Lights up according to the input signal. Lights up when
the input signal is 3 dB below the clipping level.
6[+48V] indicator
Lights up when the [+48V] switch (phantom power) is
turned on.
7[USB] indicator
Lights up when the power is turned on and the unit is
communicating with the computer or iOS device. The
indicator flashes continuously when the computer or iOS
device does not recognize the device.
8[INPUT 2 HI-Z] switch
Switches the input impedance (on O/off N). Turn this
switch on when connecting high impedance instruments,
such as an electric guitar or electric bass, directly to the
[MIC/LINE 2] jack. When you turn this switch on, use an
unbalanced phone plug for connection between the
instruments and the [MIC/LINE 2] jack.
NOTICE
Do not connect or disconnect any cables while turning on the
[INPUT 2 HI-Z] switch. Doing so can damage the connected
device and/or the unit itself.
NOTE
• If you use a balanced phone plug, the device will not work
correctly.
• When the HI-Z switch is turned on, the signal from the XLR-
type is cut off.
9[MONO] switch
When this switch is on, the input to the [MIC/LINE 1/2]
jacks is output to both the [MAIN OUT L/R] jacks and the
L/R channel of the [PHONES] jack. When the switch is off,
the input to the [MIC/LINE 1] jacks is output to the [MAIN
OUT L] jack and the input to the [MIC/LINE 2] jacks is
output to the [MAIN OUT R] jack.
For the [PHONES] jack, the input to the [MIC/LINE 1]
jacks is output to the L channel and the input to the [MIC/
LINE 2] jacks is output to the R channel.
! #
$
1 32 4 8
65 5 7 ) @9
Plug types
Setting optimum recording levels
Adjust the [INPUT GAIN] knobs so that the [PEAK]
indicator flashes briefly at the loudest input volume.
XLR-type (balanced)
Phone-type (balanced)
Phone-type (unbalanced)
CAUTION
To protect your speaker system, leave the
monitor speakers turned off when turning the
[INPUT 2 HI-Z] switch on/off. It’s also a good idea
to turn all output level controls down to their
minimum. Neglect of these precautions may
result in loud noise bursts that may damage
your equipment, your ears, or both.
