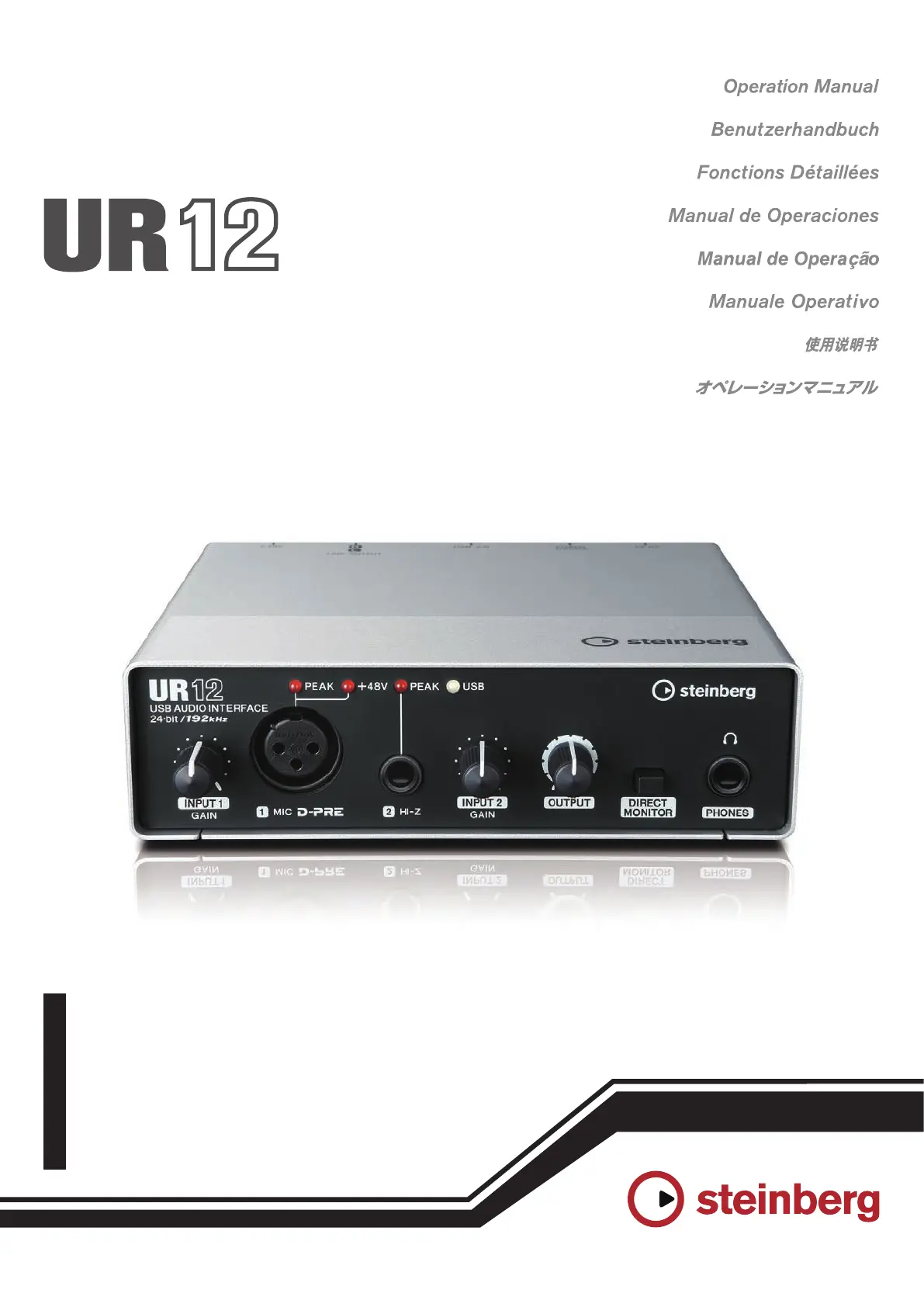

USB AUDIO INTERFACE
ZH
PT
UR12 Operation Manual 2
Contents
Message from
the Development Team..........................2
Panel Controls and Terminals ..............3
Front Panel ................................................... 3
Rear Panel .................................................... 4
Software........................................................ 6
Using the UR12.......................................9
Connection Examples ................................... 9
Configuring Audio Driver Settings
on the DAW Software ................................. 10
Recording/Playback .................................... 10
Troubleshooting...................................13
Appendix............. ........15..........................
Block Diagrams........................................... 15
Message from the
Development Team
Thank you for choosing the UR12 USB audio interface.
The UR12 is the most basic model in the popular and
extensive UR series. The UR12 features a solid body and
design, and is the result of a never-ending flow of
development ideas that fulfill the UR series' commitment to
audio quality—all in a compact package that has only
those components that are absolutely necessary for basic
music production.
The input routing is extremely simple, with a single mic
preamp and a single HI-Z input jack. The mic preamp
features the same "D-PRE" specifications as more
advanced models in this series, for the same commitment
to audio quality. In order to achieve the perfect balance
between relaxed highs, dense mids, and a punchy low
end, each component was carefully selected to design a
basic model with a strong focus on sound quality.
The UR12 supports Windows, Mac, and iPad
environments, to meet your needs for easy music
production in a variety of situations with trademark UR-
series audio quality. A 5V DC port has been provided to
supply sufficient power to the UR12 when using it with an
iPad. You can connect a USB power adapter or USB
mobile battery to this port. A stable power supply allows
this audio interface to perform at its maximum potential.
This is one of the design decisions that allow you to
achieve high-quality music production with the UR12 in a
variety of environments.
There have been significant changes in music production
environments recently. The UR12 has been designed with
those changes in mind, and we hope that the UR12 helps
more people enjoy music production, with greater ease of
use and optimum audio quality, in a variety of situations
and environments—so that you can fulfill your musical
hopes and dreams.
The Steinberg Hardware
Development Team
Panel Controls and Terminals
UR12 Operation Manual 3
Panel Controls and Terminals
Front Panel
1[INPUT 1 GAIN] knob
Adjusts the input signal level of the [MIC] jack.
2[MIC] jack
For connecting a microphone.
3[PEAK] indicator
Lights up when the input signal is 3dB below the
clipping level.
4[+48V] indicator
Lights up when the [+48V] switch (phantom power) is
turned on. The [+48V] switch is on the rear panel.
5[HI-Z] jack
For connecting instruments with a high output
impedance, such as electric guitars and basses. Use a
phone-type (unbalanced) cable for connection.
6[USB] indicator
Lights up when the power is turned on. If the computer
or iPad does not recognize the device, this flashes
continuously.
7[INPUT 2 GAIN] knob
Adjusts the input signal level of the [HI-Z] jack.
8[OUTPUT] knob
Adjusts the output signal level of the [PHONES] and
[LINE OUTPUT] jacks. The output signal level of the
[PHONES] and [LINE OUTPUT] jacks are adjusted
simultaneously.
NOTE
When using headphones, turn down the volume of the amp
or monitor speakers that are connected to the [LINE
OUTPUT] jack before adjusting this knob.
9[DIRECT MONITOR] switch
Turns the DIRECT MONITOR function on (O) or off (N).
When the DIRECT MONITOR function is turned on, the
audio signal sent from the computer and the audio
signal input from the [MIC]/[HI-Z] jacks are output
directly to the [PHONES]/[LINE OUTPUT] jacks.
)[PHONES ] jack
For connecting a set of headphones.
HINT
Setting optimum recording levels
Adjust the gain knobs so that the [PEAK] indicator
flashes briefly at the loudest input volume.
HINT
Using this switch
To monitor audio from the input jacks via the DAW
software (for example, when you also want to hear the
software effects), turn this switch off. If the software
latency bothers you, or if you always want to monitor the
input signal, turn this switch on.
