Quick-start guide

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

For the latest information, technical specications, and support for

this product, please visit www.startech.com/HB30C3AGEPD

Package Contents

1 x USB hub

1 x quick-start guide

Requirements

• A laptop computer equipped with USB-C.

• A USB-C power adapter such as your laptop’s USB-C based power

adapter.

• Up to three USB peripheral devices with cabling.

• A network gateway such as a router or switch.

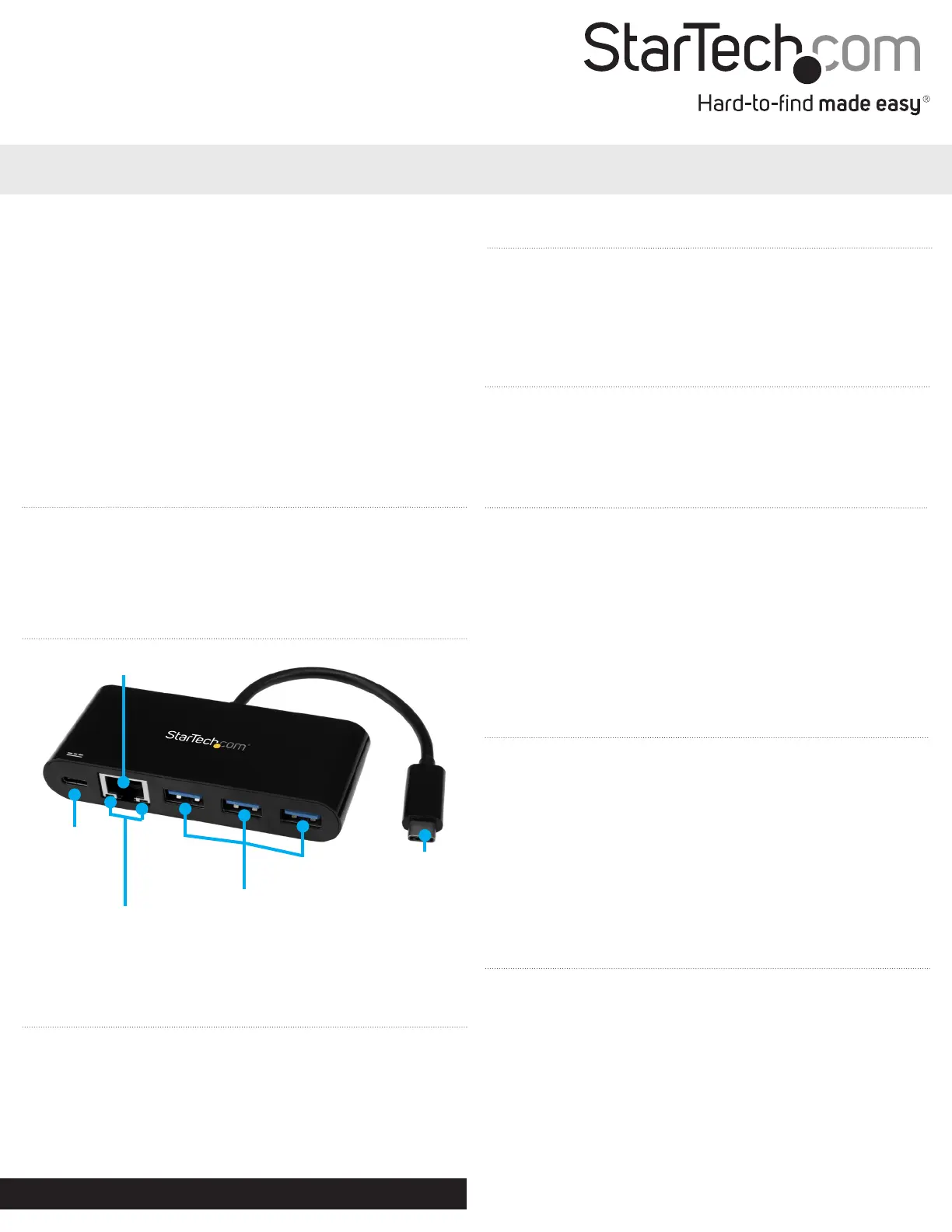

HB30C3AGEPD

3-Port USB 3.0 Hub plus Gigabit Ethernet and Power Delivery - USB-C

*actual product may vary from photos

USB Type-A hub ports

Integrated

USB Type-C host cable

USB Type-C

charge port

10/100/1000 Ethernet port

Introduction

This USB 3.0 hub with built-in Gigabit Ethernet turns your laptop’s

USB-C™ port into three USB-A ports and one GbE port. Unlike some

USB-C™ hubs that occupy your laptop’s only USB-C port, this USB

hub features USB Power Delivery, enabling you to power and charge

your laptop while you’re using the hub.

Product diagram

About USB 3.0 and USB 3.1 Gen 1

USB 3.0 is also known as USB 3.1 Gen 1. This connectivity standard

oers speeds up to 5Gbps. Any mention of USB 3.0 in this manual

or on the StarTech.com website refers to the 5Gbps USB 3.1 Gen 1

standard.

About USB Power Delivery 2.0

• USB Power Delivery 2.0 is a specication that allows power (up to

100 watts) to be sent over a USB-C or Thunderbolt™ 3 cable that

supports the specication.

• This hub supports USB Power Delivery 2.0 and will deliver up to 60

watts of power through the USB-C or Thunderbolt 3 port on your

laptop.

• The adapter can connect to a host laptop’s USB-C port that doesn’t

support USB Power Delivery 2.0. However, in this conguration if

a power adapter is connected to the multifunction adapter, it will

not pass power through to your host laptop.

Manual Revision: 03/14/2017

About USB-C

• Not all USB-C ports support the full functionality of the USB

Type-C standard. Some ports might only provide data transfers,

and might not support USB Power Delivery 2.0.

• To power and charge your laptop through its USB-C host port,

ensure that your host laptop supports USB Power Delivery 2.0.

• If your laptop does not support USB Power Delivery, then the hub

will be powered by your laptop’s host USB-C port.

• Thunderbolt 3 also uses the USB-C connector, so you can connect

the adapter to a Thunderbolt 3 port. The adapter will connect to

the Thunderbolt 3 port at the USB speed of 5Gbps.

About the hub’s USB Type-C charge port

• The hub’s USB Type-C charge port only supports USB Power

Delivery 2.0.

• The USB Type-C charge port cannot be used for data or video

throughput.

• You can only connect a USB-C power adapter to the USB Type-C

charge port.

Connection and

activity LEDs
