Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: June 1, 2023 1:18 PM

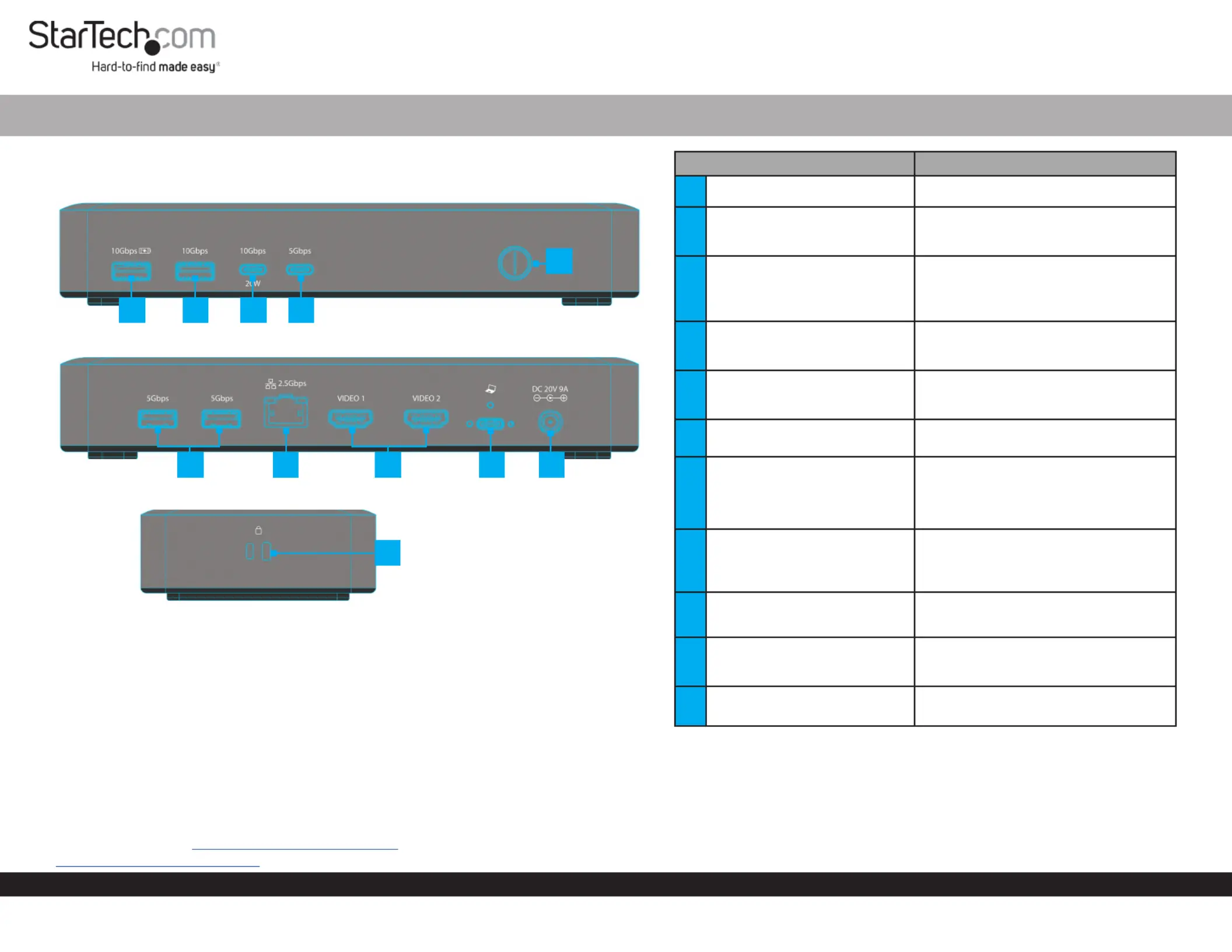

Product Diagram (Side A)
USB4 Docking Station - Dual 4K 60Hz HDMI, 6-Port USB Hub, 2.5GbE, 100W PD
1
679
2
(Side B)
Product ID
155NA-USB4-DOCK / 155UE-USB4-DOCK
(Side C)
Component Function
1Power Button ‱ Press and Release to Toggle Power for the
Dock
2USB-C Data Port
‱ Connect a USB-C Peripheral
‱ USB 3.2 Gen 1 (5Gbps)
‱ Supports up to 7.5W(5V/1.5A) of Power
3USB-C Data/Power Port
‱ Connect a USB-C Peripheral
‱ USB 3.2 Gen 2 (10 Gbps)
‱ Power Delivery 3.0
4USB-A Data Port
‱ Connect a USB-A Peripheral
‱ USB 3.2 Gen 2 (10 Gbps)
‱ Supports up to 4.5W (5V/0.5A) of Power
5USB-A Data/Charge Port
‱ Connect and/or Charge a USB-A Peripheral
‱ USB 3.2 Gen 2 (10 Gbps)
‱ Supports 7.5W BC 1.2 Charging (5V/1.5A)
6DC 20V Port ‱ Connect the Dock to a Power Source, using
the Universal Power Adapter
7USB4 Host Port
(Screw-Locking, USB Type-C)
‱ Connect to a USB-C Port on a Host Computer
‱ USB4 (40 Gbps)
‱ Power Delivery 3.0 Specication
‱ Capability of charging the Host Computer
up to 100W
82x HDMI Video Ports
‱ Connect HDMI Displays
‱ HDMI 2.1
‱ Up to 8K (7680x4320) 60Hz
‱ Via DisplayPort 1.4 Alt Mode
92.5 Gigabit Ethernet Port ‱ Connect the Dock to a Network Device,
using a Network Cable
‱ 2.5GBASE-T
10 2x USB-A Data Ports
‱ Connect USB-A Peripherals
‱ USB 3.2 Gen 1 (5 Gbps)
‱ Supports up to 4.5W (5V/0.9A) of Power
11 2x Lock Slots
(Standard & Nano)
‱ Connect a K-Slot Style Locking Device to
deter the theft of the Docking Station
Requirements
‱ Computer
‱ USB4 Port
‱ USB-C Port with DP Alt Mode
‱ This Dock can function with either a USB4 or USB-C host port. For
maximum performance a USB4 port is recommended. Video support
and performance, such as resolution, and refresh rate depend on the
host computer’s video controller. Please verify the specications of the
host computer.
For the latest drivers, manuals, product information, technical specications, and declarations of
conformance, please visit: www.StarTech.com/155NA-USB4-DOCK or
www.StarTech.com/155UE-USB4-DOCK
810
11
345
Package Contents
‱ USB-C Docking Station x 1
‱ 3 ft (1 m) USB4 Host Cable x 1
‱ Universal Power Adapter x 1
‱ Quick-Start Guide x 1
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-
party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only
and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which
this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered
trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the
property of their respective holders.
Warranty Information
This product is backed by a 3-year warranty.
For further information on product warranty terms and conditions, please refer to .
www.startech.com/warranty
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)
for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of
business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations
or exclusions contained in this statement may not apply to you.
FR: startech.com/fr
DE: startech.com/de
ES: startech.com/es
NL: startech.com/nl
IT: startech.com/it
JP: startech.com/jp
StarTech.com
Ltd.
45 Artisans Cres
London, Ontario
N5V 5E9
Canada
StarTech.com Ltd.
Unit B, Pinnacle 15
Gowerton Rd,
Brackmills,
Northampton
NN4 7BW
United Kingdom
StarTech.com LLP
4490 South Hamilton
Road
Groveport, Ohio
43125
U.S.A.
StarTech.com Ltd.
Siriusdreef 17-27
2132 WT Hoofddorp,
The Netherlands
Regulatory Compliance
FCC -- Part 15
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
‱ Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
‱ Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void
the user’s authority to operate the equipment.
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (B)/NMB-3(B)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may
cause undesired operation of the device.
Le prĂ©sent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioĂ©lectrique subi,
mĂȘme si le brouillage est susceptible d’en compromettre le fonctionnement.
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limit set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator and your body.
Installation
1. Connect the from an AC outlet, to the Power Adapter DC 20V Port on the Dock.
2. When connecting USB-A peripheral devices, connect a USB-A cable from the USB
peripheral devices to the and/or the USB-A Data Ports USB-A Data/Charge Port
on the Dock.
3. When connecting USB-C peripheral devices, connect a USB-C cable from the USB
peripheral devices to the and/or the USB-C Data Port USB-C Data/Charge Port
on the Dock.
4. When connecting a wired network, connect an RJ-45 terminated network cable
(CAT 5e or better) from the local area network (e.g. Router, Switch, Modem, etc.)
to the on the Dock.2.5 Gigabit Ethernet Port
5. When connecting up to two HDMI displays, connect an HDMI cable from each of
the HDMI displays to the on the Dock.HDMI Video Ports
6. Press the on the Dock, into the ON position.Power Button
7. Connect the included from a or USB4 Host Cable USB4 Port DP Alt Mode
Enabled USB-C Port Host Computer USB4 Host Port on the , to the on the Dock.
The will automatically detect and install the Dock.Host Computer
