Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: May 7, 2021 4:07 PM

USB-C™ Single Monitor Docking Station - DisplayPort or VGA - 3x USB-A / 1x USB-C - GbE - 65W PD

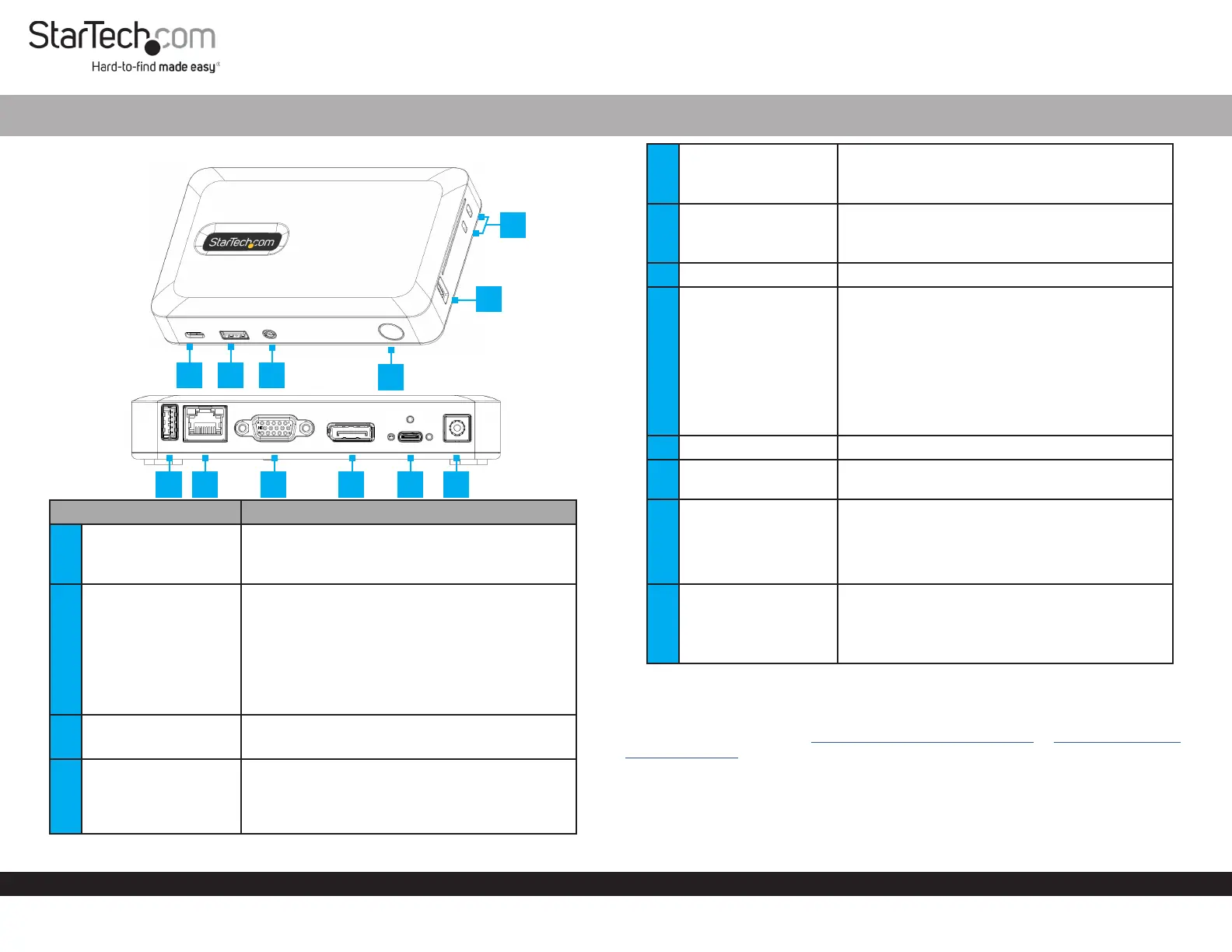

Product Diagram (DKM30CHDPD/ DKM30CHDPDUE)

Component Function

1USB-C Port

• SuperSpeed USB 5Gbps (USB 3.2 Gen 1)

• Connect a to the USB-C Peripheral Device

USB-C Docking Station

2USB-A Battery

Charging Port

• SuperSpeed USB 5Gbps (USB 3.2 Gen 1)

• Supports up to 5V at 1.5A, 7.5W charging

• Connect a to the USB-A Peripheral Device

USB-C Docking Station

• Fast-charge USB Peripheral Devices

that comply with USB Battery Charging

specication Revision 1.2

33.5mm Audio Port • 4 Position Audio Jack Headset for use

• Connect an Audio Device

4Power Button

• Power the on and oUSB-C Docking Station

• Integrated LED Indicator is illuminated white

when the is powered USB-C Docking Station

5USB-A Port x 2

• SuperSpeed USB 5Gbps (USB 3.2 Gen 1)

• Connect to the USB-A Peripheral Devices

USB-C Docking Station

6Lock/Nano Lock Slots

• Connect a K-Slot or Nano K-Slot Style

Locking Device

• Deter theft of the USB-C Docking Station

7RJ45 Port • Connect a Network Device

8RJ45 LEDs (above the

RJ45 Port)

• Left (Link Speed) LED:

• Amber = 1Gb

• Green = 100Mb

• None = 10Mb

• Right (Link State) LED:

• Solid Green = Link Detected

• Flashing Green = Network Activity

9VGA Port • Connect a VGA Enabled Display Device

10 DisplayPort Port • Connect a DisplayPort Enabled Display

Device

11 USB-C Host Port

• SuperSpeed USB 5Gbps (USB 3.2 Gen 1)

• Power Delivery 3.0 Specication

• Connect a , using the Host Laptop Locking

USB-C Host Cable

12 DC Power Input Port

• Connect the Universal Power Adapter to

supply power to the USB-C Docking Station

• Type-N barrel connector

• 19.5V 6.15A

Product Infomation

For the latest product information, technical specications, manuals, and Declarations

of Conformance please visit: or www.startech.com/DKM30CHDPD www.startech.com/

DKM30CHDPDUE

123 4

5 7/8 9 10 11 12

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void

the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

Warranty Information

This product is backed by a three-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

Safety Measures

• Cables (including power and charging cables) should be placed and routed to avoid creating electric, tripping or safety

hazards.

Mesures de sécurité

• Les câbles (y compris les câbles d’alimentation et de chargement) doivent être placés et acheminés de façon à éviter tout

risque électrique, de chute ou de sécurité

安全対策

• ケーブル（電源ケーブルと充電ケーブルを含む）は、適切な配置と引き回しを行い、電気障害やつまづきの危険性

など、安全上のリスクを回避するようにしてください。

Misure di sicurezza

• I cavi (inclusi i cavi di alimentazione e di ricarica) devono essere posizionati e stesi in modo da evitare pericoli di inciampo,

rischi di scosse elettriche o pericoli per la sicurezza.

Säkerhetsåtgärder

• Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra

olyckor kan undvikas.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Crescent

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Road

Brackmills,

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

Connect Peripherals

1. Connect an to the on the Audio Device 3.5 mm Audio Port USB-C Docking

Station.

2. (Optional) Connect a or other to theUSB-A Storage Device USB-A Peripheral

USB-A Ports USB-C Docking Stationon the front, side and/or rear of the . Connect

up to 3 total .USB-A Devices

3. Connect a to the , using a Network Device USB-C Docking Station Cat5e/6

Network Cable.

Power the Docking Station

1. Select the appropriate regional and connect it to the Power Cord Universal Power

Adapter.

2. Connect the to the on the rear of the Universal Power Adapter DC 19.5V Port

USB-C Docking Station AC Electrical Outlet and to an .

3. (Optional) Press and release the to power the Power Button USB-C Docking

Station USB-C Docking Station o and on. The will be powered on by default

when the is rst connected. Universal Power Adapter

(Optional) Mounting

• To install a (sold separately), fasten the Mounting Bracket Mounting Bracket

to the , using the appropriate . The length USB-C Docking Station Screws Screw

should equal the thickness of the plus 2-4 mm.Mounting Bracket

Package Contents

• USB-C Dock x 1

• Locking USB-C Host Cable x 1

• (DKM30CHDPD) Universal Power Adapter (NA/JP, ANZ) x 1

• (DKM30CHDPDUE) Universal Power Adapter (UK, EU x 1)

• Quick-Start Guide x 1

Installation

Install Drivers

• Drivers will automatically install with an internet connection on Windows 10, macOS,

ChromeOS, and Ubuntu. If drivers do not auto-install, please visit www.StarTech.

com/DKM30CHDPD www.StarTech.com/DKM30CHDPDUE or to download the latest

drivers.

Connect a Host

• Connect the (included) to the on Locking USB-C Cable Locking USB-C Host Port

the rear of the and to a on the .USB-C Docking Station USB Port-C Host Laptop

Connect the Display Devices

• Connect a to the on the rear DisplayPort Enabled Display Device DisplayPort Port

of the using a .USB-C Docking Station DisplayPort Cable

--or--

• Connect a to the on the rear of the VGA Enabled Display Device VGA Port USB-C

Docking Station VGA Cableusing a .

• NOTE - will be disabled when a is VGA Port DisplayPort Enabled Display Device

connected to the .USB-C Docking Station
