Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical wings, and more, visit www.startech.com/support.

Manual Revision: October 11, 2023 9:32 AM

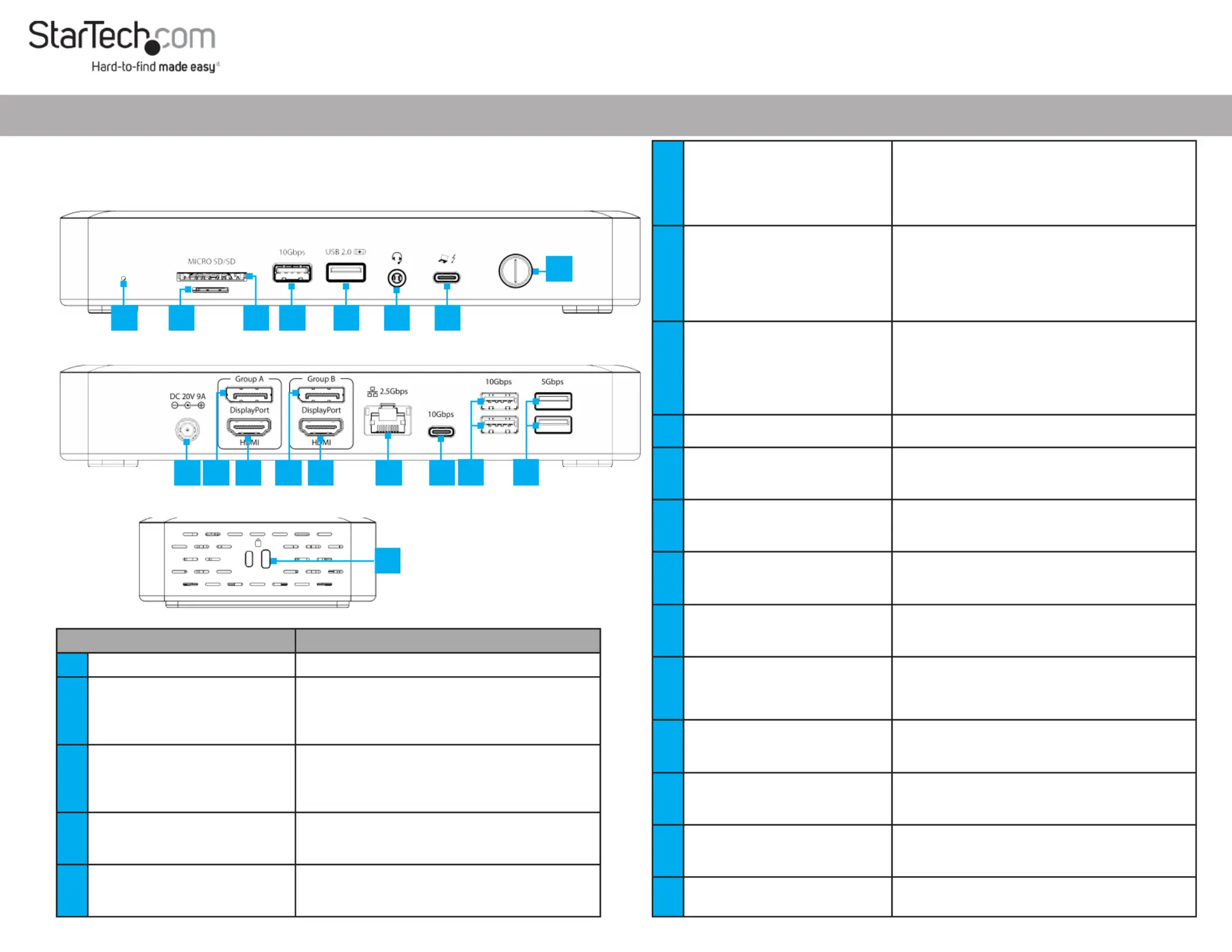

Product Diagram (Side A)

Thunderbolt 4/USB4 Dock, Quad Display, 7x USB, 2.5GbE, 98W Power Delivery

(Side B)

Product ID

132N-TB4USB4DOCK / 132UE-TB4USB4DOCK

(Side C)

Component Function

1Power Button • Press and Release to Toggle Power for the Dock

2Thunderbolt 4 Host Port

(USB Type-C)

• Connect to a Thunderbolt 4 Port on a Host Computer

• Thunderbolt 3/USB4 (40 Gbps)

• Power Delivery 3.0 Specication

• Capability of charging the Host Computer up to 98W

33.5mm Headset Jack

• Connect a 3.5mm Audio Device

• 4-Position CTIA

• Mono Audio Input

• Stereo Audio Output

4USB-A Data/Charge Port

• Connect and/or Charge a USB-A Peripheral

• USB 2.0 (480Mbps)

• Supports 7.5W BC 1.2 Charging (5V/1.5A)

5USB-A Data Port

• Connect a USB-A Peripheral

• USB 3.2 Gen 2 (10 Gbps)

• Supports 4.5W of Power (5V/0.9A)

129

10 16

6SD Card Reader

• Secure Digital (SD) 4.0 UHS-II, SD 3.0, 2.0, 1.1, and 1.0

compatibility

• Push an SD Card, label side up, into the SD Card Slot

• Note: The Host Computer’s Operating System (OS)

will automatically detect the SD Card and install the

required driver software

7MicroSD Card Reader

• Micro Secure Digital (microSD) 4.0 UHS-II, microSD

3.0, 2.0, 1.1, and 1.0 compatibility

• Push a microSD Card, label side down, into the

microSD Card Slot

• Note: The Host Computer’s Operating System (OS)

will automatically detect the SD Card and install the

required driver software

8Status LED

• Illuminates Green, When the Dock is Connected to a

Host Computer

• Illuminates White, When the Dock is Not Connected

to a Host Computer

• Does Not Illuminate, When the Dock is Turned O

9DC 20V Port • Connect the Dock to a Power Source, using the

Universal Power Adapter

10 DisplayPort Port

(Group A)

• Connect a DisplayPort Display as Video Output #1

• DisplayPort 1.4

• Resolutions up to 7680 x 4320 60Hz

11 HDMI Port

(Group A)

• Connect an HDMI Display as Video Output #2

• HDMI 2.1

• Resolutions up to 7680 x 4320 60Hz

12 DisplayPort Port

(Group B)

• Connect a DisplayPort Display as Video Output #3

• DisplayPort 1.4

• Resolutions up to 7680 x 4320 60Hz

13 HDMI Port

(Group B)

• Connect an HDMI Display as Video Output #4

• HDMI 2.1

• Resolutions up to 7680 x 4320 60Hz

14 2.5 Gigabit Ethernet Port

• Connect the Dock to a Network Device, using a

Network Cable

• 2.5GBASE-T / 1000BASE-T / 100BASE-T / 10BASE-T

• 2.5Gbps/1000Mbps/100Mbps/10Mbps

15 USB-C Data Port

• Connect a USB-C Peripheral

• USB 3.2 Gen 2 (10 Gbps)

• Supports 4.5W of Power (5V/0.9A)

16 2x USB-A Data Ports

• Connect USB-A Peripherals

• USB 3.2 Gen 2 (10 Gbps)

• Supports 4.5W of Power (5V/0.9A)

17 2x USB-A Data Ports

• Connect USB-A Peripherals

• USB 3.2 Gen 1 (5 Gbps)

• Supports 4.5W of Power (5V/0.9A)

18 2x Lock Slots

(Standard & Nano)

• Connect a K-Slot Style Locking Device to deter the

theft of the Docking Station

567

Regulatory Compliance

FCC - Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could

void the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two

conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique

subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Warranty Information

This product is backed by a three-year warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss

of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the

product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the

limitations or exclusions contained in this statement may not apply to you.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com

Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

Installation

1. Connect the from an AC outlet, to the Power Adapter DC 20V Port on the dock.

2. When connecting USB-A peripheral devices, connect a USB-A cable from the USB

peripheral devices to the and/or the on USB-A Data Ports USB-A Data/Charge Port

the Dock.

3. When connecting USB-C peripheral devices, connect a USB-C cable from the USB

peripheral devices to the on the Dock.USB-C Data Port

4. When connecting a wired network, connect an RJ-45 terminated network cable

(CAT 5e or better) from the local area network (e.g. Router, Switch, Modem, etc.)

to the on the Dock (CAT 6 or better recommended for 2.5 Gigabit Ethernet Port

2.5Gb speeds).

5. Connect a DisplayPort monitor to the on the dock DisplayPort Port (Group A)

using a DisplayPort cable (sold separately).

6. Connect an HDMI monitor to the on the dock using an HDMI Port (Group A)

HDMI cable (sold separately).

7. Connect a DisplayPort monitor to the on the dock DisplayPort Port (Group B)

using a DisplayPort cable (sold separately).

8. Connect an HDMI monitor to the on the dock using an HDMI Port (Group B)

HDMI cable (sold separately).

9. Connect the included from a Thunderbolt 4 Host Cable Thunderbolt 4 Port

on the , to the on the Dock. The Host Computer Thunderbolt 4 Host Port Host

Computer will automatically detect and install the Dock.

10. Insert a memory card into the on the Dock. The Dock will microSD Card Reader

recognize the card and mount it as a drive. To remove the memory card, push the

card in and then pull the memory card out.

11. Insert a memory card into the on the Dock. The Host Computer SD Card Reader

will recognize the card and mount it as a drive. To remove the memory card, pull

the memory card out.

Note: To protect the memory card and the data stored on it, it’s important to

safely unmount (eject) the card within the Host Computer operating system,

before physically removing the card from the Dock.

Package Contents

• Thunderbolt 4/USB4 Docking Station x 1

• 3ft (1m) Thunderbolt 4 Host Cable x 1

• Universal Power Adapter x 1

• Quick-Start Guide x 1

Requirements

• Computer

• Thunderbolt 4

• Thunderbolt 3 (Intel or M1 based Mac’s)

• USB-C Port With DP Alt Mode

• This Dock can function with Thunderbolt 4, USB4 or USB-C host ports. For

maximum performance a Thunderbolt 4 or USB4 port is recommended.

• Video support and performance, such as resolution and refresh rate, depend on

the host computer and the performance of the video card or USB4 port.

Notes:

• DisplayPort Video Output ports do not support the use of passive DisplayPort

Adapters.

For the latest drivers, manuals, product information, technical specications, and declarations of conformance,

please visit: www.StarTech.com/132N-TB4USB4DOCK or

www.StarTech.com/132UE-TB4USB4DOCK
